Amazon Redshift Connector 1.1 の例

<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
	  xmlns:file="http://www.mulesoft.org/schema/mule/file"
	  xmlns:s3="http://www.mulesoft.org/schema/mule/s3"
	  xmlns:redshift="http://www.mulesoft.org/schema/mule/redshift"
	  xmlns:http="http://www.mulesoft.org/schema/mule/http"
	  xmlns="http://www.mulesoft.org/schema/mule/core"
	  xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
	  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	  xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/redshift http://www.mulesoft.org/schema/mule/redshift/current/mule-redshift.xsd
http://www.mulesoft.org/schema/mule/s3 http://www.mulesoft.org/schema/mule/s3/current/mule-s3.xsd
http://www.mulesoft.org/schema/mule/file http://www.mulesoft.org/schema/mule/file/current/mule-file.xsd
http://www.mulesoft.org/schema/mule/ee/core http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd">

	<http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config" basePath="/">
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>

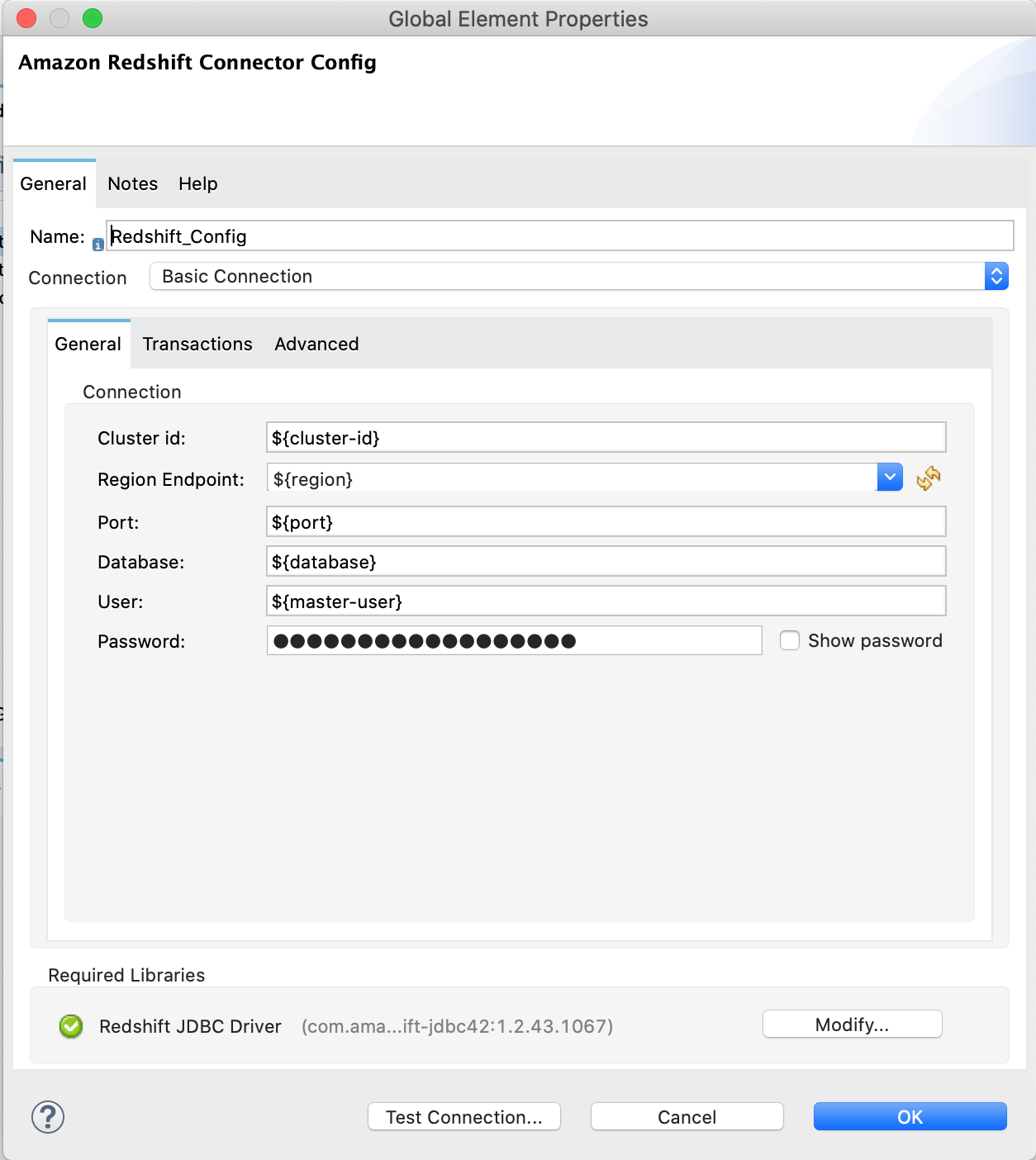

	<redshift:config name="Amazon_Redshift_Connector_Config" doc:name="Amazon Redshift Connector Config">
		<redshift:basic-connection
				clusterId="${redshift.cluster_id}"
				database="${redshift.database}"
				user="${redshift.user}"
				password="${redshift.password}"
				region="${redshift.region}"
				port="${redshift.port}"
		/>
	</redshift:config>

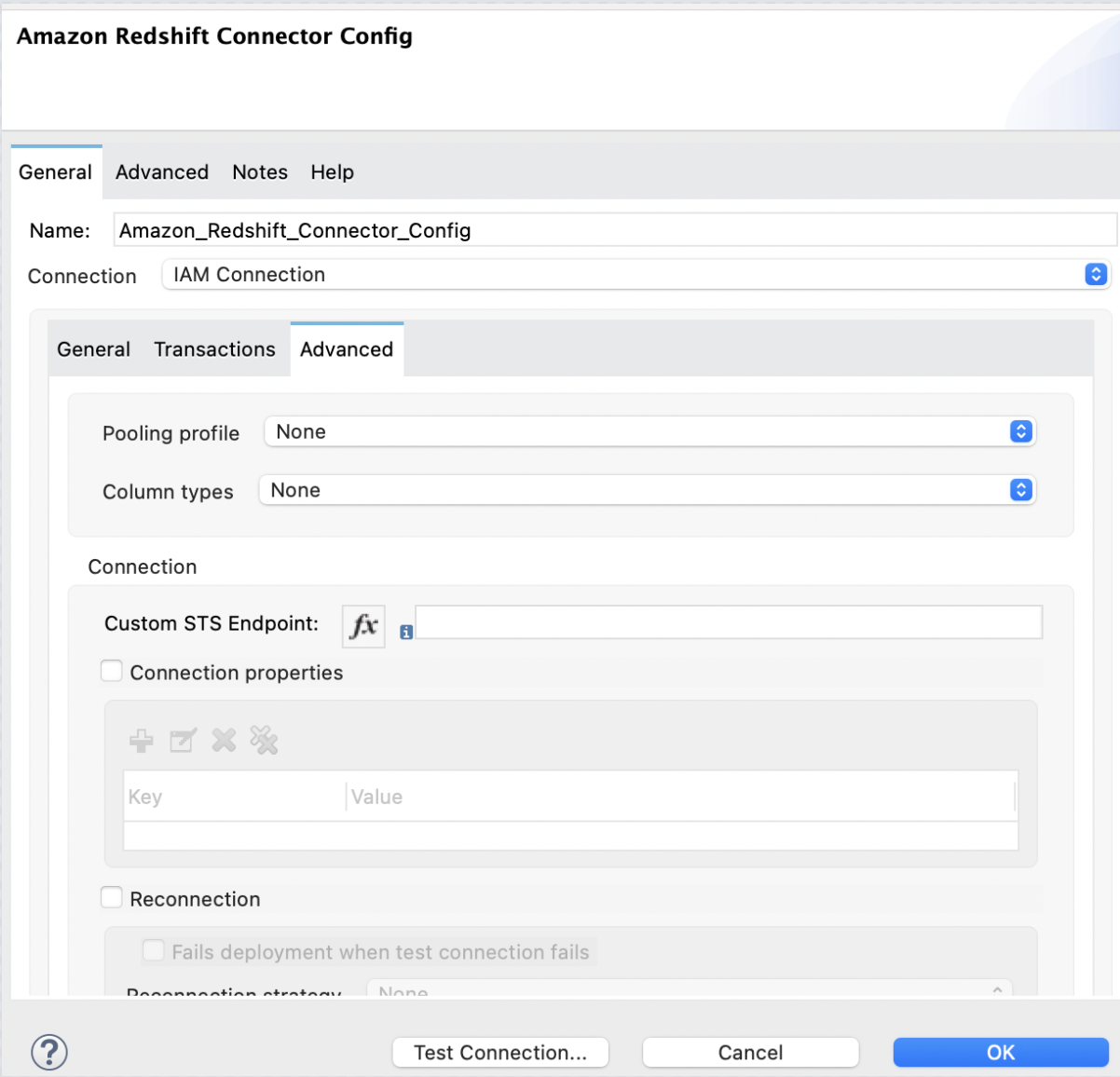

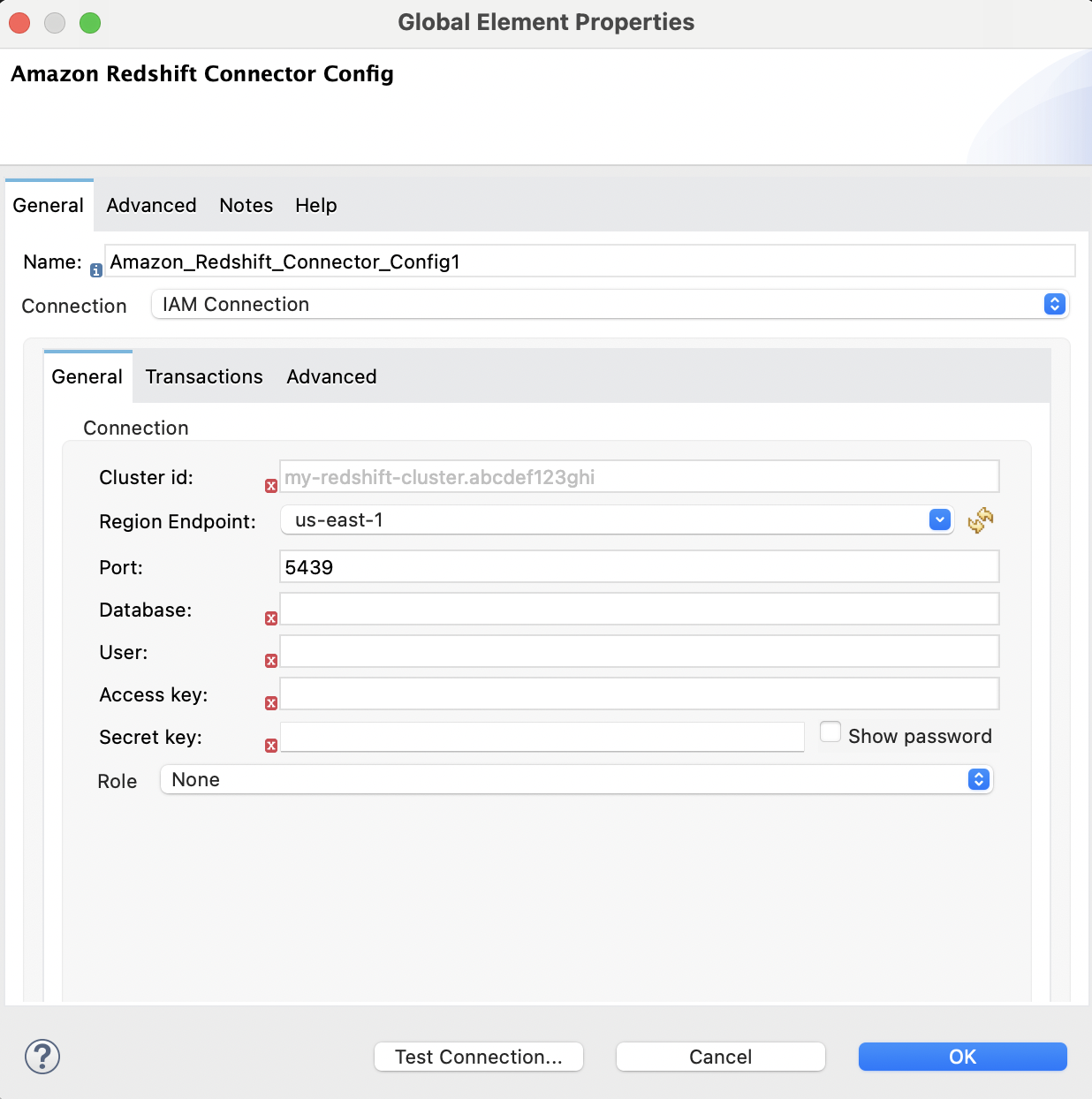

     <redshift:config name="Amazon_Redshift_Connector_Config_Fips" doc:name="Amazon Redshift Connector Config Fips">
		<redshift:iam-connection
                clusterId="${redshift.cluster_id}"
                database="${redshift.database}"
                user="${redshift.user}"
                accessKey="${redshift.password}"
                secretKey="${redshift.secret_key}" customStsEndpoint="${redshift.fips.sts}">
            <redshift:role arn="${redshift.role_arn}" />
		</redshift:iam-connection>
	</redshift:config>

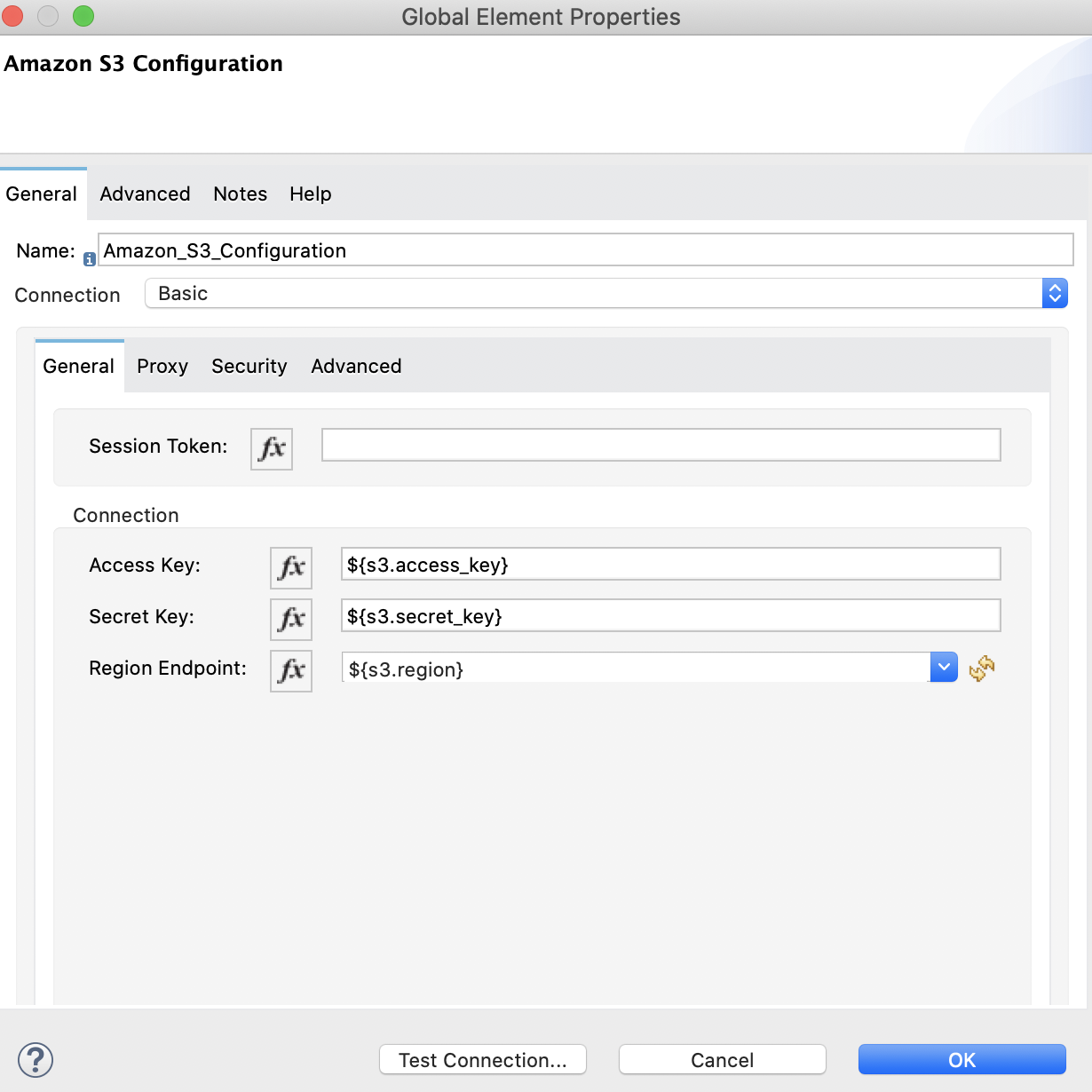

	<s3:config name="Amazon_S3_Configuration" doc:name="Amazon S3 Configuration">
		<s3:basic-connection accessKey="${s3.access_key}" secretKey="${s3.secret_key}" region="${s3.region}"/>
	</s3:config>

	<file:config name="File_Config" doc:name="File Config">
		<file:connection workingDir="${mule.home}/apps/${app.name}/" />
	</file:config>

	<configuration-properties doc:name="Configuration properties" file="mule-artifact.properties" />

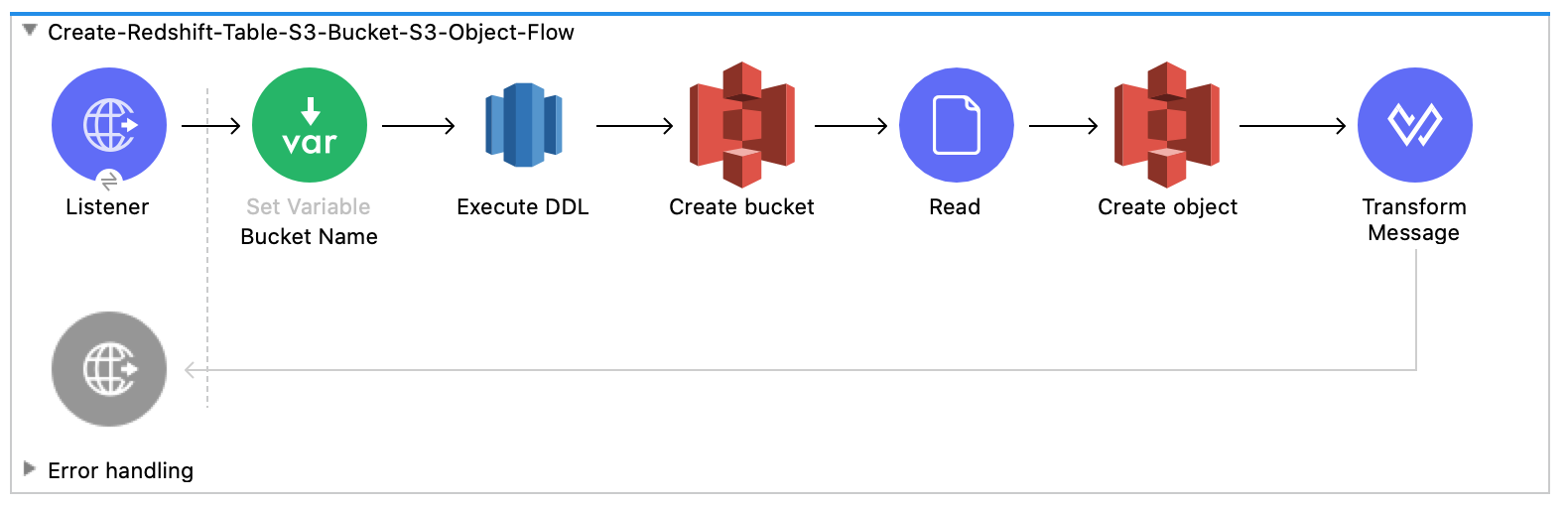

	<flow name="Create-Redshift-Table-S3-Bucket-S3-Object-Flow">
		<http:listener doc:name="Listener" config-ref="HTTP_Listener_config" path="/init"/>
		<set-variable value="username-bucket" doc:name="Bucket Name" variableName="bucket" />
		<redshift:execute-ddl doc:name="Execute DDL" config-ref="Amazon_Redshift_Connector_Config">
			<redshift:sql ><![CDATA[CREATE TABLE username (Username VARCHAR(50), Identifier INTEGER, First_Name VARCHAR(50), Last_Name VARCHAR(50));]]></redshift:sql>
		</redshift:execute-ddl>
		<s3:create-bucket doc:name="Create bucket" config-ref="Amazon_S3_Configuration" bucketName="#[vars.bucket]"/>
		<file:read doc:name="Read" config-ref="File_Config" path="username.csv"/>
		<s3:create-object doc:name="Create object" config-ref="Amazon_S3_Configuration" bucketName="#[vars.bucket]" key="username.csv" contentType="text/csv"/>
		<ee:transform doc:name="Transform Message">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
{
	success: true,
	redshiftTable: "username",
	s3bucket: vars.bucket,
	s3object: "username.csv"
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
	</flow>

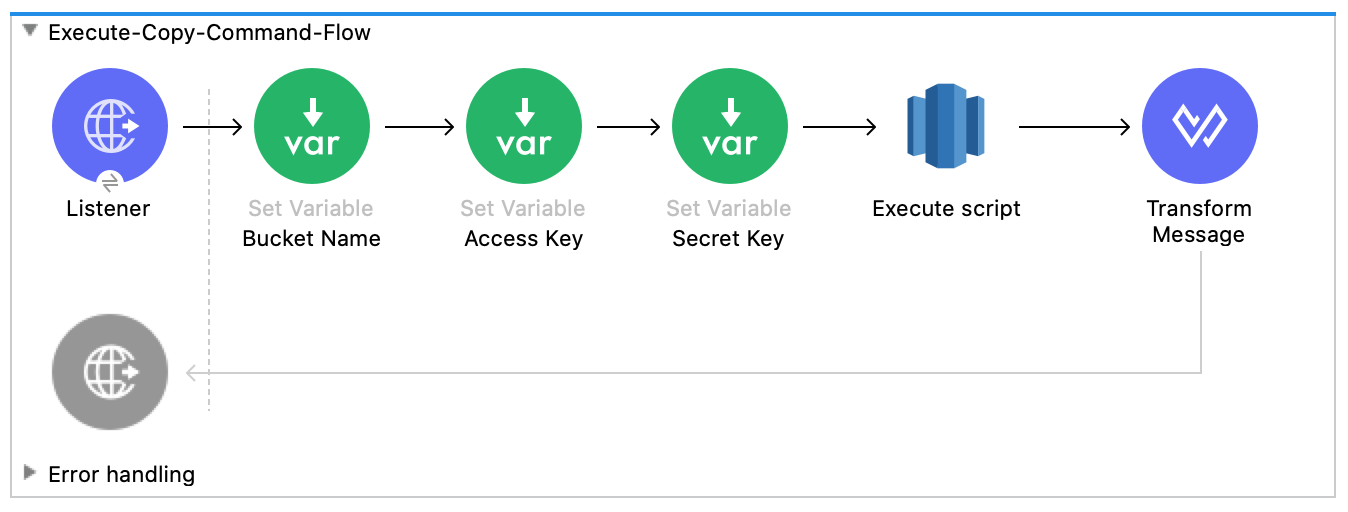

	<flow name="Execute-Copy-Command-Flow">
		<http:listener doc:name="Listener" config-ref="HTTP_Listener_config" path="/execute"/>
		<set-variable value="#['s3://username-bucket/username.csv']" doc:name="Bucket Name" variableName="bucketNameEndpoint"/>
		<set-variable value="${copy.access_key}" doc:name="Access Key" variableName="access_key"/>
		<set-variable value="${copy.secret_key}" doc:name="Secret Key" variableName="secret_key"/>
		<redshift:execute-script doc:name="Execute script" config-ref="Amazon_Redshift_Connector_Config">
			<redshift:sql ><![CDATA[#["copy username from " ++ "'" ++ vars.bucketNameEndpoint ++ "'" ++ " access_key_id " ++ "'" ++ vars.access_key ++ "'" ++ " secret_access_key " ++ "'" ++ vars.secret_key ++ "'" ++ " delimiter ';' IGNOREHEADER 1 IGNOREBLANKLINES"]]]></redshift:sql>
		</redshift:execute-script>
		<ee:transform doc:name="Transform Message">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
{
	"success": true
}
]]></ee:set-payload>
			</ee:message>
		</ee:transform>
	</flow>

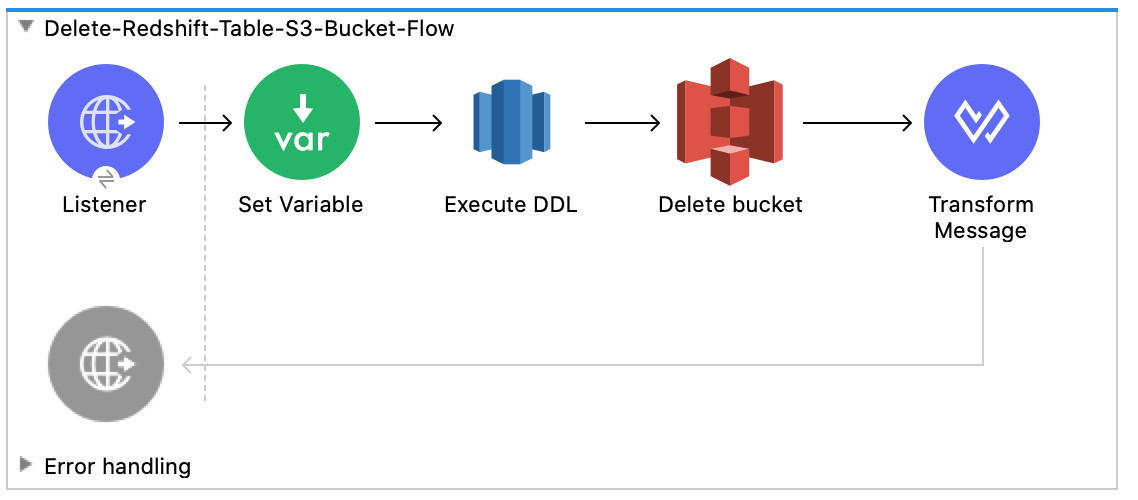

	<flow name="Delete-Redshift-Table-S3-Bucket-Flow">
		<http:listener doc:name="Listener" config-ref="HTTP_Listener_config" path="/deleteAll"/>
		<set-variable value="username-bucket" doc:name="Set Variable" variableName="bucketDelete"/>
		<redshift:execute-ddl doc:name="Execute DDL" config-ref="Amazon_Redshift_Connector_Config">
			<redshift:sql ><![CDATA[DROP TABLE username;]]></redshift:sql>
		</redshift:execute-ddl>
		<s3:delete-bucket doc:name="Delete bucket" config-ref="Amazon_S3_Configuration" force="true" bucketName='#[vars.bucketDelete]'/>
		<ee:transform doc:name="Transform Message">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
{
	"success": true
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
	</flow>

    <flow name="redshiftFipsDemoFlow">
		<http:listener doc:name="Listener" config-ref="HTTP_Listener_config" path="/redshift"/>
		<redshift:select doc:name="Select" config-ref="Amazon_Redshift_Connector_Config_Fips">
			<redshift:sql ><![CDATA[select * from <your-tableName>]]></redshift:sql>
		</redshift:select>
		<ee:transform doc:name="Transform Message">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<logger level="INFO" doc:name="Logger"  message="#[payload]"/>
	</flow>
</mule>

Username; Identifier;First name;Last name
booker12;9012;Rachel;Booker
grey07;2070;Laura;Grey
johnson81;4081;Craig;Johnson
jenkins46;9346;Mary;Jenkins
smith79;5079;Jamie;Smith
