MDP Apply Pivot Transformers

The pivot transformer can transform values from selected columns into new individual columns, which then contain aggregated values for the measurements.

1. Navigate to the Import tab.
2. Expand Data Streams List.
3. Create a data stream, or edit an existing one.
4. In the Preview Source screen, click Edit Transformers.
5. In the Add Transformers area, next to the Pivot Transformer, click the blue plus icon.

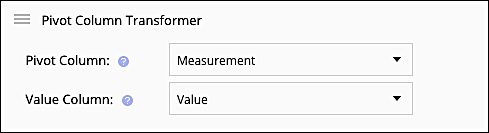

6. In the Pivot Column field, select the column that you want to serve as the X. You can only select one column.
7. In the Value Column field, select the column that you want to serve as the Y. You can only select one column.
8. Click Done.
