Apply Unnest Transformers in Marketing Cloud Intelligence

The unnest transformer enables you to transform concatenated values into separate rows. The measurement values linked to the nested row are duplicated to each new row. For example, If there are three values, comma-separated, and one field must be broken out into individual rows of data, this transformer creates individual rows for each value in that field.

Required Editions

User Permissions Needed
To apply transformers:	Admin

From the Connect & Mix tab, select Data Streams, and then Data Streams List.
Create a data stream, or edit an existing one.
In the Preview Source screen, click Edit Transformers.
In the Add Transformers area, next to the Unnest Transformer, click the blue plus icon.
In the Column field, select the column that you want to transform.
In the Delimiter field, enter the delimiter that is used in the selected column data to separate between the values to be unnested.
In the Unnest Column Name field, enter the name of the new column to be created in the file. The column specifies the number of values included in the nested row. If you want to divide the measurement values between the new rows, set a function in the mapping process that divides the measurement value by the number specified in this column.
To indicate which column that you want to initiate the process, select the By Column Index checkbox. (If necessary, you can apply multiple unnest transformers to the same column.)
Click Done.

Example of Unnest

Original file:

Day	Campaign Name	Campaign Key	media buy Key	Impressions	Clicks	Media Cost
3/5/2015	Camp1	8423517	mb1, mb4;mb5	500	50	2500
3/5/2015	Camp2	8423518	mb2, mb22, mb10;mb11	900	90	9000
3/6/2015	Camp3	8423519	mb3,mb6;mb7,mb8;mb9	1000	1000	1000

Unnest transformer:

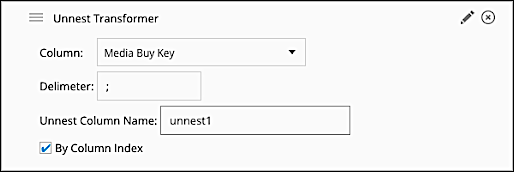

Showing details of unnest transformer on Media Buy Key

Result:

Day	Campaign Name	Campaign Key	media buy Key	unnest1	Impressions	Clicks	Media Cost
3/5/2015	Camp1	8423517	mb1, mb4	2	500	50	2500
3/5/2015	Camp1	8423517	mb5	2	500	50	2500
3/5/2015	Camp2	8423518	mb2, mb22, mb10	2	900	90	9000
3/5/2015	Camp2	8423518	mb11	2	900	90	9000
3/6/2015	Camp3	8423519	mb3,mb6	3	1000	1000	1000
3/6/2015	Camp3	8423519	mb7,mb8	3	1000	1000	1000
3/6/2015	Camp3	8423519	mb9	3	1000	1000	1000

If you want to divide the measurement values by the number of new rows, add a function to the measurement’s mapping. For example, for Impressions, use this formula: csv['Impressions']/csv['unnest 1']

You can further separate the values from the previous file by adding a second unnest transformer:

Unnest transformer details with delimiter is comma

Result:

Day	Campaign Name	Campaign Key	media buy Key	unnest1	unnest2	Impressions	Clicks	Media Cost
3/5/2015	Camp1	8423517	mb1	2	2	500	50	2500
3/5/2015	Camp1	8423517	mb4	2	2	500	50	2500
3/5/2015	Camp1	8423517	mb5	2	1	500	50	2500
3/5/2015	Camp2	8423518	mb2	2	3	900	90	9000
3/5/2015	Camp2	8423518	mb22	2	3	900	90	9000
3/5/2015	Camp2	8423518	mb10	2	3	900	90	9000
3/5/2015	Camp2	8423518	mb11	2	1	900	90	9000
3/6/2015	Camp3	8423519	mb3	3	2	1000	1000	1000
3/6/2015	Camp3	8423519	mb6	3	2	1000	1000	1000
3/6/2015	Camp3	8423519	mb7	3	2	1000	1000	1000
3/6/2015	Camp3	8423519	mb8	3	2	1000	1000	1000
3/6/2015	Camp3	8423519	mb9	3	1	1000	1000	1000

To divide the measurement’s values, you must add the unnest2 column to the formula, for example, for Impressions: csv['Impressions']/(csv['unnest1']*csv['unnest2'])
