Configure Crypto Settings for an eCDN Zone

Configure SSL/TLS and cryptography settings for a B2C Commerce eCDN zone, including Transport Layer Security (TLS) version and HTTP Strict Transport Security (HSTS), using the Configure Zone screen in Business Manager.

Which Salesforce Commerce Product Do I Have?

Use the Crypto tab to manage TLS, certificates, and HSTS for an eCDN zone.

Note If a tab doesn't fit on screen, it appears under a More dropdown on the right.

Note On SCAPI zones, the Crypto tab is read-only on the Production instance. The Certificates table is visible, but you can't change TLS 1.3, HSTS, or certificate settings. Salesforce manages certificates for SCAPI zones. The SCAPI zone doesn't appear in Business Manager or the CDN API on Development or Staging. See SCAPI Zone Support for B2C Commerce.

1. In Business Manager, click the App Launcher, and then select Administration | Sites | Embedded CDN Settings.
2. Locate the zone you want to configure and select Configure Zone from the dropdown menu.
3. Select the Crypto tab.

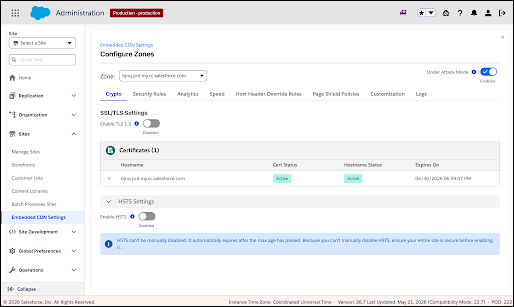

   Crypto tab — SSL/TLS settings and certificates



   Crypto tab — certificate detail expanded


4. In the SSL/TLS Settings section, set Enable TLS 1.3 on or off.

   TLS 1.3 is supported by all major browsers.



   Note If your zone has no custom certificates, you can't change the TLS 1.2 minimum requirement. If you click the toggle, a confirmation appears and the toggle reverts.

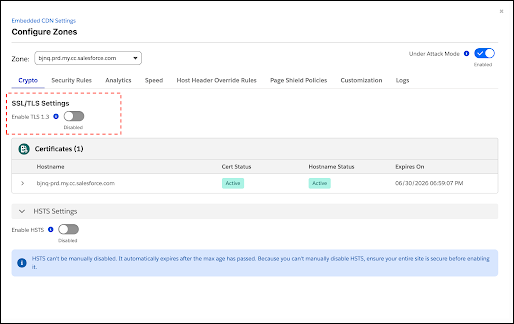

   TLS 1.3 setting in SSL/TLS Settings


5. Review certificates in the Certificates table.

   Column	What it shows
   Hostname	The hostname or wildcard covered by the certificate.
   Cert Status	Certificate state, such as Active, Active - Expires Soon, Pending, or Initializing.
   Hostname Status	Whether the hostname has been verified at the edge.
   Expires On	Certificate expiration date.

   The first 12 certificates are shown. Click View All to see the rest.

6. Manage certificates as needed.
   1. To add a certificate, click New Certificate and follow the prompts.
   2. To replace or delete a certificate, open the actions menu on the certificate row, and then select Edit or Delete.
      A confirmation dialog appears before deletion.
   3. To view certificate details, click the chevron at the start of a certificate row.
      The expanded view shows certificate type, hosts, issuer, validation method, expiration details, and any TXT or CNAME records or verification buttons required for unverified certificates.

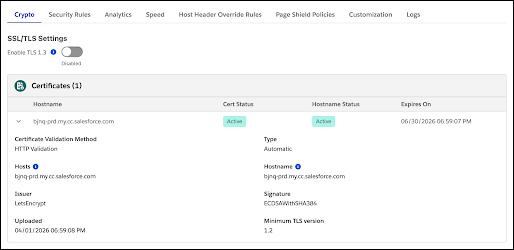

   Certificate details expanded in Certificates table


7. Configure HSTS.
   1. Expand the HSTS Settings section.
   2. Set Enable HSTS on and, in the confirmation dialog, click Enable.
      The dialog explains the consequence before you continue.
   3. Click the edit pencil and configure Time and Unit, Include Subdomains, and Preload.
   4. Click Save.


   Important HSTS can't be turned off manually. It expires only when the configured max age passes. Make sure your full site is served over HTTPS before enabling HSTS.



   Note HSTS is opt-in and not enabled by default. If you don't see HSTS settings in the Crypto tab, contact your Salesforce representative.

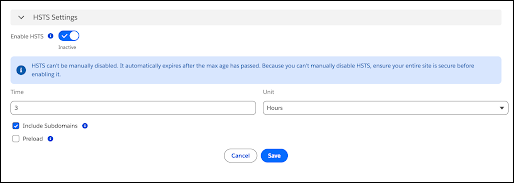

   HSTS settings with editable max-age options

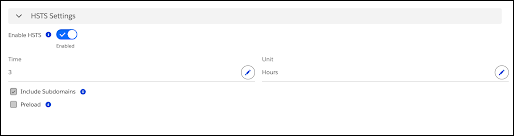

   HSTS state indicators in Crypto tab



   HSTS informational message when disabled
