Change the Layout and Style of an Input Widget

Fine-tune the input widget layout, and stylize its content for the dashboard. Input style options depend upon the selected input type.

1. In the dashboard’s edit mode, select Input Style.
2. To change the style of a slider input type:

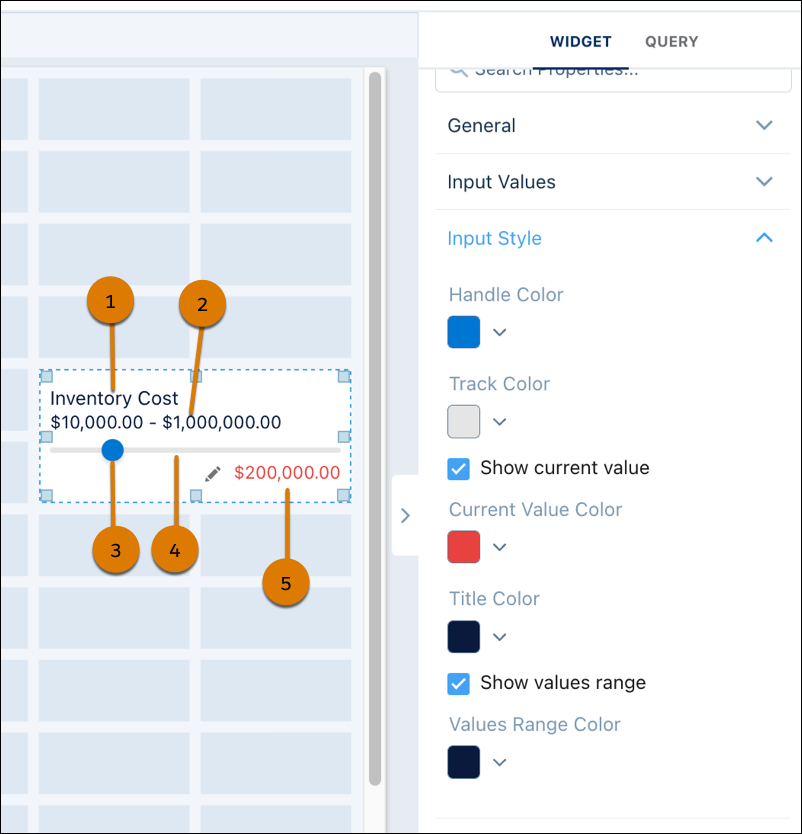

   Input widget title (1), slider input range (2), slider handle (3), slider track (4), current slider value (5).

   Slider Input Type	Definition
   Handle Color	Color of the position indicator on the slider track
   Track Color	Color of the slider track
   Show current value	Display the current slider value
   Current Value Color	Color of the current slider value
   Title Color	Color of the input widget title
   Show values range	Display the slider range
   Values Range Color	Color of the slider range

3. Set an input style for a freeform input type.

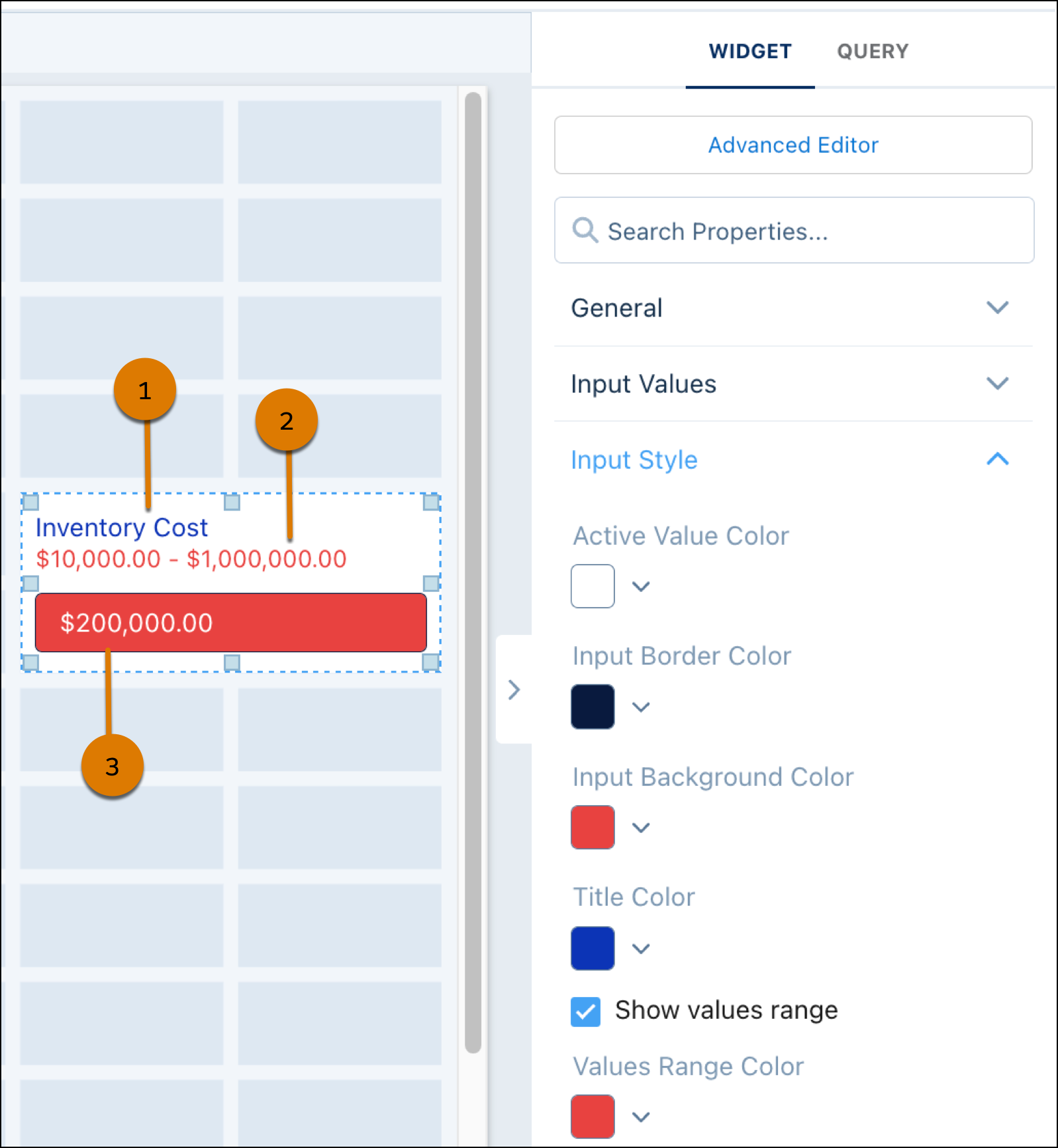

   Input widget title (1), freeform input range (2), current freeform input value (3).

   Slider Input Type	Definition
   Active Value Color	Color of the freeform input value
   Input Border Color	Color of the border around freeform input
   Input Background Color	Background color of the freeform input
   Title Color	Color of the input widget title
   Values Range Color	Color of the freeform range
