# mulesoft ServiceNow Connector - Full Documentation --- product: ServiceNow Connector version: 6.17 --- # ServiceNow Connector 6.17 > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Anypoint Connector for ServiceNow (ServiceNow Connector) provides connections between Mule runtime engine (Mule) and ServiceNow apps. Use the ServiceNow operations with the custom ServiceNow tables, along with any operations available through the installed plugins. For compatibility information and fixed issues, see the ServiceNow Connector Release Notes. ## Before You Begin To use this connector, you must be familiar with: - Anypoint Connectors - Mule runtime engine (Mule) - Elements in a Mule flow and global elements - How to create a Mule app using Anypoint Studio Before creating an app, you must have access to the ServiceNow target resource and Anypoint Platform. ## Common Use Cases for the Connector Common use cases for ServiceNow Connector include: - **IT Service Management (ITSM)** Sync ServiceNow data and extend IT service management (ITSM) capabilities to SaaS and on-premises applications, such as Salesforce, SAP, Workday, and Microsoft Dynamics 365, to help with data migration and replication, application integration, and consolidation. For example, you can bidirectionally sync workers data between Workday and ServiceNow or aggregate employees from Workday and users from ServiceNow into a CSV file. - **Integrated Business Processes** Fully integrate business processes across HR, legal, procurement, operations, marketing, and facilities departments. - **Record Creation and Retrieval** Transform enterprise IT by automating and managing IT service relationships to create a single system of records that you can retrieve. For examples of these use cases, refer to [ServiceNow Connector Examples](https://docs.mulesoft.com/servicenow-connector/6.17/servicenow-connector-examples). ## Audience - New users, read: - [Using Anypoint Studio to Configure the Connector](https://docs.mulesoft.com/servicenow-connector/6.17/servicenow-connector-studio) to create your Mule app - Advanced users, read: - [XML and Maven Support](https://docs.mulesoft.com/servicenow-connector/6.17/servicenow-connector-xml-maven) - [Examples](https://docs.mulesoft.com/servicenow-connector/6.17/servicenow-connector-examples), which provides one or more use cases for the connector ## Connection Types The following authentication types are supported: - Basic - OAuth 2.0 Authorization Code ### Limitations - OAuth 2.0 Authorization Code authentication works only with the following versions of Mule: - 4.1.5 - 4.2.1 and later - Metadata does not work with OAuth 2.0 Authorization Code authentication. ## Use Exchange Templates and Examples [Anypoint Exchange](https://www.mulesoft.com/exchange/) provides templates you can use as a starting point for your app, as well as examples that illustrate a complete solution. - [Workday and ServiceNow Worker Bidirectional Sync](https://anypoint.mulesoft.com/exchange/org.mule.templates/template-wday2snow-worker-bidirectional-sync) - [Workday Worker to ServiceNow Service Request Migration](https://anypoint.mulesoft.com/exchange/org.mule.templates/template-wday2snow-workerservicerequest-migration/) - [Workday and ServiceNow Employee Aggregation](https://anypoint.mulesoft.com/exchange/org.mule.templates/template-wday2snow-employee-aggregation/) - [Workday to ServiceNow Service Worker Migration](https://anypoint.mulesoft.com/exchange/org.mule.templates/template-wday2snow-worker-migration/) - [Workday Worker to ServiceNow Service Request Broadcast](https://anypoint.mulesoft.com/exchange/org.mule.templates/template-wday2snow-worker2servicerequest-broadcast/) ## Next Step After you complete the prerequisites and experiment with templates and examples, you are ready to create an app with [Anypoint Studio](https://docs.mulesoft.com/servicenow-connector/6.17/servicenow-connector-studio). ## See Also - [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors) - [Use Anypoint Exchange to Discover Connectors, Templates, and Examples](https://docs.mulesoft.com/connectors/introduction/intro-use-exchange) - [ServiceNow Connector Release Notes](https://docs.mulesoft.com/release-notes/connector/servicenow-connector-release-notes-mule-4) - [ServiceNow Connector on Exchange](https://www.mulesoft.com/exchange/com.mulesoft.connectors/mule-servicenow-connector/) - [Salesforce Help](https://help.salesforce.com) --- product: ServiceNow Connector version: 6.17 --- # ServiceNow Connector 6.17 Examples > For the full documentation index, see: https://docs.mulesoft.com/llms.txt To fully benefit from using Anypoint Connector for ServiceNow (ServiceNow Connector), see the following examples. ## Retrieve Records from a ServiceNow Incident Table This example creates a Mule flow that retrieves records from the `Incident` table. The following screenshot shows the Studio app flow for this example: ![ServiceNow flow for incident get records](/mulesoft/current/en-us/servicenow-connector/6.17/_images/servicenow-flow-incident-getrecords.png) Figure 1. App flow for the Retrieve Records example 1. Create a Mule project in Studio. 2. Add and configure an **HTTP Listener** trigger for your flow with this path: `getrecords` ![HTTP Listener general settings with path set to getrecords](/mulesoft/current/en-us/servicenow-connector/6.17/_images/servicenow-listener.png) 3. Add a **Transform Message** component after the HTTP connector and provide a transformation script similar to this: %dw 2.0 output application/xml ns ns0 http://www.service-now.com/incident --- { ns0#getRecords: { ns0#description: 'Test WSDL QA' } } > [!NOTE] Add a description that matches records in your ServiceNow incident table. 4. Add the **Invoke** operation from ServiceNow after the **Transform** component. 5. Set up, test, and save a ServiceNow configuration for the connection to the ServiceNow server. If the connection is unsuccessful, correct any invalid connection parameters, and test again. ![Global element properties window](/mulesoft/current/en-us/servicenow-connector/6.17/_images/servicenow-studio-connection-6.6.0.png) ![Transport tab in global element properties window](/mulesoft/current/en-us/servicenow-connector/6.17/_images/servicenow-studio-config-transport-tab.png) 6. In the **General** tab in the navigation, set **Service** to `incident` and **Operation** to `getRecords`. 7. Optionally, choose **Show Reference Values** from the values (`ALL`, `TRUE`, `FALSE`) > [!IMPORTANT] In Studio 7.5.0 and later, you can choose the `service` and `operation` keys > without specifying the `Show Reference Values` key to resolve the metadata. However, in > earlier Studio versions, metadata won’t be loaded until you specify all of the metadata keys, > and if you don’t specify all of the metadata keys, it results in a tooling exception. ![ServiceNow metadata without reference values](/mulesoft/current/en-us/servicenow-connector/6.17/_images/servicenow-metadata-without-reference-values.png) 8. Set the Message Body to `payload`. 9. Add the **Transform Message** component to `transform XML to JSON` for better readability. For example: %dw 2.0 output application/json --- payload 10. Add a **Logger** component to the end of your flow that takes a `payload` (or `#[payload]`) as the message. 11. Deploy or run your app. 12. Test the app by navigating to `http://localhost:8081/getrecords` The response should look similar to this example (several fields are omitted for brevity): { "headers": { }, "attachments": { }, "body": { "getRecordsResponse": { "getRecordsResult": { "active": "1", "activity\_due": "2019-09-24 09:48:15", "approval": "not requested", "business\_stc": "0", "calendar\_stc": "0", "category": "Software", "child\_incidents": "0", "description": "Test WSDL QA", "escalation": "0", "hold\_reason": "0", "impact": "1", "incident\_state": "1", "knowledge": "0", "made\_sla": "1", "notify": "1", "number": "INC0011616", "opened\_at": "2019-09-20 07:30:34", "opened\_by": "6816f79cc0a8016401c5a33be04be441", "order": "0", "priority": "1", "reassignment\_count": "0", "reopen\_count": "0", "severity": "3", "state": "1", "sys\_class\_name": "incident", "sys\_created\_by": "admin", "sys\_created\_on": "2019-09-20 07:30:34", "sys\_domain": "global", "sys\_domain\_path": "/", "sys\_id": "c03deab4db840010a0e6e04a48961999", "sys\_mod\_count": "47", "sys\_updated\_by": "system", "sys\_updated\_on": "2019-09-24 07:48:15", "upon\_approval": "proceed", "upon\_reject": "cancel", "urgency": "1", } } } } If you use `ALL` for `Show Reference Values`, the response is similar to this abbreviated output, in which the response element name for the display value field begins with `dv`: { "headers": { }, "attachments": { }, "body": { "getRecordsResponse": { "getRecordsResult": { "active": "1", "dv\_active": "true", "activity\_due": "2020-05-07 13:14:19", "dv\_activity\_due": "2020-05-07 06:14:19", "additional\_assignee\_list": null, "dv\_additional\_assignee\_list": null, "approval": "not requested", "dv\_approval": "Not Yet Requested", } } } } The response element name for the display value field is prefixed with `dv`. ## Retrieve ServiceNow Incident Table Keys This example creates a Mule flow that retrieve keys from the Incident table in a ServiceNow instance: 1. Create a Mule application as a project in Studio. 2. Add and configure an HTTP **Listener** trigger for your flow, and set the **Path** to `/getkeys`. 3. Add a **Transform Message** component after the HTTP **Listener** operation. 4. Provide a transformation script similar to this (use a description that matches records in your ServiceNow incident table): %dw 2.0 output application/xml ns ns0 http://www.service-now.com/incident --- { ns0#getKeys: { ns0#description: 'Test WSDL QA' } } 5. Add the ServiceNow **Invoke** operation after the **Transform Message** component. 6. Set up, test, and save a ServiceNow configuration for the connection to the ServiceNow server. If the connection is unsuccessful, correct any invalid connection parameters and test again. 7. In the **General** tab navigation, set **Service** to `incident` and **Operation** to `getKeys`. 8. Set the Message Body to `payload`. 9. Add the **Transform Message** component to transform XML to JSON for better readability. For example: %dw 2.0 output application/json --- payload 10. Add a **Logger** component to the end of your flow that takes a `payload` (or `#[payload]`) as the message. 11. Deploy or run your app. 12. To test the app, navigate to: `http://localhost:8081/getkeys` 13. The response should look similar to this: { "headers": { }, "attachments": { }, "body": { "getKeysResponse": { "sys\_id": "c03deab4db840010a0e6e04a48961999,0f517ab8db840010a0e6e04a489619bc,6f1236f8db840010a0e6e04a489619f5", "count": "3" } } } ## See Also - [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors) - [Using Anypoint Studio to Configure ServiceNow Connector](https://docs.mulesoft.com/servicenow-connector/6.17/servicenow-connector-studio) - [Salesforce Help](https://help.salesforce.com) --- product: ServiceNow Connector version: 6.17 --- # ServiceNow Connector 6.17 Reference > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Anypoint Connector for ServiceNow (ServiceNow Connector) provides connections between Mule runtime engine (Mule) and ServiceNow apps. ## Configuration Default Configuration for ServiceNow Connector.
NameTypeDescriptionDefault ValueRequired

Name

String

Name for this configuration. Connectors reference the configuration with this name.

x

Connection

Connection types for this configuration.

x

Name

String

ID used to reference this configuration.

x

Expiration Policy

Configures the minimum amount of time that a dynamic configuration instance can remain idle before Mule considers it eligible for expiration.

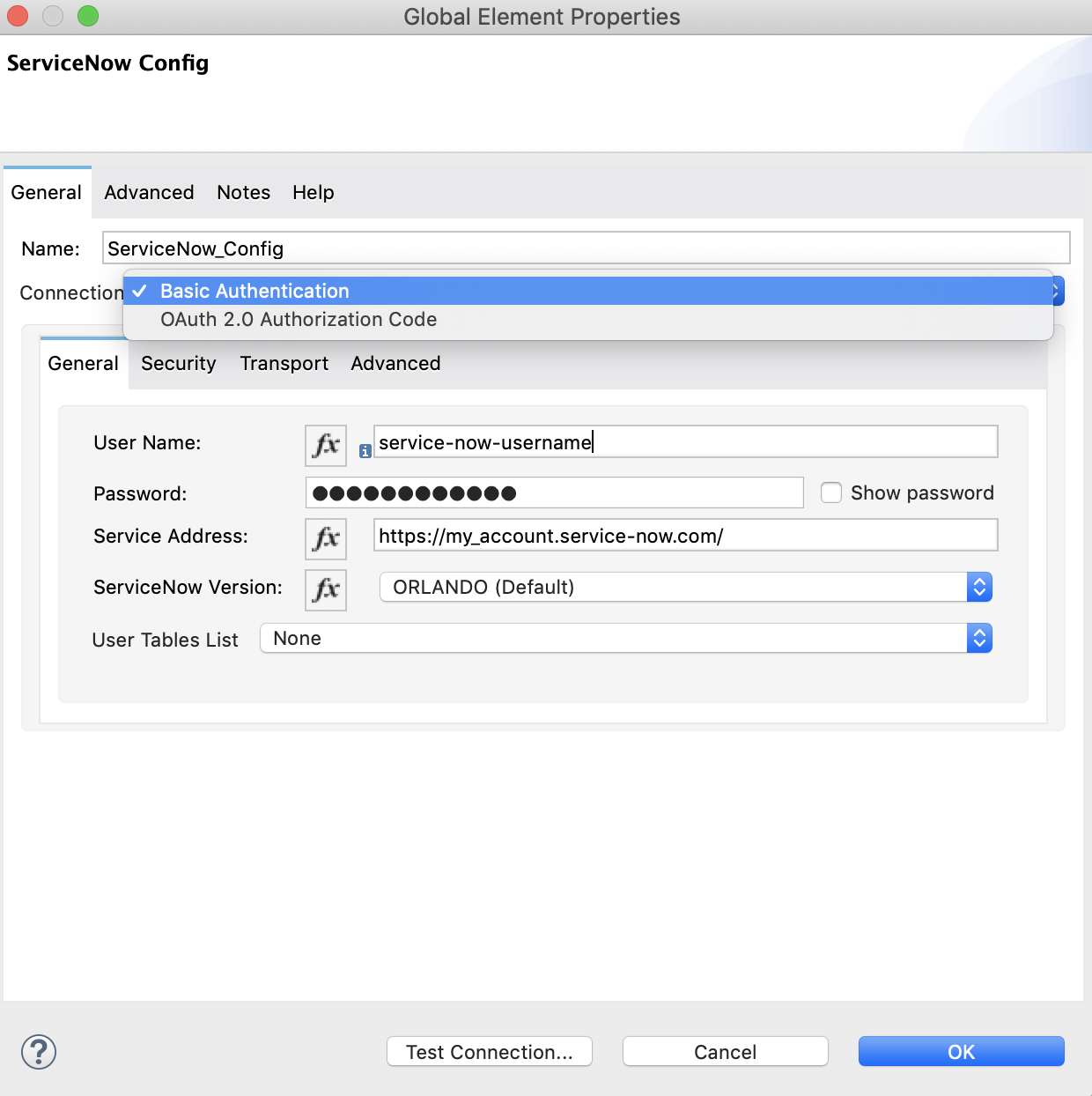

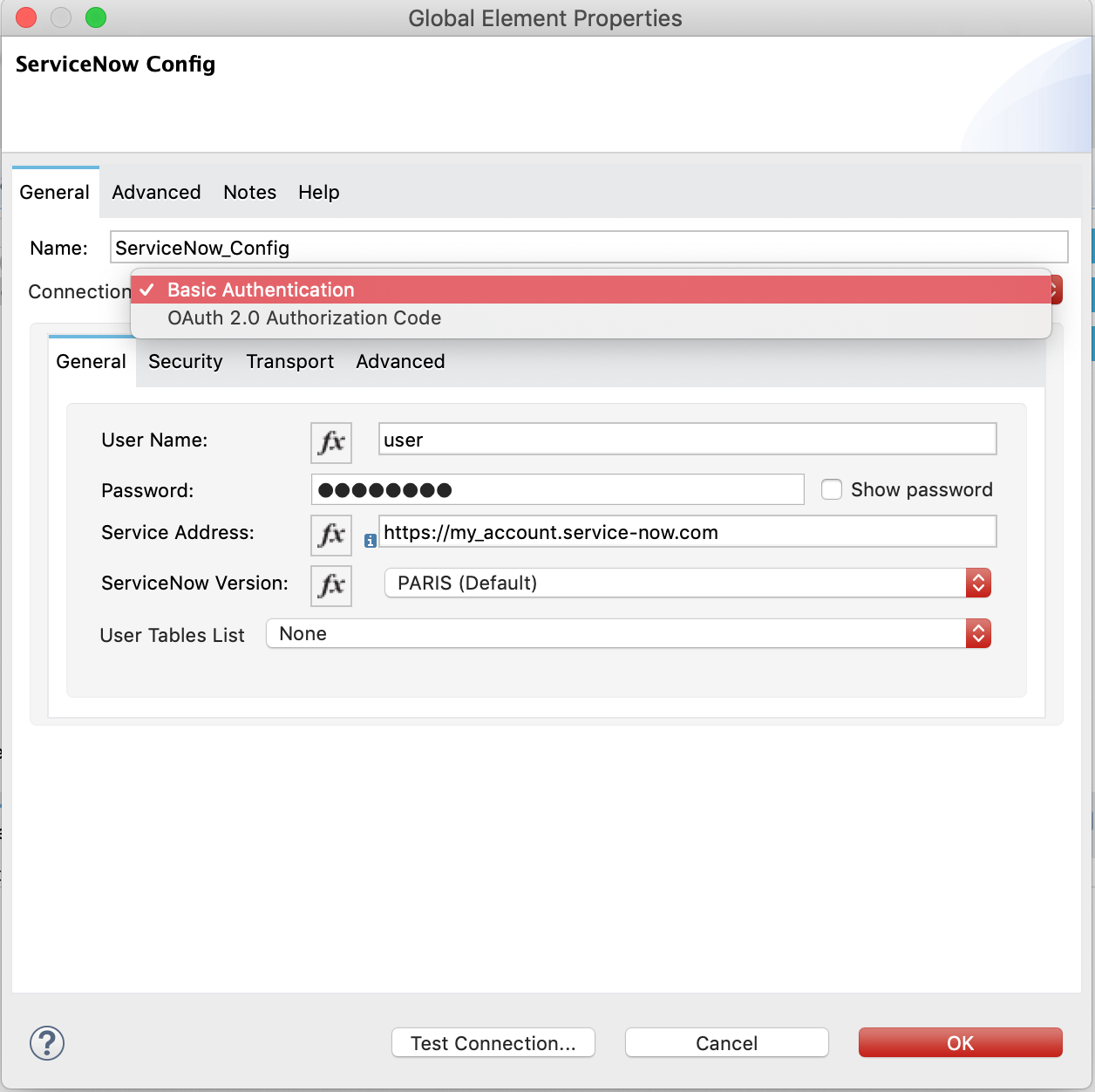

### Basic Authentication Connection Type
NameTypeDescriptionDefault ValueRequired

Service Address

String

Address of the ServiceNow service.

x

ServiceNow Version

Enumeration, one of:

  • EUREKA

  • FUJI

  • GENEVA

  • HELSINKI

  • ISTANBUL

  • JAKARTA

  • KINGSTON

  • MADRID

  • NEW_YORK

  • ORLANDO

  • PARIS

  • QUEBEC

  • ROME

  • SAN_DIEGO

  • TOKYO

  • UTAH

  • VANCOUVER

  • WASHINGTON

ServiceNow API Version.

WASHINGTON

User Tables List

Array of String

List of user-defined tables.

Encoding

String

Character encoding.

UTF-8

User Name

String

Username.

x

Password

String

Password.

x

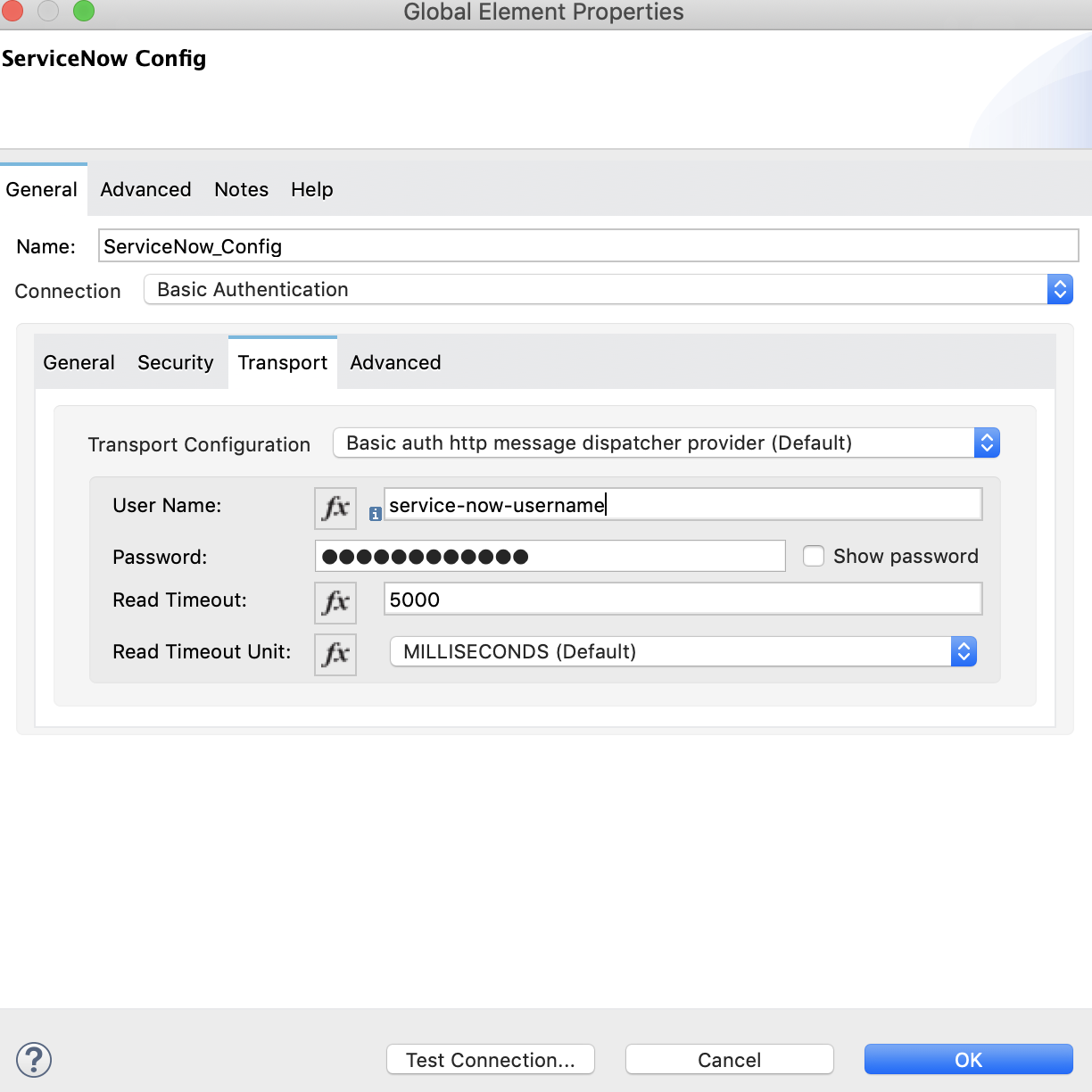

Transport Configuration

One of:

Transport configuration.

Sign Security Strategy

WSS configuration for the signature security strategy.

Username Token Security Strategy

WSS configuration for the username token security strategy.

Reconnection

Configures a reconnection strategy to use when a connector operation fails to connect to an external server.

Pooling Profile

Characteristics of the connection pool.

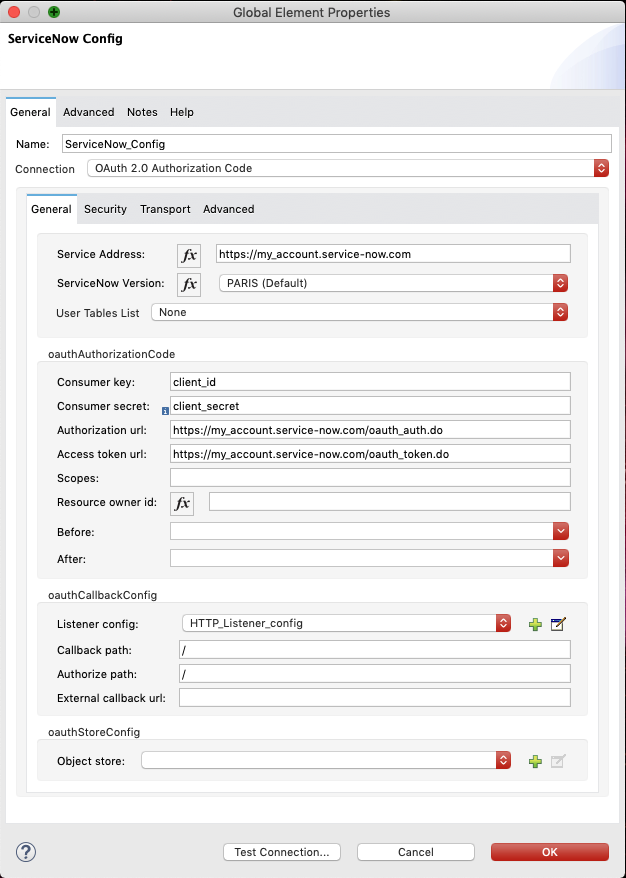

### OAuth 2.0 Authorization Code Connection Type Use OAuth 2.0 to delegate user authentication to the service hosting the user account. For more information, refer to [Configuring OAuth 2.0 for Connectors](https://docs.mulesoft.com/connectors/introduction/intro-config-oauth2), [Configuring OAuth 2.0 for Connectors on CloudHub](https://docs.mulesoft.com/connectors/introduction/intro-config-oauth2-cloudhub), or [OAuth Support in the SDK](https://docs.mulesoft.com/mule-sdk/latest/oauth).
NameTypeDescriptionDefault ValueRequired

Service Address

String

Address of ServiceNow service.

x

ServiceNow Version

Enumeration, one of:

  • EUREKA

  • FUJI

  • GENEVA

  • HELSINKI

  • ISTANBUL

  • JAKARTA

  • KINGSTON

  • MADRID

  • NEW_YORK

  • ORLANDO

  • PARIS

  • QUEBEC

  • ROME

  • SAN_DIEGO

  • TOKYO

  • UTAH

  • VANCOUVER

  • WASHINGTON

ServiceNow API Version.

WASHINGTON

User Tables List

Array of String

List of user-defined tables.

Encoding

String

Character encoding.

UTF-8

Custom Transport Configuration

Custom transport configuration.

State

String

String value that you send when the OAuth dance is initiated and that is returned back by the service provider with the token callback.

Sign Security Strategy

WSS configuration for the signature security strategy.

Username Token Security Strategy

Username token WSS configuration.

Reconnection

Configures a reconnection strategy to use when a connector operation fails to connect to an external server.

Consumer Key

String

OAuth consumer key, as registered with the service provider.

x

Consumer Secret

String

OAuth consumer secret, as registered with the service provider.

x

Authorization Url

String

URL of the service provider’s authorization endpoint.

https://{instance-id}.service-now.com/oauth_auth.do

Access Token Url

String

URL of the service provider’s access token endpoint.

https://{instance-id}.service-now.com/oauth_token.do

Scopes

String

OAuth scopes to request during the OAuth dance. This value defaults to the scopes in the annotation.

Resource Owner Id

String

Resource owner ID to use with the authorization code grant type.

Before

String

Name of the flow to execute immediately before starting the OAuth dance.

After

String

Name of the flow to execute immediately after receiving an access token.

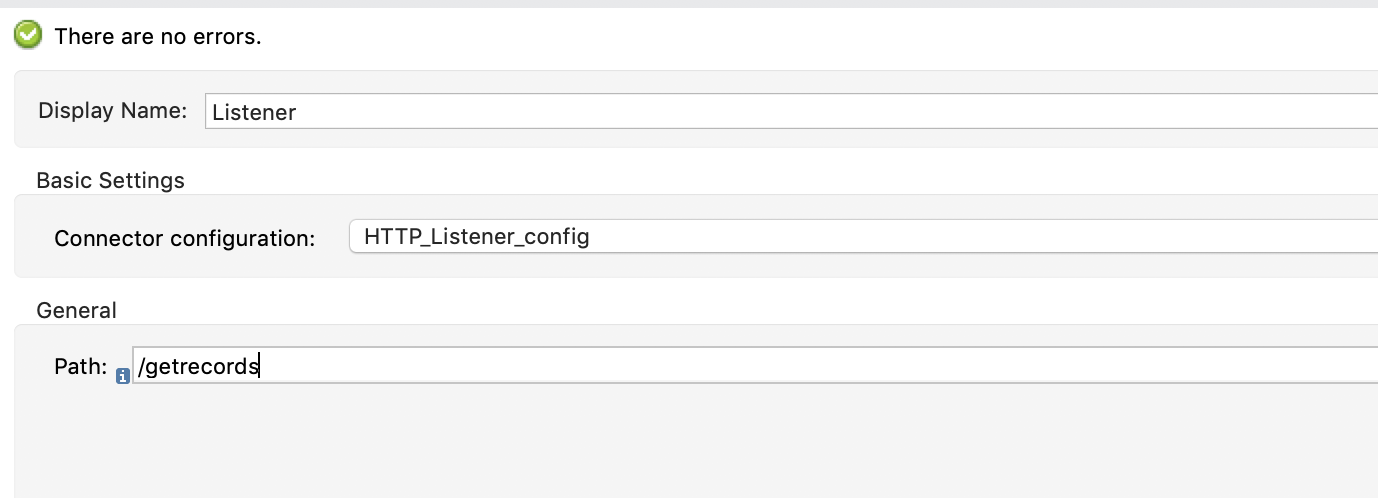

Listener Config

String

Configuration for the HTTP listener that listens for requests on the access token callback endpoint.

x

Callback Path

String

Path of the access token callback endpoint.

x

Authorize Path

String

Path of the local HTTP endpoint that triggers the OAuth dance.

x

External Callback Url

String

URL that the OAuth provider uses to access the callback endpoint if the endpoint is behind a proxy or accessed through an indirect URL.

Object Store

String

Configures the object store that stores data for each resource owner. If not configured, Mule uses the default object store.

## Sources - [New / Updated Record](#new-or-updated-record-listener) > [!NOTE] To view custom or extended parent tables in ServiceNow Connector, select the **Allow > access to this table via web services** and **Allow configuration** options in the table > definition. ### New / Updated Record `` Efficiently polls periodically for changes in the selected table and accepts only new records into the flow.
NameTypeDescriptionDefault ValueRequired

Configuration

String

Name of the configuration to use.

x

ServiceNow Time Zone

String

Timezone.

America/Los_Angeles

Table name

String

Name of the table from which to retrieve the records.

x

Query

String

Optional query that filters the result set. The syntax is sysparm_query=. All parameters are case-sensitive. Queries can contain more than one entry, such as [].

Display System References

String

Data retrieval operation for reference and choice fields. Retrieves the display value or the actual value from the database. Valid values are:

  • true

    Returns the display values for all fields.

  • false

    Returns the actual values from the database.

  • all

    Returns both the actual and display values.

FALSE

Exclude Reference Links

Boolean

Flag that indicates whether to exclude table API links for reference fields.

false

Config Ref

ConfigurationProvider

Name of the configuration to use to execute this component.

x

Primary Node Only

Boolean

Determines whether to execute this source on only the primary node when running Mule instances in a cluster.

Scheduling Strategy

Scheduling Strategy

Configures the scheduler that triggers the polling.

x

Streaming Strategy

Configures how Mule processes streams. The default is to use repeatable streams.

Redelivery Policy

Defines a policy for processing the redelivery of the same message.

Reconnection Strategy

Retry strategy in case of connectivity errors.

#### Output

Type

Any

Attributes Type

#### Associated Configurations - [Configuration](#config) ## Operations - [Invoke](#invoke) - [Unauthorize](#unauthorize) > [!NOTE] To view custom or extended parent tables in ServiceNow Connector, select the **Allow > access to this table via web services** and **Allow configuration** options in the table > definition. ### Invoke `` Default operation for ServiceNow SOAP invocations.
NameTypeDescriptionDefault ValueRequired

Configuration

String

Name of the configuration to use.

x

Allow Empty Value

Boolean

Option that enables users to clear a specific field with a null or empty value for the update operation.

false

Config Ref

ConfigurationProvider

Name of the configuration to use to execute this component.

x

Service

String

Service name.

x

Operation

String

Operation name of the service.

x

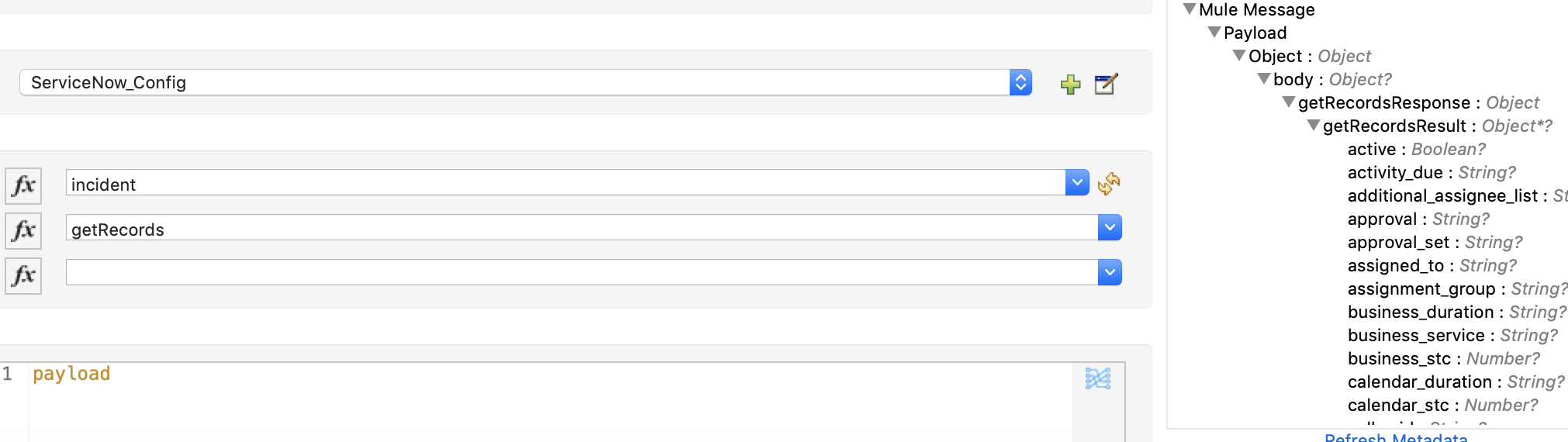

Show Reference Values

String

Chooses which values are returned for reference fields. Possible options are to return sys_ids or display value or both. Use this option only for get and getRecords operations.

Body

Binary

XML body to include in the SOAP message, with all the required parameters, or null if no parameters are required.

#[payload]

Headers

Binary

XML headers to include in the SOAP message.

Attachments

Object

Attachments to include in the SOAP request.

Target Variable

String

Name of the variable that stores the operation’s output.

Target Value

String

Expression that evaluates the operation’s output. The outcome of the expression is stored in the Target Variable field.

#[payload]

Reconnection Strategy

Retry strategy in case of connectivity errors.

#### Output

Type

SOAP Output Envelope

Attributes Type

#### Associated Configurations - [Configuration](#config) #### Throws - SERVICENOW:RETRY\_EXHAUSTED - SERVICENOW:SOAP\_FAULT - SERVICENOW:PROCESSING\_ERROR - SERVICENOW:BAD\_RESPONSE - SERVICENOW:TIMEOUT - SERVICENOW:CONNECTIVITY - SERVICENOW:BAD\_REQUEST - SERVICENOW:CANNOT\_DISPATCH - SERVICENOW:INVALID\_WSDL - SERVICENOW:ENCODING ### Unauthorize `` Deletes all the access token information of a given resource owner ID so that it is impossible to execute any operation for that user without repeating the OAuth dance.
NameTypeDescriptionDefault ValueRequired

Configuration

String

Name of the configuration to use.

x

Resource Owner Id

String

ID of the resource owner for whom to invalidate access.

Config Ref

ConfigurationProvider

Name of the configuration to use to execute this component.

x

#### Associated Configurations - [Configuration](#config) ## Object Types - [Basic Authentication HTTP Message Dispatcher Provider](#basic-auth-http-message-dispatcher-provider) - [Expiration Policy](#ExpirationPolicy) - [HTTP Requester Based Transport Provider](#http-requester-based-transport-provider) - [OAuth2 HTTP Message Dispatcher Provider](#oauth2-http-message-dispatcher-provider) - [Pooling Profile](#PoolingProfile) - [Reconnect](#reconnect) - [Reconnect Forever](#reconnect-forever) - [Reconnection](#Reconnection) - [Redelivery Policy](#RedeliveryPolicy) - [Redelivery Policy Message Identifier](#RedeliveryPolicyMessageIdentifier) - [Repeatable File Store Stream](#repeatable-file-store-stream) - [Repeatable In Memory Stream](#repeatable-in-memory-stream) - [SOAP Attributes](#SoapAttributes) - [SOAP Output Envelope](#SoapOutputEnvelope) - [Wss Key Store Configuration](#wss-key-store-configuration) - [Wss Sign Security Strategy Adapter](#WssSignSecurityStrategyAdapter) - [WSS Signing Configuration Adapter](#WssSignConfigurationAdapter) - [WSS Username Token Security Strategy Adapter](#WssUsernameTokenSecurityStrategyAdapter) ### Basic Authentication HTTP Message Dispatcher Provider Default HTTP transport configuration.
FieldTypeDescriptionDefault ValueRequired

Username

String

Username to use.

x

Password

String

Password to use.

x

Read Timeout

Number

Read timeout value.

15000

Read Timeout Unit

Enumeration, one of:

  • NANOSECONDS

  • MICROSECONDS

  • MILLISECONDS

  • SECONDS

  • MINUTES

  • HOURS

  • DAYS

Time unit for the Read Timeout field.

MILLISECONDS

### Expiration Policy Configures an expiration policy strategy.
FieldTypeDescriptionDefault ValueRequired

Max Idle Time

Number

Configures the maximum amount of time that a dynamic configuration instance can remain idle before Mule considers it eligible for expiration.

Time Unit

Enumeration, one of:

  • NANOSECONDS

  • MICROSECONDS

  • MILLISECONDS

  • SECONDS

  • MINUTES

  • HOURS

  • DAYS

Time unit for the Max Idle Time field.

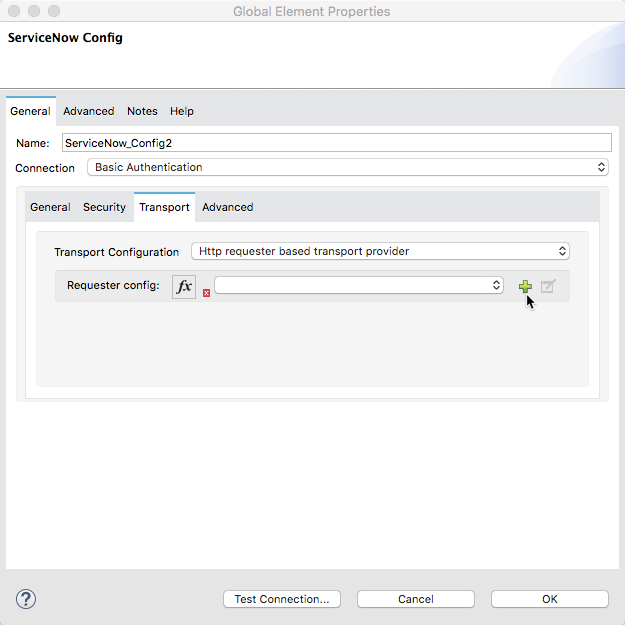

### HTTP Requester Based Transport Provider Custom HTTP transport configuration.
FieldTypeDescriptionDefault ValueRequired

Requester Config

String

Requester configuration.

x

### OAuth2 HTTP Message Dispatcher Provider OAuth transport configuration.
FieldTypeDescriptionDefault ValueRequired

Read Timeout

Number

Read timeout value.

15000

Read Timeout Unit

Enumeration, one of:

  • NANOSECONDS

  • MICROSECONDS

  • MILLISECONDS

  • SECONDS

  • MINUTES

  • HOURS

  • DAYS

Time unit for the Read Timeout field.

MILLISECONDS

### Pooling Profile Pooling profile type.
FieldTypeDescriptionDefault ValueRequired

Max Active

Number

Controls the maximum number of Mule components that is borrowed from a session at one time. When set to a negative value, there is no limit to the number of components that is active at one time. When the specified value for Max Active is exceeded, the pool is considered exhausted.

Max Idle

Number

Controls the maximum number of Mule components that sits idle in the pool at any time. When set to a negative value, there is no limit to the number of Mule components that is idle at one time.

Max Wait

Number

Specifies the number of milliseconds to wait for a pooled component to become available when the pool is exhausted and the Exhausted Action is set to WHEN_EXHAUSTED_WAIT.

Min Eviction Millis

Number

Determines the minimum amount of time an object sits idle in the pool before it is eligible for eviction. When non-positive, no objects are evicted from the pool due to idle time alone.

Eviction Check Interval Millis

Number

Specifies the number of milliseconds between runs of the object evictor. When non-positive, no object evictor is executed.

Exhausted Action

Enumeration, one of:

  • WHEN_EXHAUSTED_GROW

  • WHEN_EXHAUSTED_WAIT

  • WHEN_EXHAUSTED_FAIL

Specifies the behavior of the Mule component pool when the pool is exhausted:

  • WHEN_EXHAUSTED_GROW
    Creates a new Mule instance and returns it, which makes Max Active ineffective.

  • WHEN_EXHAUSTED_WAIT
    Blocks by invoking Object.wait(long) until a new or idle object is available.

  • WHEN_EXHAUSTED_FAIL
    Throws a NoSuchElementException.

If a positive Max Wait value is supplied, it blocks for, at most, that many milliseconds, after which a NoSuchElementException is thrown. If Max Thread Wait is a negative value, it blocks indefinitely.

Initialisation Policy

Enumeration, one of:

  • INITIALISE_NONE

  • INITIALISE_ONE

  • INITIALISE_ALL

Determines how to initialize components in a pool:

  • INITIALISE_NONE
    Does not load any components into the pool on startup.

  • INITIALISE_ONE
    Loads one initial component into the pool on startup.

  • INITIALISE_ALL
    Loads all components in the pool on startup.

Disabled

Boolean

Determines whether to disable pooling.

### Reconnect Configures a standard reconnection strategy, which specifies how often to reconnect and how many reconnection attempts the connector source or operation can make.
FieldTypeDescriptionDefault ValueRequired

Frequency

Number

How often to attempt to reconnect, in milliseconds.

Blocking

Boolean

If false, the reconnection strategy runs in a separate, non-blocking thread.

Count

Number

How many reconnection attempts the Mule app can make.

### Reconnect Forever Configures a forever reconnection strategy by which the connector source or operation attempts to reconnect at a specified frequency for as long as the Mule app runs.
FieldTypeDescriptionDefault ValueRequired

Frequency

Number

How often to attempt to reconnect, in milliseconds.

Blocking

Boolean

If false, the reconnection strategy runs in a separate, non-blocking thread.

### Reconnection Configures a reconnection strategy for an operation.
FieldTypeDescriptionDefault ValueRequired

Fails Deployment

Boolean

What to do if, when an app is deployed, a connectivity test does not pass after exhausting the associated reconnection strategy:

  • true

    Allow the deployment to fail.

  • false

    Ignore the results of the connectivity test.

Reconnection Strategy

Reconnection strategy to use.

### Redelivery Policy Configures the redelivery policy for executing requests that generate errors. You can add a redelivery policy to any source in a flow.
FieldTypeDescriptionDefault ValueRequired

Max Redelivery Count

Number

Maximum number of times that a redelivered request can be processed unsuccessfully before returning a REDELIVERY_EXHAUSTED error.

Message Digest Algorithm

String

Secure hashing algorithm to use if the Use Secure Hash field is true. If the payload of the message is a Java object, Mule ignores this value and returns the value that the payload’s hashCode() returned.

Message Identifier

Redelivery Policy Message Identifier

One or more expressions that determine if a message was redelivered. This property can be set only if the Use Secure Hash field is false.

Object Store

ObjectStore

Configures the object store that stores the redelivery counter for each message.

### Redelivery Policy Message Identifier Configures how to identify a redelivered message and how to find out when the message was redelivered.
FieldTypeDescriptionDefault ValueRequired

Use Secure Hash

Boolean

If true, Mule uses a secure hash algorithm to identify a redelivered message.

Id Expression

String

One or more expressions that determine if a message was redelivered. This property can be set only if the Use Secure Hash field is false.

### Repeatable File Store Stream Configures the repeatable file-store streaming strategy by which Mule keeps a portion of the stream content in memory. If the stream content is larger than the configured buffer size, Mule backs up the buffer’s content to disk and then clears the memory.
FieldTypeDescriptionDefault ValueRequired

In Memory Size

Number

Maximum amount of memory that the stream can use for data. If the amount of memory exceeds this value, Mule buffers the content to disk. To optimize performance:

  • Configure a larger buffer size to avoid the number of times Mule needs to write the buffer on disk. This increases performance, but it also limits the number of concurrent requests your application can process, because it requires additional memory.

  • Configure a smaller buffer size to decrease memory load at the expense of response time.

Buffer Unit

Enumeration, one of:

  • BYTE

  • KB

  • MB

  • GB

Unit for the In Memory Size field.

### Repeatable In Memory Stream Configures the in-memory streaming strategy by which the request fails if the data exceeds the MAX buffer size. Always run performance tests to find the optimal buffer size for your specific use case.
FieldTypeDescriptionDefault ValueRequired

Initial Buffer Size

Number

Initial amount of memory to allocate to the data stream. If the streamed data exceeds this value, the buffer expands by Buffer Size Increment, with an upper limit of Max In Memory Size value.

Buffer Size Increment

Number

Amount by which the buffer size expands if it exceeds its initial size. Setting a value of 0 or lower specifies that the buffer can’t expand.

Max Buffer Size

Number

The maximum amount of memory to use. If more than that is used then a STREAM_MAXIMUM_SIZE_EXCEEDED error is raised. A value lower than or equal to zero means no limit.

Buffer Unit

Enumeration, one of:

  • BYTE

  • KB

  • MB

  • GB

Unit for the Initial Buffer Size, Buffer Size Increment, and Buffer Unit fields.

### SOAP Attributes Attributes returned by the consume operation. Carries the protocol specific headers (such as HTTP headers) and additional transport data (such as the HTTP status line) bounded to the response.
FieldTypeDescriptionDefault ValueRequired

Additional Transport Data

Object

Additional transport data bundled in the response.

Protocol Headers

Object

Protocol headers bundled in the response.

### SOAP Output Envelope Represents the response of the consume operation. Bundles the SOAP body, SOAP headers, and MIME attachments if there are any.
FieldTypeDescriptionDefault ValueRequired

Attachments

Object

Set of attachments bounded to the response, or an empty map if there are no attachments.

Body

Binary

XML response body. Represents the <SOAP:BODY> element.

Headers

Object

Set of XML SOAP headers. Represents the content in the <SOAP:HEADERS> element.

### Wss Key Store Configuration Implementation for keystores, used for encryption, decryption, and signing.
FieldTypeDescriptionDefault ValueRequired

Key Store Path

String

Location of the keystore file.

x

Alias

String

Alias of the private key to use.

Password

String

Password to access the store.

x

Key Password

String

Password used to access the private key.

Type

String

Type of store, such as fjks, pkcs12, jceks, and so on.

jks

### Wss Sign Security Strategy Adapter Signs the SOAP request that is sent, using the private key of the keystore in the provided TLS context.
FieldTypeDescriptionDefault ValueRequired

Key Store Configuration

Keystore to use when signing the message.

x

Sign Algorithm Configuration

Algorithms to use on the signing.

### WSS Signing Configuration Adapter Group that holds the configuration for signing algorithms used in the sign security strategy.
FieldTypeDescriptionDefault ValueRequired

Signature Key Identifier

Enumeration, one of:

  • DIRECT_REFERENCE

  • X509_KEY_IDENTIFIER

Key identifier type to use for the signature.

X509_KEY_IDENTIFIER

Signature Algorithm

Enumeration, one of:

  • RSAwithSHA1

  • RSAwithSHA224

  • RSAwithSHA256

  • RSAwithSHA384

  • RSAwithSHA512

Signature algorithm to use. The default is set by the data in the certificate.

Signature Digest Algorithm

Enumeration, one of:

  • SHA1

  • SHA256

  • SHA224

  • SHA384

  • SHA512

Signature digest algorithm to use.

SHA1

Signature C14n Algorithm

Enumeration, one of:

  • CanonicalXML_1_0

  • CanonicalXML_1_1

  • ExclusiveXMLCanonicalization_1_0

Defines which signature c14n (canonicalization) algorithm to use.

ExclusiveXMLCanonicalization_1_0

### WSS Username Token Security Strategy Adapter Provides the capability to authenticate with a SOAP service using a username and a password by adding the UsernameToken element in the SOAP request.
FieldTypeDescriptionDefault ValueRequired

Username

String

Username required to authenticate with the service.

x

Password

String

Password for the provided username required to authenticate with the service.

x

Password Type

Enumeration, one of:

  • DIGEST

  • TEXT

Password parameter.

DIGEST

## See Also - [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors) - [Salesforce Help](https://help.salesforce.com) --- product: ServiceNow Connector version: 6.17 --- # ServiceNow Connector 6.17 XML and Maven Support > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Although you can manually code a Mule app in XML, it is more efficient to use Anypoint Studio: - If you manually code a Mule runtime engine (Mule) app in XML, either from the Anypoint Studio XML editor or from a text editor, you can access the connector from your app by adding reference statements to both your XML Mule flow and the Apache Maven `pom.xml` file. - If you add the connector in Studio, Studio automatically populates the XML code with the connector’s namespace and schema location and it also adds a dependency to the `pom.xml` file. ## Add a Namespace for the Connector Paste the following code inside the `mule` tag of the header of your configuration XML: ```xml http://www.mulesoft.org/schema/mule/servicenow http://www.mulesoft.org/schema/mule/servicenow/current/mule-servicenow.xsd ``` This example shows how the namespace statements are placed in the XML: ```xml ``` ## Add a POM File Dependency The Apache Maven `pom.xml` file generated by Anypoint Studio contains dependencies for a Mule app. If you code a Mule app manually, include this XML snippet in your `pom.xml` file to enable access to this connector: ```xml com.mulesoft.connectors mule-servicenow-connector x.x.x mule-plugin ``` Replace `x.x.x` with the version that corresponds to the connector you are using. To obtain the most up-to-date `pom.xml` file information: 1. Go to [Anypoint Exchange](https://www.mulesoft.com/exchange/). 2. In Exchange, click **Login** and supply your Anypoint Platform username and password. 3. In Exchange, search for `serviceNow`. 4. Select the connector. 5. Click **Dependency Snippets** near the upper right of the screen. ## Next Step After completing your namespace and `pom.xml` file, you can try the [Examples](https://docs.mulesoft.com/servicenow-connector/6.17/servicenow-connector-examples). ## See Also - [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors) - [Salesforce Help](https://help.salesforce.com) --- product: ServiceNow Connector version: 6.18 is-latest-version: true --- # ServiceNow Connector 6.18 > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Anypoint Connector for ServiceNow (ServiceNow Connector) provides connections between Mule runtime engine (Mule) and ServiceNow apps. Use the ServiceNow operations with the custom ServiceNow tables, along with any operations available through the installed plugins. For compatibility information and fixed issues, see the ServiceNow Connector Release Notes. ## Before You Begin To use this connector, you must be familiar with: - Anypoint Connectors - Mule runtime engine (Mule) - Elements in a Mule flow and global elements - How to create a Mule app using Anypoint Studio Before creating an app, you must have access to the ServiceNow target resource and Anypoint Platform. ## Common Use Cases for the Connector Common use cases for ServiceNow Connector include: - **IT Service Management (ITSM)** Sync ServiceNow data and extend IT service management (ITSM) capabilities to SaaS and on-premises applications, such as Salesforce, SAP, Workday, and Microsoft Dynamics 365, to help with data migration and replication, application integration, and consolidation. For example, you can bidirectionally sync workers data between Workday and ServiceNow or aggregate employees from Workday and users from ServiceNow into a CSV file. - **Integrated Business Processes** Fully integrate business processes across HR, legal, procurement, operations, marketing, and facilities departments. - **Record Creation and Retrieval** Transform enterprise IT by automating and managing IT service relationships to create a single system of records that you can retrieve. For examples of these use cases, refer to [ServiceNow Connector Examples](https://docs.mulesoft.com/servicenow-connector/latest/servicenow-connector-examples). ## Audience - New users, read: - [Using Anypoint Studio to Configure the Connector](https://docs.mulesoft.com/servicenow-connector/latest/servicenow-connector-studio) to create your Mule app - Advanced users, read: - [XML and Maven Support](https://docs.mulesoft.com/servicenow-connector/latest/servicenow-connector-xml-maven) - [Examples](https://docs.mulesoft.com/servicenow-connector/latest/servicenow-connector-examples), which provides one or more use cases for the connector ## Connection Types The following authentication types are supported: - Basic - OAuth 2.0 Authorization Code ### Limitations - OAuth 2.0 Authorization Code authentication works only with the following versions of Mule: - 4.1.5 - 4.2.1 and later - Metadata does not work with OAuth 2.0 Authorization Code authentication. ## Use Exchange Templates and Examples [Anypoint Exchange](https://www.mulesoft.com/exchange/) provides templates you can use as a starting point for your app, as well as examples that illustrate a complete solution. - [Workday and ServiceNow Worker Bidirectional Sync](https://anypoint.mulesoft.com/exchange/org.mule.templates/template-wday2snow-worker-bidirectional-sync) - [Workday Worker to ServiceNow Service Request Migration](https://anypoint.mulesoft.com/exchange/org.mule.templates/template-wday2snow-workerservicerequest-migration/) - [Workday and ServiceNow Employee Aggregation](https://anypoint.mulesoft.com/exchange/org.mule.templates/template-wday2snow-employee-aggregation/) - [Workday to ServiceNow Service Worker Migration](https://anypoint.mulesoft.com/exchange/org.mule.templates/template-wday2snow-worker-migration/) - [Workday Worker to ServiceNow Service Request Broadcast](https://anypoint.mulesoft.com/exchange/org.mule.templates/template-wday2snow-worker2servicerequest-broadcast/) ## Next Step After you complete the prerequisites and experiment with templates and examples, you are ready to create an app with [Anypoint Studio](https://docs.mulesoft.com/servicenow-connector/latest/servicenow-connector-studio). ## See Also - [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors) - [Use Anypoint Exchange to Discover Connectors, Templates, and Examples](https://docs.mulesoft.com/connectors/introduction/intro-use-exchange) - [ServiceNow Connector Release Notes](https://docs.mulesoft.com/release-notes/connector/servicenow-connector-release-notes-mule-4) - [ServiceNow Connector on Exchange](https://www.mulesoft.com/exchange/com.mulesoft.connectors/mule-servicenow-connector/) - [Salesforce Help](https://help.salesforce.com) --- product: ServiceNow Connector version: 6.18 is-latest-version: true --- # ServiceNow Connector 6.18 Examples > For the full documentation index, see: https://docs.mulesoft.com/llms.txt To fully benefit from using Anypoint Connector for ServiceNow (ServiceNow Connector), see the following examples. ## Retrieve Records from a ServiceNow Incident Table This example creates a Mule flow that retrieves records from the `Incident` table. The following screenshot shows the Studio app flow for this example: ![ServiceNow flow for incident get records](/mulesoft/current/en-us/servicenow-connector/latest/_images/servicenow-flow-incident-getrecords.png) Figure 1. App flow for the Retrieve Records example 1. Create a Mule project in Studio. 2. Add and configure an **HTTP Listener** trigger for your flow with this path: `getrecords` ![HTTP Listener general settings with path set to getrecords](/mulesoft/current/en-us/servicenow-connector/latest/_images/servicenow-listener.png) 3. Add a **Transform Message** component after the HTTP connector and provide a transformation script similar to this: %dw 2.0 output application/xml ns ns0 http://www.service-now.com/incident --- { ns0#getRecords: { ns0#description: 'Test WSDL QA' } } > [!NOTE] Add a description that matches records in your ServiceNow incident table. 4. Add the **Invoke** operation from ServiceNow after the **Transform** component. 5. Set up, test, and save a ServiceNow configuration for the connection to the ServiceNow server. If the connection is unsuccessful, correct any invalid connection parameters, and test again. ![Global element properties window](/mulesoft/current/en-us/servicenow-connector/latest/_images/servicenow-studio-connection-6.6.0.png) ![Transport tab in global element properties window](/mulesoft/current/en-us/servicenow-connector/latest/_images/servicenow-studio-config-transport-tab.png) 6. In the **General** tab in the navigation, set **Service** to `incident` and **Operation** to `getRecords`. 7. Optionally, choose **Show Reference Values** from the values (`ALL`, `TRUE`, `FALSE`) > [!IMPORTANT] In Studio 7.5.0 and later, you can choose the `service` and `operation` keys > without specifying the `Show Reference Values` key to resolve the metadata. However, in > earlier Studio versions, metadata won’t be loaded until you specify all of the metadata keys, > and if you don’t specify all of the metadata keys, it results in a tooling exception. ![ServiceNow metadata without reference values](/mulesoft/current/en-us/servicenow-connector/latest/_images/servicenow-metadata-without-reference-values.png) 8. Set the Message Body to `payload`. 9. Add the **Transform Message** component to `transform XML to JSON` for better readability. For example: %dw 2.0 output application/json --- payload 10. Add a **Logger** component to the end of your flow that takes a `payload` (or `#[payload]`) as the message. 11. Deploy or run your app. 12. Test the app by navigating to `http://localhost:8081/getrecords` The response should look similar to this example (several fields are omitted for brevity): { "headers": { }, "attachments": { }, "body": { "getRecordsResponse": { "getRecordsResult": { "active": "1", "activity\_due": "2019-09-24 09:48:15", "approval": "not requested", "business\_stc": "0", "calendar\_stc": "0", "category": "Software", "child\_incidents": "0", "description": "Test WSDL QA", "escalation": "0", "hold\_reason": "0", "impact": "1", "incident\_state": "1", "knowledge": "0", "made\_sla": "1", "notify": "1", "number": "INC0011616", "opened\_at": "2019-09-20 07:30:34", "opened\_by": "6816f79cc0a8016401c5a33be04be441", "order": "0", "priority": "1", "reassignment\_count": "0", "reopen\_count": "0", "severity": "3", "state": "1", "sys\_class\_name": "incident", "sys\_created\_by": "admin", "sys\_created\_on": "2019-09-20 07:30:34", "sys\_domain": "global", "sys\_domain\_path": "/", "sys\_id": "c03deab4db840010a0e6e04a48961999", "sys\_mod\_count": "47", "sys\_updated\_by": "system", "sys\_updated\_on": "2019-09-24 07:48:15", "upon\_approval": "proceed", "upon\_reject": "cancel", "urgency": "1", } } } } If you use `ALL` for `Show Reference Values`, the response is similar to this abbreviated output, in which the response element name for the display value field begins with `dv`: { "headers": { }, "attachments": { }, "body": { "getRecordsResponse": { "getRecordsResult": { "active": "1", "dv\_active": "true", "activity\_due": "2020-05-07 13:14:19", "dv\_activity\_due": "2020-05-07 06:14:19", "additional\_assignee\_list": null, "dv\_additional\_assignee\_list": null, "approval": "not requested", "dv\_approval": "Not Yet Requested", } } } } The response element name for the display value field is prefixed with `dv`. ## Retrieve ServiceNow Incident Table Keys This example creates a Mule flow that retrieve keys from the Incident table in a ServiceNow instance: 1. Create a Mule application as a project in Studio. 2. Add and configure an HTTP **Listener** trigger for your flow, and set the **Path** to `/getkeys`. 3. Add a **Transform Message** component after the HTTP **Listener** operation. 4. Provide a transformation script similar to this (use a description that matches records in your ServiceNow incident table): %dw 2.0 output application/xml ns ns0 http://www.service-now.com/incident --- { ns0#getKeys: { ns0#description: 'Test WSDL QA' } } 5. Add the ServiceNow **Invoke** operation after the **Transform Message** component. 6. Set up, test, and save a ServiceNow configuration for the connection to the ServiceNow server. If the connection is unsuccessful, correct any invalid connection parameters and test again. 7. In the **General** tab navigation, set **Service** to `incident` and **Operation** to `getKeys`. 8. Set the Message Body to `payload`. 9. Add the **Transform Message** component to transform XML to JSON for better readability. For example: %dw 2.0 output application/json --- payload 10. Add a **Logger** component to the end of your flow that takes a `payload` (or `#[payload]`) as the message. 11. Deploy or run your app. 12. To test the app, navigate to: `http://localhost:8081/getkeys` 13. The response should look similar to this: { "headers": { }, "attachments": { }, "body": { "getKeysResponse": { "sys\_id": "c03deab4db840010a0e6e04a48961999,0f517ab8db840010a0e6e04a489619bc,6f1236f8db840010a0e6e04a489619f5", "count": "3" } } } ## See Also - [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors) - [Using Anypoint Studio to Configure ServiceNow Connector](https://docs.mulesoft.com/servicenow-connector/latest/servicenow-connector-studio) - [Salesforce Help](https://help.salesforce.com) --- product: ServiceNow Connector version: 6.18 is-latest-version: true --- # ServiceNow Connector 6.18 Reference > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Anypoint Connector for ServiceNow (ServiceNow Connector) provides connections between Mule runtime engine (Mule) and ServiceNow apps. ## Configuration Default Configuration for ServiceNow Connector.
NameTypeDescriptionDefault ValueRequired

Name

String

Name for this configuration. Connectors reference the configuration with this name.

x

Connection

Connection types for this configuration.

x

Name

String

ID used to reference this configuration.

x

Expiration Policy

Configures the minimum amount of time that a dynamic configuration instance can remain idle before Mule considers it eligible for expiration.

### Basic Authentication Connection Type
NameTypeDescriptionDefault ValueRequired

Service Address

String

Address of the ServiceNow service.

x

ServiceNow Version

Enumeration, one of:

  • EUREKA

  • FUJI

  • GENEVA

  • HELSINKI

  • ISTANBUL

  • JAKARTA

  • KINGSTON

  • MADRID

  • NEW_YORK

  • ORLANDO

  • PARIS

  • QUEBEC

  • ROME

  • SAN_DIEGO

  • TOKYO

  • UTAH

  • VANCOUVER

  • WASHINGTON

  • XANADU

  • YOKOHAMA

  • ZURICH

  • AUSTRALIA

ServiceNow API Version.

WASHINGTON

User Tables List

Array of String

List of user-defined tables.

Encoding

String

Character encoding.

UTF-8

User Name

String

Username.

x

Password

String

Password.

x

Transport Configuration

Transport configuration.

Sign Security Strategy

WSS configuration for the signature security strategy.

Username Token Security Strategy

WSS configuration for the username token security strategy.

Reconnection

Configures a reconnection strategy to use when a connector operation fails to connect to an external server.

Pooling Profile

Characteristics of the connection pool.

### OAuth 2.0 Authorization Code Connection Type Use OAuth 2.0 to delegate user authentication to the service hosting the user account. For more information, refer to [Configuring OAuth 2.0 for Connectors](https://docs.mulesoft.com/connectors/introduction/intro-config-oauth2), [Configuring OAuth 2.0 for Connectors on CloudHub](https://docs.mulesoft.com/connectors/introduction/intro-config-oauth2-cloudhub), or [OAuth Support in the SDK](https://docs.mulesoft.com/mule-sdk/latest/oauth).
NameTypeDescriptionDefault ValueRequired

Service Address

String

Address of ServiceNow service.

x

ServiceNow Version

Enumeration, one of:

  • EUREKA

  • FUJI

  • GENEVA

  • HELSINKI

  • ISTANBUL

  • JAKARTA

  • KINGSTON

  • MADRID

  • NEW_YORK

  • ORLANDO

  • PARIS

  • QUEBEC

  • ROME

  • SAN_DIEGO

  • TOKYO

  • UTAH

  • VANCOUVER

  • WASHINGTON

  • XANADU

  • YOKOHAMA

  • ZURICH

  • AUSTRALIA

ServiceNow API Version.

WASHINGTON

User Tables List

Array of String

List of user-defined tables.

Encoding

String

Character encoding.

UTF-8

Custom Transport Configuration

Custom transport configuration.

State

String

String value that you send when the OAuth dance is initiated and that is returned back by the service provider with the token callback.

Sign Security Strategy

WSS configuration for the signature security strategy.

Username Token Security Strategy

Username token WSS configuration.

Reconnection

Configures a reconnection strategy to use when a connector operation fails to connect to an external server.

Consumer Key

String

OAuth consumer key, as registered with the service provider.

x

Consumer Secret

String

OAuth consumer secret, as registered with the service provider.

x

Authorization Url

String

URL of the service provider’s authorization endpoint.

https://{instance-id}.service-now.com/oauth_auth.do

Access Token Url

String

URL of the service provider’s access token endpoint.

https://{instance-id}.service-now.com/oauth_token.do

Scopes

String

OAuth scopes to request during the OAuth dance. This value defaults to the scopes in the annotation.

Resource Owner Id

String

Resource owner ID to use with the authorization code grant type.

Before

String

Name of the flow to execute immediately before starting the OAuth dance.

After

String

Name of the flow to execute immediately after receiving an access token.

Listener Config

String

Configuration for the HTTP listener that listens for requests on the access token callback endpoint.

x

Callback Path

String

Path of the access token callback endpoint.

x

Authorize Path

String

Path of the local HTTP endpoint that triggers the OAuth dance.

x

External Callback Url

String

URL that the OAuth provider uses to access the callback endpoint if the endpoint is behind a proxy or accessed through an indirect URL.

Object Store

String

Configures the object store that stores data for each resource owner. If not configured, Mule uses the default object store.

## Sources - [New / Updated Record](#new-or-updated-record-listener) > [!NOTE] To view custom or extended parent tables in ServiceNow Connector, select the **Allow > access to this table via web services** and **Allow configuration** options in the table > definition. ### New / Updated Record `` Efficiently polls periodically for changes in the selected table and accepts only new records into the flow.
NameTypeDescriptionDefault ValueRequired

Configuration

String

Name of the configuration to use.

x

ServiceNow Time Zone

String

Timezone.

America/Los_Angeles

Table name

String

Name of the table from which to retrieve the records.

x

Query

String

Optional query that filters the result set. The syntax is sysparm_query=. All parameters are case-sensitive. Queries can contain more than one entry, such as [].

Display System References

String

Data retrieval operation for reference and choice fields. Retrieves the display value or the actual value from the database. Valid values are:

  • true

    Returns the display values for all fields.

  • false

    Returns the actual values from the database.

  • all

    Returns both the actual and display values.

FALSE

Exclude Reference Links

Boolean

Flag that indicates whether to exclude table API links for reference fields.

false

Config Ref

ConfigurationProvider

Name of the configuration to use to execute this component.

x

Primary Node Only

Boolean

Determines whether to execute this source on only the primary node when running Mule instances in a cluster.

Scheduling Strategy

Scheduling Strategy

Configures the scheduler that triggers the polling.

x

Streaming Strategy

Configures how Mule processes streams. The default is to use repeatable streams.

Redelivery Policy

Defines a policy for processing the redelivery of the same message.

Reconnection Strategy

Retry strategy in case of connectivity errors.

#### Output

Type

Any

Attributes Type

#### Associated Configurations - [Configuration](#config) ## Operations - [Invoke](#invoke) - [Unauthorize](#unauthorize) > [!NOTE] To view custom or extended parent tables in ServiceNow Connector, select the **Allow > access to this table via web services** and **Allow configuration** options in the table > definition. ### Invoke `` Default operation for ServiceNow SOAP invocations.
NameTypeDescriptionDefault ValueRequired

Configuration

String

Name of the configuration to use.

x

Allow Empty Value

Boolean

Option that enables users to clear a specific field with a null or empty value for the update operation.

false

Config Ref

ConfigurationProvider

Name of the configuration to use to execute this component.

x

Service

String

Service name.

x

Operation

String

Operation name of the service.

x

Show Reference Values

String

Chooses which values are returned for reference fields. Possible options are to return sys_ids or display value or both. Use this option only for get and getRecords operations.

Body

Binary

XML body to include in the SOAP message, with all the required parameters, or null if no parameters are required.

#[payload]

Headers

Binary

XML headers to include in the SOAP message.

Attachments

Object

Attachments to include in the SOAP request.

Target Variable

String

Name of the variable that stores the operation’s output.

Target Value

String

Expression that evaluates the operation’s output. The outcome of the expression is stored in the Target Variable field.

#[payload]

Reconnection Strategy

Retry strategy in case of connectivity errors.

#### Output

Type

SOAP Output Envelope

Attributes Type

#### Associated Configurations - [Configuration](#config) #### Throws - SERVICENOW:RETRY\_EXHAUSTED - SERVICENOW:SOAP\_FAULT - SERVICENOW:PROCESSING\_ERROR - SERVICENOW:BAD\_RESPONSE - SERVICENOW:TIMEOUT - SERVICENOW:CONNECTIVITY - SERVICENOW:BAD\_REQUEST - SERVICENOW:CANNOT\_DISPATCH - SERVICENOW:INVALID\_WSDL - SERVICENOW:ENCODING ### Unauthorize `` Deletes all the access token information of a given resource owner ID so that it is impossible to execute any operation for that user without repeating the OAuth dance.
NameTypeDescriptionDefault ValueRequired

Configuration

String

Name of the configuration to use.

x

Resource Owner Id

String

ID of the resource owner for whom to invalidate access.

Config Ref

ConfigurationProvider

Name of the configuration to use to execute this component.

x

#### Associated Configurations - [Configuration](#config) ## Object Types - [Basic Authentication HTTP Message Dispatcher Provider](#basic-auth-http-message-dispatcher-provider) - [Expiration Policy](#ExpirationPolicy) - [HTTP Requester Based Transport Provider](#http-requester-based-transport-provider) - [OAuth2 HTTP Message Dispatcher Provider](#oauth2-http-message-dispatcher-provider) - [Pooling Profile](#PoolingProfile) - [Reconnect](#reconnect) - [Reconnect Forever](#reconnect-forever) - [Reconnection](#Reconnection) - [Redelivery Policy](#RedeliveryPolicy) - [Redelivery Policy Message Identifier](#RedeliveryPolicyMessageIdentifier) - [Repeatable File Store Stream](#repeatable-file-store-stream) - [Repeatable In Memory Stream](#repeatable-in-memory-stream) - [SOAP Attributes](#SoapAttributes) - [SOAP Output Envelope](#SoapOutputEnvelope) - [Wss Key Store Configuration](#wss-key-store-configuration) - [Wss Sign Security Strategy Adapter](#WssSignSecurityStrategyAdapter) - [WSS Signing Configuration Adapter](#WssSignConfigurationAdapter) - [WSS Username Token Security Strategy Adapter](#WssUsernameTokenSecurityStrategyAdapter) ### Basic Authentication HTTP Message Dispatcher Provider Default HTTP transport configuration.
FieldTypeDescriptionDefault ValueRequired

Username

String

Username to use.

x

Password

String

Password to use.

x

Read Timeout

Number

Read timeout value.

15000

Read Timeout Unit

Enumeration, one of:

  • NANOSECONDS

  • MICROSECONDS

  • MILLISECONDS

  • SECONDS

  • MINUTES

  • HOURS

  • DAYS

Time unit for the Read Timeout field.

MILLISECONDS

### Expiration Policy Configures an expiration policy strategy.
FieldTypeDescriptionDefault ValueRequired

Max Idle Time

Number

Configures the maximum amount of time that a dynamic configuration instance can remain idle before Mule considers it eligible for expiration.

Time Unit

Enumeration, one of:

  • NANOSECONDS

  • MICROSECONDS

  • MILLISECONDS

  • SECONDS

  • MINUTES

  • HOURS

  • DAYS

Time unit for the Max Idle Time field.

### HTTP Requester Based Transport Provider Custom HTTP transport configuration.
FieldTypeDescriptionDefault ValueRequired

Requester Config

String

Requester configuration.

x

### OAuth2 HTTP Message Dispatcher Provider OAuth transport configuration.
FieldTypeDescriptionDefault ValueRequired

Read Timeout

Number

Read timeout value.

15000

Read Timeout Unit

Enumeration, one of:

  • NANOSECONDS

  • MICROSECONDS

  • MILLISECONDS

  • SECONDS

  • MINUTES

  • HOURS

  • DAYS

Time unit for the Read Timeout field.

MILLISECONDS

### Pooling Profile Pooling profile type.
FieldTypeDescriptionDefault ValueRequired

Max Active

Number

Controls the maximum number of Mule components that is borrowed from a session at one time. When set to a negative value, there is no limit to the number of components that is active at one time. When the specified value for Max Active is exceeded, the pool is considered exhausted.

Max Idle

Number

Controls the maximum number of Mule components that sits idle in the pool at any time. When set to a negative value, there is no limit to the number of Mule components that is idle at one time.

Max Wait

Number

Specifies the number of milliseconds to wait for a pooled component to become available when the pool is exhausted and the Exhausted Action is set to WHEN_EXHAUSTED_WAIT.

Min Eviction Millis

Number

Determines the minimum amount of time an object sits idle in the pool before it is eligible for eviction. When non-positive, no objects are evicted from the pool due to idle time alone.

Eviction Check Interval Millis

Number

Specifies the number of milliseconds between runs of the object evictor. When non-positive, no object evictor is executed.

Exhausted Action

Enumeration, one of:

  • WHEN_EXHAUSTED_GROW

  • WHEN_EXHAUSTED_WAIT

  • WHEN_EXHAUSTED_FAIL

Specifies the behavior of the Mule component pool when the pool is exhausted:

  • WHEN_EXHAUSTED_GROW
    Creates a new Mule instance and returns it, which makes Max Active ineffective.

  • WHEN_EXHAUSTED_WAIT
    Blocks by invoking Object.wait(long) until a new or idle object is available.

  • WHEN_EXHAUSTED_FAIL
    Throws a NoSuchElementException.

If a positive Max Wait value is supplied, it blocks for, at most, that many milliseconds, after which a NoSuchElementException is thrown. If Max Thread Wait is a negative value, it blocks indefinitely.

Initialisation Policy

Enumeration, one of:

  • INITIALISE_NONE

  • INITIALISE_ONE

  • INITIALISE_ALL

Determines how to initialize components in a pool:

  • INITIALISE_NONE
    Does not load any components into the pool on startup.

  • INITIALISE_ONE
    Loads one initial component into the pool on startup.

  • INITIALISE_ALL
    Loads all components in the pool on startup.

Disabled

Boolean

Determines whether to disable pooling.

### Reconnect Configures a standard reconnection strategy, which specifies how often to reconnect and how many reconnection attempts the connector source or operation can make.
FieldTypeDescriptionDefault ValueRequired

Frequency

Number

How often to attempt to reconnect, in milliseconds.

Blocking

Boolean

If false, the reconnection strategy runs in a separate, non-blocking thread.

Count

Number

How many reconnection attempts the Mule app can make.

### Reconnect Forever Configures a forever reconnection strategy by which the connector source or operation attempts to reconnect at a specified frequency for as long as the Mule app runs.
FieldTypeDescriptionDefault ValueRequired

Frequency

Number

How often to attempt to reconnect, in milliseconds.

Blocking

Boolean

If false, the reconnection strategy runs in a separate, non-blocking thread.

### Reconnection Configures a reconnection strategy for an operation.
FieldTypeDescriptionDefault ValueRequired

Fails Deployment

Boolean

What to do if, when an app is deployed, a connectivity test does not pass after exhausting the associated reconnection strategy:

  • true

    Allow the deployment to fail.

  • false

    Ignore the results of the connectivity test.

Reconnection Strategy

Reconnection strategy to use.

### Redelivery Policy Configures the redelivery policy for executing requests that generate errors. You can add a redelivery policy to any source in a flow.
FieldTypeDescriptionDefault ValueRequired

Max Redelivery Count

Number

Maximum number of times that a redelivered request can be processed unsuccessfully before returning a REDELIVERY_EXHAUSTED error.

Message Digest Algorithm

String

Secure hashing algorithm to use if the Use Secure Hash field is true. If the payload of the message is a Java object, Mule ignores this value and returns the value that the payload’s hashCode() returned.

Message Identifier

Redelivery Policy Message Identifier

One or more expressions that determine if a message was redelivered. This property can be set only if the Use Secure Hash field is false.

Object Store

ObjectStore

Configures the object store that stores the redelivery counter for each message.

### Redelivery Policy Message Identifier Configures how to identify a redelivered message and how to find out when the message was redelivered.
FieldTypeDescriptionDefault ValueRequired

Use Secure Hash

Boolean

If true, Mule uses a secure hash algorithm to identify a redelivered message.

Id Expression

String

One or more expressions that determine if a message was redelivered. This property can be set only if the Use Secure Hash field is false.

### Repeatable File Store Stream Configures the repeatable file-store streaming strategy by which Mule keeps a portion of the stream content in memory. If the stream content is larger than the configured buffer size, Mule backs up the buffer’s content to disk and then clears the memory.
FieldTypeDescriptionDefault ValueRequired

In Memory Size

Number

Maximum amount of memory that the stream can use for data. If the amount of memory exceeds this value, Mule buffers the content to disk. To optimize performance:

  • Configure a larger buffer size to avoid the number of times Mule needs to write the buffer on disk. This increases performance, but it also limits the number of concurrent requests your application can process, because it requires additional memory.

  • Configure a smaller buffer size to decrease memory load at the expense of response time.

Buffer Unit

Enumeration, one of:

  • BYTE

  • KB

  • MB

  • GB

Unit for the In Memory Size field.

### Repeatable In Memory Stream Configures the in-memory streaming strategy by which the request fails if the data exceeds the MAX buffer size. Always run performance tests to find the optimal buffer size for your specific use case.
FieldTypeDescriptionDefault ValueRequired

Initial Buffer Size

Number

Initial amount of memory to allocate to the data stream. If the streamed data exceeds this value, the buffer expands by Buffer Size Increment, with an upper limit of Max In Memory Size value.

Buffer Size Increment

Number

Amount by which the buffer size expands if it exceeds its initial size. Setting a value of 0 or lower specifies that the buffer can’t expand.

Max Buffer Size

Number

The maximum amount of memory to use. If more than that is used then a STREAM_MAXIMUM_SIZE_EXCEEDED error is raised. A value lower than or equal to zero means no limit.

Buffer Unit

Enumeration, one of:

  • BYTE

  • KB

  • MB

  • GB

Unit for the Initial Buffer Size, Buffer Size Increment, and Buffer Unit fields.

### SOAP Attributes Attributes returned by the consume operation. Carries the protocol specific headers (such as HTTP headers) and additional transport data (such as the HTTP status line) bounded to the response.
FieldTypeDescriptionDefault ValueRequired

Additional Transport Data

Object

Additional transport data bundled in the response.

Protocol Headers

Object

Protocol headers bundled in the response.

### SOAP Output Envelope Represents the response of the consume operation. Bundles the SOAP body, SOAP headers, and MIME attachments if there are any.
FieldTypeDescriptionDefault ValueRequired

Attachments

Object

Set of attachments bounded to the response, or an empty map if there are no attachments.

Body

Binary

XML response body. Represents the <SOAP:BODY> element.

Headers

Object

Set of XML SOAP headers. Represents the content in the <SOAP:HEADERS> element.

### Wss Key Store Configuration Implementation for keystores, used for encryption, decryption, and signing.
FieldTypeDescriptionDefault ValueRequired

Key Store Path

String

Location of the keystore file.

x

Alias

String

Alias of the private key to use.

Password

String

Password to access the store.

x

Key Password

String

Password used to access the private key.

Type

String

Type of store, such as fjks, pkcs12, jceks, and so on.

jks

### Wss Sign Security Strategy Adapter Signs the SOAP request that is sent, using the private key of the keystore in the provided TLS context.
FieldTypeDescriptionDefault ValueRequired

Key Store Configuration

Keystore to use when signing the message.

x

Sign Algorithm Configuration

Algorithms to use on the signing.

### WSS Signing Configuration Adapter Group that holds the configuration for signing algorithms used in the sign security strategy.
FieldTypeDescriptionDefault ValueRequired

Signature Key Identifier

Enumeration, one of:

  • DIRECT_REFERENCE

  • X509_KEY_IDENTIFIER

Key identifier type to use for the signature.

X509_KEY_IDENTIFIER

Signature Algorithm

Enumeration, one of:

  • RSAwithSHA1

  • RSAwithSHA224

  • RSAwithSHA256

  • RSAwithSHA384

  • RSAwithSHA512

Signature algorithm to use. The default is set by the data in the certificate.

Signature Digest Algorithm

Enumeration, one of:

  • SHA1

  • SHA256

  • SHA224

  • SHA384

  • SHA512

Signature digest algorithm to use.

SHA1

Signature C14n Algorithm

Enumeration, one of:

  • CanonicalXML_1_0

  • CanonicalXML_1_1

  • ExclusiveXMLCanonicalization_1_0

Defines which signature c14n (canonicalization) algorithm to use.

ExclusiveXMLCanonicalization_1_0

### WSS Username Token Security Strategy Adapter Provides the capability to authenticate with a SOAP service using a username and a password by adding the UsernameToken element in the SOAP request.
FieldTypeDescriptionDefault ValueRequired

Username

String

Username required to authenticate with the service.

x

Password

String

Password for the provided username required to authenticate with the service.

x

Password Type

Enumeration, one of:

  • DIGEST

  • TEXT

Password parameter.

DIGEST

## See Also - [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors) - [Salesforce Help](https://help.salesforce.com) --- product: ServiceNow Connector version: 6.18 is-latest-version: true --- # ServiceNow Connector 6.18 XML and Maven Support > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Although you can manually code a Mule app in XML, it is more efficient to use Anypoint Studio: - If you manually code a Mule runtime engine (Mule) app in XML, either from the Anypoint Studio XML editor or from a text editor, you can access the connector from your app by adding reference statements to both your XML Mule flow and the Apache Maven `pom.xml` file. - If you add the connector in Studio, Studio automatically populates the XML code with the connector’s namespace and schema location and it also adds a dependency to the `pom.xml` file. ## Add a Namespace for the Connector Paste the following code inside the `mule` tag of the header of your configuration XML: ```xml http://www.mulesoft.org/schema/mule/servicenow http://www.mulesoft.org/schema/mule/servicenow/current/mule-servicenow.xsd ``` This example shows how the namespace statements are placed in the XML: ```xml ``` ## Add a POM File Dependency The Apache Maven `pom.xml` file generated by Anypoint Studio contains dependencies for a Mule app. If you code a Mule app manually, include this XML snippet in your `pom.xml` file to enable access to this connector: ```xml com.mulesoft.connectors mule-servicenow-connector x.x.x mule-plugin ``` Replace `x.x.x` with the version that corresponds to the connector you are using. To obtain the most up-to-date `pom.xml` file information: 1. Go to [Anypoint Exchange](https://www.mulesoft.com/exchange/). 2. In Exchange, click **Login** and supply your Anypoint Platform username and password. 3. In Exchange, search for `serviceNow`. 4. Select the connector. 5. Click **Dependency Snippets** near the upper right of the screen. ## Next Step After completing your namespace and `pom.xml` file, you can try the [Examples](https://docs.mulesoft.com/servicenow-connector/latest/servicenow-connector-examples). ## See Also - [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors) - [Salesforce Help](https://help.salesforce.com) --- product: ServiceNow Connector version: 6.17 --- # Troubleshooting ServiceNow Connector 6.17 > For the full documentation index, see: https://docs.mulesoft.com/llms.txt To troubleshoot Anypoint Connector for ServiceNow (ServiceNow Connector), become familiar with the information about interpreting commonly thrown exception messages. ## Enable Verbose Exception Logging Enable verbose exception logs to show a complete stack trace of the error instead of the default truncated output: 1. In Studio, right-click on the project and select **Run > Run Configurations**. 2. Go to the **Arguments** tab and append the arguments in the **VM arguments** section to add the `mule.verbose.exceptions` property. For example: `-XX:PermSize=128M -XX:MaxPermSize=256M -Dmule.verbose.exceptions=true` ## Enable Verbose Logging To get a better understanding of why an application’s interaction with ServiceNow Connector is failing, temporarily enable verbose logging for the connector. Remember to always disable enhanced verbosity after troubleshooting, because it can affect your Mule application’s performance. To enable verbose logging in the configuration file: 1. Access Anypoint Studio and navigate to the **Package Explorer** view. 2. Open your application’s project name. 3. Open the `src/main/resources` folder. 4. Open the `log4j2.xml` file inside the folder. 5. Add an `` tag inside the `` tag: ```xml ... ... ``` 6. Save your application changes. 7. Click the project name in **Package Explorer** and then click **Run** > **Run As** > **Mule Application**. ## Understand Commonly Thrown Exceptions Here is a list of commonly thrown exception messages and how to interpret them: - SERVICENOW:BAD\_REQUEST The request is incorrect, for example, there are invalid input headers or the service does not exist. - SERVICENOW:CANNOT\_DISPATCH An error occurs when sending the request. - SERVICENOW:CONNECTIVITY Either a connection could not be established or there is a connectivity error. - SERVICENOW:ENCODING There is an encoding error when parsing the request or the response. - SERVICENOW:INVALID\_WSDL The WSDL is invalid or inconsistent. - SERVICENOW:PROCESSING\_ERROR There is a processing error, for example, there is an interruption during initialization. - SERVICENOW:RETRY\_EXHAUSTED The maximum number of retries for the operation is reached. - SERVICENOW:SOAP\_FAULT There is a SOAP fault error. - SERVICENOW:TIMEOUT A specific request takes longer than the configuration timeout values. ## See Also - [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors) - [ServiceNow Connector Reference](https://docs.mulesoft.com/servicenow-connector/6.17/servicenow-reference) - [Salesforce Help](https://help.salesforce.com) - [Known Issues](https://help.salesforce.com/s/issues) --- product: ServiceNow Connector version: 6.18 is-latest-version: true --- # Troubleshooting ServiceNow Connector 6.18 > For the full documentation index, see: https://docs.mulesoft.com/llms.txt To troubleshoot Anypoint Connector for ServiceNow (ServiceNow Connector), become familiar with the information about interpreting commonly thrown exception messages. ## Enable Verbose Exception Logging Enable verbose exception logs to show a complete stack trace of the error instead of the default truncated output: 1. In Studio, right-click on the project and select **Run > Run Configurations**. 2. Go to the **Arguments** tab and append the arguments in the **VM arguments** section to add the `mule.verbose.exceptions` property. For example: `-XX:PermSize=128M -XX:MaxPermSize=256M -Dmule.verbose.exceptions=true` ## Enable Verbose Logging To get a better understanding of why an application’s interaction with ServiceNow Connector is failing, temporarily enable verbose logging for the connector. Remember to always disable enhanced verbosity after troubleshooting, because it can affect your Mule application’s performance. To enable verbose logging in the configuration file: 1. Access Anypoint Studio and navigate to the **Package Explorer** view. 2. Open your application’s project name. 3. Open the `src/main/resources` folder. 4. Open the `log4j2.xml` file inside the folder. 5. Add an `` tag inside the `` tag: ```xml ... ... ``` 6. Save your application changes. 7. Click the project name in **Package Explorer** and then click **Run** > **Run As** > **Mule Application**. ## Understand Commonly Thrown Exceptions Here is a list of commonly thrown exception messages and how to interpret them: - SERVICENOW:BAD\_REQUEST The request is incorrect, for example, there are invalid input headers or the service does not exist. - SERVICENOW:BAD\_RESPONSE The response is incorrect, for example, the response is not in the expected format. - SERVICENOW:CANNOT\_DISPATCH An error occurs when sending the request. - SERVICENOW:CONNECTIVITY Either a connection could not be established or there is a connectivity error. - SERVICENOW:ENCODING There is an encoding error when parsing the request or the response. - SERVICENOW:INVALID\_WSDL The WSDL is invalid or inconsistent. - SERVICENOW:PROCESSING\_ERROR There is a processing error, for example, there is an interruption during initialization. - SERVICENOW:RETRY\_EXHAUSTED The maximum number of retries for the operation is reached. - SERVICENOW:SOAP\_FAULT There is a SOAP fault error. - SERVICENOW:TIMEOUT A specific request takes longer than the configuration timeout values. ## See Also - [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors) - [ServiceNow Connector Reference](https://docs.mulesoft.com/servicenow-connector/latest/servicenow-reference) - [Salesforce Help](https://help.salesforce.com) - [Known Issues](https://help.salesforce.com/s/issues) --- product: ServiceNow Connector version: 6.17 --- # Using Anypoint Studio to Configure ServiceNow Connector 6.17 > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Anypoint Studio (Studio) editors help you design and update your Mule applications, properties, and configuration files. To add and configure a connector in Studio: 1. [Create a Mule project](#create-mule-project). 2. [Add the connector to your Mule project](#add-connector-to-project). 3. [Configure a source for the connector’s flow](#configure-input-source). 4. [Add a connector operation to the flow](#add-connector-operation). 5. [Configure a global element for the connector](#configure-global-element). When you run the connector, you can view the app log to check for problems, as described in [View the App Log](#view-app-log). If you are new to configuring connectors in Studio, see [Using Anypoint Studio to Configure a Connector](https://docs.mulesoft.com/connectors/introduction/intro-config-use-studio). If, after reading this topic, you need additional information about the connector fields, see the [ServiceNow Connector Reference](https://docs.mulesoft.com/servicenow-connector/6.17/servicenow-reference). ## Create a Mule Project In Studio, create a new Mule project in which to add and configure the connector: 1. In Studio, select **File > New > Mule Project**. 2. Enter a name for your Mule project and click **Finish**. ## Add the Connector to Your Mule Project Add ServiceNow Connector to your Mule project to automatically populate the XML code with the connector’s namespace and schema location and to add the required dependencies to the project’s `pom.xml` file: 1. In the **Mule Palette** view, click **(X) Search in Exchange**. 2. In the **Add Dependencies to Project** window, type `servicenow` in the search field. 3. Click **ServiceNow Connector** in **Available modules**. 4. Click **Add**. 5. Click **Finish**. Adding a connector to a Mule project in Studio does not make that connector available to other projects in your Studio workspace. ## Configure a Source A source initiates a flow when a specified condition is met. You can configure one of these sources to use with ServiceNow Connector: - **HTTP > Listener** Initiates a flow each time it receives a request on the configured host and port - **Scheduler** Initiates a flow when a time-based condition is met For example, to configure an HTTP **Listener**, follow these steps: 1. In the **Mule Palette** view, select **HTTP > Listener**. 2. Drag **Listener** to the Studio canvas. 3. On the **Listener** configuration screen, optionally change the value of the **Display Name** field. 4. Specify a value for the **Path** field. 5. Click the plus sign (**+**) next to the **Connector configuration** field to configure a global element that can be used by all instances of the HTTP **Listener** in the app. 6. On the **General** tab, specify the connection information for the connector. 7. On the **TLS** tab, optionally specify the TLS information for the connector. 8. On the **Advanced** tab, optionally specify reconnection information, including a reconnection strategy. 9. Click **Test Connection** to confirm that Mule can connect with the specified server. 10. Click **OK**. ## Add a Connector Operation to the Flow When you add a connector operation to your flow, you immediately define a specific operation for that connector to perform. To add an operation for ServiceNow Connector, follow these steps: 1. In the **Mule Palette** view, select **ServiceNow** and then select the desired operation. 2. Drag the operation onto the Studio canvas and to the right of the source. ## Configure a Global Element for the Connector When you configure a connector, it’s best to configure a global element that all instances of that connector in the app can use. Configuring a global element requires you to provide the authentication credentials that the connector requires to access the target ServiceNow system. ServiceNow Connector supports the Basic and OAuth2 authentication types. To configure the global element for ServiceNow Connector, follow these steps: 1. Select the operation in the Studio canvas. 2. In the configuration screen for the operation, click the plus sign (**+**) next to the **Connector configuration** field to access the global element configuration fields. 3. On the **General** tab, in **Connection**, select the authentication method to configure: - [Basic Authentication](#basic-authentication) - [OAuth 2.0 Authorization Code](#oauth-2-auth-code) You can reference a configuration file that contains ANT-style property placeholders (recommended), or you can enter your authorization credentials in the global configuration properties. For information about the benefits of using property placeholders and how to configure them, see [Anypoint Connector Configuration](https://docs.mulesoft.com/connectors/introduction/intro-connector-configuration-overview). 4. On the **Advanced** tab, optionally specify reconnection information, including a reconnection strategy. 5. Click **Test Connection** to confirm that Mule can connect with the specified server. 6. Click **OK**. ### Basic Authentication 1. In the ServiceNow Config **General** tab, select **Basic Authentication** from the **Connection** drop-down list. 2. Provide the following values for Basic authentication:
FieldDescription

Username

Name used to log in to ServiceNow

Password

Password that corresponds to the user name

Service Address

The WSDL endpoint

ServiceNow Version

The ServiceNow version to use

User table list

Custom tables for a user who is logged in

![Global element properties window with basic authentication selected](/mulesoft/current/en-us/servicenow-connector/6.17/_images/servicenow-studio-connection-6.7.0.png) 3. Click **OK**. #### Basic Authentication HTTP Message Dispatcher Provider 1. Click the **Transport** tab. 2. From **Transport Configuration**, select **Basic auth http message dispatcher provider**. 3. Enter the following required values:
FieldDescription

User Name

Name used to log in to ServiceNow

Password

Password that corresponds to the user name

#### Basic Authentication HTTP Requester Based Transport Provider 1. Click the **Transport** tab. 2. From **Transport Configuration**, select **Http requester based transport provider**. 3. Select the **Requester config** or click the green plus sign to create a new one. ![Transport tab for basic authentication](/mulesoft/current/en-us/servicenow-connector/6.17/_images/servicenow-studio-requester-config.png) 4. Specify the required values:
FieldDescription

Host

The WSDL endpoint

Username

User name for logging in to ServiceNow

Password

Password that corresponds to the user name

### OAuth2.0 Authentication Use OAuth 2.0 to delegate user authentication to the service hosting the user account. For more information, refer to [Configuring OAuth 2.0 for Connectors](https://docs.mulesoft.com/connectors/introduction/intro-config-oauth2), [Configuring OAuth 2.0 for Connectors on CloudHub](https://docs.mulesoft.com/connectors/introduction/intro-config-oauth2-cloudhub), or [OAuth Support in the SDK](https://docs.mulesoft.com/mule-sdk/latest/oauth). To set up OAuth 2.0 authentication: 1. In the ServiceNow Config **General** tab, select **OAuth 2.0 Authorization Code** from the **Connection** drop-down list. 2. Specify the values for the OAuth connection: ![General tab for configuring OAuth 2.0 Authorization Code](/mulesoft/current/en-us/servicenow-connector/6.17/_images/servicenow-oauth.png)
FieldDescription

Service Address

ServiceNow’s instance endpoint

Consumer key

Client ID from the registered application

Consumer secret

Client secret from the registered application

Authorization url

Endpoint for initiating the OAuth dance

Access token url

Endpoint for retrieving the access token

Resource owner id

OAuth client ID configured in your instance’s application registries

Listener config

HTTP Listener configuration

Callback path

Path of the access token callback endpoint

Authorize path

Path of the local HTTP endpoint that triggers the OAuth dance

External callback url

If the callback endpoint is behind a proxy or should be accessed through a non-direct URL, use this parameter to specify the URL the OAuth provider should use to access the callback.

To reach ServiceNow endpoints using an OAuth 2.0 connection, you must manually perform the OAuth dance after starting your Mule app: 1. Start the OAuth dance by doing either of the following: - If the Resource owner id parameter is set in the OAuth configuration, use the following URL in the browser. Substitute `` with the correct value: `http://localhost:8081 authorize?resourceOwnerId=` - If the Resource owner id parameter is not set in the OAuth configuration, use the following URL: `http://localhost:8081/authorize` 2. On the Login screen, enter the login details for the ServiceNow instance and click **Login** . 3. On the **Authorize** screen, click **Allow**. You should see a confirmation that the OAuth dance succeeded and the access token was retrieved. ## View the App Log To check for problems, you can view the app log as follows: - If you’re running the app from Anypoint Platform, the output is visible in the Anypoint Studio console window. - If you’re running the app using Mule from the command line, the app log is visible in your OS console. Unless the log file path is customized in the app’s log file (`log4j2.xml`), you can also view the app log in the default location `MULE_HOME/logs/.log`. ## Next Step After configuring ServiceNow Connector in Studio, see the [Examples](https://docs.mulesoft.com/servicenow-connector/6.17/servicenow-connector-examples) to experiment with the connector. ## See Also - [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors) - [Salesforce Help](https://help.salesforce.com) --- product: ServiceNow Connector version: 6.18 is-latest-version: true --- # Using Anypoint Studio to Configure ServiceNow Connector 6.18 > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Anypoint Studio (Studio) editors help you design and update your Mule applications, properties, and configuration files. To add and configure a connector in Studio: 1. [Create a Mule project](#create-mule-project). 2. [Add the connector to your Mule project](#add-connector-to-project). 3. [Configure a source for the connector’s flow](#configure-input-source). 4. [Add a connector operation to the flow](#add-connector-operation). 5. [Configure a global element for the connector](#configure-global-element). When you run the connector, you can view the app log to check for problems, as described in [View the App Log](#view-app-log). If you are new to configuring connectors in Studio, see [Using Anypoint Studio to Configure a Connector](https://docs.mulesoft.com/connectors/introduction/intro-config-use-studio). If, after reading this topic, you need additional information about the connector fields, see the [ServiceNow Connector Reference](https://docs.mulesoft.com/servicenow-connector/latest/servicenow-reference). ## Create a Mule Project In Studio, create a new Mule project in which to add and configure the connector: 1. In Studio, select **File > New > Mule Project**. 2. Enter a name for your Mule project and click **Finish**. ## Add the Connector to Your Mule Project Add ServiceNow Connector to your Mule project to automatically populate the XML code with the connector’s namespace and schema location and to add the required dependencies to the project’s `pom.xml` file: 1. In the **Mule Palette** view, click **(X) Search in Exchange**. 2. In the **Add Dependencies to Project** window, type `servicenow` in the search field. 3. Click **ServiceNow Connector** in **Available modules**. 4. Click **Add**. 5. Click **Finish**. Adding a connector to a Mule project in Studio does not make that connector available to other projects in your Studio workspace. ## Configure a Source A source initiates a flow when a specified condition is met. You can configure one of these sources to use with ServiceNow Connector: - **HTTP > Listener** Initiates a flow each time it receives a request on the configured host and port - **Scheduler** Initiates a flow when a time-based condition is met For example, to configure an HTTP **Listener**, follow these steps: 1. In the **Mule Palette** view, select **HTTP > Listener**. 2. Drag **Listener** to the Studio canvas. 3. On the **Listener** configuration screen, optionally change the value of the **Display Name** field. 4. Specify a value for the **Path** field. 5. Click the plus sign (**+**) next to the **Connector configuration** field to configure a global element that can be used by all instances of the HTTP **Listener** in the app. 6. On the **General** tab, specify the connection information for the connector. 7. On the **TLS** tab, optionally specify the TLS information for the connector. 8. On the **Advanced** tab, optionally specify reconnection information, including a reconnection strategy. 9. Click **Test Connection** to confirm that Mule can connect with the specified server. 10. Click **OK**. ## Add a Connector Operation to the Flow When you add a connector operation to your flow, you immediately define a specific operation for that connector to perform. To add an operation for ServiceNow Connector, follow these steps: 1. In the **Mule Palette** view, select **ServiceNow** and then select the desired operation. 2. Drag the operation onto the Studio canvas and to the right of the source. ## Configure a Global Element for the Connector When you configure a connector, it’s best to configure a global element that all instances of that connector in the app can use. Configuring a global element requires you to provide the authentication credentials that the connector requires to access the target ServiceNow system. ServiceNow Connector supports the Basic and OAuth2 authentication types. To configure the global element for ServiceNow Connector, follow these steps: 1. Select the operation in the Studio canvas. 2. In the configuration screen for the operation, click the plus sign (**+**) next to the **Connector configuration** field to access the global element configuration fields. 3. On the **General** tab, in **Connection**, select the authentication method to configure: - [Basic Authentication](#basic-authentication) - [OAuth 2.0 Authorization Code](#oauth-2-auth-code) You can reference a configuration file that contains ANT-style property placeholders (recommended), or you can enter your authorization credentials in the global configuration properties. For information about the benefits of using property placeholders and how to configure them, see [Anypoint Connector Configuration](https://docs.mulesoft.com/connectors/introduction/intro-connector-configuration-overview). 4. On the **Advanced** tab, optionally specify reconnection information, including a reconnection strategy. 5. Click **Test Connection** to confirm that Mule can connect with the specified server. 6. Click **OK**. ### Basic Authentication 1. In the ServiceNow Config **General** tab, select **Basic Authentication** from the **Connection** drop-down list. 2. Provide the following values for Basic authentication:
FieldDescription

Username

Name used to log in to ServiceNow

Password

Password that corresponds to the user name

Service Address

The WSDL endpoint

ServiceNow Version

The ServiceNow version to use

User table list

Custom tables for a user who is logged in

![Global element properties window with basic authentication selected](/mulesoft/current/en-us/servicenow-connector/latest/_images/servicenow-studio-connection-6.7.0.png) 3. Click **OK**. #### Basic Authentication HTTP Message Dispatcher Provider 1. Click the **Transport** tab. 2. From **Transport Configuration**, select **Basic auth http message dispatcher provider**. 3. Enter the following required values:
FieldDescription

User Name

Name used to log in to ServiceNow

Password

Password that corresponds to the user name

#### Basic Authentication HTTP Requester Based Transport Provider 1. Click the **Transport** tab. 2. From **Transport Configuration**, select **Http requester based transport provider**. 3. Select the **Requester config** or click the green plus sign to create a new one. ![Transport tab for basic authentication](/mulesoft/current/en-us/servicenow-connector/latest/_images/servicenow-studio-requester-config.png) 4. Specify the required values:
FieldDescription

Host

The WSDL endpoint

Username

User name for logging in to ServiceNow

Password

Password that corresponds to the user name

### OAuth2.0 Authentication Use OAuth 2.0 to delegate user authentication to the service hosting the user account. For more information, refer to [Configuring OAuth 2.0 for Connectors](https://docs.mulesoft.com/connectors/introduction/intro-config-oauth2), [Configuring OAuth 2.0 for Connectors on CloudHub](https://docs.mulesoft.com/connectors/introduction/intro-config-oauth2-cloudhub), or [OAuth Support in the SDK](https://docs.mulesoft.com/mule-sdk/latest/oauth). To set up OAuth 2.0 authentication: 1. In the ServiceNow Config **General** tab, select **OAuth 2.0 Authorization Code** from the **Connection** drop-down list. 2. Specify the values for the OAuth connection: ![General tab for configuring OAuth 2.0 Authorization Code](/mulesoft/current/en-us/servicenow-connector/latest/_images/servicenow-oauth.png)
FieldDescription

Service Address

ServiceNow’s instance endpoint

Consumer key

Client ID from the registered application

Consumer secret

Client secret from the registered application

Authorization url

Endpoint for initiating the OAuth dance

Access token url

Endpoint for retrieving the access token

Resource owner id

OAuth client ID configured in your instance’s application registries

Listener config

HTTP Listener configuration

Callback path

Path of the access token callback endpoint

Authorize path

Path of the local HTTP endpoint that triggers the OAuth dance

External callback url

If the callback endpoint is behind a proxy or should be accessed through a non-direct URL, use this parameter to specify the URL the OAuth provider should use to access the callback.

To reach ServiceNow endpoints using an OAuth 2.0 connection, you must manually perform the OAuth dance after starting your Mule app: 1. Start the OAuth dance by doing either of the following: - If the Resource owner id parameter is set in the OAuth configuration, use the following URL in the browser. Substitute `` with the correct value: `http://localhost:8081 authorize?resourceOwnerId=` - If the Resource owner id parameter is not set in the OAuth configuration, use the following URL: `http://localhost:8081/authorize` 2. On the Login screen, enter the login details for the ServiceNow instance and click **Login** . 3. On the **Authorize** screen, click **Allow**. You should see a confirmation that the OAuth dance succeeded and the access token was retrieved. ## View the App Log To check for problems, you can view the app log as follows: - If you’re running the app from Anypoint Platform, the output is visible in the Anypoint Studio console window. - If you’re running the app using Mule from the command line, the app log is visible in your OS console. Unless the log file path is customized in the app’s log file (`log4j2.xml`), you can also view the app log in the default location `MULE_HOME/logs/.log`. ## Next Step After configuring ServiceNow Connector in Studio, see the [Examples](https://docs.mulesoft.com/servicenow-connector/latest/servicenow-connector-examples) to experiment with the connector. ## See Also - [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors) - [Salesforce Help](https://help.salesforce.com)
