# mulesoft Design Center - Full Documentation --- product: Design Center --- # About Design Center > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Anypoint Design Center is a development environment that includes [API Designer](https://docs.mulesoft.com/design-center/design-create-publish-api-specs), a tool that enables you to create API specifications in several modeling languages and create RAML API fragments. After you create a specification or fragment, publish it to Anypoint Exchange for anyone in your MuleSoft organization to use. > [!NOTE] Flow Designer is > [end of life](https://www.salesforce.com/en-us/wp-content/uploads/sites/4/documents/legal/Agreements/versioning-back-support-policy.pdf) > and its documentation is now located at > [Flow Designer archive site](https://archive.docs.mulesoft.com/design-center/index). ## Prerequisites for Using Design Center You must meet the following requirements for accessing Design Center, using its features, running and deploying apps, and publishing designs to Exchange: - Be assigned the Design Center Developer permission or be the Organization Owner. - Be assigned the CloudHub Admin role for the Design environment. - Be assigned the Exchange Contributor role. - Belong to an Anypoint organization that has at least one CloudHub Design Environment with 0.2 vCores of available capacity. To deploy to the production environment from Design Center, your user account also needs to be assigned to a CloudHub Developer role specifically for the production environment. ## Where to Start Using Design Center To start using Design Center, click Design Center after signing into Anypoint Platform. The Projects list appears. See the documentation for API Designer for the steps to create projects for those tools. ## See Also - [Roles](https://docs.mulesoft.com/access-management/roles) - [CloudHub Environments](https://docs.mulesoft.com/access-management/environments) --- product: Design Center --- # Add Behavioral Headers to Simulated API Calls > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Behavioral headers enable you to change the behavior of the mocking service. Use behavioral headers where you would normally specify other types of header when simulating requests to API specifications. ## MS2-Delay MS2-Delay indicates how many milliseconds the request should take to answer. You might want to use this header to simulate load on your server or latency in a network. You can specify a value for this header as an integer or as a range of integers. If you specify a range, the value must have the form `min-max`. For example, given the value `500-1000`, the request will take a random time between 500 and 1000 milliseconds. > [!NOTE] It is possible for the delay to be longer than a single integer value or the high end of a > range, depending on the latency of your network. The MS2-Delay takes a maximum value of 10000 milliseconds (ms), and follows this behavior: - If the value is set to less than 10000 ms, the mocking service adds a delay of ~5000 ms. - If the value is set to greater than 10000 ms, the mocking service adds a delay of ~10000 ms. Examples: \* If the value is set to a range of 5000 - 9000 ms, the mocking service adds a delay of ~5000 - ~9000 ms. \* If the value is set to a range of 9000 - 20000 ms, the mocking service adds a delay of ~9000 - ~10000 ms. \* If the value is set to a range of 20000 - 30000 ms, the mocking service returns this error message: { "code": "INVALID\_HEADER\_VALUE", "message": "Invalid value for header MS2-Delay. Requested range is higher than the max value allowed: 10000 ms" } ## MS2-Example The MS2-Example header enables you to choose a specific response example if your endpoint defines more than one example for a single status code. Using MS2-Example, you can specify multiple examples within a response. This example shows three examples for the status code 200: /examples: get: responses: 200: body: application/json: examples: one: prop1: something prop2: 30 two: prop1: another prop2: 31 three: prop1: anything prop2: 33 Here, the possible values of the header would be `one`, `two`, and `three`. Sending the value `one` as part of the request would return the payload `something` and `30`. Sending a value other than `one`, `two`, or `three` would return an error message. ## MS2-Error-Level MS2-Error-Level indicates which range of error status codes the mocking service is restricted to using. You can specify one of the following three case-sensitive values: - `REQUEST_ONLY`: The mocking service uses only 4XX codes. - `SERVER_ONLY`: The mocking service uses only 5XX codes. - `ALL`: The mocking service can use both 4XX and 5XX codes. This is the default value. ## MS2-Error-Rate MS2-Error-Rate indicates the probability of getting an error status code as a response. The value for this header must be a decimal between 0 and 1. This header works together with MS2-Status-Code, MS2-Error-Level, or both at the same time.
Table 1. How the mocking service determines which status code to respond with when you use MS2-Error-Rate
Other header used with MS2-Error-RateMocking service (MS) responds with an error codeMocking service does not respond with an error code

MS2-Status-Code

MS uses the error code specified in MS2-Status-Code.

MS uses the non-error status code specified in MS2-Status-Code.

MS2-Error-Level

MS uses the first error status code that is defined for the method and that falls in the range specified for MS2-Error-Level.

MS uses the first non-error status code that is defined for the method.

MS2-Error-Level and MS2-Status-Code

MS uses the first error status code that is defined for the method and that falls in the range specified for MS2-Error-Level.

MS uses the first non-error status code that is specified in MS2-Status-Code.

None

MS uses the first error status code that is defined for the method.

MS uses the first non-error status code that is defined for the method.

## MS2-Randomize When MS2-Randomize is set to `true`, the mocking service auto-generates a payload response if no example is defined for the response. For example, suppose that an API specification contained the definitions of this type: types: Person: properties: id: integer name: string If you did not provide an example, but you used the header MS2-Randomize, set to `true`, with the mocking service, the payload of the returned message would contain an example with random values that matched the data types, like this: { "id": 98358, "name": "OVCKr" } Moreover, the header supports more detailed definition of types. For example, you might change your type definition to look like this: types: Person: properties: id: type: integer minimum: 3 maximum: 30 multipleOf: 3 name: string If MS2-Randomize were set to `true`, the payload in the response from the mocking service might look like this, with the value of `id` conforming to the constraints: { "id": 9, "name": "rul68" } ## MS2-Status-Code MS2-Status-Code specifies the status code or codes that the mocking service can choose from for the return message. This header behaves as a filter on the list of status codes that are defined for a method. For example, suppose a method has several non-error status codes defined; if you wanted the mocking service to respond with only one of those status codes, you would specify it with this header. > [!IMPORTANT] If you use this header together with MS2-Error-Rate, you must specify both a > non-error status code and an error status code. Separate the two status codes with a comma. For > example, you might want the mocking service to return a 201 message, if there is no error, or a > 401 status code, if there is an error; in this case, you would specify `201,401` for the value. ## MS2-Status-Code-Selection By default, when the mocking service responds to a request, it chooses the minimum status code that is defined for the corresponding method. For example, if you make a POST request to an endpoint that defines responses for status codes 201, 400, 409, and 500, by default the mocking service sends the response message that is defined for the 201 status code. With the MS2-Status-Code-Selection header, you can change this default behavior or the mocking service. You can combine the use of MS2-Status-Code-Selection with the use of MS2-Error-Level. The mocking service sorts in ascending numeric order the status codes that are in the range of error status codes specified by MS2-Error-Level, and then returns an error status code from that range, according to the strategy specified by MS2-Status-Code-Selection. The possible values of MS2-Status-Code-Selection are: `FIRST` The mocking service sorts the list of status codes in ascending numeric order and returns the lowest status code. For example, if the specification defines the status codes for a POST method in the order 500, 409, 400, 200, the mocking service returns the response for the 200 status code. `RANDOM` The mocking service randomly selects one of the status codes to return. For example, if the specification defines the status codes for a POST method 500, 409, 400, 200, the mocking service returns the response for any one of them. ## MS2-Strict-Model-Validation This header can be helpful when you are simulating calls to an API with a specification that was written before API Designer switched to its stricter parser on January 10, 2019. When you set this header to `false`, you can use the mocking service even when the API specification contains errors. When you set this header to `true`, the mocking service validates the specification before responding. If there is an error in the specification, the mocking service fails with that error. Otherwise, the mocking service works as usual. ## See Also - [Simulate Calls to an API](https://docs.mulesoft.com/design-center/design-mocking-service) --- product: Design Center --- # Adding Dependencies to an API-Specification Project > For the full documentation index, see: https://docs.mulesoft.com/llms.txt In projects for API specifications or API fragments, you can add dependencies of either RAML fragments, OAS components, JSON schemas, or rulesets. Because the dependencies are referenced in Anypoint Exchange, you cannot directly edit them in your projects. If you export your project or someone downloads your project as RAML from Exchange, the resulting ZIP file contains the referenced dependencies. > [!CAUTION] You must not edit the referenced dependencies in an editor other than the API Designer > editor. If you export your project to work on it in another editor, edit the referenced > dependencies, and then try to import the project back into the text editor, the import fails. > Studio does not support OAS 3.0 fragments. ## Add Dependencies to an API-Specification Project > [!NOTE] You can add up to **100 dependencies** (Fragments and Rulesets) per project. To add dependencies to an API-specification project: 1. In the text editor navigation menu, click the **Exchange dependencies** icon (![manage dependency versions design center d96c7](/mulesoft/current/en-us/design-center/_images/manage-dependency-versions-design-center-d96c7.png "Exchange Dependencies icon")). 2. Click the add icon (+) for the dependency type that you want to add. 3. To filter the list of dependencies you can: - Select an organization - Search by keyword - Select **Include versions in Development** 4. Select the dependency versions you want to add: - To use a version of a dependency other than latest, select the version for that dependency in the **Version** drop-down. - To view only the dependencies you’ve selected, click **Show selected only**. - You can see the format of the fragment (RAML, OAS, or JSON schema) next to each fragment’s name. 5. Click **Add dependency**. > [!NOTE] API Designer supports a maximum of 1,000 files for dependencies, with a total file size no > greater than 300 MB. ## View Dependency Contents To view the contents of a dependency, click the more options menu icon (![overflow menu icon](/mulesoft/current/en-us/design-center/_images/overflow-menu-icon.png "Three vertical dots")) for that dependency and then select **Show in Files** or **Open in Exchange**. > [!NOTE] If you select **Show in Files**, the **Files** section expands and the dependencies are > shown in the `exchange_modules` section. The subsections correspond to the URI for the referenced > dependency, which is its asset identifier, or GAV (group ID, asset ID, and version), in Exchange. When you are ready to continue work on your API project, click **Files** > API project file name. ## Ruleset Dependencies If your API has been identified as governed through centralized API governance, a dot or warning icon appears on the **Exchange dependencies** icon to indicate you need to take action on the dependencies for this project. Click the **Exchange dependencies** icon to view and follow the interactive instructions to add rulesets as dependencies to your project. Even if your projects have not been identified as requiring action, you can proactively check the conformance of your APIs by adding published rulesets as dependencies to your API project. If your API fails to conform to the rulesets that your organization validates against, you get an email notification. You can click **Code in Design Center** to open API Designer, or click **API Details in Exchange** to be redirected to the API asset Conformance Status page. 1. If the asset version has an editable branch in API Designer, a pop-up appears where you can see the missing rulesets filtered by tags, category, and lifecycle state. To edit those filters, click **Edit criteria**. When you are done, click **Add all rulesets**. _Result_: The rulesets are added to your project. 2. If the asset version doesn’t have an editable branch in API designer, you can either select an editable branch of your project or create a new branch from your current version. You can then add the missing rulesets to that editable branch. When you have your branch, a pop-up appears where you can see the missing ruleset filtered by tags, category, and lifecycle state. To edit those filters, click **Edit criteria**. When you are done, click **Add all rulesets**. _Result_: The rulesets are added to your project. ## Improving Ruleset Validation When you add rulesets as dependencies, the rulesets are automatically validated by default. The complexity of the API and rulesets might increase the number of diagnostics being computed and trigger multiple automatic validations. The validation takes more time if: - Your API is modularized, has complex recursive types, or has circular references. - You add multiple ruleset dependencies to an API project. - You are consuming a significant amount of browser resources. To improve ruleset validation times: - Close unnecessary browser tabs or applications. - Ensure your device is running efficiently and has enough memory and CPU resources. - Switch to manual validation. This runs a single validation for each ruleset rather than triggering multiple automatic validations that might exhaust your available resources. If the validation process takes too long, a warning message appears informing you that auto-validation is disabled for that project. - To change to manual mode, click **Ok**. - To continue using auto-validation, click **Cancel**. Note that if the auto-validation of rulesets still takes too long, you get the warning message again. You can switch between auto-validation and manual validation in your API project. This changes the validation setting for that specification only. To turn on manual validation of your rulesets: 1. In the **Project Errors** section of the text editor, select the **Governance** tab. 2. Click the **Governance auto-validation** icon (![green governance auto validation](/mulesoft/current/en-us/design-center/_images/green-governance-auto-validation.png "Governance auto-validation")) to disable auto-validation. 3. Click the **Validate for governance** icon (![validate for governance](/mulesoft/current/en-us/design-center/_images/validate-for-governance.png "Validate for governance")) to enable manual validation. This runs a single validation for each ruleset rather than triggering multiple automatic validations that might exhaust your available resources. To enable auto-validation again: 1. In the **Project Errors** section of the text editor, select the **Governance** tab. 2. Click the auto-validation icon (![red governance auto validation](/mulesoft/current/en-us/design-center/_images/red-governance-auto-validation.png "Governance auto-validation")) to enable auto-validation again. > [!NOTE] If the auto-validation still takes too long, you get the warning message again. ## Fix Governance Conformance Issues After you add the rulesets as dependencies, you can view the conformance messages in the **Project Errors** section of the text editor. Use the provided information to fix any conformance issues and then republish your API specification. ## See Also - [Finding API Conformance Issues in API Specifications](https://docs.mulesoft.com/api-governance/find-conformance-issues) - [Create an Asset](https://docs.mulesoft.com/exchange/to-create-an-asset) --- product: Design Center --- # API Designer Troubleshooting > For the full documentation index, see: https://docs.mulesoft.com/llms.txt This page describes common issues that sometimes occur when working in API Designer, along with their causes and recommended troubleshooting steps. ## Preparing to publish status persists While working in API Designer, these issues sometimes occur: - The **Preparing to publish** dialog doesn’t complete when publishing to Exchange. - API specifications don’t display validation errors, warnings, or suggestions. - The API Console doesn’t render or remains blank. - The browser console shows a `NetworkError` related to loading the `anypoint-als.js` library. These issues typically occur when a required API Designer component fails to load due to network restrictions. API Designer relies on API Language Services, which is a background service, to enable validation and rendering. In some environments, corporate firewalls, VPNs, or proxies can block or interrupt the download of this component, preventing the editor from functioning correctly. ### Verification and diagnostics To verify whether your network is correctly delivering the required resources: - **Compare file delivery via cURL** Run this command and confirm the response is successful and that the file size is approximately 1.5 MB: ```bash curl -I https://cdn.anypoint.mulesoft.com/artifacts/api-designer-ui/app/static/js/anypoint-als.01bd90ee2cb9622ee518fcb3e30c444e.js ``` #### Troubleshooting To identify and resolve the issue: - **Test outside restricted networks**: Try accessing API Designer without a corporate VPN or proxy. - **Use a clean browser session**: Clear your browser’s cache and cookies, then reload the page. Alternatively, open a private or incognito window and disable browser extensions. - **Try a different browser**: Switch to another browser, such as Chrome, Edge, Firefox, or Safari. - **Check local security software**: Ensure antivirus or endpoint protection tools aren’t blocking background scripts or service workers. ## See Also - [Known Issues](https://help.salesforce.com/s/issues) --- product: Design Center --- # API Specification for MuleSoft Connectivity Ecosystem > For the full documentation index, see: https://docs.mulesoft.com/llms.txt If you are an independent software vendor (ISV), you can participate in the MuleSoft Connectivity Ecosystem by auto-generating a connector from a REST API specification. These steps explain how to prepare your API specification in Anypoint Platform and how to work with your MuleSoft BD counterpart to do the rest. 1. In Anypoint Platform, follow these steps to prepare your API specification: 1. Sign up for Anypoint Platform: [https://anypoint.mulesoft.com/login/#/signup](https://anypoint.mulesoft.com/login/#/signup) 2. Log into Anypoint Platform and click **Design Center**. 3. Create a new API specification project by clicking **Create new** in the top-right corner and then clicking **New API Specification**. 4. In the **New API Specification** window, specify the name of the project, select **I’m comfortable designing it on my own**, and select the language of the specification. Then, click **Create API**. 5. Delete the file that is automatically generated by hovering over its name, clicking the three dots to its right, and selecting **Delete**. 6. On the left side of the screen, click the action menu (the three-dot icon) at the top of the file list and select **Import**. You can import a RAML or `.oas` file, a `.zip` file, or a specification that is at a URL. 7. After importing, test your API to make sure it works as you expect it to. 1. In the top-right corner of the screen, switch on the mocking service. 2. In the file list, select your API specification. 3. In the API summary on the right side of the screen, expand the **Resources** entry until you see the methods for your resources. 4. Click one of the methods. 5. Review the information about the method. 6. Click **Try It**. 7. If the endpoint requires parameters, specify values for them. 8. Click **Send**. The results of the test of the method appear on the right side of the screen under the **Send** button. 2. After your API specification is ready, save it in a git-compatible repository, such as GitHub or Bitbucket. 3. Contact your MuleSoft BD counterpart and follow these steps: 1. Sign the Technology Partner Agreement (provided by your MuleSoft BD counterpart) 2. Ask for an extension to the expiration date of your trial of Anypoint Platform. 3. Ask for an invitation to the Connectivity Assets Manager tool, a self-service certification tool for connectivity assets, and create a new Anypoint Platform account based on the invitation. 4. Schedule a short demonstration to help MuleSoft understand your APIs and how they work in Anypoint Platform. --- product: Design Center --- # AsyncAPI Specifications > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can create or import your AsyncAPI specifications in API Designer and then edit, document, and publish them. AsyncAPI is a language that describes messaging interfaces. This open-source, industry-standard language is agnostic to any technology. To learn more, see the [AsyncAPI documentation](https://www.asyncapi.com/docs/tutorials/getting-started). AsyncAPI makes it easy to work with event-driven architecture by separating the API into three layers: - Events: Message or data to be shared with other services - Channels: Destination of the message to be sent or received - Transport: Technology that transports the message, such as RabbitMQ, Kafka, or Anypoint MQ You can create or import an API specification in API Designer. ## Create an AsyncAPI Specification in API Designer To create an AsyncAPI specification in API Designer: 1. In Design Center, click **Create New**. 2. Select **New AsyncAPI**. 3. In the **New AsyncAPI** dialog, name your project. 4. Select the AsyncAPI language under **Specification Language**. The text editor opens. For more information about how to use API Designer, refer to [Create an API Specification with the Text Editor](https://docs.mulesoft.com/design-center/design-create-publish-api-raml-editor). ## Import AsyncAPI Specifications To import AsyncAPI specifications from Anypoint Exchange or from your filesystem: 1. Click the gear icon at the top right of the text editor. 2. Select from the following options: - Select **Import from Exchange** to see the following lists: - API specifications that are available from the business organization that your user ID belongs to in Anypoint Platform - API specifications that are published by MuleSoft - Select **Import** to import an API specification from your local filesystem. 3. As appropriate, continue to work with your AsyncAPI specification in API Designer: - Develop and edit AsyncAPI specifications. - View documentation that is included in AsyncAPI specifications. - Publish AsyncAPI specifications to Anypoint Exchange. ## Example AsyncAPI 2.6 Specification Following is an example that you can copy into API Designer to get started with event-driven APIs. The following API specification example defines a typical event-driven process that uses Anypoint MQ and Kafka protocols. Sections in the example specification are: - AsyncAPI Identifies the API model as AsyncAPI and specifies the title and version of the API spec - Servers Defines message brokers that determine the connectors to use (indirectly) when publishing events or subscribing to events through operations in the AsyncAPI module: - `AMQ-prod` configures an Anypoint MQ Broker - `Kafka-prod` configures a locally hosted Kafka broker - Operation Defines the action that the application takes and whether the event is consumed or published - Channels Defines the bindings: - `order-placed`, `order-cancelled`, and `order-confirmed` configures Anypoint MQ channels for publishing and subscribing to orders - `order-backordered` configures a Kafka channel for publishing and subscribing to backorders - Components Defines the structure of messages for the different types of orders, which include `OrderPlaced`, `OrderCancelled`, `OrderConfirmed`, and `BackOrder` To try the example, create a new AsyncAPI specification in Design Center and copy the following code directly into API Designer: ```yaml asyncapi: "2.6.0" info: title: Async-AMQ-Kafka-Orders version: "1.0.0" description: Orders API license: name: Anypoint MQ url: https://license.com contact: name: Max Muley email: max@salesforce.com url: http://www.salesforce.com defaultContentType: application/json tags: - name: Orders API description: API for orders servers: AMQ-prod: url: https:://your_MQ_server_URL_here protocol: anypointmq protocolVersion: v1 description: Anypoint MQ broker Kafka-prod: url: localhost:9092 protocol: kafka description: kafka broker channels: order-placed: description: new orders channel servers: - AMQ-prod publish: operationId: listen-order-placed description: listen for new order events summary: Order Placed Event message: $ref: "#/components/messages/OrderPlaced" subscribe: operationId: publish-order-placed description: publish new order events summary: Order Placed Event message: $ref: "#/components/messages/OrderPlaced" order-updated: description: updated orders channel servers: - AMQ-prod publish: operationId: listen-order-updated description: listen for updated order events summary: Order updated Event message: $ref: "#/components/messages/OrderPlaced" subscribe: operationId: publish-order-updated description: publish updated order events summary: Order updated Event message: $ref: "#/components/messages/OrderPlaced" order-cancelled: description: orders cancelled channel servers: - AMQ-prod publish: operationId: listen-order-cancellations description: listen for order cancellation events summary: Order Cancelled Event message: $ref: "#/components/messages/OrderCancelled" subscribe: operationId: publish-order-cancellations description: publish order cancellation events summary: Order Cancelled Event message: $ref: "#/components/messages/OrderCancelled" order-confirmed: description: orders confirmed channel servers: - AMQ-prod publish: operationId: listen-order-confirmations description: listen for order confirmation events summary: Order Confirmed Event message: $ref: "#/components/messages/OrderConfirmed" subscribe: operationId: publish-order-confirmations description: publish order confirmation events summary: Order Confirmed Event message: $ref: "#/components/messages/OrderConfirmed" order-backordered: servers: - Kafka-prod description: orders backordered channel publish: operationId: listen-order-backordered description: listen for backorder events summary: Backorder Event message: $ref: "#/components/messages/BackOrder" subscribe: operationId: publish-order-backordered description: publish backorder events summary: Backorder Event message: $ref: "#/components/messages/BackOrder" components: messages: OrderPlaced: payload: type: object properties: orderId: type: string customerName: type: string email: type: string items: type: array items: type: object properties: productId: type: string productName: type: string quantity: type: integer price: type: number OrderConfirmed: payload: type: object properties: orderId: type: string email: type: string OrderCancelled: payload: type: object properties: orderId: type: string email: type: string reason: type: string BackOrder: payload: type: object properties: orderId: type: string email: type: string ``` ## Example AsyncAPI 2.6.0 Specification (Inline Avro) If you created an AsyncAPI specification project, you can replace the initial API specification with following example code to test inlining the API specification fragments: ```yaml asyncapi: 2.6.0 info: title: Example AsyncAPI Spec (Inline Avro) version: "1.0.0" channels: myChannel: publish: message: schemaFormat: "application/vnd.apache.avro;version=1.9.0" payload: name: AmericanFlightDataType type: record fields: - name: ID type: int default: 1 - name: code type: string default: ER38sd - name: price type: int default: 400 - name: departureDate type: string default: 2017/07/26 - name: origin type: string default: CLE - name: destination type: string default: SFO - name: emptySeats type: int default: 0 - name: plane type: name: Plane type: record fields: - name: type type: string - name: totalSeats type: int ``` ## Example AsyncAPI Specification Fragment (Avro Schema) If you created an Avro Schema fragment, you can replace the initial API fragment with following example code: ```yaml { "name": "AmericanFlightDataType", "type": "record", "fields": [ { "name": "ID", "type": "int", "default": 1 }, { "name": "code", "type": "string", "default": "ER38sd" }, { "name": "price", "type": "int", "default": 400 }, { "name": "departureDate", "type": "string", "default": "2017/07/26" }, { "name": "origin", "type": "string", "default": "CLE" }, { "name": "destination", "type": "string", "default": "SFO" }, { "name": "emptySeats", "type": "int", "default": 0 }, { "name": "plane", "type": { "name": "Plane", "type": "record", "fields": [{ "name": "type", "type": "string" }, { "name": "totalSeats", "type": "int" }], }, }, ], } ``` ## Example Referencing an Avro Fragment from an Async API ```yaml asyncapi: 2.6.0 info: title: Example AsyncAPI Spec (Inline Avro) version: "1.0.0" channels: myChannel: publish: message: schemaFormat: application/vnd.apache.avro;version=1.9.0 payload: $ref: AmericanFlightDataType.avsc ``` > [!NOTE] For AVRO schema documents, `.avsc` is the default extension, but `.json` files are also > supported. ## Example AsyncAPI 2.0 Specification This example is a typical event-driven process that is documented for easy reuse. It has a service with two channels, one that books the trade and another that gets the result of the booking asynchronously. Sections in the example specification are: - AsyncAPI Identifies the API model as AsyncAPI and specifies the title and version of the API spec. - Channels - The book\_trade channel enables you to specify the buy/sell order, symbol, and number of shares you would like to purchase. - The trade\_result channel returns the result of the transaction. To try the example, create a new AsyncAPI specification in Design Center and copy the following code directly into API Designer: ```yaml asyncapi: 2.0.0 info: title: Async Request/Trade API version: 0.1.0 channels: book_trade: publish: message: payload: type: object properties: trade-id: type: integer minimum: 0 description: the order id of the message coming trade-symbol: type: string minimum: 0 Description: ticker symbol of the stock. trade-type: type: string format: string description: BUY or SELL trade-amount: type: number format: float description: the number of shares to be traded. trade_result: subscribe: message: payload: type: object properties: trade-id: type: integer minimum: 0 description: the order id of the message coming trade-symbol: type: string format: string description: ticker symbol of the stock. trade-time: format: date-time description: date and time of the order. trade-amount: type: number format: float description: the number of shares to be traded. trade-type: type: string format: string description: BUY or SELL trade-status: type: string format: string description: PENDING, PROCESSED and FAILED ``` For documentation on using API Designer to work with your specification, see [API Designer](https://docs.mulesoft.com/design-center/design-create-publish-api-specs). ## See Also - [Design APIs in API Designer](https://docs.mulesoft.com/design-center/design-create-publish-api-specs) - [Configure API Instances in Exchange](https://docs.mulesoft.com/exchange/to-configure-api-settings) - [AsyncAPI](https://www.asyncapi.com/docs/tutorials/getting-started) --- product: Design Center --- # Best Practices when using API Designer > For the full documentation index, see: https://docs.mulesoft.com/llms.txt When you perform tasks on Design Center, you might encounter issues. Use the following topics to help you resolve them. ## API Designer Best Practices - Divide your fragments into short, reusable dependencies when possible. - Keep only one version of the same dependency. - Keep only one browser tab open at a time. ### API Designer Resources When using API Designer, the required resources to parse the specification depend on the users own resources. For API Designer to function properly, ensure your computer has the following minimum resources available when using API Designer: - 8 GB RAM - Ryzen series 5 / Intel i5 CPU or higher To achieve optimal parser performance, keep the total project size for all files in your design project below 500 KB. A project size that exceeds 1.5 MB severely affects validation time. ### OAS Specification Best Practices - Use the `$ref` property to define reusable components. To improve parsing efficiency, reference each component from the API specification instead of duplicating component definitions, for example: components: schemas: User: type: object properties: id: type: integer paths: /users: get: responses: '200': description: Successful response content: application/json: schema: $ref: '#/components/schemas/User' - Use simpler types to represent your data if possible. Avoid unnecessary nesting and complicated types, for example: properties: age: type: integer # Prefer simple types over complex types like objects - Use the `enum` property for fields with a fixed set of values to improve parsing efficiency: properties: status: type: string enum: \[active, inactive\] - Use simple nesting for objects to simplify the structure and improve readability and parsing efficiency: \# Good properties: name: type: string address: type: string # Avoid properties: user: type: object properties: profile: type: object properties: name: type: string - Use `response` headers instead of the response body to provide additional information, for example: responses: '200': description: Successful response headers: X-Rate-Limit-Limit: description: The number of requests allowed in the current period schema: type: integer - Provide concise and short examples: Book: type: string example: "Explain the string with as few words as possible." - When using union-type properties, use `oneOf` to represent union-type object fields, `allOf` to represent an intersection type and composite objects and fields, and `anyOf` when defining a property with multiple possible data structures. ### RAML Specification Best Practices - When extracting RAML fragments, import each fragment as a local declaration first: Create a fragment file, and before publishing the fragment to Anypoint Exchange, import the local fragment file to validate that the fragment works as expected. If the fragment works, publish the fragment to Exchange so you can reuse the fragment in your API specifications instead of duplicating it. - Reuse data types as declarations. - Use inheritance only when needed: Car: description: This is a car properties: brand: string model: string example: brand: Toyota model: Corolla Person: properties: owns: Car - Use short unions: Person: type: Employee | Customer - Use simple traits, and avoid combining traits with resource type properties: /basic: type: {resourceTypes.fhirResourceType: { postExample : !include /examples/requests/post\_resource.json, getExample : !include /examples/responses/get\_resource.json, bundleName : basic.BasicBundle } } /\_search: get: is: \[ searchParams \] post: is: \[ POSTSearchParams \] --- product: Design Center --- # Common Problems Found in RAML 0.8 API Specifications > For the full documentation index, see: https://docs.mulesoft.com/llms.txt The following sections describe common errors authors make when writing API specifications in RAML 0.8, and tips for resolving them. ## Using a reserved name for a schema If you use a reserved name as the name of a schema, the editor displays this message: ‘schemaName’ cannot be used to name a custom schema Examples of reserved names are `string`, `integer`, `number`, and `object`. Any name that is used in the RAML specification cannot be used as the name for a schema. For example, this API specification would cause the editor to display the message: #%RAML 0.8 title: Example API Spec schemas: string: type: string To resolve the problem, you would need to use a different name in the schema declaration: #%RAML 0.8 title: Example API Spec schemas: customString: type: string [Back to the top](#bookmark-a) ## Problems when validating examples ### Not using a data type of string for the example of a Boolean enum Whether the values for a Boolean enum are both strings or Boolean values, the example of the enum must be a string. To illustrate the violation, this API specification shows an example using the wrong data type. #%RAML 0.8 title: ExampleRAML /nob: head: responses: 204: headers: X-NOB-Exists: enum: \[true, false\] example: true RAML 0.8 supports enum values as strings only, not as boolean values. Also, in the example RAML above, no data type for the enum is declared. In RAML 0.8, when a data type is not declared, it is assumed to be `string`. Therefore, the values in the enum in the incorrect example above must be in quotation marks. That’s because the data type of an example must be the same as the data type of the element that it is an example of. The last two line of the example RAML above should then be as they are in this correction: ... enum: \["true", "false"\] example: "true" [Back to the top](#bookmark-a) ### Not using a required property in the example of a schema that defines that property If a schema defines a required property, the example of that schema must use that property. In this example of the problem, the following API specification defines a response for the endpoint `/order/{id}`. The definition includes two files: `get_order_response_schema.json` and `get_order_response.json`. #%RAML 0.8 title: ExampleRAML version: 1.0 ... /order: displayName: Orders API /create: ... /{id}: displayName: Get Order by OrderId description: This operation will get an order by order ID from Salesforce. get: description: This operation returns the order from Salesforce by Fulfillment Order ID, not by the Salesforce unique ID. responses: 200: body: application/json: schema: !include get\_order\_response\_schema.json example: !include get\_order\_response.json The file `get_order_response_schema.json` defines the property `sfOrderId` as a required property. { "type":"object", "$schema": "http://json-schema.org/draft-03/schema", "id": "http://com.mulesoft.demo.orders.get.json.order", "required":false, "properties":{ ... "sfOrderId": { "type":"string", "id": "http://com.mulesoft.demo.orders.create.json.get.sfOrderId", "required":true }, ... The example of the schema is in `get_order_response.json`. However, the name of the required property is misspelled as `sOrderId`. { "orderId": 14523, "sOrderId": "fadfead3524523", "sfAccountId": "fedfes3653635", "orderName": "Order From Manufacturing-Company, Inc.", "total": 174.92, "orderType": "E-Commerce Order", "description": "8 widgets", "orderDate": "04-03-2018" } [Back to the top](#bookmark-a) ### Not using in an example of a schema the data type that the schema defines For example, the schema in the following API specification defines the data type for the property `title` as an object; however, an array is used in the example of the schema. #%RAML 0.8 title: ExampleRAML schemas: - presentation: | { "$schema": "http://json-schema.org/draft-03/schema", "type": "object", "properties": { "title": { "type": "string" } } } /presentations: &presentations type: { typedCollection: { schema: presentation } } get: responses: 200: body: application/json: example: | \[ { "title": "Presentation Video" }, { "title": "Environment Spec Report" } \] [Back to the top](#bookmark-a) ### Using 0 or 1 as the value of an example of a Boolean An example for a Boolean must have a value of "true" or "false". In this API specification illustrating the violation, the value of the example for the form parameter `is_public` is incorrect. #%RAML 0.8 title: ExampleRAML /upload: post: description: | Upload a photo body: multipart/form-data: formParameters: title: description: The title of the photo. is\_public: type: boolean example: 1 ### Not including a property in an example If an example is missing a property of the type that it is exemplifying, the editor displays this violation message: should have required property 'property name' For example, the property `age` is missing in the example: #%RAML 0.8 title: Example API Spec /clients: get: responses: 200: body: application/json: schema: | { "$schema": "http://json-schema.org/draft-03/schema", "properties": { "firstName": { "type": "string" }, "lastName": { "type": "string" }, "age": { "type": "number", "required": true } }, "required": false, "type": "object" } example: firstName: John lastName: Smith Either add the property to the example or, in the type declaration, declare the property as optional. In this case, the property is added to the example: #%RAML 0.8 title: Example API Spec /clients: get: responses: 200: body: application/json: schema: | { "$schema": "http://json-schema.org/draft-03/schema", "properties": { "firstName": { "type": "string" }, "lastName": { "type": "string" }, "age": { "type": "number", "required": true } }, "required": false, "type": "object" } example: firstName: John lastName: Smith age: 30 In this case, the property is declared as optional: #%RAML 0.8 title: Example API Spec /clients: get: responses: 200: body: application/json: schema: | { "$schema": "http://json-schema.org/draft-03/schema", "properties": { "firstName": { "type": "string" }, "lastName": { "type": "string" }, "age": { "type": "number", "required": false } }, "required": false, "type": "object" } example: firstName: John lastName: Smith [Back to the top](#bookmark-a) [Back to the top](#bookmark-a) ## Not providing a value for the `title` node The `title` node cannot lack a value, as it does here: #%RAML 0.8 title: [Back to the top](#bookmark-a) ## Not using the data type of the RAML element in the example for that element In all cases, the data type of an example must match the data type of the element that it is an example of. In this incorrect API specification, a query parameter is defined as a string; however, the example of the query parameter is an integer. #%RAML 0.8 title: ExampleRAML /books: get: queryParameters: publicationYear: type: string example: 2016 [Back to the top](#bookmark-a) ## Using an invalid path for a reference inside a JSON schema When you use the `$ref` keyword in a JSON schema, the path that you specify with it must start at the root of the schema. For example, the `$ref` keyword used for the property `input2` in the following schema uses an incorrect path to refer to the property `input`. #%RAML 0.8 title: ExampleRAML version: v1 schemas: - authCodeResponse : | { "$schema": "http://json-schema.org/draft-04/schema", "properties": { "input": { "type": "string" }, "input2": { "$ref": "input" } }, "type": "object" } The path must start at the root level of the schema and descend through the tree structure. This example of the schema shows the same `$ref` keyword using the correct path. { "$schema": "http://json-schema.org/draft-04/schema", "properties": { "input": { "type": "string" }, "input2": { "$ref": "#/properties/input" } }, "type": "object" } [Back to the top](#bookmark-a) ## Declaring a URI parameter that is never used If an API specification declares a URI parameter, but then does not use that parameter, the editor displays this warning message: unused uri parameter “parameter” If the parameter is declared as a base URI parameter, but is not used, then this is the warning message: unused base uri parameter “parameter” For example, the following API specification would generate two warning messages: unused uri parameter "unusedParam" unused base uri parameter "unusedUriParam" #%RAML 0.8 title: test baseUri: http://param.raml/a/{baseUriParam1}/{nonExists}/{baseUriParam2} baseUriParameters: baseUriParam1: type: string baseUriParam2: type: string unusedParam: type: string /endpoint/{uriParam1}/{nonExistsUri}: uriParameters: uriParam1: type: string unusedUriParam: type: string To resolve the warning messages, you would simply need to remove the lines that declare these parameters: #%RAML 0.8 title: test baseUri: http://param.raml/a/{baseUriParam1}/{nonExists}/{baseUriParam2} baseUriParameters: baseUriParam1: type: string baseUriParam2: type: string /endpoint/{uriParam1}/{nonExistsUri}: uriParameters: uriParam1: type: string [Back to the top](#bookmark-a) ## Not declaring a media type for a payload If the declaration of a payload does not declare a media type, the editor displays this message: Payload media type is mandatory For example, the editor would display this message for the following API specification: #%RAML 0.8 title: Example API Spec /media: get: responses: 200: body: type: string There are two methods that you can choose from to resolve the problem: - Declare the media type locally in the payload declaration. #%RAML 0.8 title: Example API Spec /media: get: responses: 200: body: application/json: type: string - Specify the default media type globally for the API specification. #%RAML 0.8 title: Example API Spec mediaType: application/json /media: get: responses: 200: body: type: string The following example uses both a global and a local declaration. In this case, the `mediaType` node defines acceptable media types as `application/json` and `application/xml`. The first type, `Person`, returns a body that is in either media type. However, the second type, `Another`, overrides the global declaration with a local one, and returns only a JSON body. #%RAML 0.8 title: New API mediaType: \[ application/json, application/xml \] schemas: Person: Another: /list: get: responses: 200: body: Person /send: post: body: application/json: schema: Another [Back to the top](#bookmark-a) ## Not referencing fragments by using the `!include` tag If an API specification uses the key `uses` to reference fragments, the editor displays this message: Fragments must be imported by using '!include' [Back to the top](#bookmark-a) ## Not applying libraries by using the `uses` key If an API specification uses the `!include` tag to apply a library, the editor displays this message: Libraries must be applied by using 'uses' [Back to the top](#bookmark-a) ## Problems with syntax ### Including a schema that contains invalid JSON The JSON in files that are included in the value of the `schemas` property must be valid. The first example includes the schema `appSwitcher.json`. However, the second shows that there is an error in the JSON: at the end of the last value, there is a comma, though there should instead be a quotation mark. #%RAML 0.8 title: ExampleRAML schemas: - appSwitcher: !include schemas/appSwitcher.json { "appMenuItems" : \[ { "type" : "Tabset" , "content" : null , "icons" : null , "colors" : null , "label" : "Call Center" , "url" : "/home/home.jsp?tsid=02uxx00000056Sr" } , { "type" : "Tabset" , "content" : null , "icons" : null , "colors" : null , "label" : "Community" , "url" : "/home/home.jsp?tsid=02uxx00000056Sw" } , { "type" : "Tabset" , "content" : null , "icons" : null , "colors" : null , "label" : "App Launcher" , "url" : "/app/mgmt/applauncher/appLauncher.apexp?tsid=02uxx00000056Sx, } \] } [Back to the top](#bookmark-a) ### Using invalid JSON in examples of JSON schemas Examples of JSON schemas must be valid, unlike the example in the following API specification: #%RAML 0.8 title: ExampleRAML ... /api: get: responses: 200: body: application/json: schema: { "type": "object", "required": true, "$schema": "http://json-schema.org/draft-03/schema", "properties": { "a": { "type": "boolean", "required": true } } } example: { "a: { "a": "" } [Back to the top](#bookmark-a) ### Not providing a YAML map when a facet requires one When a facet is described in the RAML 0.8 specification as requiring a map as a value, but the API specification doesn’t provide a map, the editor returns the message `YAML map expected`. Here is an example of the error: #%RAML 0.8 title: Test version: 1.0 securitySchemes: basic: type: Basic Authentication settings: There are two ways to fix the error. - Provide a map as a value. #%RAML 0.8 title: Test version: 1.0 securitySchemes: basic: type: Basic Authentication settings: requestTokenUri: https://api.mysampleapi.com/1/oauth/request\_token - Delete the facet — in this case, `settings` — that requires a map. #%RAML 0.8 title: Test version: 1.0 securitySchemes: basic: type: Basic Authentication [Back to the top](#bookmark-a) ## Using an unsupported property This error occurs if you use an undefined facet. Example error message `Property invalidfacet not supported in a RAML 0.8 webApi node`, where `invalidfacet` is the name of a facet that is not defined in the RAML specification. Here is an example that would generate this error:
Table 1. Incorrect Example vs. Corrected Example
IncorrectCorrect
#%RAML 0.8
title: Test
invalidfacet:
version:
#%RAML 0.8
title: Test
version:
[Back to the top](#bookmark-a) ## Declaring an undefined type in a header This error occurs when a non-existent type is specified in a header. Error message `Cannot declare unresolved parameter` In the incorrect example below, the value for the header `myHeader` has a typo. It is specified as `strang`, not as `string`.
Table 2. Incorrect Example vs. Corrected Example
IncorrectCorrect
#%RAML 0.8
title: test

/endpoint: post: headers: myHeader:
strang
#%RAML 0.8 title: test

/endpoint: post: headers: myHeader: string
[Back to the top](#bookmark-a) --- product: Design Center --- # Common Problems Found in RAML 1.0 API Specifications > For the full documentation index, see: https://docs.mulesoft.com/llms.txt The following sections describe common errors authors make when writing API specifications in RAML 1.0, and tips for resolving them. ## Using the `schema` or `schemas` keyword instead of `type` or `types` The specification for RAML 1.0 replaced the keywords `schema` and `schemas` with `type` and `types`. If you use `schema` or `schemas`, the editor displays one of these warning messages: ‘schema' keyword it's deprecated for 1.0 version, should use 'type' instead 'schemas' keyword it's deprecated for 1.0 version, should use 'types' instead For example, the following API specification generates both warning messages: #%RAML 1.0 title: Incorrect API with schema and schemas schemas: User: type: object properties: firstname: string lastname: string age: number /users/{id}: get: responses: 200: body: application/json: schema: User To resolve the problem, you would replace `schema` and `schemas` with `type` and `types`: #%RAML 1.0 title: Correct API with type and types types: User: type: object properties: firstname: string lastname: string age: number /users/{id}: get: responses: 200: body: application/json: type: User [Back to the top](#bookmark-a) ## Using a reserved name for a type If you use a reserved name as the name of a type, the editor displays this message: ‘typeName’ cannot be used to name a custom type Examples of reserved names are `string`, `object`, `integer`, `number`, and `object`. Any name that is used in the RAML specification cannot be used as the name for a type. For example, this API specification would cause the editor to display the message: #%RAML 1.0 title: Example API Spec types: string: type: string To resolve the problem, you would need to use a different name in the type declaration: #%RAML 1.0 title: Example API Spec types: customString: type: string [Back to the top](#bookmark-a) ## Common misconceptions about examples and RAML NamedExample fragments To avoid common problems with referencing a named example with an `!include` tag, follow these two guidelines: - In your API specification, use the `examples` facet and only one `!include` tag, as in this example: #%RAML 1.0 title: test types: A: properties: a: string b: integer examples: !include fragment.raml - In the fragment, ensure that each example consists of a name and values for each property, as in the fragment below: fragment.raml #%RAML 1.0 NamedExample myExample1: a: "b1" b: 1 myExample2: a: "b2" b: 2 For a more detailed discussion of how to use named examples, see [Guide to Defining Examples in RAML 1.0](https://docs.mulesoft.com/design-center/design-named-examples). [Back to the top](#bookmark-a) ## Appending references with hash symbols to filenames in `!include` statements A filename cannot be followed by a hash symbol and a reference to a location within the named file. In this example, `IncrementType.raml#increment` is not a valid link. #%RAML 1.0 DataType type: object properties: startValue: integer endValue: integer exclusiveEndValue: boolean range: type: array items: !include IncrementType.raml#increment If your specification contains an violation of this type, but you meant to write a comment, place an empty space before the "#" symbol. If you meant to reference an element that is in the file, such references are not allowed. References to inner elements are valid only for XSD and JSON schemas. [Back to the top](#bookmark-a) ## Not correctly using curly braces and brackets in JSON examples There are many ways to misuse curly braces and brackets. This example illustrates one of them. An array of groups of JSON key/value pairs is improperly enclosed in a pair of curly braces. #%RAML 1.0 title: ExampleRAML ... /rooms: displayName: rooms get: description: get all rooms responses: 200: body: application/json: example: | { \[{ "Name": "Superior King", "Number": "201", "Property": "SE030", "Status": "Clean" }, { "Name": "Junior Suite", "Number": "202", "Property": "NO131", "Status": "Clean" }\] } If the example was meant be an object, then a key must be specified for it. #%RAML 1.0 title: ExampleRAML ... /rooms: displayName: rooms get: description: get all rooms responses: 200: body: application/json: example: { "some\_key": \[ { "Name": "Superior King", "Number": "201", "Property": "SE030", "Status": "Clean" }, { "Name": "Junior Suite", "Number": "202", "Property": "NO131", "Status": "Clean" } \] } If the example was meant be an array, then the outside curly braces must be removed. #%RAML 1.0 title: ExampleRAML ... /rooms: displayName: rooms get: description: get all rooms responses: 200: body: application/json: example: \[ { "Name": "Superior King", "Number": "201", "Property": "SE030", "Status": "Clean" }, { "Name": "Junior Suite", "Number": "202", "Property": "NO131", "Status": "Clean" } \] [Back to the top](#bookmark-a) ## Referencing libraries by using the `type` key As explained in the RAML 1.0 specification, you must apply libraries with the `uses` node: > Any number of libraries can be applied by using the OPTIONAL `uses` node ONLY at the root of a > \["main"\] RAML or RAML fragment file. The value of the \`use\`s node is a map of key-value pairs. > The keys are treated as library names, or namespaces, and the value MUST be the location of a RAML > library file, usually an external RAML library fragment document. If you apply a library with a `type` node, the editor displays this message: Libraries must be applied by using 'uses' Therefore, the following example is incorrect, given that the file `financeDetail.raml` is a library. #%RAML 1.0 title: ExampleRAML ... /claims: /{claim-id}: patch: body: application/json: type: !include financeDetail.raml This next example is correct. #%RAML 1.0 title: ExampleRAML uses: lib: financeDetail.raml /claims: /{claim-id}: patch: body: application/json: type: lib.myType [Back to the top](#bookmark-a) ## Problems when validating examples ### Not including a property in an example If an example is missing a property of the type that it is exemplifying, the editor displays this violation message: should have required property 'property name' For example, the property `age` is missing in the example: #%RAML 1.0 title: Example API Spec types: User: type: object properties: firstName: string lastName: string age: integer example: firstName: John lastName: Smith Either add the property to the example or, in the type declaration, declare the property as optional. In this case, the property is added to the example: #%RAML 1.0 title: Example API Spec types: User: type: object properties: firstName: string lastName: string age: integer example: firstName: John lastName: Smith age: 49 In this case, the property is declared as optional: #%RAML 1.0 title: Example API Spec types: User: type: object properties: firstName: string lastName: string age?: integer example: firstName: John lastName: Smith [Back to the top](#bookmark-a) ### Specifying values for an enum that does not match the enum’s data type Because of the editor’s strict parsing according to the YAML specification, it does not automatically cast values to declared data types. To illustrate the violation, here is an invalid declaration of an enum: type: string enum: \[1,2,3\] The data type for the enum is `string`; however, the values are all integers. Because the editor stricly parses according to the YAML specification, it does not cast the integers to `string` values automatically. Therefore, either the type is declared incorrectly in this example and should be `integer`, or the enum values need to be in quotation marks. Here is another invalid declaration: type: string enum: \[ "a", "b", "c", false, 3.0 \] The value `false` is a `boolean`, while the value `3.0` is a `float`. Neither is converted to a `string` value by the editor. The next three declarations are valid. type: string enum: \["1","2","3"\] type: integer enum: \[1,2,3\] type: string enum: \[ "a", "b", "c", "false", "3.0" \] > [!NOTE] \=== This violation can occur not just in enums, but also anywhere an `integer`, `nil` > value, or value of some other data type is introduced where the parser expects a `string` value. > === [Back to the top](#bookmark-a) ### Using, in an example of a numeric type, an incorrect format for that type, if a format is specified Examples of numeric types must conform to restrictions specified in the `format` node. In this example of the violation, the format specified for the numeric type `collection` is int8. However, the value of the example is greater than 127. #%RAML 1.0 title: ExampleRAML types: collection: type: integer format: int8 /search: /code: get: body: application/json: type: collection example: 22342342 [Back to the top](#bookmark-a) ### Including undeclared properties in an example when additionalProperties is set to `false` If an example for a type includes one or more properties that were not in the type declaration, the editor displays this message: should NOT have additional properties The editor would display this message for the following API specification: #%RAML 1.0 title: Example API Spec types: User: type: object additionalProperties: false properties: firstName: string lastName: string example: firstName: John lastName: Smith age: 49 There are three different methods that you can choose from to resolve the problem: - Delete the extra property from the example #%RAML 1.0 title: Example API Spec types: User: type: object additionalProperties: false properties: firstName: string lastName: string example: firstName: John lastName: Smith - Add the property in the type declaration. #%RAML 1.0 title: Example API Spec types: User: type: object additionalProperties: false properties: firstName: string lastName: string age: integer example: firstName: John lastName: Smith age: 49 - Change the value of `additionalProperties` to `true` or remove the line for `additionalProperties` (because `additionalProperties` is `true` by default). #%RAML 1.0 title: Example API Spec types: User: type: object properties: firstName: string lastName: string additionalProperties: true example: firstName: John lastName: Smith age: 49 [Back to the top](#bookmark-a) ### Types defined as `nil` in payloads are not valid You cannot use a type in a payload if its data type is `nil`. #### Example 1 In this example, the value of `type` must be `string`, not `nil`: ```none #%RAML 1.0 title: test types: MyType: type: nil example: “test” ``` #### Example 2 In this example, the JSON schema must define `MyType` as a `string` type. However, the schema is empty: ```none #%RAML 1.0 title: test types: MyType: type: !include schema.json # schema.json is an empty file example: “test” ``` The error message in cases like this is `should be null at …​`. [Back to the top](#bookmark-a) ## Not providing a value for the `title` node The `title` node cannot lack a value, as it does here: #%RAML 1.0 title: [Back to the top](#bookmark-a) ## Declaring a URI parameter that is never used If an API specification declares a URI parameter, but then does not use that parameter, the editor displays this warning message: unused uri parameter “parameter” If the parameter is declared as a base URI parameter, but is not used, then this is the warning message: unused base uri parameter “parameter” For example, the following API specification would generate two warning messages: unused uri parameter "unusedParam" unused base uri parameter "unusedUriParam" #%RAML 1.0 title: test baseUri: http://param.raml/a/{baseUriParam1}/{nonExists}/{baseUriParam2} baseUriParameters: baseUriParam1: type: string baseUriParam2: type: string unusedParam: type: string /endpoint/{uriParam1}/{nonExistsUri}: uriParameters: uriParam1: type: string unusedUriParam: type: string To resolve the warning messages, you would simply need to remove the lines that declare these parameters: #%RAML 1.0 title: test baseUri: http://param.raml/a/{baseUriParam1}/{nonExists}/{baseUriParam2} baseUriParameters: baseUriParam1: type: string baseUriParam2: type: string /endpoint/{uriParam1}/{nonExistsUri}: uriParameters: uriParam1: type: string [Back to the top](#bookmark-a) ## Not declaring a media type for a payload If the declaration of a payload does not declare a media type, the editor displays this message: Payload media type is mandatory For example, the editor would display this message for the following API specification: #%RAML 1.0 title: Example API Spec /media: get: responses: 200: body: type: string There are two methods that you can choose from to resolve the problem: - Declare the media type locally in the payload declaration. #%RAML 1.0 title: Example API Spec /media: get: responses: 200: body: application/json: type: string - Specify the default media type globally for the API specification. #%RAML 1.0 title: Example API Spec mediaType: application/json /media: get: responses: 200: body: type: string The following example uses both a global and a local declaration. In this case, the `mediaType` node defines acceptable media types as `application/json` and `application/xml`. The first type, `Person`, returns a body that is in either media type. However, the second type, `Another`, overrides the global declaration with a local one, and returns only a JSON body. #%RAML 1.0 title: New API mediaType: \[ application/json, application/xml \] types: Person: Another: /list: get: responses: 200: body: Person\[\] /send: post: body: application/json: type: Another [Back to the top](#bookmark-a) ## Not referencing fragments by using the `!include` tag If an API specification uses the key `uses` to reference fragments, the editor displays this message: Fragments must be imported by using '!include' [Back to the top](#bookmark-a) ## Not applying libraries by using the `uses` key If an API specification uses the `!include` tag to apply a library, the editor displays this message: Libraries must be applied by using 'uses' [Back to the top](#bookmark-a) ## Problems with syntax ### Including an example response that contains invalid JSON When a JSON file is included as the example of a response message, the JSON in the file must be valid. In this example of the violation, the example of the response for the 200 response code contains an `!include` statement. The JSON in the included file incorrectly contains a comma after the last key/value pair. #%RAML 1.0 title: ExampleRAML ... /resume: description: "Gets candidate's resume." get: queryParameters: ... headers: ... responses: 200: body: application/json: example: !include exampleResumeData-200.json 500: ... { ... "assessments.characteristic.focusofattention.data"= "", } [Back to the top](#bookmark-a) ### Not providing a YAML map when a facet requires one When a facet is described in the RAML 1.0 specification as requiring a map as a value, but the API specification doesn’t provide a map, the editor returns the message `YAML map expected`. Here is an example of the error: #%RAML 1.0 title: Test version: 1.0 securitySchemes: basic: type: Basic Authentication settings: There are two ways to fix the error. - Provide a map as a value. #%RAML 1.0 title: Test version: 1.0 securitySchemes: basic: type: Basic Authentication settings: requestTokenUri: https://api.mysampleapi.com/1/oauth/request\_token - Delete the facet — in this case, `settings` — that requires a map. #%RAML 1.0 title: Test version: 1.0 securitySchemes: basic: type: Basic Authentication [Back to the top](#bookmark-a) ## Not defining a type that is used When a type is used, but is not first defined, the editor returns the message `Unresolved reference`. In this example of the error, the type `mytype` is not defined. #%RAML 1.0 title: test /path: post: responses: 200: body: application/json: type: mytype To resolve the problem, define the type that you are using. #%RAML 1.0 title: test types: mytype: string /path: post: responses: 200: body: application/json: type: mytype [Back to the top](#bookmark-a) ## Using an unsupported property This error occurs when a facet or data type is defined as having a specific set of properties, yet an API specification defines the facet with a property that is not in that set. The error can also occur if you use an undefined facet. Example error message \* `Property minimum not supported in a RAML 1.0 stringScalarShape node`, where `minimum` is the name of the unsupported property. A `string` does not have a minimum value. \* `Property invalidfacet not supported in a RAML 0.8 webApi node`, where `invalidfacet` is the name of a facet that is not defined in the RAML specification. Here are examples that would generate these errors:
Table 1. Incorrect Examples vs. Corrected Examples
IncorrectCorrect
#%RAML 1.0
title: Test
types:
  top:
    type: string
    minimum: 1
#%RAML 1.0
title: Test
types:
  top:
    type: string
    minLength: 1
IncorrectCorrect
#%RAML 1.0
title: Test
invalidfacet:
version:
#%RAML 1.0
title: Test
version:
IncorrectCorrect
#%RAML 1.0
title: Test
types:
  Prop:
    type: string
    required: false

Obj: type: object properties: prop: type:
Prop
#%RAML 1.0 title: Test types: Prop: type:
string

Obj: type: object properties: prop: type: Prop required:
false
[Back to the top](#bookmark-a) ## Invalid Type Inheritance Two common occurrences that cause type-inheritance errors are incorrectly merging two types and defining a weaker constraint in a subtype. ### Merging Two types incorrectly This type of error occurs when you try to perform one of these actions: - Merge a defined type with an undefined type - Merge two undefined types The error also occurs when you try to perform a merge with the wrong syntax. Example error message `Resolution error: Incompatible types [class amf.plugins.domain.shapes.models.ScalarShape, class amf.plugins.domain.shapes.models.NodeShape]` The following example both tries to merge two undefined types and uses incorrect syntax for the merge. The resolution of the error involves defining the types before the merge, and also using a pipe for the merge syntax, not brackets and a comma.
Table 2. Incorrect Example vs. Corrected Example
IncorrectCorrect
#%RAML 1.0
title: test
types:
  Device:
    type: [ Phone , Notebook ]
  Phone: string
  Notebook:
    type: object
    properties:
      manufacturer:
        type: string
#%RAML 1.0
title: test
types:
  Phone: string
  Notebook:
    type: object
    properties:
      manufacturer:
        type: string
  Device:
    type: Phone | Notebook
[Back to the top](#bookmark-a) ### Defining a Weaker Constraint in a Subtype A subtype that defines a weaker constraint than one defined by its parent type is invalid. In this example, the subtype MyType2 has the optional property `name`, defined as a string, even though the parent type MyType1 already defines its `name` property as required: ```none #%RAML 1.0 title: test types: MyType1: properties: name: string MyType2: type: MyType1 properties: name?: string #invalid ``` The error message in cases like this is `Resolution error: sub type has a weaker constraint for minItems than base type for minItems.` [Back to the top](#bookmark-a) ## Declaring an undefined type in a header This error occurs when a non-existent type is specified in a header. To fix the error, specify a type that is defined in the RAML specification. Error message `Cannot declare unresolved parameter` In the incorrect example below, the value for the header `myHeader` has a typo. It is specified as `someTypo`, not as `someType`.
Table 3. Incorrect Example vs. Corrected Example
IncorrectCorrect
#%RAML 1.0
title: test
types:
  SomeType: string
/endpoint:
  post:
    headers:
      MyHeader: someTypo
#%RAML 1.0
title: test
types:
  SomeType: string
/endpoint:
  post:
    headers:
      MyHeader: someType
[Back to the top](#bookmark-a) ## Using a Forward Slash in a URI Parameter A URI parameter that contains a forward slash (/) is invalid. In this example, the `example` for the URI parameter `transaction-Date` would cause the parser to display an error message: ```none #%RAML 1.0 title: test /endpoint: uriParameters: transaction-Date: example: 01/02/2018 ``` The error message in cases like this is `Value '01/02/2018' of uri parameter must not contain '/' character.` [Back to the top](#bookmark-a) ## Incorrect Formats for `datetime` Types Formats for `datetime` types that do not use "rfc3339" or "rfc2616" are invalid. The following example causes the parser to display an error message: ```none #%RAML 1.0 title: test types: MyType: type: datetime format: "rfc3338" ``` The error message in cases like this is `Invalid format value for datetime, must be ‘rfc3339’ or ‘rfc2616’.` [Back to the top](#bookmark-a) ## Absolute Paths in RAML Fragment Projects When adding dependencies using absolute paths (for example: `(!include /examples/200.json)`) in RAML Fragment projects, you get a validation error: `Resource /examples/200.json not found`. You must always use relative paths for RAML Fragment Projects, for example: `(!include ../examples/200.json)`. [Back to the top](#bookmark-a) --- product: Design Center --- # Create an API Specification with the Text Editor > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can use API Designer’s text editor to create API specifications directly in RAML 0.8, RAML 1.0, OAS 2.0, OAS 3.0, AsyncAPI 2.6, and AsyncAPI 2.0. You can create OAS and AsyncAPI API specifications as JSON or YAML files. ## Before You Begin Within Anypoint Platform, your user ID must be assigned the _Design Center Developer_ permission. ## Procedure 1. On the **Projects** page in Design Center, click **Create new**. 2. Select **New API Specification** to create a REST API or **New AsyncAPI** to create an AsyncAPI. 3. In the **New API Specification** or **New AsyncAPI** dialog, name your project. You can change the name (but not the extension) later, if you want to. 4. To start creating a REST API specification: 1. Select the **I’m comfortable designing it on my own** option. 2. Choose either the RAML or OAS specification. API Designer creates the stubs of your API specification using the specification type and version you choose. By default, API Designer creates a RAML 1.0 file. You can change the file to RAML 0.8 or OAS after the project is created. Projects for creating API specifications can contain a mix of RAML, OAS, and other types of files. 5. To start creating an AsyncAPI specification: - Select either YAML or JSON as the project language. The text editor opens. The API Designer text editor is divided into panels: - The left panel lists the files and dependencies in your project. The stub specification file is listed and set as the root file of the project. You can change the name (but not the extension) of this file by clicking the overflow menu icon (![manage dependency versions design center 018a5](/mulesoft/current/en-us/design-center/_images/manage-dependency-versions-design-center-018a5.png "Screenshot of the overflow menu icon")) beside the specification name and selecting **Rename**. The left panel also lists the file `exchange.json`, which is a file that contains metadata required by Anypoint Exchange at the time that you publish your project to Exchange. This file is read-only. > [!TIP] You can create more than one API specification or related file in a single project. Click > the plus sign in the Files panel to create a new file. > > If you do create more than one specification file, you must specify one of them as the root file > of your project. For more information about adding Exchange dependencies, see "Adding Dependencies to an API-Specification Project", which is linked to from the **See also** section at the end of this topic. - The middle panel displays the editor in which you create the API specification. Appearing in the editor when you create a project or start a new API specification are the first two lines of an API specification file, depending on which type of specification you select when you created the project. You can change these lines (as well as the file extension) if you want to switch from RAML to OAS or vice-versa. - The right panel lists the types and resources that are in the API specification that is in the middle panel. - The bottom panel expands to show any project errors. The **Project Errors** panel shows any functional errors for your API specifications and any conformance messages if you are using API Governance and the API specification you are editing has rulesets applied to it as dependencies. ## The Editor While working in the editor, you can use a large number of commands to navigate through and manipulate the content of your API specification. Press **F1** to see a list of these commands, along with keyboard shortcuts for most of the commands. You can also perform these tasks: - **Import files and API fragments into your project** You can import either separate files or files bundled in .zip files. The files can be on your computer or you can specify a URL for them if they are located online. For more information about importing files and steps for how to import them, see "Import Files into an API Project", which is linked to from the **See also** section at the end of this topic. For information about adding API fragments to your project, see "Add a RAML API Fragment to an API-Specification Project as a Dependency", which is linked to from the **See also** section at the end of this topic. > [!WARNING] File uploads are restricted to supported formats. - **Simulate calls to your API** When you draft a REST API specification, you can simulate calls to the specified endpoints. For more information, view the topic "Simulate Calls to an API", which is linked to from the **See also** section at the end of this topic. - **Export your API project or specification** At any time, you can export your project as a ZIP file. Click the gear icon in the top-right corner of the text editor and select **Download Project**. - **Download files** Click the dots to the right of the file name and select **Download**. - **Download files in a different format** Click the dots to the right of the file name of a specification and select **Download as**. You can download your specification in one of the other supported formats. If your specification is in RAML, you can download it in OAS YAML or in OAS JSON. If your specification is in OAS, you can download it in RAML 0.8 or in RAML 1.0. The files downloaded through this option are not guaranteed to be valid. This option is intended to provide the basis for the development of a new specification or the continuation of the development of the original specification in a new format. ## What to Do Next If you are satisfied with your API specification, you can publish it to Exchange. See [Publish an API Specification](https://docs.mulesoft.com/design-center/design-publish). ## See Also - [Import Files into an API Project](https://docs.mulesoft.com/design-center/design-import-files) - [AsyncAPI Specifications](https://docs.mulesoft.com/design-center/design-async-api) - [Add a RAML API Fragment to an API-Specification Project as a Dependency](https://docs.mulesoft.com/design-center/design-add-api-dependency) - [Simulate Calls to an API](https://docs.mulesoft.com/design-center/design-mocking-service) - [Root Files in Projects in the Text Editor](https://docs.mulesoft.com/design-center/design-change-root-file) - [Publish an API Specification](https://docs.mulesoft.com/design-center/design-publish) - [Rename an Open Project](https://docs.mulesoft.com/design-center/design-rename-project) - [Delete an Open Project](https://docs.mulesoft.com/design-center/design-delete-project) - [API Governance Documentation](https://docs.mulesoft.com/api-governance/) --- product: Design Center --- # Create an API Specification with the Visual API Editor > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can use API Designer’s visual API editor to scaffold API specifications in RAML 1.0 or in OAS 2.0 or 3.0 (JSON). You do so by populating language-neutral forms. ## Before You Begin Within Anypoint Platform, your user ID must be assigned the _Design Center Developer_ permission. ## About this task The visual API editor is divided into three panels: ### The Left Panel This panel displays the name of the API specification being developed. It also provides controls that allow you to create resources, data types, and security schemes. These components all are included within the body of the specification and are not created as separate files. ### The Middle Panel This panel presents the forms in which you specify the properties of the components of the specification. When the editor first opens, it displays a form for specifying the main properties of the specification and for documenting it. Click on the name of an item in the left panel to open its form in the middle panel. ### The Right Panel This displays the RAML Viewer and the OAS Viewer, both of which are read-only. Click the tabs at the bottom of the panel to switch between them. These viewers display the current draft of the specification in either RAML 1.0 or OAS 3.0. As you enter values in the forms that appear in the middle panel, the draft is updated with the values. This panel also lets you run the mocking service to test endpoints that you have set up. ## Procedure 1. On the **Projects** page in Design Center, click **Create new**. 2. Select **New API Specification**. 3. In the **New API Specification** dialog, name your project. You can change the name later, if you want to. 4. Select the option **Guide me through it** to use the visual API editor. 5. Click **Create API Spec.** _Result:_ The visual API editor opens. As you make progress, you can run the mocking service to simulate calls to your API specification. For more information, view the topic "Simulate Calls to an API", which is listed in the **See Also** section at the end of this topic. If at any time you want to edit the specification directly or customize it (import RAML fragments and more), click **Edit RAML** or **Edit OAS** to switch to the API editor. After you switch, however, you cannot switch back to the visual API editor to continue creating the API specification. ## What to Do Next If you are satisfied with your API specification, you can publish it to Exchange in RAML 1.0. See [Publish an API Specification](https://docs.mulesoft.com/design-center/design-publish). Alternatively, you can customize the specification in the API editor by clicking **Edit RAML** or **Edit OAS**. ## See Also - [Simulate Calls to an API](https://docs.mulesoft.com/design-center/design-mocking-service) - [Publish an API Specification](https://docs.mulesoft.com/design-center/design-publish) - [Rename an Open Project](https://docs.mulesoft.com/design-center/design-rename-project) - [Delete an Open Project](https://docs.mulesoft.com/design-center/design-delete-project) --- product: Design Center --- # Create and Publish an API Fragment in the Text Editor in API Designer > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can create API fragments directly in RAML, OAS 3.0, and JSON Schema with the help of code suggestions that appear within the text editor. ## About This Task An API fragment is a document that has a version and an identifier, but is not in itself a complete specification. When creating a RAML API fragment you can choose one of the following types defined by RAML.org. See the RAML 0.8 or 1.0 specification (depending on which you want to use) for descriptions of the types: - Trait - Resource Type - Library - Data Type - User Documentation - Example - Annotation Type - Security Scheme To support OAS 3.0 fragment externalization, API Fragments support OAS 3.0 components and JSON Schema: - Component (YAML) - Component (JSON) - JSON Schema OAS 3.0 components should contain only the reusable `component` objects for the different aspects of the OAS. ## Procedure 1. On the **Projects** page in Design Center, click **Create +**. 2. Select **New Fragment**. 3. In the **New Fragment** dialog, type a name for the Fragment project. 4. Select the API specification format. You can choose between RAML 1.0, OAS 3.0 and JSON Schema format. If you choose RAML 1.0, you can select it’s fragment type. You can change the name or fragment type later, if necessary. 5. Select the type of API fragment that you want to create and click **Create Fragment**. _Result:_ The text editor opens. The editor is divided into three panels: - The left panel lists the files in your project. You can create new files by clicking **+**, and then **New file**. Select the API format of the file between RAML 1.0, OAS 3.0, JSON schema, or other. Select the file type if needed, name your file, and click **Create**. By default, the editor creates a file that has the same name as the project. This file is set as the root file of the project. You can set YAML, RAML, or JSON schema files as your root file. The left panel also lists the file `exchange.json`, which is a file that contains metadata required by Anypoint Exchange at the time that you publish your project to Exchange. This file is read-only. - The middle panel displays the editor in which you create your API fragment. - The right panel lists the types and resources that are in the API fragment displayed in the middle panel. 6. Draft your API fragment. The text editor suggests RAML nodes, methods, and other elements that you can add at the location of your cursor. You can import files into your project, either separately or bundled in .zip files. The files can be RAML 1.0 files, JSON files, OpenAPI Specification (OAS) 2.0, or OAS 3.0 files. The files can be on your computer or you can specify a URL for them if they are located online. > [!WARNING] File uploads are restricted to supported formats. ## What to Do Next You can publish the API fragment to Anypoint Exchange. 1. Click the **Publish** button that is in the top-right corner of the text editor, and then click **Publish to Exchange**. 2. Specify a version number for the project, which Exchange treats as an _asset_. This number is displayed in Exchange in the **Version** section of the right pane in the page for the project. In Anypoint Exchange, you can see the asset version of your API-fragment project by clicking **View versions**. After you publish the API-fragment project, other developers can include its fragments as dependencies in their own API-specification projects. When you publish the API-fragment project, Exchange automatically creates an API portal for it. ## OAS Components Limitations The following list displays OAS 3.0 limitations you must consider when writing your API Fragments: - Valid fields at the document root level are: `openapi`, `info`, `components`, and `paths`. - Valid fields in the `info` object are `title` and `version`. - The `paths` key must be an empty object. ## See Also - [Import Files into an API Project](https://docs.mulesoft.com/design-center/design-import-files) - [Exchange Public Portals](https://docs.mulesoft.com/exchange/about-portals) - [Root Files in Projects in the Text Editor](https://docs.mulesoft.com/design-center/design-change-root-file) - [Rename an Open Project](https://docs.mulesoft.com/design-center/design-rename-project) - [Delete an Open Project](https://docs.mulesoft.com/design-center/design-delete-project) - [Adding Dependencies to an API-Specification Project](https://docs.mulesoft.com/design-center/design-add-api-dependency) --- product: Design Center --- # Create and Publish an API Specification or Fragment from an External File > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Use API Designer to create a new API specification or an API fragment from an existing external file. API Designer supports importing from JSON, RAML, or YML files. You can also import API specifications and fragments from an existing project. ## Procedure 1. On the **Projects** page of Design Center, click the **Create new** button and then click **Import from File**. 2. Specify a name to give to the imported project. 3. Click **Choose file**, then browse your filesystem for the you want to import. You can create a new project from one following file types: - JSON - RAML - YAML - a ZIP file that contains an existing project. 4. Click **Import as…​** then choose either **API Specification** or **API Fragment**. API Designer opens the API specification or fragment in a new project using the text editor. API Designer uses the existing name for each file of the project. You can change these names as necessary. ## Modifying Your API Specification or Fragment While you are working in the editor, you can navigate through and manipulate the content of your specification. Press F1 at any time to see a list of them. This list also displays keyboard shortcuts for most of the commands. You can also perform these tasks: Import files and API fragments into your project You can import files, either separately or bundled in ZIP files. The files can be RAML 1.0 files, JSON files, or OpenAPI Specification (OAS) 2.0 or 3.0 files (either JSON or YAML). The files can be on your computer or you can specify a URL for them if they are located online. For more information about importing files and steps for how to import them, see "Import Files into an API Project", which is linked to from the **See also** section at the end of this topic. For information about adding API fragments to your project, see "Add a RAML API Fragment to an API-Specification Project as a Dependency", which is linked to from the **See also** section at the end of this topic. Simulate calls to your API Even while you are drafting an API specification, you can simulate calls to endpoints for which you have specified: - An HTTP status code the API returns, if successful - An example of data the actual implementation would return For more information, see [Simulate Calls to an API](https://docs.mulesoft.com/design-center/design-mocking-service). Export your API project or specification At any time, you can export your project as a ZIP file. Click the gear icon in the top-right corner of the text editor and select **Download Project**. Download files Click the dots to the right of the file name and select **Download**. Download files in a different format Click the dots to the right of the file name of a specification and select **Download as**. You can download your specification in one of the other supported formats. If your specification is in RAML, you can download it in OAS YAML or in OAS JSON. If your specification is in OAS, you can download it in RAML 0.8 or in RAML 1.0. The files downloaded through this option are not guaranteed to be valid. This option is intended to provide the basis for the development of a new specification or the continuation of the development of the original specification in a new format. ## What to Do Next If you are satisfied with your API specification, you can publish it to Exchange. See [Publish an API Specification](https://docs.mulesoft.com/design-center/design-publish). --- product: Design Center --- # Creating New GitHub Repositories Synchronized from an Existing Projects > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can create a new GitHub repository and synchronize it with an existing API Designer project. ## Before You Begin Before you synchronize a new repository and a project, ensure you have: - The Design Center Developer permission within Anypoint Platform - [Installed and authorized](https://docs.mulesoft.com/design-center/design-ghs-install-authorize) the GitHub Synchronization application - Signed into GitHub ## Synchronize A New Repository and A Project 1. In the Design Center **Projects** list, click the table row containing a project to synchronize with GitHub. 2. In the details panel, click the **Sync with GitHub** button. 3. In the **Enable Sync with GitHub** dialog, select an organization from the **GitHub Organization** list dropdown. > [!NOTE] The **GitHub Organization** list remains empty if the GitHub Synchronization > application is not installed. See > [Install and Authorize the MuleSoft GitHub Synchronization Application](https://docs.mulesoft.com/design-center/design-ghs-install-authorize). 4. Specify a name for the new repository. 5. Click **Sync**. You are navigated to the Design Center **Projects** page. A **Sync Status** indicator appears in the **Details** pane along with buttons that enable you to manage a GitHub repository and disable synchronizing. ## See Also - [Create an API Specification with the Text Editor](https://docs.mulesoft.com/design-center/design-create-publish-api-raml-editor) - [Helpful Features in the Text Editor](https://docs.mulesoft.com/design-center/design-helpful-features-text-editor) - [Publish an API Specification](https://docs.mulesoft.com/design-center/design-publish) --- product: Design Center --- # Creating New Projects Synchronized from Existing GitHub Repositories > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can create a new API Designer project and synchronize it with an existing GitHub repository. ## Before You Begin Before you create and synchronize a project, ensure you have: - The Design Center Developer permission within Anypoint Platform - [Installed and authorized](https://docs.mulesoft.com/design-center/design-ghs-install-authorize) the GitHub Synchronization application - Signed into GitHub ## Synchronize A New Project 1. On the Design Center **Projects** page, click **Create new**. 2. Select **Sync from existing GitHub Repo**. 3. In the **New Project** dialog, specify a name in the **Project Name** field. 4. Select an organization and repository from which to synchronize your new project. > [!NOTE] The **GitHub Organization** dropdown list displays GitHub organizations that have the > GitHub Synchronization application installed. No organizations or repositories are listed if > the application is not installed. 5. Click **Import As**. 6. Choose the type of API project to sync: **API Specification** or **API Fragment**. You are navigated to the new project’s text editor. ## See Also - [Create an API Specification with the Text Editor](https://docs.mulesoft.com/design-center/design-create-publish-api-raml-editor) - [Helpful Features in the Text Editor](https://docs.mulesoft.com/design-center/design-helpful-features-text-editor) - [Publish an API Specification](https://docs.mulesoft.com/design-center/design-publish) --- product: Design Center --- # Creating New Projects Synchronized with New GitHub Repositories > For the full documentation index, see: https://docs.mulesoft.com/llms.txt When creating an API Designer project, you can also create a GitHub repository and synchronize the repository with your project. ## Before You Begin Before you create and synchronize a project, ensure you have: - The Design Center Developer permission within Anypoint Platform - [Installed and authorized](https://docs.mulesoft.com/design-center/design-ghs-install-authorize) the GitHub Synchronization application - Signed into GitHub ## Synchronize A New Project 1. On the Design Center **Projects** page, click **Create new**. 2. Select **New API Spec**. 3. In the **New API Spec** dialog, specify an API title. 4. Select **I’m comfortable with designing it on my own**. 5. Click the **Sync this project with an external GitHub repository** checkbox. 6. In the expanded dialog, select an organization from the **GitHub Organization** list. > [!NOTE] The **GitHub Organization** list remains empty if the GitHub Synchronization > application is not installed. 7. If necessary, specify a new name for the repository. 8. Click **Create API Spec**. You are navigated to the new project’s text editor. In addition to synchronizing GitHub repositories when creating API specifications, you can synchronize a new GitHub repository when creating fragments and importing APIs. ## See Also - [Create an API Specification with the Text Editor](https://docs.mulesoft.com/design-center/design-create-publish-api-raml-editor) - [Helpful Features in the Text Editor](https://docs.mulesoft.com/design-center/design-helpful-features-text-editor) - [Publish an API Specification](https://docs.mulesoft.com/design-center/design-publish) --- product: Design Center --- # Delete a Project > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can delete an API-specification project or an API-fragment project. If you have already published a project, deleting it in API Designer does not delete it from Anypoint Exchange. > [!IMPORTANT] The deletion of a project is final. Deleting a project does _not_ move it to a > **Trash** folder from which you can restore the project if you change your mind. ## Procedure To delete a project, use one of these methods: - If the project is not open, select the project in Design Center’s **Projects** page, and then click the Delete icon in the top-right corner of the page. - If the project is open, click the gear icon in API Designer’s top-right corner and then select **Delete**. --- product: Design Center --- # Design Center Release Notes > For the full documentation index, see: https://docs.mulesoft.com/llms.txt The following release notes are provided for Design Center: - [API Designer Release Notes](https://docs.mulesoft.com/release-notes/design-center/design-center-release-notes) - [API Mocking Service Release Notes](https://docs.mulesoft.com/release-notes/api-mocking-service/api-mocking-service-release-notes) ## See Also - [Known Issues](https://help.salesforce.com/s/issues) --- product: Design Center --- # Designing API Specs and Fragments > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Use API Designer to create, design, test, and publish new API Specifications. ## Design Using the Text or Visual Editor You can use either [the text editor](https://docs.mulesoft.com/design-center/design-create-publish-api-raml-editor) or [the Visual Editor](https://docs.mulesoft.com/design-center/design-create-publish-api-visual-editor) to create API specifications. With the text editor, you can: - Design according to best practices with a context-aware shelf that auto-populates with the appropriate methods, resources, parameters, and security components. - Include RAML API fragments, such as security schemas and data types, from Exchange or write your own. - Apply rulesets from Exchange to validate the governance conformance of your projects. - Import existing API specifications. With the visual editor, you can: - Create a specification for use cases in which you do not need to include RAML fragments. - Scaffold a specification that you can complete and customize in the text editor. --- product: Design Center --- # Differences for OAS 3.0 in Rendered Documentation > For the full documentation index, see: https://docs.mulesoft.com/llms.txt The right pane of the text editor in API Designer displays the documentation that is written into API specifications. Documentation is rendered identically for REST API specifications written in RAML or OAS 2.0. However, documentation for API specifications written in OAS 3.0 can include multiple server definitions as well as links and callbacks. ## Documentation for Definitions of Multiple Servers OAS 3.0 enables you to define servers by using the `servers` field. You can define servers globally at the top of a specification, locally for endpoints, and locally for methods. Local definitions override the definitions set at the next higher level in the specification’s hierarchy. Definitions set locally for methods override definitions set at endpoints and globally. Definitions set locally for endpoints override definitions set globally. The following example API specification demonstrates different ways, indicated by ten callouts (1-10), that you can set server definitions. After the example API specification, the documentation for the portion of the API at each callout is illustrated with a screenshot. openapi: '3.0.2' info: title: Multi-server Cemo API version: '1.0' servers: **(1)** - url: https://{customerId}.saas-app.com:{port}/v2 variables: customerId: default: demo description: Customer ID assigned by the service provider port: enum: - '443' - '8443' default: '443' - url: https://{region}.api.company.com variables: region: default: westus enum: - westus - eastus2 - westcentralus - westeurope - southeastasia - url: https://api.company.org/data/2.5/ description: Production server - url: http://beta.api.company.org/data/2.5/ description: Beta server paths: /default:**(2)** description: A default path to the API get:**(3)** summary: "The get method for /default" responses: 200: description: Successful response /duplicated:**(4)** description: Has some of the default servers servers: - url: https://api.company.org/data/2.5/ description: Production server - url: http://beta.api.company.org/data/2.5/ description: Beta server get:**(5)** summary: "The get method for /duplicated" responses: 200: description: Successful response /files:**(6)** description: File upload and download operations servers: - url: https://files.example.com description: Override base path for all operations with the /files path get:**(7)** summary: "The get method for /files" responses: 200: description: Successful response /ping:**(8)** servers: - url: https://endpoint.example.com description: Override base path servers get:**(9)** servers: - url: https://echo.example.com description: Override base path for the GET /ping operation - url: https://echo2.example.com description: Also overrides base path for the GET /ping operation summary: "The get method for /ping" responses: 200: description: Successful response post:**(10)** summary: "The post method for /ping" responses: 201: description: Successful create 1. The Summary page of the documentation for this API lists the four servers that are defined in this `servers` field: ![A list of API servers and endpoints with their available methods.](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-summary.png) 2. The `/default` endpoint does not override the base `servers` definition at the top of the API. On the Overview page for the endpoint, you can select a server to see the URI for this endpoint at that server: ![A dialog box with a server selection dropdown and a GET button.](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-default.png) 3. The GET method for the `/default` endpoint also inherits the four servers in the base `servers` definition. On the page for this method, you can select a server to see the URI for this method at that server: ![An API documentation page with code examples and responses.](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-default-get.png) 4. The `/duplicated` endpoint overrides the base `servers` definition, its local `servers` definition including only the last two servers of the original four. On the Overview page for the endpoint, you can select a server to see the URI for this endpoint at that server: ![A dropdown menu for choosing your server.](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-duplicated.png) 5. The GET method for the `/duplicated` endpoint inherits the two servers in the local `servers` definition. On the page for this method, you can select a server to see the URI for this method at that server: ![An API documentation page demonstrating the GET method for duplicate data.](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-duplicated-get.png) 6. The `/files` endpoint overrides the base `servers` definition, its local `servers` definition including only one server. On the Overview page for this endpoint, there are no servers to choose from, as there were for the previous two endpoints: ![An API documentation page with instructions for file upload and download actions.](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-files.png) 7. The GET method for the `/files` endpoint inherits the one server in the local `servers` definition. On the page for this method, there is no list of servers to choose from: !["An API documentation page illustrating the GET method for file retrieval](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-files-get.png) 8. The `/ping` endpoint overrides the base `servers` definition, its local `servers` definition including only one server. On the Overview page for this endpoint, there are no servers to choose from: ![An arrow points to a URL.](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-ping.png) 9. The `GET` method for the `/ping` endpoint overrides both the base `servers` definition and the `/ping` endpoint’s local `servers` definition. The `GET` method’s local `servers` definition includes two servers. On the page for this method, you can select a server to see the URI for this method at that server: !["A form with a server selection dropdown](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-ping-get.png) 10. The POST method for the `/ping` endpoint inherits the one server in the `/ping` endpoint’s local `servers` definition. On the Overview page for this endpoint, there is no list of servers to choose from: ![a code snippet that demonstrates the post method for /ping.](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-ping-post.png) ## Documentation for Links and Callbacks OAS 3.0 enables you to define links and callbacks. For an explanation of these features, see the specification for openAPI 3.0 at https://swagger.io/. The following example API specification demonstrates how to set links and callbacks. The callouts indicate parts of the API specification that are rendered as documentation in the screenshots that follow. openapi: 3.0.0 info: version: 1.0.0 title: Callback Demo API servers: - url: https://{customerId}.saas-app.com:{port}/v2 variables: customerId: default: demo description: Customer ID assigned by the service provider port: enum: - '443' - '8443' default: '443' components: requestBodies: callbackMessage1: description: Callback message \`1\` required: true content: application/json: schema: $ref: '#/components/schemas/Clb1' callbackMessage2: description: Callback message \`2\` required: true content: application/json: schema: $ref: '#/components/schemas/Clb2' callbackMessage3: description: Callback message \`3\` required: true content: application/json: schema: $ref: '#/components/schemas/Clb3' schemas: Clb1: title: Event 1 type: object properties: text: type: string description: Message text Clb2: title: Event 2 type: object properties: productId: type: string description: Order product id Clb3: title: Event 3 type: object properties: eventId: type: string description: Event internal ID triggerAuthor: type: string description: A person triggered the event paymentRequest: title: Payment type: object properties: token: type: string description: Payment token generated for this request amount: type: number description: The payment amount. paths: /subscribe: post: requestBody: content: application/json: schema: type: object properties: inProgressUrl: type: string failedUrl: type: string successUrl: type: string responses: '200': description: OK links:**(1)** unsubscribeOp: operationId: unsubscribeOperation parameters: Id: $response.body#/subscriberId otherOp: parameters: one: $response.body#/one two: $response.body#/two 402: description: Not OK. Payment is required content: application/json: schema: $ref: '#/components/schemas/paymentRequest' links:**(2)** paymentUrl: parameters: paymentUrl: $response.body#/info.paymentUri paymentToken: $response.body#/info.token callbacks: inProgress: '{$request.body#/inProgressUrl}':**(3)** post: requestBody: $ref: '#/components/requestBodies/callbackMessage1' responses: '200': description: OK '{$request.body#/failedUrl}':**(4)** post: requestBody: $ref: '#/components/requestBodies/callbackMessage2' responses: '200': description: OK '{$request.body#/successUrl}':**(5)** post: requestBody: $ref: '#/components/requestBodies/callbackMessage3' responses: '200': description: OK /unsubscribe: post: operationId: unsubscribeOperation parameters: - in: query name: Id required: true schema: type: string responses: '200': description: OK 1. The links for the 200 response for the `POST` method of the `/subscribe` endpoint appear at the bottom of the method’s documentation: !["Two tables with variable and expression columns.](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-links-1.png) 2. The links for the 402 response for the `POST` method of the `/subscribe` endpoint appear at the bottom of the method’s documentation: ![A table that displays variables and their expressions.](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-links-2.png) The documentation for callouts 3-5 appear in the **Callbacks** section of the documentation for the `POST` method of the `/subscribe` endpoint: ![A list of API calls, including parameters, body, and responses.](/mulesoft/current/en-us/design-center/_images/apid-apic-oas-3-callbacks.png) --- product: Design Center --- # Duplicate a Project > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can duplicate projects in API Designer. You might want to duplicate a project if you need to make extensive changes to the project without losing the original on which the duplicate project is based. Any dependencies that are listed in the original project are retained in the duplicate project. ## Before You Begin - Ensure that the mocking service is not turned on. - Ensure that the project is not in read-only mode. ## Procedure 1. Open the project. 2. Click the gear icon in the top-right corner of the editor. 3. Select **Duplicate**. 4. Name the duplicate project and click **Duplicate**. ## Result API Designer opens a new browser tab that displays the new project. If the original project is in the text editor, the duplicate project is opened in the text editor. If the original project is in the visual editor, the duplicate project is opened in the visual editor. If the original was in a sub-branch, the duplicate is on the same sub-branch. The duplicate project is listed in Design Center’s project list. --- product: Design Center --- # Edit in Multiple Tabs in the Text Editor > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can have multiple files open simultaneously in API Designer’s text editor. Each file can be open in its own tab. ## Opening Files in New Tabs There are four ways that you can open a file in a new tab: - Open the context menu for a file in the file tree by clicking the three dots to its right, and then select **Open in new tab**. - Press the Command key (MacOS) or the Control key (Windows) and click the name of the file in the file tree. +\[NOTE\] Clicking a filename in the file tree without first pressing either of these keys replaces the file that is open in the current tab. - Place your cursor in the name of a file in a file reference such as an `include` tag in RAML or a `$ref` keyword in OAS. Then, press the Command key (MacOS) or the Control key (Windows) and click the filename. - Click a filename in the **Location** column in the errors view at the bottom of the screen. ## Navigating to Different Tabs The tab bar appears at the top of the editor only when at least two files are open. To switch to the tab to the left of the one currently open, follow either of these steps: \* Press Option + Shift + Tab (MacOS) or Alt + Shift + Tab (Windows). \* Open the menu on the tab bar by clicking the ellipsis and select **Previous Tab**. To switch to the tab to the right of the one currently open, follow either of these steps: \* Press Option + Tab (MacOS) or Alt + Tab (Windows). \* Open the menu on the tab bar by clicking the ellipsis and select **Next Tab**. ## Closing Tabs To close a single tab, click the X icon that appears on it. To close all tabs but the currently open one, click the ellipsis on the right side of the tab bar and select **Close All Other Tabs**. --- product: Design Center --- # Fork a Project in the Text Editor > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can separate new iterations of a project from previous iterations by branching. ## About this Task A new branch is a fork of your project and cannot be merged back into the main branch. Anybody who has access to your project can also create branches. Even when there are forks of a project, when you open that project the editor opens it to the main branch. If you want to return to a fork that you were working in, you must select that fork. You can publish any fork of an API specification to Anypoint Exchange. ## Procedure - To fork a project: 1. Open the project. 2. Click the name of your branch at the top of the text editor. 3. Type a name in the search field and type **Enter**. **Result:** The text editor automatically switches to the new fork. - To work in a fork of a project: 1. Open the project. 2. Click the name of your branch at the top of the text editor. 3. Select the name of the fork that you want to work in. --- product: Design Center --- # Getting Started with API Designer > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can use the API Designer web UI to design API specifications in: - RESTful API Modeling Language (RAML) version 0.8 or 1.0 - OpenAPI Specification (OAS) version 2.0 or 3.0 - AsyncAPI 2.6 and AsyncAPI 2.0 You can also design API fragments in RESTful API Modeling Language (RAML) version 0.8 or 1.0. ## Add and View Documentation As you add descriptions in your specifications and fragments, you can view them in auto-generated, interactive documentation in the right pane of the text editor. ## Test Using the Mocking Service You can use the mocking service for RAML or OAS APIs to: - Preview API functionality before writing a single line of code. - Send requests to a specification and receive defined responses. - Use behavioral headers to simulate different scenarios, such as timeouts and errors. ## Share in Exchange and API Manager You can publish an API specification to Anypoint Exchange for use in API Manager, or Anypoint Studio. You can also add an API specification directly to API Manager. ## Use Specifications and Fragments Across MuleSoft Products You can use the specifications and fragments that you design in API Designer with integrated MuleSoft products: - Use API Designer to design API specifications and RAML fragments. - Use assets that are hosted in Exchange in your RAML specifications. - Publish iterations and final versions of the API specifications to Anypoint Exchange. - Import specifications that were designed in API Designer into Anypoint Studio and API Manager. - Import specifications into Anypoint Studio directly from API Designer. ## See Also - [Create and Publish an API Specification with the Text Editor in API Designer](https://docs.mulesoft.com/design-center/design-create-publish-api-raml-editor) - [Create and Publish an API Specification with the Visual Text Editor in API Designer](https://docs.mulesoft.com/design-center/design-create-publish-api-visual-editor) - [Create and Publish an API Fragment in the Text Editor in API Designer](https://docs.mulesoft.com/design-center/design-create-publish-api-fragment) --- product: Design Center --- # GitHub Synchronization > For the full documentation index, see: https://docs.mulesoft.com/llms.txt API specification designers often use multiple authoring and version control tools. This can result in maintaining several different specification versions. GitHub Synchronization is a version control tool that maintains API specifications existing in several locations. Use GitHub Synchronization to enable two-way synchronization between API Designer and your GitHub repository and to automatically capture changes to API projects and send the changes to a synchronized GitHub repository of your choice. Similarly, the application automatically propagates to your API project any changes made in a synchronized GitHub repository. This bidirectional flow extends API Designer into a collaborative environment where the single source of truth is always GitHub. Unlimited collaborators can share and contribute to the same content. Using GitHub synchronization with API Designer enables you to: - Create new GitHub repositories that synchronize with existing API projects. - Create new API projects that synchronize with new GitHub repositories. - Create new API projects that synchronize with existing remote GitHub repositories. To perform GitHub-specific actions, such as opening pull requests, viewing branch diffs, or viewing synchronization status, use the GitHub UI. ## See Also - [Install and Authorize GitHub Synchronization](https://docs.mulesoft.com/design-center/design-ghs-install-authorize) - [Create a New Project Synchronized with a New GitHub Repository](https://docs.mulesoft.com/design-center/design-ghs-new-project-new-repo) - [Create a New Project Synchronized From an Existing GitHub Repository](https://docs.mulesoft.com/design-center/design-ghs-new-project-existing-repo) - [Create a New GitHub Repository Synchronized from an Existing Project](https://docs.mulesoft.com/design-center/design-ghs-new-repo-existing-project) --- product: Design Center --- # Guide to Defining Examples in RAML 1.0 > For the full documentation index, see: https://docs.mulesoft.com/llms.txt When defining examples in external files for a type, trait, or resource type in your RAML 1.0 API specification, follow these rules: - For a single example, either use the `example` facet and include a .yaml file or use the `examples` facet and include a .raml NamedExample fragment file. - For multiple examples, always use the `examples` facet and either: - Define multiple examples, each pointing to individual .yaml files, with a single example per file - Include a .raml file containing two or more examples defined in a single NamedExample fragment ## Using a Single Example That Is in a .yaml File In your specification, include the file with an `example` facet. In your .yaml file, ensure that the example is at the root level. The files api.raml and fragment.yaml illustrate the correct way to use a single example that is in a .yaml file: api.raml #%RAML 1.0 title: test types: A: properties: givenName: string familyName: string example: !include fragment.yaml fragment.yaml givenName: ”Chiaki” familyName: "Mukai" ## Using a Single Example That Is in a .raml NamedExample Fragment File In your specification, include the file with an `example` facet. In your NamedExample fragment, ensure that the example is not at the root level of the file. The fragment must contain a key that is the name of the example. The files api.raml and fragment.raml illustrate the correct way to use a single example that is in a .raml file: api.raml #%RAML 1.0 title: test types: A: properties: givenName: string familyName: string examples: !include fragment.raml fragment.raml #%RAML 1.0 NamedExample fullName: givenName: ”Chiaki” familyName: "Mukai" Do not use a fragment that looks like this: fragment.raml #%RAML 1.0 NamedExample givenName: ”Chiaki” familyName: "Mukai" In this case, API Designer ignores the header and uses the example. However, if you validate a specification with any other RAML processors, NamedExample fragments that define only one example should generate errors, in accordance with the RAML 1.0 specification. ## Naming Two Examples That Are in .yaml Files In your specification, include the file with the `examples` facet and name each example. In your .yaml files, ensure that each example is at the root level. The files api.raml, fragment1.yaml, and fragment2.yaml illustrate the correct way to use two examples that are in .yaml files: api.raml #%RAML 1.0 title: test types: A: properties: givenName: string familyName: string examples: fullName: !include fragment1.yaml otherFullName: !include fragment2.yaml fragment1.yaml givenName: ”Chiaki” familyName: "Mukai" fragment2.yaml givenName: "Kyung-won" familyName: "Park" ## Naming Two Examples That Are in a NamedExample Fragment In your specification, include the file with an `examples` facet. In your NamedExample fragment, ensure that neither example is at the root level of the file. The fragment must contain two keys that are each the name of an example. The files api.raml, and fragment.raml illustrate the correct way to use a two examples that are in a .raml file: api.raml #%RAML 1.0 title: test types: A: properties: givenName: string familyName: string examples: !include fragment.raml fragment.raml #%RAML 1.0 NamedExample fullName: givenName: ”Chiaki” familyName: "Mukai" otherFullName: givenName: "Kyung-won" familyName: "Park" --- product: Design Center --- # Helpful Features in the Text Editor > For the full documentation index, see: https://docs.mulesoft.com/llms.txt The text editor makes it easy to perform the following: - Rename declarable objects - Find the names of declarable objects by highlighting them - Find locations where a definition is referenced - Select code ranges - Navigate to a symbol - Extract an element to a declaration ## Rename Declarable Objects Using only one action, you can rename declarable objects everywhere they are used in a project. You can right-click the name of an object where it is declared, select **Rename Symbol**, and provide a new name. The object is thereby renamed wherever it is used in all of the files of the current project that are associated with the root file of the project, but the object is not renamed where only mentioned. For example, in the following example API specification `product_name` is declared as a type on line 5 at callout 1, mentioned at callout 2, and used on line 17 at callout 3. If you right-click `product_name` at callout 1 and use the **Rename Symbol** option to change its name, `product_name` is changed only at callout 3. #%RAML 1.0 title: Test Renaming types: product\_name: **(1)** type: object properties: name: string /test: get: responses: 200: description: product\_name **(2)** body: application/json: type: product\_name **(3)** ## Highlight the Names of Declarable Objects You can highlight the names of declarable objects where they are used in a file. To see all of the locations in a file where an object is used, click the cursor in the name of the object where that object is declared. For example, the type `person` is declared on line 5 at the first callout in the following example API specification. That type is subsequently used on line 16 at the second callout. If you click `person` on line 5, the text editor highlights `person` on line 16. #%RAML 1.0 title: Test Highlighting types: person: **(1)** type: object properties: name: string /test: get: responses: 200: body: application/json: type: person **(2)** This highlighting works for all declarable objects, such as types, security schemes, resource types, and traits. Highlighting appears only where the object is used, not every location where its name appears. For example, in the following example API specification, `person` is declared as a type on line 5 at callout 1, mentioned on line 14 at callout 2, and used on line 17 at callout 3. When you click in `person` at callout 1, `person` is highlighted only at callout 3. #%RAML 1.0 title: Test Highlighting types: person: **(1)** type: object properties: name: string /test: get: responses: 200: description: person **(2)** body: application/json: type: person **(3)** ## Find Locations Where a Definition is Referenced You can navigate to locations where a given definition is referenced by right-clicking the definition and selecting **Go to References**. For example, the type `person` is declared on line 5 at the first callout in the following example API specification. That type is subsequently used on line 14 at the second callout, and on line 22 at the third callout. #%RAML 1.0 title: Test References uses: lib: library.raml types: person: **(1)** description: this is person's description properties: firstname: string manager: type: lib.manager Alertable: manager | person **(2)** /person: get: responses: 200: body: application/json: type: person\[\] **(3)** If you right-click `person` on line 5 and select **Go to References**, a list of the `person` locations (callouts two and three) appears. Double clicking a listed location navigates you to the relevant line. **Go to References** also supports the following: - RAML resource types and traits - RAML type expressions - Library aliases - References linked in JSON path navigation - References to nodes that apply macros, such as `annotationTypes`, `securitySchemes`, `resourceTypes`, and `traits` ## Select Code Ranges “Selection Ranges” enable you to select and to expand the selection of code blocks. To select a range, click an element and press Control + Shift + \[Left Arrow | Right Arrow\]. The Right Arrow key increases the range. The Left Arrow key decreases the range. For example, clicking `body:` in the following code, and pressing Control + Shift + Right Arrow creates a selection range that includes only `body:`: ![Example of a JSON response containing a person’s first name.](/mulesoft/current/en-us/design-center/_images/apid-helpful-text-editor-1.png) Pressing Control + Shift + Right Arrow again results in the following selection range: ![A code snippet that demonstrates a JSON object with a key named firstname.](/mulesoft/current/en-us/design-center/_images/apid-helpful-text-editor-2.png) Pressing Control + Shift + Left Arrow collapses the selection range, leaving only `body:` selected again. ## Navigate to a Symbol You can right-click anywhere in the document and select **Go to Symbol**, which presents the list of defined symbols: ![A RAML code that defines a type and resource for a person.](/mulesoft/current/en-us/design-center/_images/apid-helpful-text-editor-3.png) Selecting a symbol navigates you to its location in the document. ## Extract an Element to a Declaration You can take advantage of refactoring helpers to ease the continuous improvement of the design. One such helper is the ability to extract an inline declarable element to a top-level declaration, with the result being reusability. When you select a range that matches an inline declarable element, an icon appears to the left of the element: ![A code that shows the definition of a ](/mulesoft/current/en-us/design-center/_images/apid-helpful-text-editor-4.png) Click the icon and select **Extract to Declaration**, which results in the following two changes to the document: ![Code showcasing RAML for a test refactoring project.](/mulesoft/current/en-us/design-center/_images/apid-helpful-text-editor-5.png) The first callout shows that `type: lib.manager` is replaced with `type: newtype`. A `newtype` declaration now exists outside of the `manager` scope (as shown at the second callout), thereby making `newtype` reusable. The extracted declaration name is based on the original name. If the name is already being used by another declaration of the same kind, an automatically incremented number is added at the end of the name. You can rename the declaration. Along with `types` declarations, you can also extract `resourceTypes` declarations and `traits` declarations. --- product: Design Center --- # Import Files into an API-Fragment Project > For the full documentation index, see: https://docs.mulesoft.com/llms.txt > [!WARNING] File uploads are restricted to supported formats. You can import RAML fragments, OAS components and JSON Schemas into an API-fragment project. The fragments that you import can be written in RAML 0.8, RAML 1.0, and OAS 3.0. You can import annotation types, data types, examples of JSON response payloads, libraries, resource types, security schemes, traits, and OAS components. You must set one of the fragments in your project as the root file of the project. There are three locations that you can import from: your computer, a location at a URL, and Anypoint Exchange. ## Procedures - Import a file or the content of a ZIP file that is stored on your computer, if you are using the text editor: 1. Click the gear icon in the top-right corner of the text editor and select **Import**. 2. In the **Import** dialog, select **File or Zip**. **Result:** The file or files are listed in the left pane of the editor. If you imported a ZIP file that contains files that are in a folder structure, the folder structure is represented in the pane. - Import a file that is available through a URL, if you are using the text editor: 1. Click the gear icon in the top-right corner of the text editor and select **Import**. 2. In the **Import** dialog, select **URL**. **Result:** The file is listed in the left pane of the editor. > [!NOTE] With this method of importing a file, you can import only one file at a time. If you > import a library fragment, you must also import separately each file that the library uses. - To import an API fragment from Exchange, together with its dependencies: 1. Open the **Import Asset from Exchange** dialog by using either of these methods: - If your project contains only the default file that API Designer created together with the project, click the linked text that appears in the **Files** pane. - If your project already contains files other than the default project file, click the gear icon in the top-right corner of the text editor and select **Import from Exchange**. 2. In the drop-down menu in the top-left corner of the dialog, select the business group that owns the asset. 3. Select one of the assets, which are listed in a table that has these columns: **Name** The name of an API specification or RAML fragment. **Version** The version of a specification or fragment. Select the **Include snapshots** checkbox in the bottom-left corner of the dialog to include snapshots in this column. **Type** The type of asset. The value must be **API Fragment**. **Language** You can choose between RAML, OAS, or JSON Schema. **Date modified** The date that the currently selected version of the currently selected asset was published. **Created by** The user ID of the person who published the currently selected version of the currently selected asset. 4. Click **Import asset**. **Result:** The file or files are listed in the left pane of the editor. ## See Also - [Root Files in Projects in the Text Editor](https://docs.mulesoft.com/design-center/design-change-root-file) --- product: Design Center --- # Import Files into an API-Specification Project > For the full documentation index, see: https://docs.mulesoft.com/llms.txt > [!WARNING] File uploads are restricted to supported formats. You can import RAML fragments, OAS components, and JSON schemas into an API-specification project. You can include more than one API specification in an API-specification project. You might want to have more than one specification in a project if the specifications are closely related in functionality. You must set one of the specifications as the root file of the project. However, you can change which file is the root file whenever you need to. The fragments that you import can be written in RAML 0.8, RAML 1.0, or OAS 3.0. You can import annotation types, data types, examples of JSON response payloads, libraries, resource types, security schemes, and traits. There are three locations that you can import from: your computer, a location at a URL, and Anypoint Exchange. ## Procedure - Import a file or the content of a `.zip` file that is stored on your computer, if you are using the text editor: 1. Click the gear icon in the top-right corner of the text editor and select **Import**. 2. In the **Import** dialog, select **File or Zip**. 3. Browse to your file or ZIP file and select it. **Result:** The file or files are listed in the left pane of the editor. If you imported a ZIP file that contains files that are in a folder structure, the folder structure is represented in the pane. - Import a file that is available through a URL, if you are using the text editor: 1. Click the gear icon in the top-right corner of the text editor and select **Import**. 2. In the **Import** dialog, select **URL**. > [!NOTE] > > - If you import a file that is available online by providing its URL, be sure that the file > contains no `!include` statements (RAML) or `$ref` statements (OAS). The editor imports > only the file that is at the URL. **Result:** The file is listed in the left pane of the editor. - To import an API specification or API fragment from Exchange, together with its dependencies: 1. Open the **Import Asset from Exchange** dialog by using either of these methods: - If you are using the text editor and your project contains only the default file that API Designer created together with the project, you can click the linked text that appears in the **Files** pane. - If you are using the text editor, you can click the gear icon in the top-right corner of the text editor and select **Import from Exchange**. - If you are using the visual editor and your project does not yet contain any resources or data types, you can click the linked text that appears in the **New API** pane. 2. In the drop-down menu in the top-left corner of the dialog, select the business group that owns the asset. 3. Select one of the assets, which are listed in a table that has these columns: **Name** The name of an API specification or API fragment. **Version** The version of a specification or fragment. Select the **Include snapshots** checkbox in the bottom-left corner of the dialog to include snapshots in this column. **Type** The type of asset. The value can be either **REST API** or **API Fragment**. **Language** (for API specifications being imported into the text editor) The language is either RAML or OAS. The value displayed by default is the language in which the specification was written. The non-default value is the language in which Exchange created a copy when the specification was published. If you want to import the copy, you might need to correct errors in it after you import it. The process that Exchange uses to create copies, which converts RAML to OAS or vice versa, is not guaranteed to produce error-free specifications. **Language** (for API specifications being imported into the visual editor) The language is always RAML. API Designer imports the RAML version of a specification, displays the RAML version in the **RAML** pane, and displays the OAS version in the **OAS** pane. **Language** (for fragments) You can choose between RAML, OAS, or JSON Schema. **Date modified** The date that the currently selected version of the currently selected asset was published. **Created by** The user ID of the person who published the currently selected version of the currently selected asset. 4. Click **Import Asset**. **Result:** The file or files are listed in the left pane of the editor. ## See Also - [Root Files in Projects in the Text Editor](https://docs.mulesoft.com/design-center/design-change-root-file) - [Design, Create, and Publish API Specifications](https://docs.mulesoft.com/design-center/design-create-publish-api-specs) --- product: Design Center --- # Importing and Publishing API Specs > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Use API Designer for importing and Publishing your API Specifications. With API Designer, you can: - [Import Files into an API-Specification Project](https://docs.mulesoft.com/design-center/design-import-files) - [Import Files into an API-Fragment Project](https://docs.mulesoft.com/design-center/design-import-files-api-fragment-projects) - [Add Dependencies to an API-Specification Project](https://docs.mulesoft.com/design-center/design-add-api-dependency) - [View the Source Project for Assets Published to Exchange](https://docs.mulesoft.com/design-center/design-view-source-from-exchange) - [Publish an API Specification](https://docs.mulesoft.com/design-center/design-publish) - [Share an OAS 3.0 API Specification as RAML](https://docs.mulesoft.com/design-center/design-share-oas3-as-raml) --- product: Design Center --- # Installing and Authorizing GitHub Synchronization > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Installing the GitHub Synchronization application in an organization is the first step in making the organization’s repositories accessible to API Designer. Install the GitHub Synchronization application within the GitHub user interface. Perform this action either as a GitHub organization administrator or as a GitHub user. Then, authorize the application when performing a GitHub Synchronization action for the first time within API Designer. Synchronization actions include creating new GitHub repositories for existing API specifications and creating new API specifications that are synchronized with existing GitHub repositories. ## Install the GitHub Synchronization Application as a GitHub Organization Administrator To get started, first install the GitHub Synchronization application within the GitHub user interface. ### Before You Begin To install the GitHub Synchronization application as a GitHub organization administrator, you must have: - A GitHub account - A membership in the GitHub organization in which you want to install the application - The administrator permission to access the GitHub organization (as configured through your GitHub account settings) > [!IMPORTANT] > > - You cannot install and use GitHub Synchronization if your GitHub account uses an IP allow list. > > - In the email settings for the GitHub account you want to use with GitHub Synchronization, if you > select **Keep my email addresses private**, ensure you do not select **Block command line pushes > that expose my email**. The block setting prevents you from pushing commits in your synchronized > project. > > - The GitHub integration supports only non-enterprise accounts. See > [Types of Github Accounts](https://docs.github.com/en/enterprise-cloud@latest/get-started/learning-about-github/types-of-github-accounts). ### Install the GitHub Synchronization application 1. Navigate to the [US GitHub Synchronization application page](https://github.com/apps/mulesoft-github-integration) or [EU Github Synchronization application page](https://github.com/apps/mulesoft-github-integration-eu) depending on your region. 2. Click **Install**. 3. In the **Install MuleSoft GitHub Integration** dialog, select an organization in which to install the application. 4. Click **All repositories** to make all repositories available, or click **Only select repositories** and specify individual repositories. 5. Click **Install**. The application must be authorized in API Designer to complete the integration with GitHub. See [Authorize the GitHub Sync Application in API Designer](#authorize-the-github-synchronization-application-in-api-designer). ## Install the GitHub Synchronization Application as a GitHub User Installing the GitHub Synchronization application in a GitHub user account enables you to sync your individual GitHub user repositories. ### Before You Begin To install the GitHub Synchronization application as a GitHub user, you must have: - A GitHub account - A membership in the GitHub organization in which you want to install the application > [!IMPORTANT] In the email settings for the GitHub account you want to use with GitHub > Synchronization, if you select **Keep my email addresses private**, ensure you do not select > **Block command line pushes that expose my email**. The block setting will prevent you from > pushing commits in your synchronized project. ### Install the GitHub Synchronization Application 1. Navigate to the [US GitHub Synchronization application page](https://github.com/apps/mulesoft-github-integration) or [EU Github Synchronization application page](https://github.com/apps/muesoft-github-integration-eu) depending on your region. 2. Click **Install**. 3. In the **Install MuleSoft GitHub Integration** dialog, select a GitHub user account (typically the first items in the displayed list). 4. Click **All repositories** to make all repositories available or click **Only select repositories** and specify individual repositories. 5. Click **Install**. The application must be authorized in API Designer to complete the integration with GitHub. See [Authorize the GitHub Synchronization Application in API Designer](#authorize-the-github-synchronization-application-in-api-designer). ## Authorize the GitHub Synchronization Application in API Designer To authorize the GitHub Synchronization application, ensure your user ID is assigned the Design Center Developer permission. 1. Sign in to the Anypoint Platform. 2. On the Design Center **Projects** page, click **Create +**. 3. Select **New API Specification**. 4. In the **New API Specification** panel, click **Authorize the MuleSoft app now to get started**. 5. Click **Authorize**. 6. In the subsequent dialog, click **Authorize MuleSoft GitHub Integration**. You are redirected to API Designer, which displays an **Authorized Successfully** message. You can now complete the process that originally triggered the application authorization. ## Troubleshooting GitHub Synchronization Application Installation If you encounter errors when attempting to authorize the GitHub Synchronization application, try deauthorizing and then reauthorizing the GitHub Synchronization application: 1. Click **Revoke** in the GitHub user interface (**Settings** > **Applications** > **Authorized GitHub Apps**). 2. [Authorize the GitHub Synchronization Application](#authorize-the-github-synchronization-application-in-api-designer). If you see an empty list, ensure you’ve installed the application either in a GitHub organization or in a GitHub user account before performing any sync action. ## Disabling the GitHub Integration Your organization administrator can disable the Github Integration: 1. On the Design Center **Projects** page, click **Settings**. 2. Under **Integrations**, unselect **Enable Github Integration**. 3. A confirmation dialog box appears. 4. Click **Disable GitHub**. The integration is now disabled. If your organization has sub-organizations, the organization administrator can enable or disable the integration for each sub-organization as needed. > [!WARNING] This action disables source syncing for all users and projects in your organization. If > the integration is re-enabled, all past synchronizations are lost even when the repositories still > exist on GitHub. --- product: Design Center --- # Manage API Specs and Fragments > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Use API Designer for managing your API Specifications and API fragments. With API Designer, you can: - [Rename a Project](https://docs.mulesoft.com/design-center/design-rename-project) - [Delete a Project](https://docs.mulesoft.com/design-center/design-delete-project) - [Merge Branches](https://docs.mulesoft.com/design-center/design-ghs-merge-branches) - [Duplicate a Project](https://docs.mulesoft.com/design-center/design-duplicate-project) - [API Specification for MuleSoft Connectivity Ecosystem](https://docs.mulesoft.com/design-center/spec-api-public-exchange) --- product: Design Center --- # Managing Projects Synchronized with GitHub > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can manage and interact with GitHub-synchronized projects in API Designer and Design Center. In the Design Center **Projects** list, a project’s **Details** pane enables you to view both GitHub sync status and repository URL, which is useful for troubleshooting connectivity issues. The **Details** pane also enables you to disable GitHub synchronization (you can also disable GitHub synchronization via the **Publish** options menu). ## Use The Branch Selector Component in API Designer Access the branch selector component by clicking the project title (with the current GitHub branch name) located at the top of the code panel. The branch selector component enables you to access your GitHub repository page and to: - Select a branch The current GitHub branch appears first (with its commit hash), followed by a list of previously created feature branches. Click a branch name to switch to branch. - View differences between branches To view differences between a branch and the current branch, click **View Diff**. > [!NOTE] The **View in GitHub** button, **View Diff** button, and commit hash do not appear for > non-GitHub-synchronized projects. - View the default branch The default branch is indicated by the default icon. - Delete a branch To delete a branch, click the **Delete branch** button (**X**). - Open a pull request To open a pull request, switch to a branch (other than the main branch), open the branch component selector, and click **Open Pull Request**. - Rename a branch To rename a branch, click the pencil icon, add a new name, and click **Rename**. - Create a new branch Create a new feature branch from the current branch. Specify the new branch name in the **Create Branch** text field and click the create branch button (**+**). API Designer switches to the new branch and redirects you to the text editor. The new branch name displays above the code panel. ## Use The Projects Page and Details Panel in Design Center In Design Center, the **Projects** list and a project’s **Details** panel enable you to: - Determine if project is synchronized with GitHub The Design Center **Projects** page lists your specifications, fragments, and applications. Projects that are synchronized with GitHub contain the GitHub icon in the **Name** column. - View the GitHub repository URL View the GitHub repository URL in a selected project’s **Detail** panel. Click the **Copy** button to copy the URL contents into the clipboard. - View GitHub Synchronization status View GitHub synchronization status in a selected project’s **Details** panel. The indicator displays **Not Available** if you have not authorized the GitHub Synchronization application in your GitHub account, or if you are not a member of a GitHub synchronized-authorized GitHub organization. In these cases, you can view the project in API Designer as read-only. See [Install and Authorize the MuleSoft GitHub Sync Application](https://docs.mulesoft.com/design-center/design-ghs-install-authorize). - Change the default branch name for a new project To change the default branch for a new project, you must have admin permissions. Open a project from the Projects Page, click **Settings**, and rename the branch. This applies to new projects only, not existing projects. Note that if you’re using GitHub synchronization, the default branch name is specified by GitHub. - Change the default branch for an existing project To change the default branch for an existing project, open a project from the Projects Page, click **Settings** > **Branch Settings** and select a new branch. Note that if you’re using GitHub synchronization, the default branch name is specified by GitHub. - Disable GitHub Synchronization To disable GitHub synchronization status from a selected project’s **Details** panel, click the **Disable Sync** button. In the **Disable GitHub Sync** dialog, confirm that you want to disable sync between your project and GitHub. Enter the project name in the confirmation text field and click **Disable Sync**. This action cannot be undone. ## See Also - [Merge Branches](https://docs.mulesoft.com/design-center/design-ghs-merge-branches) --- product: Design Center --- # Merging Branches > For the full documentation index, see: https://docs.mulesoft.com/llms.txt When you merge branches, you combine a target branch with changes from a forked source branch, often called a _feature branch_. The target branch reflects these changes, and the source branch remains unmodified. You can merge branches within the API Designer interface. ## Merge A Branch 1. In the Design Center **Projects** list, click a project name to open the text editor. The **Merge** button appears next to the branch selector component button (if branches have already been created). 2. Click Merge. 3. In the **Merge branch** dialog, select the target branch in the dropdown list of branches. 4. Expand **Advanced Settings**. 5. Select **Squash commits**. Squashing commits compacts the source branch’s commits into a single commit for merging and keeps the target branch’s commit history clean and concise. 6. To automatically delete the source branch after merging, select **Delete branch**. 7. Click **Merge**. After merging, the merge target branch becomes the current branch. ## Resolving Merge Conflicts Merge conflicts arise when either the source branch or the target branch contain changes (commits) that are not in the other branch. When merge conflicts occur, you must choose which branch to bring forward. You can specify the source branch or the target branch. --- product: Design Center --- # Publishing API Specifications > For the full documentation index, see: https://docs.mulesoft.com/llms.txt When you want to share your API specification with other developers, you can publish it to Anypoint Exchange. ## Before You Begin It is a good practice to remove unreferenced files before publishing a project to Anypoint Exchange. An _unreferenced_ file is not referenced from the project’s root file, either directly or indirectly. For example, if the file `example.raml` is among the files in a project but the root file of the project does not reference `example.raml` with an `!include` tag, the root file doesn’t reference `example.raml` directly. If none of the files in the chain of references from the root file directly references `example.raml`, it is not referenced indirectly from the root file. Therefore, `example.raml` is unreferenced and should probably not be among the files in the project. If you do not remove them before you begin, unreferenced files are detected when you select the option to publish to Exchange, and you are given options on whether or not to publish them. ## Publish an API Specification 1. In API Designer, open the API-specification project that you want to publish. 2. If the specification has dependencies, click the refresh button beside `Exchange Dependencies` to ensure that Design Center has the latest status and content from all dependencies. 3. Click **Publish** and then click **Publish to Exchange**. ![The publish dialog shown when you publish from API Designer to Exchange](/mulesoft/current/en-us/design-center/_images/apid-publish-dialog-api-specs.png)

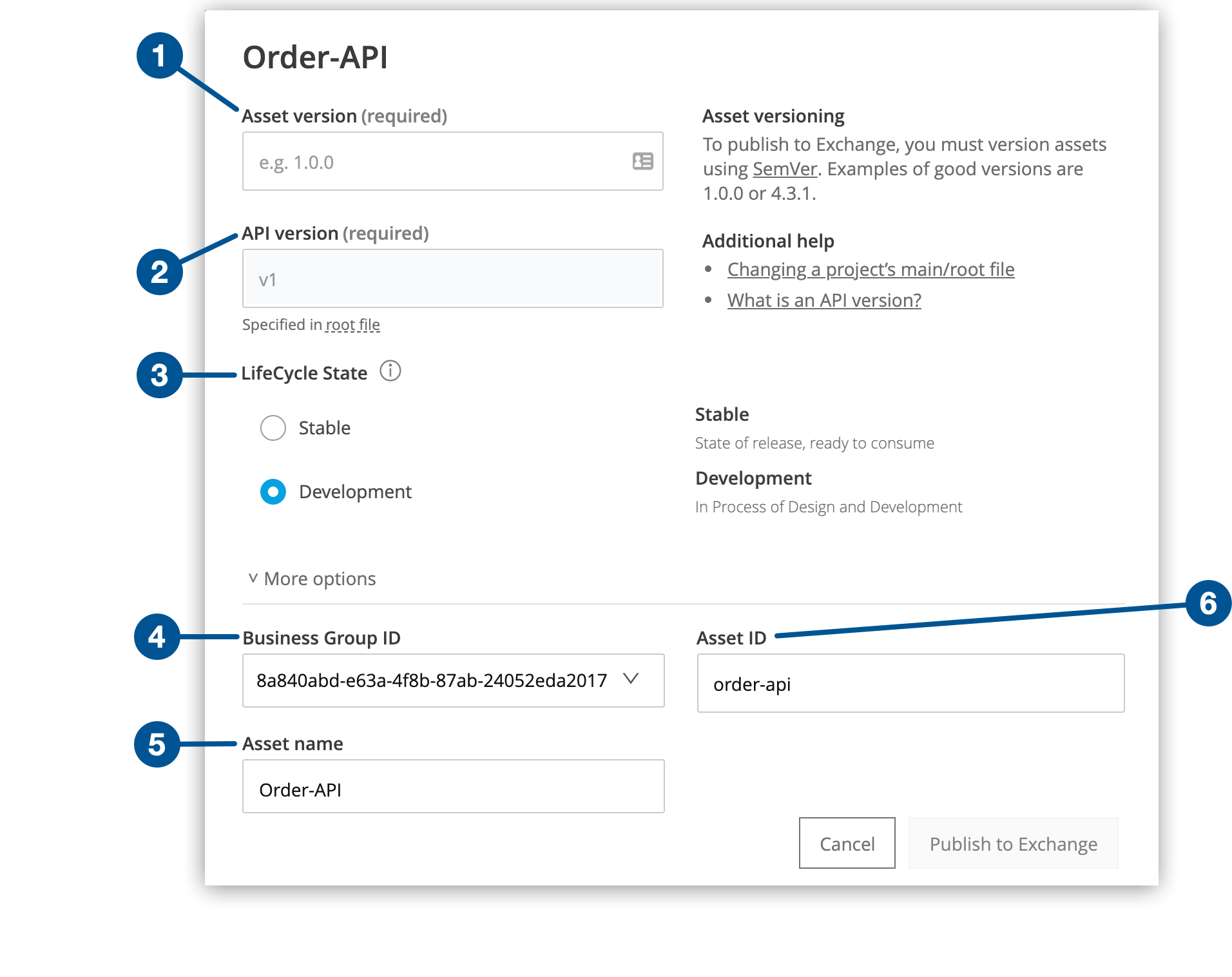

1Asset version: The version number to be displayed in the Version section of the page that Anypoint Exchange creates for the project. For a description of this field, see Asset Version.
2API version: The version number of the API specification. For a description of this field, see API Version.

  • the Asset version and API version fields are now pre-populated using the following criteria

    • If no version is defined in the API spec, the suggested asset version and API version fields are pre-filled with default values: 1.0.0 and v1.

    • If the version defined in the API spec matches asset version field recommendations (for example, 1.0.3), the value is pre-filled in the asset version field, and the API version field is pre-filled with a v and the major asset version (for example, v1).

    • If the version defined in the API spec matches API version field recommendations (for example, v2), the value is pre-filled in the API version field, and the asset version field is pre-filled with its major value extracted (for example, 2.0.0).

    • If the version defined in the API spec is a different string (for example, 7.4), the value is pre-filled in the API version field, and the asset version field is pre-filled with its default value: 1.0.0.

    • If the API has a version already published to Exchange (for example,3.2.5), when publishing a new version without changing the one defined in the API spec, the asset version field is pre-filled with its previous value incremented by one (for example, 3.2.6), and the API version field stays the same.

3LifeCycle State: The lifecycle state of the asset. Assets can be published from API Designer as Development or Stable. Assets cannot be deprecated from API Designer.
4Business group ID: The ID of the business unit in Anypoint Platform to which the project belongs.
5Asset name: The name that Anypoint Exchange uses to identify the published project.
6Asset ID: A unique ID that Anypoint Exchange uses to identify the published project. You should use the default unless there is a published asset with the same ID.
4. After completing the required fields, click **Publish to Exchange**. If your project includes files that are not referenced by the root file either directly or indirectly, a dialog asks you to confirm that you want to publish the project including the unreferenced files. By default, API Designer excludes them from the published project in Anypoint Exchange. > [!NOTE] If you are using a version of Anypoint Platform released prior to April 2017 and want to > add the asset to API Manager while publishing to Exchange, select **Add to API Manager**. This > functionality is not available in later versions and instead you can link API instances in API > Manager to assets in Exchange. ## Asset Version Anypoint Exchange requires an asset version number for each API specification published. The asset version must be specified using semantic versioning rules. For details, see [Change the Version of an Asset](https://docs.mulesoft.com/exchange/to-change-raml-version). The content of the **Asset version** field on the publish dialog depends on the following: - If you are publishing the specification for the first time, you can use any valid number based on the semantic versioning scheme. A typical starting version is `1.0.0`. - If you are republishing the specification, API Designer automatically populates the **Asset version** field with the existing patch level number incremented by 1. You can change this number, but the republish fails if you use a version number that has already been used to publish a stable version of this API. - If you are republishing the specification and select `Development`, you can use the same number as a previously published development version of the API, but not the same number as a previously published stable version. ## API Version Anypoint Exchange requires an API version number for each API specification published. The content and state of the **API version** field in the publish dialog depends on the following: - If the specification already includes a version, you cannot update it in the publish dialog. - If the specification does not include a version, you must enter the version in the **API version** field. ## See Also - [Publish Assets Workflow](https://docs.mulesoft.com/exchange/workflow-sharing-assets) - [Explore Asset Information](https://docs.mulesoft.com/exchange/asset-details) - [Change the Version of an Asset](https://docs.mulesoft.com/exchange/to-change-raml-version) - [API Instances](https://docs.mulesoft.com/api-manager/latest/api-instance-landing-page) --- product: Design Center --- # Rename a Project > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can rename an API-specification project or an API-fragment project. If you have already published a project, renaming it does not create a new asset in Exchange when you publish the project again. ## Procedure To rename a project, use one of these methods: - If the project is not open, select the project in Design Center’s **Projects** page, and then click the Edit icon in the top-right corner of the page. - If the project is open. click the gear icon in API Designer’s top-right corner and then select **Rename**. --- product: Design Center --- # Root Files in Projects in the Text Editor in API Designer > For the full documentation index, see: https://docs.mulesoft.com/llms.txt In API-specification projects that you create in the text editor and in API-fragment projects, one file is always designated as the "root file." In the **Files** pane, the root file is indicated with a rectangle that is labeled **Root file**. When you publish your project to Anypoint Exchange, the root file sets the context for the parser that validates the files in the project. For example, suppose that a RAML API-specification project contains two specifications, each including (with the `!include` keyword) a different set of API fragments that are also in the project. When you publish the project to Exchange, all of the files in the project are published. However, Exchange needs to validate the specification and the files that it includes. Without a root file, Exchange cannot ascertain which file to parse first and which set of files to parse. As another example, suppose that you want to publish an API-fragment project that contains several fragments, one of which is independent and the remaining files of which are a library fragment and its dependencies. If no root file is specified in the project, Exchange cannot parse the files correctly. In this case, you could set the independent fragment as the root file, indicating to Exchange that the file can be parsed alone. Alternatively, you could set the library file as the root file, indicating to Exchange that parsing should begin with that file and proceed to the dependent fragments. > [!NOTE] The first time that you open in the text editor a project that was created before the > February 8, 2020 release of API Designer, you are prompted to set a root file. ## Root Files in API-Specification Projects in the Text Editor Every API-specification project is created with a default root file. You can switch the root file when there is more than one specification in a project. ### The Default Root File When you create an API-specification project, the file that is created by default is set to be the root file: ![The default root file in an API-specification project named "Orders API"](/mulesoft/current/en-us/design-center/_images/apid-default-root-file-api-spec-project.png)
1The name of the RAML API-specification project is Orders API.
2The default file, which is named orders-api.raml and is set as the root file because every API-specification project must have a root file.
### Setting the Root File in an API-Specification Project That Contains More Than One Specification When you import a specification into a project, API Designer asks whether you want to set the specification as the root file of the project. You can set any specification in an API-specification project as the root file of that project. For example, the following image shows that a project contains two specifications: ![An API-specification project with two specifications. The current root file is the RAML version of the specification.](/mulesoft/current/en-us/design-center/_images/apid-root-file-api-spec-project-multi-specs.png)
1The OAS version of the Inventory Process API specification.
2The RAML version of the same specification. This version of the specification is currently set as the root file.
When you click the three dots to the right of a specification that is not currently the root file, the menu that appears provides an option for setting that specification as the root file: ![The Set as root file option at the top of the menu opened by clicking the three dots.](/mulesoft/current/en-us/design-center/_images/apid-root-file-api-spec-project-multi-specs-2.png)
1The three dots that open the action menu for a file when clicked.
2The Set as root file option at the top of the action menu.
## Root Files in API-Fragment Projects Every API-fragment project is created with a default root file. You can switch the root file when there is more than one fragment in a project. ### The Default Root File in API-Fragment Projects When you create an API-fragment project, the file that is created by default is set to be the root file: ![The default root file in an API-fragment project named "Retail Common."](/mulesoft/current/en-us/design-center/_images/apid-default-root-file-api-frag-project.png)
1The name of the RAML API-fragment project is Retail Common.
2The default file, which is named retail-common.raml and is set as the root file because every API-fragmentation project must have a root file.
### Setting the Root File in an API-Fragment Project That Contains More Than One Fragment When you import a fragment into an API-fragment project, API Designer asks whether you want to set the fragment as the root file of the project. You can set any fragment in an API-fragment project as the root file of that project. For example, the following image shows that a project contains two fragments, the first of which is set as the root file: ![An API-fragment project with two fragments.](/mulesoft/current/en-us/design-center/_images/apid-root-file-api-frag-project-multi-frags.png)
1The fragment that is set as the root file.
2The other fragment.
When you click the three dots to the right of a fragment that is not currently the root file, the menu that appears provides an option for setting that fragment as the root file. ![The Set as root file option at the top of the menu opened by clicking the three dots.](/mulesoft/current/en-us/design-center/_images/apid-root-file-api-frag-project-multi-frags-2.png)
1The three dots that open the action menu for a file when clicked.
2The Set as root file option at the top of the action menu.
--- product: Design Center --- # Set User Access Permissions > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Design Center provides multiple ways to set up access management to provide collaboration across teams. Depending on your organization’s permission structure, you can assign permissions using the [Teams](https://docs.mulesoft.com/access-management/teams) feature, the [Roles](https://docs.mulesoft.com/access-management/users#roles) feature (deprecated), or by assigning an [individual user permission](https://docs.mulesoft.com/access-management/users#grant-user-permissions). ## Design Center Permissions ### Business Group Permissions Design Center Developer Enables users to view, create, and manage all projects within a business group. Use this permission to set up administrators for all the projects within a specific business group. Design Center Creator Enables users to create projects in Design Center from the navigation panel and view all projects created or shared with the user. Use this permission to invite users to create, edit, and maintain your projects. Design Center Viewer Enables users to view all Design Center projects within a business group and test projects with the Mocking Service. Users with this permission cannot create new projects, edit or rename existing projects, or share projects with another user. Assign this permission to those who consume your project in a specific business group. ### Project Level Permissions Project Administrator Enables users to manage and share a Design Center project within a business group. Use this permission to set up administrators for all the projects within a specific business group. Project Editor Enables users to edit a Design Center project within a business group. Use this permission to invite users to create, edit, and maintain your projects. Project Viewer Enables users to view a Design Center project within a business group and test projects with the Mocking Service. Users with this permission cannot create a new project, edit or rename the existing project, or share the project with another user. Assign this permission to those who consume your project in a specific business group. > [!NOTE] If you grant organization and project permissions, the highest permission level is the one > that applies to that specific project. ## Project Views From the Design Center home page, you can select between three types of views for your project list: **API Projects**: Lists all the projects you have access to. **Shared with me**: Lists only the projects shared with you by other users. ## Sharing Projects from Design Center > [!NOTE] You can’t share Mule applications. To share your projects and add the corresponding permissions directly from Design Center: 1. On the Design Center home page, select the project. 2. Click the **Share project** icon, or click **Toggle project details** icon and then click **Change access**. 1. In the **Share project** dialog box, enter the name of the user or the team in your organization to give access. 2. Select the permission level from the dropdown list. The available options are “Viewer”, “Editor”, and “Admin”. 3. Click **Save** and then click **Close**. > [!NOTE] This action sends the user an email informing a project has been shared with them. ## Sharing Projects from API Designer To share your projects and add the corresponding permissions directly from API Designer: 1. From the Design Center home page, click the project name link to open a project. 2. Click the **Share** button. 1. In the **Share project** dialog box, enter the name of the user or the team in your organization to give access. 2. Select the permission level from the dropdown list. The available options are “Viewer”, “Editor”, and “Admin”. 3. Click **Save** and then click **Close**. > [!NOTE] This action sends the user an email informing a project has been shared with them. ## Changing Ownership of Projects from Design Center If you are a project owner or an organization administrator, you can change the ownership of your projects. To change the ownership of your projects directly from Design Center: 1. On the Design Center home page, select the project. 2. Click the **Share project** icon, or click **Toggle project details** icon and then click **Change access**. 1. In the **Share project** dialog box, enter the name of the user in your organization to give ownership of your project. 2. Select **Transfer Ownership** from the dropdown list. 3. Click **Save** and then click **Close**. _Result_: The new owner appears in the project details, and the previous owner is now granted the Project administrator permissions, as there can only be one owner per project. ## Changing Ownership of Projects from API Designer If you are a project owner or an organization administrator, you can change the ownership of your projects. To change the ownership of your projects directly from API Designer: 1. From the Design Center home page, click the project name link to open a project. 2. Click the **Share** button. 1. In the **Share project** dialog box, enter the name of the user in your organization to give ownership of your project. 2. Select **Transfer Ownership** from the dropdown list. 3. Click **Save** and then click **Close**. _Result_: The new owner appears in the project details, and the previous owner is now granted the Project administrator permissions, as there can only be one owner per project. ## Removing Access from a Project 1. Open the **Share project** dialog from API Designer or Design Center. 2. For the user or team that you want to remove access to, select **Remove Access** from the dropdown list. 3. Click **Close**. --- product: Design Center --- # Sharing an OAS 3.0 API Specification as a RAML 1.0 Specification > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You can share an OAS 3.0 API specification in Anypoint Exchange as a RAML API specification. Other developers can then download the RAML version for use in Anypoint Studio or third-party IDEs or for implementation with API Manager. 1. Import the OAS 3.0 API specification into API Designer. 2. Click the three dots next to the filename in the **Files** pane and select **Duplicate**. 3. In the **Duplicate As** dialog, select **RAML**. 4. Set the root file of the project to the RAML version of the API specification. 5. Publish the project to Anypoint Exchange. > [!NOTE] If you want to share an OAS 3.0 specification in OAS 2, download your OAS 3.0 > specification from API Designer as-is and then convert it to OAS 2.0 by using a tool such as > APIMatic transformer. --- product: Design Center --- # Simulate API Calls with the Mocking Service > For the full documentation index, see: https://docs.mulesoft.com/llms.txt The API mocking service enables you simulate the behavior of an API specification. The mocking service provides a test link to an API. The mocking service returns the responses (both HTTP status codes and example payloads) that are defined in your API specification, and is valuable for testing or for simply exploring how your API behaves. When you add an endpoint to your API specification, API Designer automatically generates a link to the API that you can use in a browser. You can also enable a public link that can be shared with users outside of Anypoint Platform. The mocking service is a feature of Anypoint Platform and runs continuously. You can run the mocking service from the text editor, the visual editor, and from Anypoint Exchange. You can simulate calls to the API in API Designer before publishing the API specification to Exchange or in Exchange after publishing the API specification. If you specified a base URI (RAML) or base path (OAS), API Designer enables you to use either the base URI or the mocking service when simulating an API call. API Designer does not make any changes to your APIs. ## Before You Begin You must have a project containing an API specification in API Designer. Also, you must define at least one endpoint in your API specification and each endpoint must have at least one method. ## Simulate a Call to an API using an Internal URL > [!IMPORTANT] To access the internal URL, you must specify the authorization headers as part of the > request URL. To test an API without supplying authorization headers, generate a mocking service > public URL for this project. 1. From API Designer, open the project containing the API you want to test. You can use either the text editor or the visual editor. 2. Select the root file of your project. 3. Click the **Documentation** icon in the right-hand tool bar. 4. From the drop-down menu, select **Summary**. 5. Click on the name of an end point. 6. If you have defined `baseURL` in your API specification: - Click the **Select server** dropdown and select one of the following: - `baseUri`: uses the baseUri as defined in your API specification - Mocking Service: uses the API mocking service 7. Click one of the methods of your API, then click **Try it**. 8. (Optional) Provide and query paramaters you want to test. You can enter query parameters as name/value pairs. 9. Click **Send.** API Designer displays the HTTP return code as specified in your API. Alternately, you can test the API by copying the **Request URL** and paste it into a web browser or Postman. When using the mocking service internal URL, you must provide authorization headers as part of the URL. To avoid this, use the mocking service public url. ## Setting the Mocking Service as the Default Server You can set the Mocking Service as the default server used in the **Documentation** panel. This is the default value that appears in the **Select server** drop-down. 1. Click **Mocking Service Configuration**. 2. Click the **Select by Default** slider. ## Simulate a Call to an API using an Public URL Use a public URL to test calls to your API without having to provide an authorization header. This is useful when you want to share the API with someone outside of Anypoint Platform. 1. From API Designer, open the project containing the API you want to test. You can use either the text editor or the visual editor. 2. Select the root file of your project. 3. Click the **Mocking Service Configuration** icon in the right-hand tool bar. 4. Click the **Make Public** slider. API Designer generates a public URL for your API. When you disable the public URL it becomes invalid. Re-enabling this option generates a different URL. 5. (Optional) Set an expiration date for the public URL 1. Click **Set expiration date for public link**. 2. Using the date selector, select the day you want the public link to expire. ## See Also - [Add Behavioral Headers to Simulated API Calls](https://docs.mulesoft.com/design-center/apid-behavioral-headers) --- product: Design Center --- # Specifying Required Fields in JSON Schema Drafts > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Design Center supports JSON Schema Draft 3, Draft 4, and Draft 7. The way you specify `required` differs across drafts. You see an error if the draft you declare doesn’t match the syntax you’re using. ## Draft 3 In Draft 3, you specify that a field is `required` inside the definition of each field: { "$schema": "http://json-schema.org/draft-03/schema#", "type": "object", "properties": { "pageNum": { "type": "integer", "title": "Page number", "description": "The number of the page to retrieve", "default": 1, "required": true }, "pageSize": { "type": "integer", "title": "Page size", "description": "The number of items per page", "default": 50, "enum": \[10, 20, 30, 40, 50\], "required": true } } } ## Draft 4 In Draft 4, you specify that fields are `required` by creating an array at the same level as the `properties` definition: { "$schema": "http://json-schema.org/draft-04/schema#", "type": "object", "properties": { "pageNum": { "type": "integer", "title": "Page number", "description": "The number of the page to retrieve", "default": 1 }, "pageSize": { "type": "integer", "title": "Page size", "description": "The number of items per page", "default": 50, "enum": \[10, 20, 30, 40, 50\] } }, "required": \["pageNum", "pageSize"\] } If you have used the Draft 3 method after declaring that the schema uses Draft 4, or vice versa, in most cases you can simply change the schema declaration. For example, if you declared that your schema uses Draft 3, but the schema uses the method from Draft 4, you can change your schema declaration to point to Draft 4. ## Draft 7 In Draft 7, the `required` syntax is the same as in Draft 4. You create an array at the same level as the `properties` definition: { "$schema": "http://json-schema.org/draft-07/schema#", "type": "object", "properties": { "pageNum": { "type": "integer", "title": "Page number", "description": "The number of the page to retrieve", "default": 1 }, "pageSize": { "type": "integer", "title": "Page size", "description": "The number of items per page", "default": 50, "enum": \[10, 20, 30, 40, 50\] } }, "required": \["pageNum", "pageSize"\] } --- product: Design Center --- # Troubleshooting > For the full documentation index, see: https://docs.mulesoft.com/llms.txt Troubleshoot errors you recieve when using API Designer: - [Common Problems in Conforming to RAML 0.8](https://docs.mulesoft.com/design-center/design-common-problems-raml-08) - [Common Problems in Conforming to RAML 1.0](https://docs.mulesoft.com/design-center/design-common-problems-raml-10) - [Guide to Defining Examples in RAML 1.0](https://docs.mulesoft.com/design-center/design-named-examples) - [Best Practices when using API Designer](https://docs.mulesoft.com/design-center/design-best-practices) - [Common Errors in Specifying Required Fields in JSON Schemas](https://docs.mulesoft.com/design-center/design-json-schema-required-error) - [Differences for OAS 3.0 in Rendered Documentation](https://docs.mulesoft.com/design-center/design-documentation) - [Simulate Calls to an API](https://docs.mulesoft.com/design-center/design-mocking-service) - [Add Behavioral Headers to Simulated API Calls](https://docs.mulesoft.com/design-center/apid-behavioral-headers) - [API Designer Troubleshooting](https://docs.mulesoft.com/design-center/apid-general-troubleshooting) ## See Also - [Known Issues](https://help.salesforce.com/s/issues) --- product: Design Center --- # Upload an API Specification Created Outside of API Designer > For the full documentation index, see: https://docs.mulesoft.com/llms.txt You cannot publish an API specification to Anypoint Exchange without going through API Designer. If you want to publish a specification that you have already authored outside of API Designer, you must create an API-specification project in API Designer, import your specification, and then publish to Anypoint Exchange. > [!WARNING] File uploads are restricted to supported formats. ## Before You Begin Within Anypoint Platform, your user ID must be assigned the Design Center Developer permission. ## Procedure 1. Open Design Center from the homepage of Anypoint Platform. 2. Create an API-specification project that you can work in. 1. On the **Projects** page in Design Center, click **Create** and then click **New API Specification**. 2. In the **New API Specification** dialog, name your project. You can change the name later, if you want to. 3. Select **I’m comfortable designing it on my own**. 4. In the **Specification Language** field, select the language in which your API specification is written. 5. Click **Create API**. + **Result**: Design Center creates an API-specification project. In that project are two files: - A default, blank specification that has the same name as the project. You can delete this file in a later step. Currently, it is set as the root file of the project, and it is not possible to delete a file that is set as the root file. - A file named `exchange.json` that includes metadata that is required for Anypoint Exchange. This file is read-only. 3. Import your API specification. 1. Click the gear icon in the top-right corner of the text editor and select **Import**. 2. In the **Import** dialog, select **File or Zip**. 3. Browse to your file or ZIP file and select it. + **Result:** The file or files are listed in the left pane of the editor. If you imported a ZIP file that contains files that are in a folder structure, the folder structure is represented in the pane. 4. Set the root file of the project by right-clicking the specification and selecting **Set as root file**. 5. Delete the blank specification that API Designer created by default. ## What To Do Next Publish the API-specification project to Anypoint Exchange. See [Publish an API Specification](https://docs.mulesoft.com/design-center/design-publish). ## See Also [Anypoint Exchange](https://docs.mulesoft.com/exchange/) --- product: Design Center --- # View the Source Project for Assets Published to Exchange > For the full documentation index, see: https://docs.mulesoft.com/llms.txt After publishing an asset to Anypoint Exchange, you can view the source files in the API Designer. Exchange provides a direct link to the API Designer project containing the source files. When you publish a project to Exchange via a ZIP file or other resource outside of API Designer, you can only view the contents of the project. To edit the files, create a new project based on the contents of the file. If you delete a project from API Designer after publishing it to Exchange, you can only view it in read-only mode. ## Procedure 1. Open your API specification or fragment in Anypoint Exchange. 2. Next to the version of the specifcation or fragment you want to view, click the **︙** drop-down menu. > [!NOTE] You can only view older published versions of a specification or fragment published to > Exchange. You cannot edit them. Alternatively, you can the most recent version of a specifcation or fragment by clicking **︙** in the asset toolbar and selecting **View code**. 3. Select **View code in API Designer**. API Designer opens the project containing the specification or fragment in read-only view. 4. To edit the files in the project, click **Edit spec**. This option is only available if you have edit permissions on the project and the project exists in API Designer. If the project was edited after being published to Exchange, API Designer gives you the option to continue edit the newer version or view the version published to Exchange. ## See Also - [Publish an API Specification](https://docs.mulesoft.com/design-center/design-publish)
