# mulesoft Apache Cassandra Connector - Full Documentation

<!-- document id=e27f205bb69cffb175475343f3dbe697947751d2788a4a63c920fce0ae37d18e url=/mulesoft/current/en-us/cassandra-connector/4.1/index.md -->

---
product: Apache Cassandra Connector
version: 4.1
---

# Apache Cassandra Connector 4.1

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

Anypoint Connector for Apache Cassandra (Apache Cassandra Connector) creates connectivity between
Apache Cassandra databases and third-party applications, systems, services such as SAP, PeopleSoft,
or Workday, as well as other databases across the enterprise.

Apache Cassandra is an open source distributed NoSQL database intended to manage large amounts of
product, customer, and employee data, which implements the DataStax Java Driver for Apache Cassandra
3.10.1.

## Before You Begin

To use this connector, you must be familiar with:

- The Apache Cassandra API

- Anypoint Connectors

- Mule runtime engine (Mule)

- Elements and global elements in a Mule flow

- Creating a Mule app using Anypoint Studio or Anypoint Code Builder

Before creating an app, you must have:

- Credentials to access the Apache Cassandra target resource

- Mule Enterprise Edition and the entitlements necessary to use this software

## Next

Now that you’ve started, try using [Anypoint Studio](https://docs.mulesoft.com/cassandra-connector/4.1/cassandra-connector-studio) to configure the
Cassandra connector.

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Use Exchange to Discover Connectors, Templates, and Examples](https://docs.mulesoft.com/connectors/introduction/intro-use-exchange)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=a91e108c1504a064750e976145be420ccff007b6d094de1e2c98608de77cd7c2 url=/mulesoft/current/en-us/cassandra-connector/4.1/cassandra-connector-config-topics.md -->

---
product: Apache Cassandra Connector
version: 4.1
---

# Apache Cassandra Connector 4.1 Additional Configuration Information

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

Configure Anypoint Connector for Apache Cassandra (Apache Cassandra Connector) to work in your
environment with basic authentication and DataSense functionality.

## Enable Apache Cassandra Authentication

By default, accessing the Apache Cassandra database does not require credentials. You need to
configure Apache Cassandra to enable authentication. The Apache Cassandra Connector configuration
must match the Apache Cassandra configuration for basic authentication.

After enabling authentication, run the `cqlsh` command from the Apache Cassandra installation home
directory as shown in this example, which uses default credentials with username `cassandra` and
password `cassandra`:

```text
bin/cqlsh localhost -u cassandra -p cassandra
Connected to Test Cluster at localhost:9042.
[cqlsh 5.0.1 | Cassandra 3.10 | CQL spec 3.4.4 | Native protocol v4]
Use HELP for help.
```

1.  After installing Apache Cassandra, open the `conf\cassandra.yaml` file for editing.

2.  Optionally, change the value of `AllowAllAuthenticator` to `PasswordAuthenticator`.

3.  Restart Apache Cassandra.

4.  In a separate terminal tab, verify that Apache Cassandra is running:

    `bin/nodetool status`

## POJO Configuration

The connector exposes multiple operations in the Apache Cassandra Connector Reference. The following
operations accept some POJOs as input parameters, which are needed for the DataSense functionality:

- `addNewColumn`

- `changeColumnType`

- `createKeyspace`

- `createTable`

- `deleteColumnsValue`

- `deleteRows`

- `dropColumn`

- `dropKeyspace`

- `dropTable`

- `executeCQLQuery`

- `getTableNamesFromKeyspace`

- `renameColumn`

- `select`

- `update`

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=282d497c55a02695c9fb80bf7692e23ab9b0daae77d8b851053e953d8035d031 url=/mulesoft/current/en-us/cassandra-connector/4.1/cassandra-connector-examples.md -->

---
product: Apache Cassandra Connector
version: 4.1
---

# Apache Cassandra Connector 4.1 Examples

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

The following examples show how to configure Apache Cassandra Connector:

- [Create a New Apache Cassandra Table](#create-table)

  Creates a template for an HTML form to use to enter data for the new table, creates a keyspace for
  the new table, and then creates the table

- [Manipulate Data in an Apache Cassandra Database](#manipulate-data)

  Gets table names from a keyspace, performs operations on tables and table columns, executes
  Cassandra Query Language (CQL) queries, and so on.

## Create a New Apache Cassandra Table

This example contains the following flows:

- The first flow configures a template for the HTML input form used to convey data for the new
  table.

- The second flow creates the keyspace for the new table.

- The third flow creates the new table.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see Configuring Property Placeholders.

### Configure a Template for the HTML Input Form

This flow configures an HTML template to use for providing HTML input to create the new table:

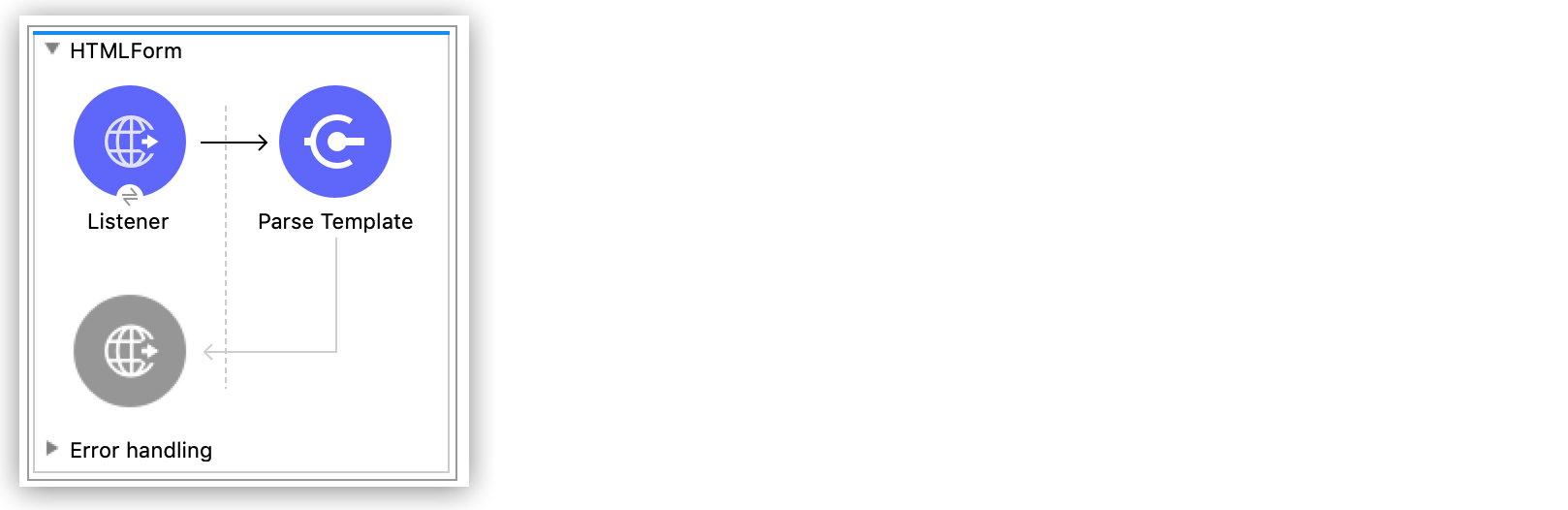

![Parse Template Flow](/mulesoft/current/en-us/cassandra-connector/4.1/_images/cassandra-parse-template.png)

Figure 1. Flow for configuring an HTML template

#### Configure HTTP Listener

Configure HTTP Listener to initiate a Mule flow when a call is made to the `/` path on port 8081:

1.  Create a new Mule Project in Anypoint Studio.

2.  In Studio, click **HTTP** and drag the **Listener** operation to the canvas.

3.  On the **Listener** properties window, click the plus sign (**+**) next to the **Connector
    configuration** field to add a global element.

4.  Accept the defaults.

5.  On the **Listener** properties window, set the **Path** field value to `/`.

#### Add a Parse Template Component

Add a **Parse Template** component to create a template for an HTML form (`form.html`), which is
located in the main resources folder. The example uses this form to convey information for creating
the table.

1.  From the Mule Palette view, search for `parse` and drag **Core** > **Parse Template** to the
    right of **Listener**.

2.  In the **Location** field, enter `form.html`.

### Create the Keyspace

This flow creates the keyspace for the new table:

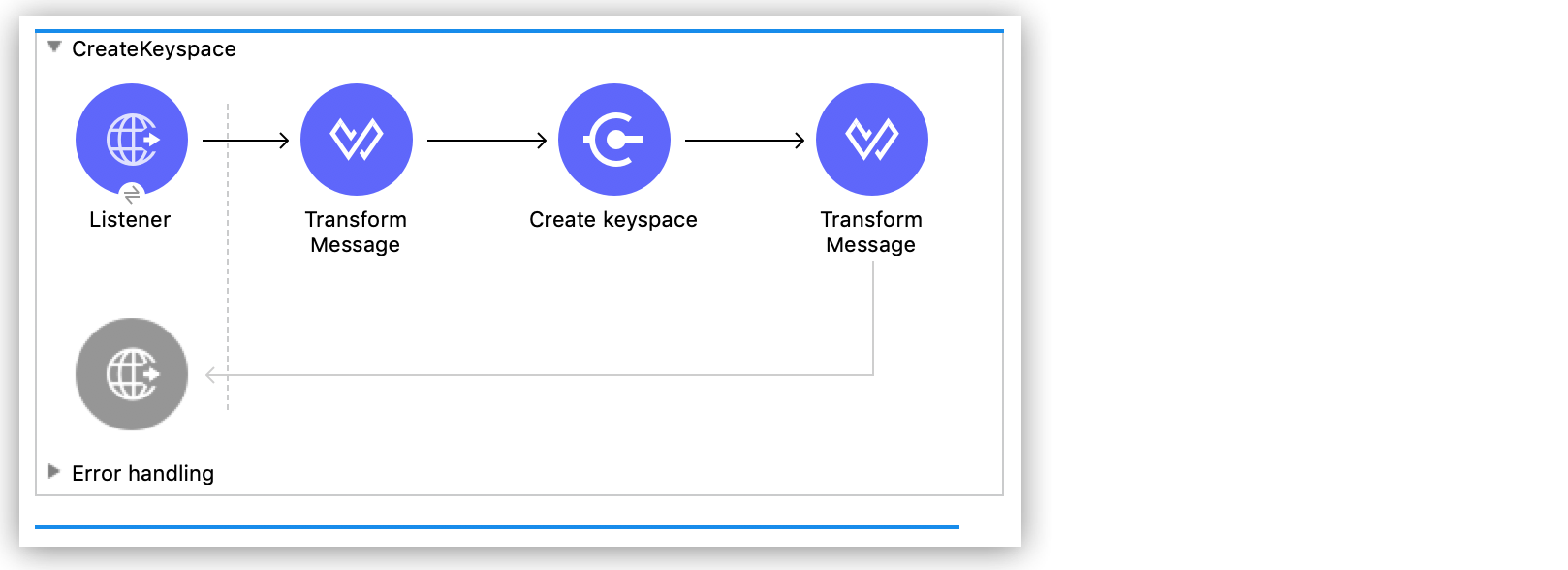

![Create keyspace flow](/mulesoft/current/en-us/cassandra-connector/4.1/_images/cassandra-create-keyspace.png)

Figure 2. Flow for creating a keyspace

#### Configure HTTP listener

Configure HTTP Listener to initiate a Mule flow when a call is made to the `/test/createKeyspace`
path on port `8081`:

1.  Create a new Mule Project in Anypoint Studio.

2.  In Studio, click **HTTP** and drag the **Listener** operation to the canvas.

3.  On the Listener properties window, click the plus sign **+** next to the **Connector
    configuration** field to add a global element.

4.  Accept the defaults.

5.  In **Listener** configuration window, set the **Path** field value to `/test/createKeyspace`.

#### Add a Transform Message Component

Add a **Transform Message** component to set Java variables based on the payload received from
**HTTP Listener**:

1.  From the Mule Palette view, drag a **Transform Message** component to the right of **Listener**.

2.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```dataweave
    %dw 2.0
    output application/java
    ---
    {
     "keyspaceName": payload.keyspaceName,
     "replicationFactor": payload.replicationFactor,
     "replicationStrategyClass": payload.replicationStrategyClass
    }
    as Object {
     class: "org.mule.modules.cassandradb.api.CreateKeyspaceInput"
    }
    ```

#### Add the Create Keyspace Operation

Add the **Create keyspace** operation to create the keyspace where the new table will reside:

1.  From the **Mule Palette** view, select **CassandDB** and drag the **Create keyspace** operation
    to the right of the **Transform Message** component.

2.  In the **Create keyspace** configuration, click the plus sign (**+**) next to the **Connector
    configuration** field to add a global element.

3.  Configure the fields in the global element:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Description</th></tr></thead><tbody><tr><td><p>Host</p></td><td><p><code>${cassandra.Host}</code></p></td></tr><tr><td><p>Port</p></td><td><p><code>${cassandra.Port}</code></p></td></tr><tr><td><p>Keyspace</p></td><td><p><code>${cassandra.keySpace}</code></p></td></tr><tr><td><p>Username</p></td><td><p><code>${cassandra.userName}</code></p></td></tr><tr><td><p>Password</p></td><td><p><code>${cassandra.password}</code></p></td></tr></tbody></table>

4.  Click **Test Connection** to confirm that Mule can connect with the target Apache Cassandra
    instance.

    If the connection is successful, click **OK** to save the configuration. Otherwise, review and
    correct any invalid parameters and retest.

5.  Save the project.

6.  Test the app by sending a REST request to the `test/createKeyspace` path on port `8081`.

### Create a New Table

This flow creates a new table in the target Apache Cassandra database:

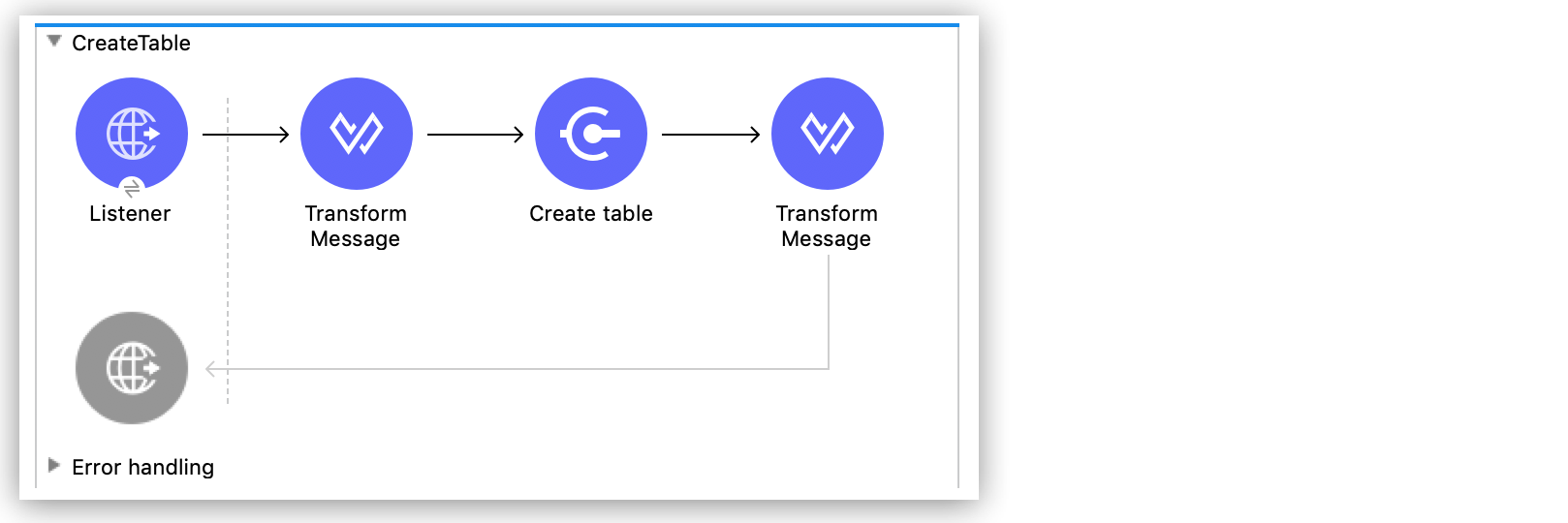

![Create table flow](/mulesoft/current/en-us/cassandra-connector/4.1/_images/cassandra-create-table.png)

Figure 3. Flow for creating a new table

#### Configure HTTP Listener

Configure HTTP Listener to initiate a Mule flow when a call is made to the `/test/createTable` path
on port `8081`:

1.  Create a new Mule Project in Studio.

2.  In Studio, click **HTTP** and drag the **Listener** operation to the canvas.

3.  In the **Listener** configuration, click the plus sign **+** next to the **Connector
    configuration** field to add a global element.

4.  Accept the defaults.

5.  In the **Listener** configuration, set the **Path** field value to `/test/createTable`.

### Add a Transform Message Component

Add a **Transform Component** to set Java variables based on the payload received from **HTTP
Listener**:

1.  From the Mule Palette view, drag a **Transform Message** component to the right of **Listener**.

2.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```dataweave
    %dw 2.0
    output application/java
    ---
    {
      "columns": payload.columns,
      "tableName": payload.tableName,
      "keyspaceName": payload.keyspaceName
    } as Object {
      class : "org.mule.modules.cassandradb.api.CreateTableInput"
    }
    ```

#### Add the Create Table Operation

Add a **Create Table** operation to create a new table in the keyspace you created in the previous
flow:

1.  From the **Mule Palette** view, select **CassandDB** and drag the **Create Table** operation to
    the right of the **Transform Message** component.

2.  In the **Create Table** configuration, click the plus sign (**+**) next to the **Connector
    configuration** field.

3.  Select the global element that you configured for the **Create keyspace** operation.

4.  Click **OK**.

5.  Click **Test Connection** to confirm that Mule can connect with the Cassandra instance.

    If the client test is successful, click **OK** to save the configuration. Otherwise, review and
    correct any invalid parameters and retest.

6.  Save and run the Mule app.

7.  Test the app by sending a **POST** command to the `/test/createTable` path on port `8081`. Use
    the `application/json` MIME type and enter the table description in the command body, using
    uppercase for the data types:

    ```text
    {
      "tableName": "users",
      "keyspaceName": "Excelsior",
      "columns":
      [
        {
          "name": "id",
          "type": "INT",
          "primaryKey": "true"
        },
        {
          "name": "username",
          "type": "TEXT",
          "primaryKey": "true"
        },
        {
          "name": "name",
          "type": "TEXT",
          "primaryKey": "false"
        },
        {
          "name": "email",
          "type": "TEXT",
          "primaryKey": "false"
        }
      ]
    }
    ```

### XML for the Create an Apache Cassandra Keyspace and Table Example

Paste this code into the Studio XML editor to quickly load the flow for this example into your Mule
app:

```xml
<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:cassandra-db="http://www.mulesoft.org/schema/mule/cassandra-db"
xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
xmlns:http="http://www.mulesoft.org/schema/mule/http"
xmlns="http://www.mulesoft.org/schema/mule/core"
xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core
http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http
http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/ee/core
http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd
http://www.mulesoft.org/schema/mule/cassandra-db
http://www.mulesoft.org/schema/mule/cassandra-db/current/mule-cassandra-db.xsd">

  <configuration-properties file="mule-app.properties" />
  <http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config">
    <http:listener-connection host="0.0.0.0" port="8081" />
    </http:listener-config>
  <cassandra-db:config name="CassandraDB_Config" doc:name="CassandraDB Config">
    <cassandra-db:connection
      host="${config.host}"
      port="${config.port}"
      keyspace="${config.keyspace}"
      username="${config.username}"
      password="${config.password}"/>
	</cassandra-db:config>
  <flow name="HTMLForm">
    <http:listener doc:name="Listener" config-ref="HTTP_Listener_config" path="/"/>
    <parse-template doc:name="Parse Template" location="form.html"/>
  </flow>
  <flow name="CreateKeyspace">
    <http:listener
      doc:name="Listener"
      config-ref="HTTP_Listener_config"
      path="/createKeyspace"/>
    <ee:transform doc:name="Transform Message">
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "keyspaceName": payload.keyspaceName,
  "replicationFactor": payload.replicationFactor,
  "replicationStrategyClass": payload.replicationStrategyClass
} as Object {
  class : "org.mule.modules.cassandradb.api.CreateKeyspaceInput"
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:create-keyspace doc:name="Create keyspace" config-ref="CassandraDB_Config"/>
    <ee:transform doc:name="Transform Message">
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="CreateTable">
    <http:listener doc:name="Listener" config-ref="HTTP_Listener_config" path="/createTable"/>
    <ee:transform doc:name="Transform Message">
      <ee:message>
        <ee:set-payload><![CDATA[%dw 2.0
output application/java
---
{
  "columns": payload.columns,
  "tableName": payload.tableName,
  "keyspaceName": payload.keyspaceName
} as Object {
  class : "org.mule.modules.cassandradb.api.CreateTableInput"
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:create-table doc:name="Create table" config-ref="CassandraDB_Config"/>
    <ee:transform doc:name="Transform Message">
      <ee:message>
        <ee:set-payload><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
</mule>
```

## Manipulate Data in an Apache Cassandra Database

This example shows the following ways to manipulate data in an Apache Cassandra database:

- [Get table names from a keyspace.](#get-table-names)

- Perform the following CRUD operations on data in an Apache Cassandra table:

  - [Insert](#insert)

  - [Select](#select)

  - [Update](#update)

  - [Delete](#delete)

- Perform the following operations on an Apache Cassandra table column:

  - [Delete the column’s value.](#delete-columns)

  - [Rename a column.](#rename-columns)

  - [Add a new column.](#add-new-column)

  - [Drop a column.](#drop-columns)

- [Execute a Cassandra Query Language (CQL) query.](#execute-cql)

- Drop data from the Apache Cassandra database table:

  - [Drop a table from a keyspace.](#drop-table)

  - [Drop a keyspace.](#drop-keyspace)

### Get Table Names from a Keyspace

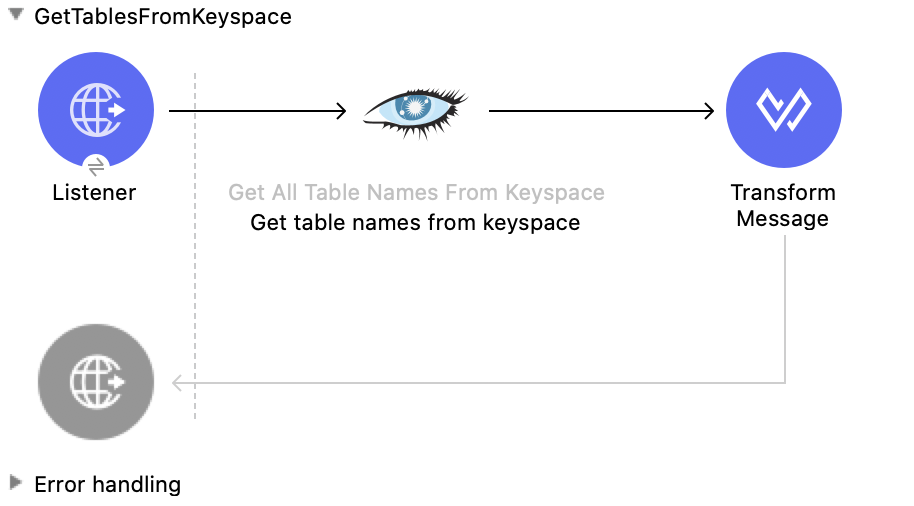

This Mule flow returns all table names from the specified keyspace.

![Studio flow for the Get table names from keyspace operation](/mulesoft/current/en-us/cassandra-connector/4.1/_images/get-table-names.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Get table names from keyspace** operation

- A **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/getTablesFromKeyspace`.

#### Add the Get Table Names from Keyspace Operation

The **Get table names from keyspace** operation returns all table names from the specified keyspace.

1.  Drag the **Get table names from keyspace** operation onto the canvas, next to **HTTP Listener**.

2.  In the **Get table names from keyspace** configuration, click the **Connector configuration**
    dropdown and select **CassandraDB\_Config**.

3.  Configure the following fields in the **Get table names from keyspace** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Keyspace name</p></td><td><p><code>#[payload.keyspaceName]</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Get table names from
    keyspace**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Insert

This Mule flow inserts entities in a table in a keyspace.

![Studio flow for the Insert Entity operation](/mulesoft/current/en-us/cassandra-connector/4.1/_images/insert-entity.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Transform Message** component

- An **Insert Entity** operation

- A second **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/insert`.

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace to Java.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **HTTP Listener**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/java
    ---
    {
      "id": payload.id,
      "name": payload.name,
      "event": payload.event
    }
    ```

#### Add the Insert Entity Operation

The **Insert Entity** operation inserts entities into a table in a keyspace.

1.  Drag the **Insert Entity** operation onto the canvas, next to **Transform Message**.

2.  In the **Insert Entity** configuration, click the **Connector configuration** dropdown and
    select **CassandraDB\_Config**.

3.  Configure the following fields in the **Insert Entity** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>example_table</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>example_keyspace</code></p></td></tr><tr><td><p>Entity to insert</p></td><td><p><code>payload</code></p></td></tr></tbody></table>

#### Add the Second Transform Message Component

The second **Transform Message** component converts the data from the keyspace from Java to XML.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Insert Entity**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Select

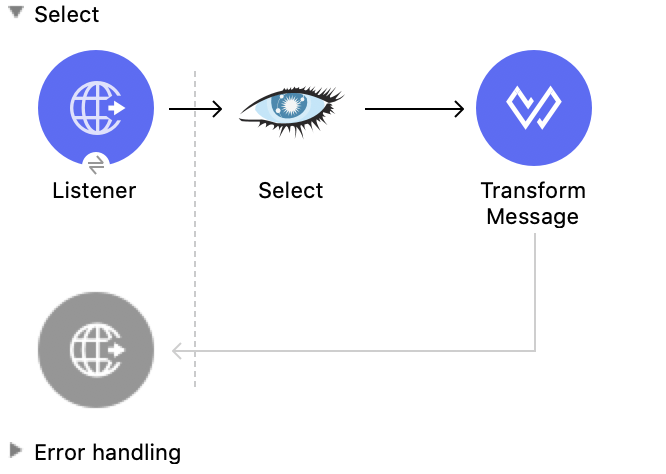

This Mule flow executes a **Select** query.

![Studio flow for the Select operation](/mulesoft/current/en-us/cassandra-connector/4.1/_images/select.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Select** operation

- A **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/insert`.

#### Add the Select Operation

The **Select** operation executes a **Select** query on the keyspace.

1.  Drag the **Select** operation onto the canvas, next to **HTTP Listener**.

2.  In the **Select** configuration, click the **Connector configuration** dropdown and select
    **CassandraDB\_Config**.

3.  Configure the following fields in the **Select** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Query</p></td><td><p><code>SELECT id, name, event FROM example_keyspace.example_table</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Select**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Update

This Mule flow updates entities in a table in a keyspace.

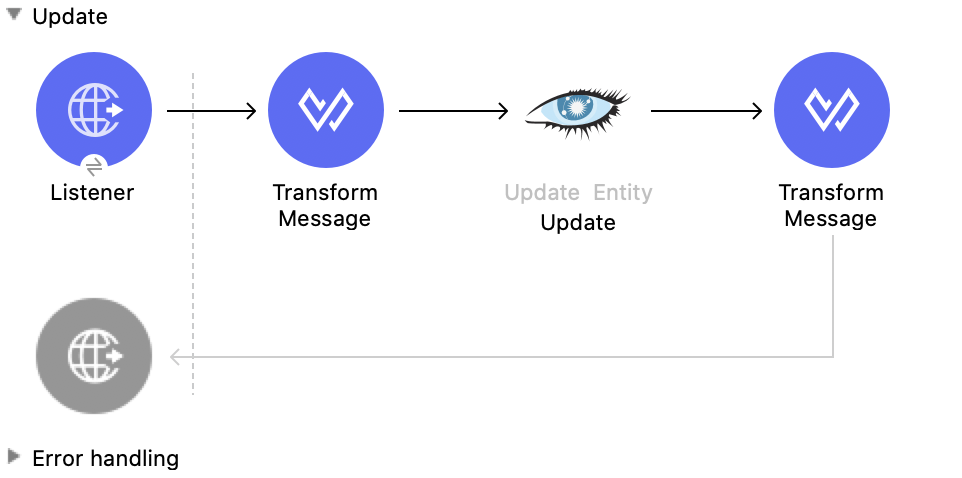

![Studio flow for the Update Entity operation](/mulesoft/current/en-us/cassandra-connector/4.1/_images/update-entity.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Transform Message** component

- An **Update Entity** operation

- A second **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/update`.

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace to Java.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **HTTP Listener**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/java
    ---
    {
      "where":{
        id: payload.where
      },
      "columns":payload.columns
    }
    ```

#### Add the Update Entity Operation

The **Update Entity** operation inserts entities into a table in a keyspace.

1.  Drag the **Update Entity** operation onto the canvas, next to **Transform Message**.

2.  In the **Update Entity** configuration, click the **Connector configuration** dropdown and
    select **CassandraDB\_Config**.

3.  Configure the following fields in the **Update Entity** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>example_table</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>example_keyspace</code></p></td></tr><tr><td><p>Entity to insert</p></td><td><p><code>payload</code></p></td></tr></tbody></table>

#### Add the Second Transform Message Component

The second **Transform Message** component converts the data from the keyspace from Java to XML.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Update Entity**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Delete

This Mule flow deletes a record from a table in a keyspace.

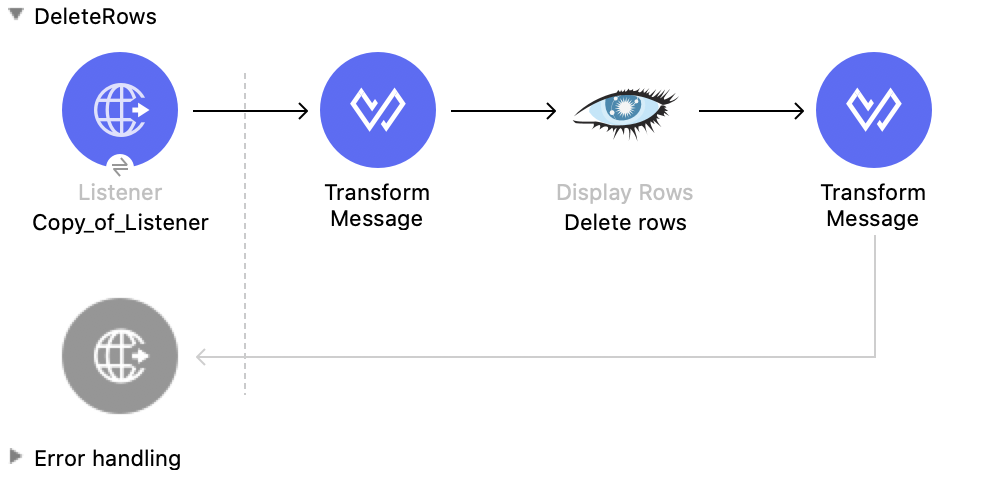

![Studio flow for the Delete Rows operation](/mulesoft/current/en-us/cassandra-connector/4.1/_images/delete-row.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Transform Message** component

- A **Delete Rows** operation

- A second **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/deleteRows`.

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **HTTP Listener**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/java
    ---
    {
      "where": {
        id: payload.ids
      }
    }
    ```

#### Add the Delete Rows Operation

The **Delete Rows** operation deletes a record.

1.  Drag the **Delete Rows** operation onto the canvas, next to **Transform Message**.

2.  In the **Delete Rows** configuration, click the **Connector configuration** dropdown and select
    **CassandraDB\_Config**.

3.  Configure the following fields in the **Delete Rows** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>example_table</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>example_keyspace</code></p></td></tr><tr><td><p>Entity to insert</p></td><td><p><code>payload</code></p></td></tr></tbody></table>

#### Add the Second Transform Message Component

The second **Transform Message** component converts the data from the keyspace from Java to XML.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Delete Rows**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Delete Columns

This Mule flow deletes a column’s value from a table in a keyspace.

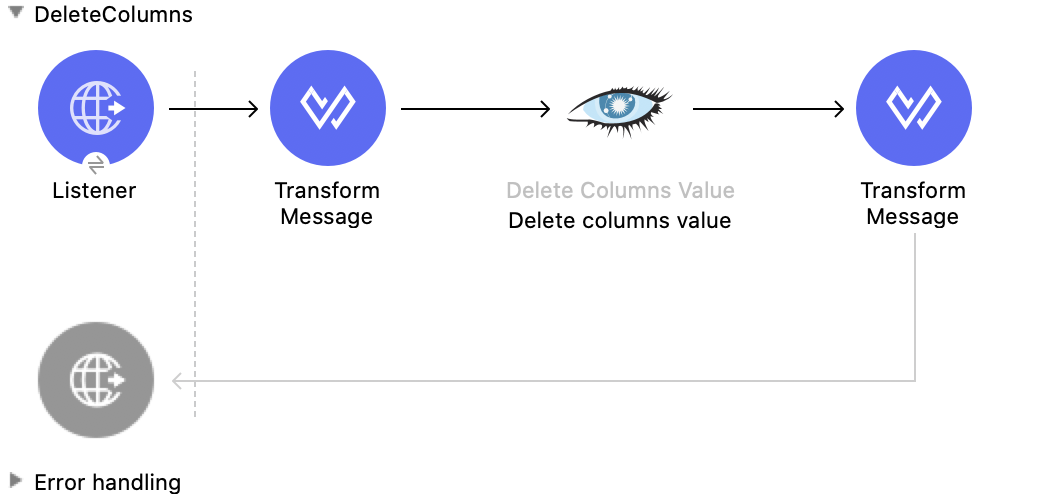

![Studio flow for the Delete Columns Value operation](/mulesoft/current/en-us/cassandra-connector/4.1/_images/delete-column.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Transform Message** component

- An **Delete Columns Value** operation

- A second **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/deleteColumns`.

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace to Java.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **HTTP Listener**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/java
    ---
    {
      "columns": payload.columns,
      "where": {
        id:payload.where
      }
    }
    ```

#### Add the Delete Columns Value Operation

The **Delete Columns Value** operation deletes values from an object specified by the **Where
clause** field.

1.  Drag the **Delete Columns Value** operation onto the canvas, next to **Transform Message**.

2.  In the **Delete Columns Value** configuration, click the **Connector configuration** dropdown
    and select **CassandraDB\_Config**.

3.  Configure the following fields in the **Delete Columns Value** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>example_table</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>example_keyspace</code></p></td></tr><tr><td><p>Entities</p></td><td><p><code>Edit inline</code></p></td></tr><tr><td><p>Value</p></td><td><p><code>#[payload.entities]</code></p></td></tr><tr><td><p>Where clause</p></td><td><p><code>payload</code></p></td></tr></tbody></table>

#### Add the Second Transform Message Component

The second **Transform Message** component converts the data from the keyspace from Java to XML.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Delete Columns Value**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Rename Columns

This Mule flow renames a column in a table in the specified keyspace.

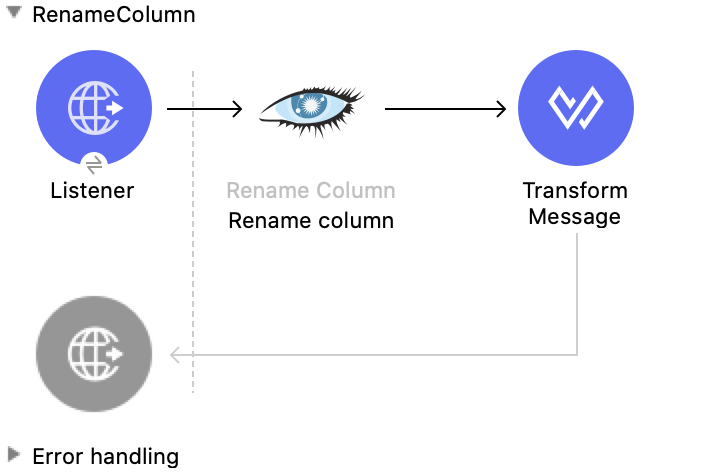

![Studio flow for the Rename Column operation](/mulesoft/current/en-us/cassandra-connector/4.1/_images/rename-columns.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Rename Column** operation

- A **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/renameColumn`.

#### Add the Rename Column Operation

The **Rename Column** operation renames a column in a table in a keyspace.

1.  Drag the **Rename Column** operation onto the canvas, next to **HTTP Listener**.

2.  In the **Rename Column** configuration, click the **Connector configuration** dropdown and
    select **CassandraDB\_Config**.

3.  Configure the following fields in the **Rename Column** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>#[payload.tableName]</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>#[payload.keyspaceName]</code></p></td></tr><tr><td><p>Old column name</p></td><td><p><code>payload.oldName</code></p></td></tr><tr><td><p>New column name</p></td><td><p><code>#[payload.newName]</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Rename Column**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Add New Columns

This Mule flow adds a new column to a table in a keyspace.

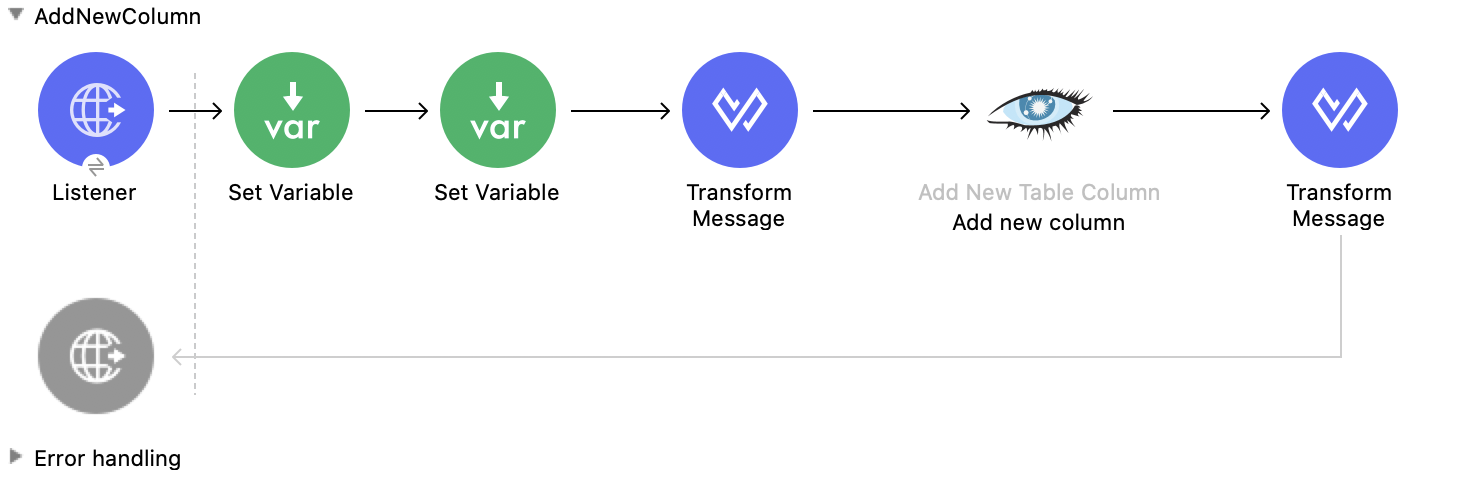

![Studio flow for the Add New Table Column operation](/mulesoft/current/en-us/cassandra-connector/4.1/_images/add-new-column.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Set Variable** component

- A second **Set Variable** component

- A **Transform Message** component

- An **Add New Table Column** operation

- A second **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/addNewColumn`.

#### Add the Set Variable Component

The first **Set Variable** component stores a value for the table name.

1.  In the **Mule Palette** view, search for `set variable`.

2.  Drag the **Set Variable** component onto the canvas, next to **HTTP Listener**.

3.  Configure the following fields in the **Set Variable** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Name</p></td><td><p><code>tableName</code></p></td></tr><tr><td><p>Value</p></td><td><p><code>#[payload.tableName]</code></p></td></tr></tbody></table>

#### Add the Second Set Variable Component

The second **Set Variable** component stores a value for the keyspace name.

1.  In the **Mule Palette** view, search for `set variable`.

2.  Drag the **Set Variable** component onto the canvas, next to **HTTP Listener**.

3.  Configure the following fields in the **Set Variable** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Name</p></td><td><p><code>keyspaceName</code></p></td></tr><tr><td><p>Value</p></td><td><p><code>#[payload.keyspaceName]</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Set Variable**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/java
    ---
    {
      "column": payload.column,
      "type": payload.'type'
    } as Object {
      class : "org.mule.modules.cassandradb.api.AlterColumnInput"
    }
    ```

#### Add the Add New Table Column Operation

The **Add New Table Column** operation adds a new column.

1.  Drag the **Add New Table Column** operation onto the canvas, next to **Transform Message**.

2.  In the **Add New Table Column** configuration, click the **Connector configuration** dropdown
    and select **CassandraDB\_Config**.

3.  Configure the following fields in the **Add New Table Column** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>#[vars['tableName']]</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>#[vars['keyspaceName']]</code></p></td></tr><tr><td><p>Alter column input</p></td><td><p><code>payload</code></p></td></tr></tbody></table>

#### Add the Second Transform Message Component

The second **Transform Message** component converts the data from the keyspace from Java to XML.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Add New Table Column**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Drop Columns

This Mule flow removes a column from a table in a keyspace.

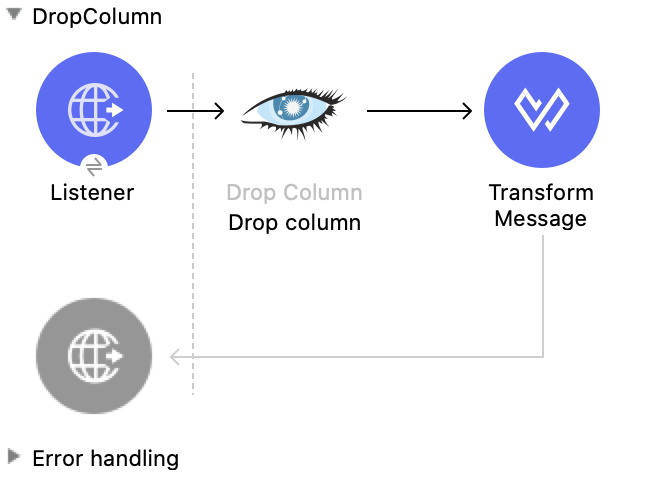

![Studio flow for the Drop Column operation](/mulesoft/current/en-us/cassandra-connector/4.1/_images/drop-columns.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Drop Column** operation

- A **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/dropColumn`.

#### Add the Drop Column Operation

The **Drop Column** operation removes a column.

1.  Drag the **Drop Column** operation onto the canvas, next to **HTTP Listener**.

2.  In the **Drop Column** configuration, click the **Connector configuration** dropdown and select
    **CassandraDB\_Config**.

3.  Configure the following fields in the **Drop Column** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>#[payload.tableName]</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>#[payload.keyspaceName]</code></p></td></tr><tr><td><p>Column name</p></td><td><p><code>payload.columnName</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Drop Column**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Execute a Cassandra Query Language (CQL) Query

This Mule flow executes the specified raw input query.

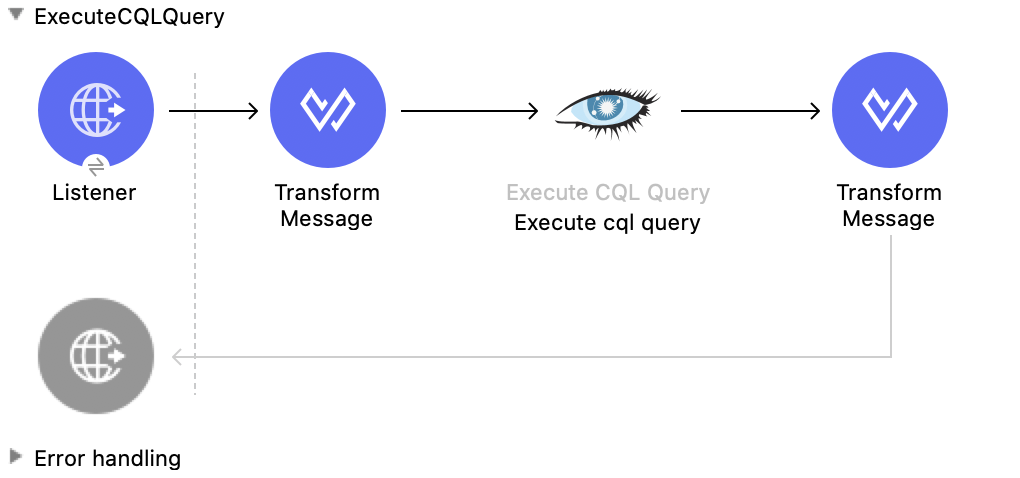

![Studio flow for the Execute CQL Query operation](/mulesoft/current/en-us/cassandra-connector/4.1/_images/execute-cql.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Transform Message** component

- An **Execute CQL Query** operation

- A second **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/executeCqlQuery`.

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace to Java.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **HTTP Listener**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/java
    ---
    {
      "cqlQuery": payload.cqlQuery,
      "parameters": payload.parameters
    } as Object {
      class : "org.mule.modules.cassandradb.api.CQLQueryInput"
    }
    ```

#### Add the Execute CQL Query Operation

The **Execute CQL Query** operation executes the raw input query.

1.  Drag the **Execute CQL Query** operation onto the canvas, next to **Transform Message**.

2.  In the **Execute CQL Query** configuration, click the **Connector configuration** dropdown and
    select **CassandraDB\_Config**.

#### Add the Second Transform Message Component

The second **Transform Message** component converts the data from the keyspace from Java to XML.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Execute CQL Query**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Drop Table

This Mule flow drops a table from the specified keyspace.

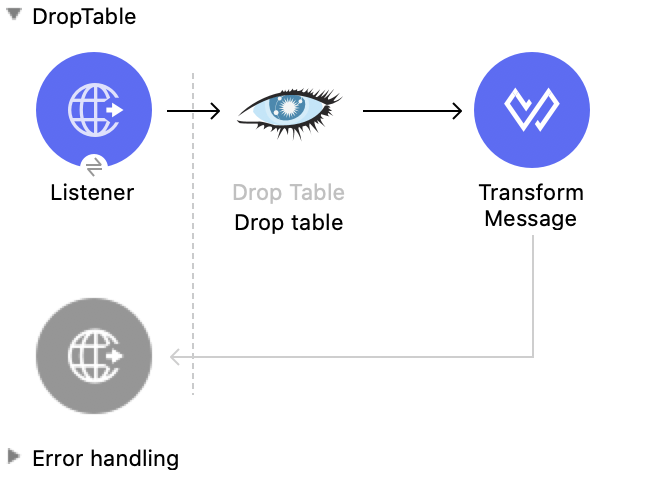

![Studio flow for the Drop Table operation](/mulesoft/current/en-us/cassandra-connector/4.1/_images/drop-table.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Drop Table** operation

- A **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/dropTable`.

#### Add the Drop Table Operation

The **Drop Table** operation drops a table from the specified keyspace. If no keyspace is specified
for the **Drop Table** operation, the table is created in the keyspace in the connection parameters.

1.  Drag the **Drop Table** operation onto the canvas, next to **HTTP Listener**.

2.  In the **Drop Table** configuration, click the **Connector configuration** dropdown and select
    **CassandraDB\_Config**.

3.  Configure the following fields in the **Drop Table** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table name</p></td><td><p><code>payload.tableName</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>#[payload.keyspaceName]</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Drop Table**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Drop Keyspace

This Mule flow drops the specified keyspace and its values.

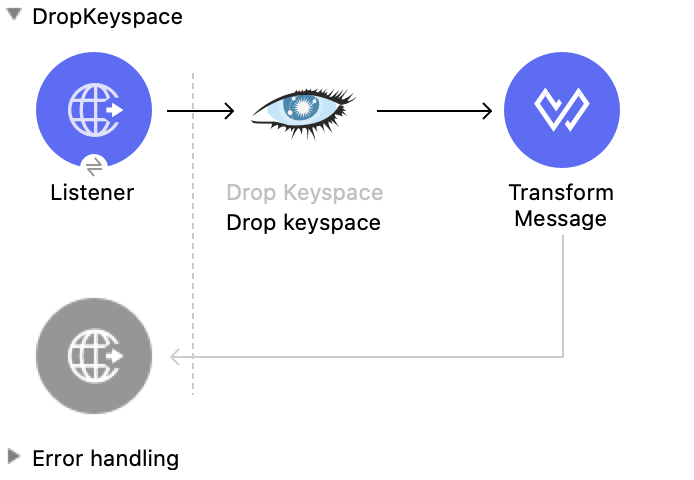

![Studio flow for the Drop Keyspace operation](/mulesoft/current/en-us/cassandra-connector/4.1/_images/drop-keyspace.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Drop Keyspace** operation

- A **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/dropKeyspace`.

#### Add the Drop Keyspace Operation

The **Drop Keyspace** operation drops the keyspace and its values.

1.  Drag the **Drop Keyspace** operation onto the canvas, next to **HTTP Listener**.

2.  In the **Drop Keyspace** configuration, click the **Connector configuration** dropdown and
    select **CassandraDB\_Config**.

3.  Configure the following fields in the **Drop Keyspace** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Keyspace name</p></td><td><p><code>payload.keyspaceName</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Drop Keyspace**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### XML for the Manipulate Data in an Apache Cassandra Database Example

Paste this code into the Studio XML editor to quickly load the flow for this example into your Mule
app:

```xml
<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:cassandra-db="http://www.mulesoft.org/schema/mule/cassandra-db" xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
      xmlns:http="http://www.mulesoft.org/schema/mule/http"
      xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/ee/core http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd
http://www.mulesoft.org/schema/mule/cassandra-db http://www.mulesoft.org/schema/mule/cassandra-db/current/mule-cassandra-db.xsd">

  <configuration-properties file="mule-app.properties" />
  <http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config" doc:id="7b4310b7-4a49-4b37-8649-9247ae910399" >
    <http:listener-connection host="0.0.0.0" port="8081" />
  </http:listener-config>
  <cassandra-db:config name="CassandraDB_Config" doc:name="CassandraDB Config" doc:id="1ab180db-597d-455a-99fb-e006842cd052" >
    <cassandra-db:connection host="${config.host}" port="${config.port}" keyspace="${config.keyspace}" username="${config.username}" password="${config.password}" clusterName="${config.clusterName}" clusterNodes="${config.clusterNodes}"/>
  </cassandra-db:config>
  <flow name="GetTablesFromKeyspace" doc:id="e7d35ea3-58ed-4713-bbce-4ff6cbb41189" >
    <http:listener doc:name="Listener" doc:id="24838bde-79ae-4601-ac2b-00945831d7df" config-ref="HTTP_Listener_config" path="/getTablesFromKeyspace" />
    <cassandra-db:get-table-names-from-keyspace doc:name="Get table names from keyspace" doc:id="96e12e7b-8e90-4117-8ba6-5225d4af530a" config-ref="CassandraDB_Config" keyspaceName="#[payload.keyspaceName]"/>
    <ee:transform doc:name="Transform Message" doc:id="f3be8d87-27bd-470f-beb5-dbd2b81c24be" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="Insert" doc:id="ea181924-0b06-48ea-b007-c1b297db2cbd" >
    <http:listener doc:name="Listener" doc:id="5eceb9c9-bbad-4022-92a3-932e399bb4d6" config-ref="HTTP_Listener_config" path="/insert" />
    <ee:transform doc:name="Transform Message" doc:id="76763f2a-3860-4d73-84ad-33c0a7c485ed" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "id": payload.id,
  "name": payload.name,
  "event": payload.event
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:insert table="example_table" doc:name="Insert" doc:id="13224cf4-25d8-4f35-84e7-d211d4a3bdc5" config-ref="CassandraDB_Config" keyspaceName="example_keyspace"/>
    <ee:transform doc:name="Transform Message" doc:id="8888f973-3c80-4f56-b83c-792b40ba8cc4" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="Select" doc:id="2b70dea4-aadf-44a2-8c08-fee5a06cf8f5" >
    <http:listener doc:name="Listener" doc:id="ce7fb340-0292-45b5-a62e-29069d4f03ee" config-ref="HTTP_Listener_config" path="/select" />
    <cassandra-db:select doc:name="Select" doc:id="6a698c61-30eb-49e4-839a-c6412644c41f" config-ref="CassandraDB_Config">
      <cassandra-db:query >SELECT id, name, event FROM example_keyspace.example_table</cassandra-db:query>
    </cassandra-db:select>
    <ee:transform doc:name="Transform Message" doc:id="2782805e-1cf0-4808-96f1-99bd145759d0" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="Update" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/update" />
    <ee:transform doc:name="Transform Message" doc:id="c38ebb52-d614-4780-bae9-95d710f539d3" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "where":{
    id: payload.where
  },
  "columns":payload.columns
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:update table="example_table" doc:name="Update" doc:id="5edef28b-c636-4ce5-b59e-5843511c89c7" config-ref="CassandraDB_Config" keyspaceName="example_keyspace"/>
    <ee:transform doc:name="Transform Message" doc:id="beb77d6c-571b-4187-922e-afc7e89c8415" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="DeleteRows" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Copy_of_Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/deleteRows" />
    <ee:transform doc:name="Transform Message" doc:id="fdf8f121-8be3-4c73-8c5b-23df7c679c89" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "where": {
    id: payload.ids
  }
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:delete-rows table="example_table" doc:name="Delete rows" doc:id="3f9532e2-2fc6-4381-a2f6-90172994b2a7" config-ref="CassandraDB_Config" keyspaceName="example_keyspace"/>
    <ee:transform doc:name="Transform Message" doc:id="99fc2458-7548-44e1-9e31-ae29e04cd3c0" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="DeleteColumns" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/deleteColumns" />
    <ee:transform doc:name="Transform Message" doc:id="0d8fb61b-4afc-490b-be8c-d7f008efa1cf" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "columns": payload.columns,
  "where": {
    id:payload.where
  }
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:delete-columns-value table="example_table" doc:name="Delete columns value" doc:id="8ed01b4f-2cd4-4fcf-9d70-f560a6501f8e" config-ref="CassandraDB_Config" keyspaceName="example_keyspace">
      <cassandra-db:entities >
        <cassandra-db:entity value="#[payload.entities]" />
      </cassandra-db:entities>
    </cassandra-db:delete-columns-value>
    <ee:transform doc:name="Transform Message" doc:id="1f4f7f5d-7cfc-48fc-983c-a74a69576f8c" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="RenameColumn" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/renameColumn" />
    <cassandra-db:rename-column doc:name="Rename column" doc:id="f61c5f48-1f4f-46e6-9ab7-3021bb3eb4f5" config-ref="CassandraDB_Config" table="#[payload.tableName]" keyspaceName="#[payload.keyspaceName]" newColumnName="#[payload.newName]">
      <cassandra-db:old-column-name ><![CDATA[#[payload.oldName]]]></cassandra-db:old-column-name>
    </cassandra-db:rename-column>
    <ee:transform doc:name="Transform Message" doc:id="92b94afa-c0eb-4eb8-a05c-8d9ffcce000e" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="AddNewColumn" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/addNewColumn" />
    <set-variable value="#[payload.tableName]" doc:name="Set Variable" doc:id="40a2950e-58d2-4488-8b8d-6132ebcacfe8" variableName="tableName"/>
    <set-variable value="#[payload.keyspaceName]" doc:name="Set Variable" doc:id="29fe33b5-da79-4c42-97f1-a0f699cc532a" variableName="keyspaceName"/>
    <ee:transform doc:name="Transform Message" doc:id="af633bfc-5dbf-4849-a58a-2cb446d32920" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "column": payload.column,
  "type": payload.'type'
} as Object {
  class : "org.mule.modules.cassandradb.api.AlterColumnInput"
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:add-new-column doc:name="Add new column" doc:id="1ece4157-c45b-4298-9726-dec11c87fbf0" config-ref="CassandraDB_Config" table="#[vars['tableName']]" keyspaceName="#[vars['keyspaceName']]"/>
    <ee:transform doc:name="Transform Message" doc:id="335c584c-a1ae-4b69-bc24-1a0b7d1fe940" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="DropColumn" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="5b388d2a-886e-4d32-ba77-2ae3d388c766" config-ref="HTTP_Listener_config" path="/dropColumn"/>
    <cassandra-db:drop-column doc:name="Drop column" doc:id="cd602e74-3d04-4fa9-b96b-40351135268b" config-ref="CassandraDB_Config" table="#[payload.tableName]" keyspaceName="#[payload.keyspaceName]">
      <cassandra-db:column-name ><![CDATA[#[payload.columnName]]]></cassandra-db:column-name>
    </cassandra-db:drop-column>
    <ee:transform doc:name="Transform Message" doc:id="399e221f-9f0c-4767-828f-aa35575dce04" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="ExecuteCQLQuery" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/executeCqlQuery" />
    <ee:transform doc:name="Transform Message" doc:id="0eda8e3a-3f61-4461-b963-c0930eec9c1a" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "cqlQuery": payload.cqlQuery,
  "parameters": payload.parameters
} as Object {
  class : "org.mule.modules.cassandradb.api.CQLQueryInput"
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:execute-cql-query doc:name="Execute cql query" doc:id="23531836-b75d-47a3-b88e-bfcca6e3c43d" config-ref="CassandraDB_Config"/>
    <ee:transform doc:name="Transform Message" doc:id="f6017333-6a54-4e7d-9a0a-37e75bb99e95" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="DropTable" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/dropTable" />
    <cassandra-db:drop-table doc:name="Drop table" doc:id="2b814d18-ea46-49ee-a7d5-f5663bdb64e7" config-ref="CassandraDB_Config" keyspaceName="#[payload.keyspaceName]">
      <cassandra-db:table-name ><![CDATA[#[payload.tableName]]]></cassandra-db:table-name>
    </cassandra-db:drop-table>
    <ee:transform doc:name="Transform Message" doc:id="ef72ee47-8ff0-40cc-8e94-2a33d867cde7" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="DropKeyspace" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/dropKeyspace" />
    <cassandra-db:drop-keyspace doc:name="Drop keyspace" doc:id="4dd3b152-bef6-474e-ac47-dfa476e8eafc" config-ref="CassandraDB_Config">
      <cassandra-db:keyspace-name ><![CDATA[#[payload.keyspaceName]]]></cassandra-db:keyspace-name>
    </cassandra-db:drop-keyspace>
    <ee:transform doc:name="Transform Message" doc:id="6b5c7894-5f53-41e5-9ae7-364fdbfc427b" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
</mule>
```

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=1dae5e6e3da7f850f28707c57f79fa5fbddfbbbd589443703f411a067c0a1ce5 url=/mulesoft/current/en-us/cassandra-connector/4.1/cassandra-connector-reference.md -->

---
product: Apache Cassandra Connector
version: 4.1
---

# Apache Cassandra Connector 4.1 Reference

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

Anypoint Connector for Cassandra (Cassandra Connector) implements the DataStax Java Driver for
Apache Cassandra 3.1.

## Configurations

---

### Config

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name for this configuration. Connectors reference the configuration with this name.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Connection</strong></p></td><td><div><div><p><a href="#config_connection">Connection</a></p></div></div></td><td><div><div><p>Connection authentication types to provide to this configuration.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Expiration Policy</strong></p></td><td><div><div><p><a href="#ExpirationPolicy">Expiration Policy</a></p></div></div></td><td><div><div><p>Configures the minimum amount of time that a dynamic configuration instance can remain idle before Mule considers it eligible for expiration. This does not mean that the platform expires the instance at the exact moment that it becomes eligible. Mule purges the instances as appropriate.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

#### Connection Types

##### Connection

###### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Host</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Host name or IP address</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Endpoint identification algorithm</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>HTTPS</p></li><li><p>LDAPS</p></li></ul></div></div></td><td><div><div><p>The endpoint identification algorithm used by clients to validate the server host name. The default value is an empty string, which means that the algorithm is disabled. Clients, including client connections created by the broker for inter-broker communication, verify that the broker host name matches the host name in the broker’s certificate.</p></div></div></td><td><div><div><p>HTTPS</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Port</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Port</p></div></div></td><td><div><div><p>9042</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Cassandra Keyspace</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Cassandra keyspace</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Cassandra Cluster Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Cassandra cluster name</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Cassandra Cluster Nodes</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Cassandra cluster nodes (IP or host address and port separated by commas, for example, <code>host1:port1</code>, <code>host2:port2</code>). If the port is not specified, the connector uses the default port, <code>9042</code>. When you specify this parameter, the host and port from the general settings are ignored.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Username</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Username for authentication.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Password</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Password for authentication. If the password is null or all white spaces, the connector won’t use authentication. In this case, the username must also be empty.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Protocol Version</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>V1</p></li><li><p>V2</p></li><li><p>V3</p></li><li><p>V4</p></li></ul></div></div></td><td><div><div><p>Version of the native protocol supported by the driver.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Max Schema Agreement Wait Seconds</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>The maximum time to wait for a schema agreement before returning from a DDL query.</p></div></div></td><td><div><div><p>0</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Compression</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>LZ4</p></li><li><p>NONE</p></li><li><p>SNAPPY</p></li></ul></div></div></td><td><div><div><p>The compression to use for the transport.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Prepared Statements Cache Size</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>Cache size for prepared statements. Set a value with at least the number of different statements that you handle in your Mule application.</p></div></div></td><td><div><div><p>10</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>TLS Configuration</strong></p></td><td><div><div><p><a href="#Tls">TLS</a></p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection</strong></p></td><td><div><div><p><a href="#Reconnection">Reconnection</a></p></div></div></td><td><div><div><p>When the application is deployed, a connectivity test is performed on all connectors. If set to true, deployment fails if the test doesn’t pass after exhausting the associated reconnection strategy.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

## Supported Operations

- [Add New Table Column](#addNewColumn)

- [Change Column Type](#changeColumnType)

- [Create Keyspace](#createKeyspace)

- [Create Table](#createTable)

- [Delete Columns Value](#deleteColumnsValue)

- [Delete Rows](#deleteRows)

- [Drop Column](#dropColumn)

- [Drop Keyspace](#dropKeyspace)

- [Drop Table](#dropTable)

- [Execute CQL Query](#executeCQLQuery)

- [Get All Table Names From Keyspace](#getTableNamesFromKeyspace)

- [Insert Entity](#insert)

- [Rename Column](#renameColumn)

- [Select](#select)

- [Update Entity](#update)

### Limitation

Cassandra operations do not support frozen column types or other custom column types. When using
these column types, use the **Execute CQL Query** operation with a raw CQL query.

### Add New Table Column

`<cassandra-db:add-new-column>`

Adds a new column

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table to use for the operation</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Alter Column Input</strong></p></td><td><div><div><p><a href="#AlterColumnInput">Alter Column Input</a></p></div></div></td><td><div><div><p>POJO defining the name of the new column and its data type</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Change Column Type

`<cassandra-db:change-column-type>`

Changes the type of a column. To check compatibility, see
[CQL type compatibility](https://docs.datastax.com/en/archived/cql/3.1/cql/cql_reference/cql_data_types_c.html).

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table to use for the operation</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>(optional) The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Alter Column Input</strong></p></td><td><div><div><p><a href="#AlterColumnInput">Alter Column Input</a></p></div></div></td><td><div><div><p>POJO defining the name of the column to change and the new data type</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Create Keyspace

`<cassandra-db:create-keyspace>`

Creates a new keyspace

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Input</strong></p></td><td><div><div><p><a href="#CreateKeyspaceInput">Create Keyspace Input</a></p></div></div></td><td><div><div><p>Operation input containing the keyspace name and the replication details</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Create Table

`<cassandra-db:create-table>`

Creates a table (column family) in a specific keyspace. If you don’t specify a keyspace, the
connector uses the keyspace used for login.

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Create Table Input</strong></p></td><td><div><div><p><a href="#CreateTableInput">Create Table Input</a></p></div></div></td><td><div><div><p>The <strong>Create Table Input</strong> operation, which specifies the table name, keyspace name, and list of columns.</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Delete Columns Value

`<cassandra-db:delete-columns-value>`

Deletes values from an object specified by the Where clause

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Entities</strong></p></td><td><div><div><p>Array of String</p></div></div></td><td><div><div><p>The columns to delete</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Where Clause</strong></p></td><td><div><div><p>Object</p></div></div></td><td><div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Delete Rows

`<cassandra-db:delete-rows>`

Deletes an entire record

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Where Clause</strong></p></td><td><div><div><p>Object</p></div></div></td><td><div><div><p>The Where clause for the <strong>Delete</strong> operation</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Drop Column

`<cassandra-db:drop-column>`

Removes a column

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table to use for the operation</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Column Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the column to remove</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Drop Keyspace

`<cassandra-db:drop-keyspace>`

Drops the entire keyspace

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the keyspace to drop</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Drop Table

`<cassandra-db:drop-table>`

Drops an entire table form the specified keyspace or from the keyspace used for login if no keyspace
is specified as an operation parameter.

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table to drop</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to drop</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Execute CQL Query

`<cassandra-db:execute-cql-query>`

Executes the specified raw input query

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Cql Input</strong></p></td><td><div><div><p><a href="#CQLQueryInput">CQL Query Input</a></p></div></div></td><td><div><div><p>CQL query input that describes the parametrized query to execute along with the query parameters</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Target Variable</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Name of the variable in which to store the operation’s output</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Target Value</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Expression that evaluates the operation’s output. The expression outcome is stored in the target variable.</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

#### Output

<table><colgroup><col> <col></colgroup><tbody><tr><td><p>Type</p></td><td><p>Array of Object</p></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Get All Table Names From Keyspace

`<cassandra-db:get-table-names-from-keyspace>`

Returns all table names from the specified keyspace

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the keyspace to use on the operation</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Target Variable</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Name of the variable in which to store the operation’s output</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Target Value</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Expression that evaluates the operation’s output. The expression outcome is stored in the target variable.</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

#### Output

<table><colgroup><col> <col></colgroup><tbody><tr><td><p>Type</p></td><td><p>Array of String</p></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Insert Entity

`<cassandra-db:insert>`

Executes the Insert Entity operation

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table in which to insert the entity</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Entity To Insert</strong></p></td><td><div><div><p>Object</p></div></div></td><td><div><div><p>The entity to insert</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Rename Column

`<cassandra-db:rename-column>`

Renames a column

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table to use for the operation</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Old Column Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the column to change</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>New Column Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The new name of the column</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Select

`<cassandra-db:select>`

Executes a select query

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Query</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The query to execute</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Parameters</strong></p></td><td><div><div><p>Array of Any</p></div></div></td><td><div><div><p>The query parameters</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Target Variable</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Name of the variable in which to store the operation’s output</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Target Value</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Expression that evaluates the operation’s output. The expression outcome is stored in the target variable.</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

#### Output

<table><colgroup><col> <col></colgroup><tbody><tr><td><p>Type</p></td><td><p>Array of Object</p></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Update Entity

`<cassandra-db:update>`

Executes the update entity operation

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table in which to update the entity</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to drop</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Entity To Update</strong></p></td><td><div><div><p>Object</p></div></div></td><td><div><div><p>The entity to update</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

## Types

### TLS

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Enabled Protocols</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>A comma-separated list of protocols enabled for this context.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Enabled Cipher Suites</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>A comma-separated list of cipher suites enabled for this context.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Trust Store</strong></p></td><td><div><div><p><a href="#TrustStore">Trust Store</a></p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Key Store</strong></p></td><td><div><div><p><a href="#KeyStore">Key Store</a></p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Revocation Check</strong></p></td><td><div><div><ul><li><p><a href="#standard-revocation-check">Standard Revocation Check</a></p></li><li><p><a href="#custom-ocsp-responder">Custom Ocsp Responder</a></p></li><li><p><a href="#crl-file">Crl File</a></p></li></ul></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Trust Store

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Path</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The location (which is resolved relative to the current classpath and file system, if possible) of the trust store.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Password</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The password used to protect the trust store.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Type</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The type of store used.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Algorithm</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The algorithm used by the trust store.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Insecure</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>If true, no certificate validations are performed, rendering connections vulnerable to attacks. Use at your own risk.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Key Store

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Path</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The location (which is resolved relative to the current classpath and file system, if possible) of the keystore.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Type</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The type of store used.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Alias</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>When the keystore contains many private keys, this attribute indicates the alias of the key to use. If not defined, the first key in the file is used by default.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Key Password</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The password used to protect the private key.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Password</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The password used to protect the keystore.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Algorithm</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The algorithm used by the keystore.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Standard Revocation Check

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Only End Entities</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>Only verify the last element of the certificate chain.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Prefer Crls</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>Try CRL instead of OCSP first.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>No Fallback</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>Do not use the secondary checking method (the one not selected before).</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Soft Fail</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>Avoid verification failure when the revocation server cannot be reached or is busy.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Custom Ocsp Responder

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Url</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The URL of the OCSP responder.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Cert Alias</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Alias of the signing certificate for the OCSP response (must be in the trust store), if present.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Crl File

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Path</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The path to the CRL file.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Reconnection

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Fails Deployment</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>When the application is deployed, a connectivity test is performed on all connectors. If set to true, deployment fails if the test doesn’t pass after exhausting the associated reconnection strategy.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>The reconnection strategy to use.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Reconnect

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Frequency</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>How often in milliseconds to reconnect</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Count</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>How many reconnection attempts to make.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Reconnect Forever

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Frequency</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>How often, in milliseconds, to reconnect</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Expiration Policy

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Max Idle Time</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>A scalar time value for the maximum amount of time a dynamic configuration instance should be allowed to be idle before it’s considered eligible for expiration</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Time Unit</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>NANOSECONDS</p></li><li><p>MICROSECONDS</p></li><li><p>MILLISECONDS</p></li><li><p>SECONDS</p></li><li><p>MINUTES</p></li><li><p>HOURS</p></li><li><p>DAYS</p></li></ul></div></div></td><td><div><div><p>A time unit that qualifies the Max Idle Time attribute</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Alter Column Input

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Column</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Type</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>ASCII</p></li><li><p>BIGINT</p></li><li><p>BLOB</p></li><li><p>BOOLEAN</p></li><li><p>COUNTER</p></li><li><p>DATE</p></li><li><p>DECIMAL</p></li><li><p>DOUBLE</p></li><li><p>FLOAT</p></li><li><p>INET</p></li><li><p>INT</p></li><li><p>SMALLINT</p></li><li><p>TEXT</p></li><li><p>TIME</p></li><li><p>TIMESTAMP</p></li><li><p>TIMEUUID</p></li><li><p>TINYINT</p></li><li><p>UUID</p></li><li><p>VARCHAR</p></li><li><p>VARINT</p></li></ul></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Create Keyspace Input

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>First Data Center</strong></p></td><td><div><div><p><a href="#DataCenter">Data Center</a></p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Next Data Center</strong></p></td><td><div><div><p><a href="#DataCenter">Data Center</a></p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Replication Factor</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Replication Strategy Class</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>SimpleStrategy</p></li><li><p>NetworkTopologyStrategy</p></li></ul></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Data Center

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Value</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Create Table Input

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Columns</strong></p></td><td><div><div><p>Array of <a href="#ColumnInput">Column Input</a></p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Table Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Column Input

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Primary Key</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Type</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>ASCII</p></li><li><p>BIGINT</p></li><li><p>BLOB</p></li><li><p>BOOLEAN</p></li><li><p>COUNTER</p></li><li><p>DATE</p></li><li><p>DECIMAL</p></li><li><p>DOUBLE</p></li><li><p>FLOAT</p></li><li><p>INET</p></li><li><p>INT</p></li><li><p>SMALLINT</p></li><li><p>TEXT</p></li><li><p>TIME</p></li><li><p>TIMESTAMP</p></li><li><p>TIMEUUID</p></li><li><p>TINYINT</p></li><li><p>UUID</p></li><li><p>VARCHAR</p></li><li><p>VARINT</p></li></ul></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### CQL Query Input

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Cql Query</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Parameters</strong></p></td><td><div><div><p>Array of Any</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=1ba5416bf4cc65310970c515fcd97e02b0ef3e42f38f33a4090e06ce32149a69 url=/mulesoft/current/en-us/cassandra-connector/4.1/cassandra-connector-xml-maven.md -->

---
product: Apache Cassandra Connector
version: 4.1
---

# Apache Cassandra Connector 4.1 XML and Maven Support

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

Although you can manually code a Mule app in XML, it is more efficient to use Anypoint Studio:

If you manually code a Mule runtime engine (Mule) app in XML, either from the Anypoint Studio XML
editor or from a text editor, you can access the connector from your app by adding reference
statements to both your XML Mule flow and the Apache Maven `pom.xml` file.

If you add the connector in Studio, Studio automatically populates the XML code with the connector’s
namespace and schema location and it also adds a dependency to the `pom.xml` file.

## Add a Namespace for the Connector

Paste the following code inside the `<mule>` tag of the header of your configuration XML:

```xml
http://www.mulesoft.org/schema/mule/cassandra-db
http://www.mulesoft.org/schema/mule/cassandra-db/current/mule-cassandra-db.xsd
```

This example shows how the namespace statements are placed in the `<mule>` XML block:

```xml
---
<mule xmlns:cassandra-db="http://www.mulesoft.org/schema/mule/cassandra-db"
	xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
	xmlns:http="http://www.mulesoft.org/schema/mule/http"
	xmlns:file="http://www.mulesoft.org/schema/mule/file"
	xmlns="http://www.mulesoft.org/schema/mule/core"
	xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core
	http://www.mulesoft.org/schema/mule/core/current/mule.xsd
	http://www.mulesoft.org/schema/mule/file
	http://www.mulesoft.org/schema/mule/file/current/mule-file.xsd
	http://www.mulesoft.org/schema/mule/http
	http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
	http://www.mulesoft.org/schema/mule/ee/core
	http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd
  http://www.mulesoft.org/schema/mule/cassandra-db
  http://www.mulesoft.org/schema/mule/cassandra-db/current/mule-cassandra-db.xsd>
---
```

## Add a POM File Dependency

The Apache Maven `pom.xml` file generated by Anypoint Studio contains dependencies for a Mule app.
If you code a Mule app manually, include this XML snippet in your `pom.xml` file to enable access to
this connector:

```xml
<dependency>
  <groupId>com.mulesoft.connectors</groupId>
  <artifactId>mule-cassandradb-connector</artifactId>
  <version>x.x.x</version>
  <classifier>mule-plugin</classifier>
</dependency>
```

Replace `x.x.x` with the version that corresponds to the connector you are using.

To obtain the most up-to-date `pom.xml` file information:

1.  Go to [Anypoint Exchange](https://www.mulesoft.com/exchange/).

2.  In Exchange, click **Login** and supply your Anypoint Platform username and password.

3.  In Exchange, search for `cassandra`.

4.  Select the connector.

5.  Click **Dependency Snippets** near the upper right of the screen.

## Next Step

After completing your namespace and `pom.xml` file, you can try the
[Examples](https://docs.mulesoft.com/cassandra-connector/4.1/cassandra-connector-examples).

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=45fe38bcf0602d1268ff349202b5ee2ae761b63f5667cc944888ba9aef7959bc url=/mulesoft/current/en-us/cassandra-connector/latest/index.md -->

---
product: Apache Cassandra Connector
version: 5.0
is-latest-version: true
---

# Apache Cassandra Connector 5.0

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

Anypoint Connector for Apache Cassandra (Apache Cassandra Connector) creates connectivity between
Apache Cassandra databases and third-party applications, systems, services such as SAP, PeopleSoft,
or Workday, as well as other databases across the enterprise.

Apache Cassandra is an open source distributed NoSQL database intended to manage large amounts of
product, customer, and employee data. Apache Cassandra Connector 5.0 implements the DataStax Java
Driver for Apache Cassandra 4.17.0 and supports Apache Cassandra 5.x.

## Before You Begin

To use this connector, you must be familiar with:

- The Apache Cassandra API

- Anypoint Connectors

- Mule runtime engine (Mule)

- Elements and global elements in a Mule flow

- Creating a Mule app using Anypoint Studio or Anypoint Code Builder

Before creating an app, you must have:

- Credentials to access the Apache Cassandra target resource

- Mule Enterprise Edition 4.6.0 or later and the entitlements necessary to use this software

## Next

Now that you’ve started, try using [Anypoint Studio](https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-studio) to configure the
Cassandra connector.

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Use Exchange to Discover Connectors, Templates, and Examples](https://docs.mulesoft.com/connectors/introduction/intro-use-exchange)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=1858529cf4ebecff444d8b081a6fdc98a198a380e63a74adf269b6baf4d19b5f url=/mulesoft/current/en-us/cassandra-connector/latest/cassandra-connector-config-topics.md -->

---
product: Apache Cassandra Connector
version: 5.0
is-latest-version: true
---

# Apache Cassandra Connector 5.0 Additional Configuration Information

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

Configure Anypoint Connector for Apache Cassandra (Apache Cassandra Connector) to work in your
environment with basic authentication and DataSense functionality.

## Enable Apache Cassandra Authentication

By default, accessing the Apache Cassandra database does not require credentials. You need to
configure Apache Cassandra to enable authentication. The Apache Cassandra Connector configuration
must match the Apache Cassandra configuration for basic authentication.

After enabling authentication, run the `cqlsh` command from the Apache Cassandra installation home
directory as shown in this example, which uses default credentials with username `cassandra` and
password `cassandra`:

```text
bin/cqlsh localhost -u cassandra -p cassandra
Connected to Test Cluster at localhost:9042.
[cqlsh 5.0.1 | Cassandra 5.0 | CQL spec 3.4.4 | Native protocol v4]
Use HELP for help.
```

1.  After installing Apache Cassandra, open the `conf\cassandra.yaml` file for editing.

2.  Optionally, change the value of `AllowAllAuthenticator` to `PasswordAuthenticator`.

3.  Restart Apache Cassandra.

4.  In a separate terminal tab, verify that Apache Cassandra is running:

    `bin/nodetool status`

## Configure the Local Datacenter

The DataStax Java Driver 4.x load-balancing policy requires a local datacenter when contact points
don’t share one datacenter.

1.  In the Apache Cassandra Connector global element, open the **Advanced Settings** tab.

2.  In **Local Datacenter**, enter the datacenter name, for example `datacenter1`.

3.  Test the connection.

You can omit **Local Datacenter** for single-DC clusters because the driver can infer the datacenter
from the contact points.

## Configure the Request Timeout

The DataStax Java Driver 4.x default request timeout is 2 seconds. The connector default of `12000`
milliseconds keeps the 12-second deadline from version 4.1.

1.  In the Apache Cassandra Connector global element, open the **Advanced Settings** tab.

2.  In **Request Timeout (ms)**, enter the timeout in milliseconds, or leave the default `12000`.

## Configure the Protocol Version

Don’t select native protocol `V1` or `V2`. Those values fail at application initialization with an
`InitialisationException`. Leave **Protocol Version** unset so the driver can negotiate, including
native protocol V5 on Apache Cassandra 5.x. You can also select `V3` or `V4`.

## POJO Configuration

The connector exposes multiple operations in the Apache Cassandra Connector Reference. The following
operations accept some POJOs as input parameters, which are needed for the DataSense functionality:

- `addNewColumn`

- `changeColumnType`

- `createKeyspace`

- `createTable`

- `deleteColumnsValue`

- `deleteRows`

- `dropColumn`

- `dropKeyspace`

- `dropTable`

- `executeCQLQuery`

- `getTableNamesFromKeyspace`

- `renameColumn`

- `select`

- `update`

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=61248247f70f80fc9ca6088ffa21aec715b1903b474cd36488c761918560b243 url=/mulesoft/current/en-us/cassandra-connector/latest/cassandra-connector-examples.md -->

---
product: Apache Cassandra Connector
version: 5.0
is-latest-version: true
---

# Apache Cassandra Connector 5.0 Examples

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

The following examples show how to configure Apache Cassandra Connector:

- [Create a New Apache Cassandra Table](#create-table)

  Creates a template for an HTML form to use to enter data for the new table, creates a keyspace for
  the new table, and then creates the table

- [Manipulate Data in an Apache Cassandra Database](#manipulate-data)

  Gets table names from a keyspace, performs operations on tables and table columns, executes
  Cassandra Query Language (CQL) queries, and so on.

## Create a New Apache Cassandra Table

This example contains the following flows:

- The first flow configures a template for the HTML input form used to convey data for the new
  table.

- The second flow creates the keyspace for the new table.

- The third flow creates the new table.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see Configuring Property Placeholders.

### Configure a Template for the HTML Input Form

This flow configures an HTML template to use for providing HTML input to create the new table:

![Parse Template Flow](/mulesoft/current/en-us/cassandra-connector/latest/_images/cassandra-parse-template.png)

Figure 1. Flow for configuring an HTML template

#### Configure HTTP Listener

Configure HTTP Listener to initiate a Mule flow when a call is made to the `/` path on port 8081:

1.  Create a new Mule Project in Anypoint Studio.

2.  In Studio, click **HTTP** and drag the **Listener** operation to the canvas.

3.  On the **Listener** properties window, click the plus sign (**+**) next to the **Connector
    configuration** field to add a global element.

4.  Accept the defaults.

5.  On the **Listener** properties window, set the **Path** field value to `/`.

#### Add a Parse Template Component

Add a **Parse Template** component to create a template for an HTML form (`form.html`), which is
located in the main resources folder. The example uses this form to convey information for creating
the table.

1.  From the Mule Palette view, search for `parse` and drag **Core** > **Parse Template** to the
    right of **Listener**.

2.  In the **Location** field, enter `form.html`.

### Create the Keyspace

This flow creates the keyspace for the new table:

![Create keyspace flow](/mulesoft/current/en-us/cassandra-connector/latest/_images/cassandra-create-keyspace.png)

Figure 2. Flow for creating a keyspace

#### Configure HTTP listener

Configure HTTP Listener to initiate a Mule flow when a call is made to the `/test/createKeyspace`
path on port `8081`:

1.  Create a new Mule Project in Anypoint Studio.

2.  In Studio, click **HTTP** and drag the **Listener** operation to the canvas.

3.  On the Listener properties window, click the plus sign **+** next to the **Connector
    configuration** field to add a global element.

4.  Accept the defaults.

5.  In **Listener** configuration window, set the **Path** field value to `/test/createKeyspace`.

#### Add a Transform Message Component

Add a **Transform Message** component to set Java variables based on the payload received from
**HTTP Listener**:

1.  From the Mule Palette view, drag a **Transform Message** component to the right of **Listener**.

2.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```dataweave
    %dw 2.0
    output application/java
    ---
    {
     "keyspaceName": payload.keyspaceName,
     "replicationFactor": payload.replicationFactor,
     "replicationStrategyClass": payload.replicationStrategyClass
    }
    as Object {
     class: "com.mulesoft.connector.cassandradb.api.CreateKeyspaceInput"
    }
    ```

#### Add the Create Keyspace Operation

Add the **Create keyspace** operation to create the keyspace where the new table will reside:

1.  From the **Mule Palette** view, select **CassandraDB** and drag the **Create keyspace**
    operation to the right of the **Transform Message** component.

2.  In the **Create keyspace** configuration, click the plus sign (**+**) next to the **Connector
    configuration** field to add a global element.

3.  Configure the fields in the global element:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Description</th></tr></thead><tbody><tr><td><p><strong>Host</strong></p></td><td><p><code>${cassandra.Host}</code></p></td></tr><tr><td><p><strong>Port</strong></p></td><td><p><code>${cassandra.Port}</code></p></td></tr><tr><td><p><strong>Cassandra Keyspace</strong></p></td><td><p><code>${cassandra.keySpace}</code></p></td></tr><tr><td><p><strong>Username</strong></p></td><td><p><code>${cassandra.userName}</code></p></td></tr><tr><td><p><strong>Password</strong></p></td><td><p><code>${cassandra.password}</code></p></td></tr></tbody></table>

    On the **Advanced Settings** tab, set **Local Datacenter** when contact points don’t share one
    datacenter:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Description</th></tr></thead><tbody><tr><td><p><strong>Local Datacenter</strong></p></td><td><p><code>${cassandra.localDatacenter}</code></p></td></tr></tbody></table>

4.  Click **Test Connection** to confirm that Mule can connect with the target Apache Cassandra
    instance.

    If the connection is successful, click **OK** to save the configuration. Otherwise, review and
    correct any invalid parameters and retest.

5.  Save the project.

6.  Test the app by sending a REST request to the `test/createKeyspace` path on port `8081`.

### Create a New Table

This flow creates a new table in the target Apache Cassandra database:

![Create table flow](/mulesoft/current/en-us/cassandra-connector/latest/_images/cassandra-create-table.png)

Figure 3. Flow for creating a new table

#### Configure HTTP Listener

Configure HTTP Listener to initiate a Mule flow when a call is made to the `/test/createTable` path
on port `8081`:

1.  Create a new Mule Project in Studio.

2.  In Studio, click **HTTP** and drag the **Listener** operation to the canvas.

3.  In the **Listener** configuration, click the plus sign **+** next to the **Connector
    configuration** field to add a global element.

4.  Accept the defaults.

5.  In the **Listener** configuration, set the **Path** field value to `/test/createTable`.

### Add a Transform Message Component

Add a **Transform Component** to set Java variables based on the payload received from **HTTP
Listener**:

1.  From the Mule Palette view, drag a **Transform Message** component to the right of **Listener**.

2.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```dataweave
    %dw 2.0
    output application/java
    ---
    {
      "columns": payload.columns,
      "tableName": payload.tableName,
      "keyspaceName": payload.keyspaceName
    } as Object {
      class : "com.mulesoft.connector.cassandradb.api.CreateTableInput"
    }
    ```

#### Add the Create Table Operation

Add a **Create Table** operation to create a new table in the keyspace you created in the previous
flow:

1.  From the **Mule Palette** view, select **CassandraDB** and drag the **Create Table** operation
    to the right of the **Transform Message** component.

2.  In the **Create Table** configuration, click the plus sign (**+**) next to the **Connector
    configuration** field.

3.  Select the global element that you configured for the **Create keyspace** operation.

4.  Click **OK**.

5.  Click **Test Connection** to confirm that Mule can connect with the Cassandra instance.

    If the client test is successful, click **OK** to save the configuration. Otherwise, review and
    correct any invalid parameters and retest.

6.  Save and run the Mule app.

7.  Test the app by sending a **POST** command to the `/test/createTable` path on port `8081`. Use
    the `application/json` MIME type and enter the table description in the command body, using
    uppercase for the data types:

    ```text
    {
      "tableName": "users",
      "keyspaceName": "Excelsior",
      "columns":
      [
        {
          "name": "id",
          "type": "INT",
          "primaryKey": "true"
        },
        {
          "name": "username",
          "type": "TEXT",
          "primaryKey": "true"
        },
        {
          "name": "name",
          "type": "TEXT",
          "primaryKey": "false"
        },
        {
          "name": "email",
          "type": "TEXT",
          "primaryKey": "false"
        }
      ]
    }
    ```

### XML for the Create an Apache Cassandra Keyspace and Table Example

Paste this code into the Studio XML editor to quickly load the flow for this example into your Mule
app:

```xml
<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:cassandra-db="http://www.mulesoft.org/schema/mule/cassandra-db"
xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
xmlns:http="http://www.mulesoft.org/schema/mule/http"
xmlns="http://www.mulesoft.org/schema/mule/core"
xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core
http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http
http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/ee/core
http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd
http://www.mulesoft.org/schema/mule/cassandra-db
http://www.mulesoft.org/schema/mule/cassandra-db/current/mule-cassandra-db.xsd">

  <configuration-properties file="mule-app.properties" />
  <http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config">
    <http:listener-connection host="0.0.0.0" port="8081" />
    </http:listener-config>
  <cassandra-db:config name="CassandraDB_Config" doc:name="CassandraDB Config">
    <cassandra-db:connection
      host="${config.host}"
      port="${config.port}"
      keyspace="${config.keyspace}"
      username="${config.username}"
      password="${config.password}"
      localDatacenter="${config.localDatacenter}"/>
	</cassandra-db:config>
  <flow name="HTMLForm">
    <http:listener doc:name="Listener" config-ref="HTTP_Listener_config" path="/"/>
    <parse-template doc:name="Parse Template" location="form.html"/>
  </flow>
  <flow name="CreateKeyspace">
    <http:listener
      doc:name="Listener"
      config-ref="HTTP_Listener_config"
      path="/createKeyspace"/>
    <ee:transform doc:name="Transform Message">
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "keyspaceName": payload.keyspaceName,
  "replicationFactor": payload.replicationFactor,
  "replicationStrategyClass": payload.replicationStrategyClass
} as Object {
  class : "com.mulesoft.connector.cassandradb.api.CreateKeyspaceInput"
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:create-keyspace doc:name="Create keyspace" config-ref="CassandraDB_Config"/>
    <ee:transform doc:name="Transform Message">
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="CreateTable">
    <http:listener doc:name="Listener" config-ref="HTTP_Listener_config" path="/createTable"/>
    <ee:transform doc:name="Transform Message">
      <ee:message>
        <ee:set-payload><![CDATA[%dw 2.0
output application/java
---
{
  "columns": payload.columns,
  "tableName": payload.tableName,
  "keyspaceName": payload.keyspaceName
} as Object {
  class : "com.mulesoft.connector.cassandradb.api.CreateTableInput"
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:create-table doc:name="Create table" config-ref="CassandraDB_Config"/>
    <ee:transform doc:name="Transform Message">
      <ee:message>
        <ee:set-payload><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
</mule>
```

## Manipulate Data in an Apache Cassandra Database

This example shows the following ways to manipulate data in an Apache Cassandra database:

- [Get table names from a keyspace.](#get-table-names)

- Perform the following CRUD operations on data in an Apache Cassandra table:

  - [Insert](#insert)

  - [Select](#select)

  - [Update](#update)

  - [Delete](#delete)

- Perform the following operations on an Apache Cassandra table column:

  - [Delete the column’s value.](#delete-columns)

  - [Rename a column.](#rename-columns)

  - [Add a new column.](#add-new-column)

  - [Drop a column.](#drop-columns)

- [Execute a Cassandra Query Language (CQL) query.](#execute-cql)

- Drop data from the Apache Cassandra database table:

  - [Drop a table from a keyspace.](#drop-table)

  - [Drop a keyspace.](#drop-keyspace)

### Get Table Names from a Keyspace

This Mule flow returns all table names from the specified keyspace.

![Studio flow for the Get table names from keyspace operation](/mulesoft/current/en-us/cassandra-connector/latest/_images/get-table-names.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Get table names from keyspace** operation

- A **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/getTablesFromKeyspace`.

#### Add the Get Table Names from Keyspace Operation

The **Get table names from keyspace** operation returns all table names from the specified keyspace.

1.  Drag the **Get table names from keyspace** operation onto the canvas, next to **HTTP Listener**.

2.  In the **Get table names from keyspace** configuration, click the **Connector configuration**
    dropdown and select **CassandraDB\_Config**.

3.  Configure the following fields in the **Get table names from keyspace** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Keyspace name</p></td><td><p><code>#[payload.keyspaceName]</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Get table names from
    keyspace**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Insert

This Mule flow inserts entities in a table in a keyspace.

![Studio flow for the Insert Entity operation](/mulesoft/current/en-us/cassandra-connector/latest/_images/insert-entity.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Transform Message** component

- An **Insert Entity** operation

- A second **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/insert`.

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace to Java.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **HTTP Listener**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/java
    ---
    {
      "id": payload.id,
      "name": payload.name,
      "event": payload.event
    }
    ```

#### Add the Insert Entity Operation

The **Insert Entity** operation inserts entities into a table in a keyspace.

1.  Drag the **Insert Entity** operation onto the canvas, next to **Transform Message**.

2.  In the **Insert Entity** configuration, click the **Connector configuration** dropdown and
    select **CassandraDB\_Config**.

3.  Configure the following fields in the **Insert Entity** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>example_table</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>example_keyspace</code></p></td></tr><tr><td><p>Entity to insert</p></td><td><p><code>payload</code></p></td></tr></tbody></table>

#### Add the Second Transform Message Component

The second **Transform Message** component converts the data from the keyspace from Java to XML.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Insert Entity**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Select

This Mule flow executes a **Select** query.

![Studio flow for the Select operation](/mulesoft/current/en-us/cassandra-connector/latest/_images/select.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Select** operation

- A **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/insert`.

#### Add the Select Operation

The **Select** operation executes a **Select** query on the keyspace.

1.  Drag the **Select** operation onto the canvas, next to **HTTP Listener**.

2.  In the **Select** configuration, click the **Connector configuration** dropdown and select
    **CassandraDB\_Config**.

3.  Configure the following fields in the **Select** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Query</p></td><td><p><code>SELECT id, name, event FROM example_keyspace.example_table</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Select**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Update

This Mule flow updates entities in a table in a keyspace.

![Studio flow for the Update Entity operation](/mulesoft/current/en-us/cassandra-connector/latest/_images/update-entity.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Transform Message** component

- An **Update Entity** operation

- A second **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/update`.

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace to Java.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **HTTP Listener**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/java
    ---
    {
      "where":{
        id: payload.where
      },
      "columns":payload.columns
    }
    ```

#### Add the Update Entity Operation

The **Update Entity** operation inserts entities into a table in a keyspace.

1.  Drag the **Update Entity** operation onto the canvas, next to **Transform Message**.

2.  In the **Update Entity** configuration, click the **Connector configuration** dropdown and
    select **CassandraDB\_Config**.

3.  Configure the following fields in the **Update Entity** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>example_table</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>example_keyspace</code></p></td></tr><tr><td><p>Entity to insert</p></td><td><p><code>payload</code></p></td></tr></tbody></table>

#### Add the Second Transform Message Component

The second **Transform Message** component converts the data from the keyspace from Java to XML.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Update Entity**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Delete

This Mule flow deletes a record from a table in a keyspace.

![Studio flow for the Delete Rows operation](/mulesoft/current/en-us/cassandra-connector/latest/_images/delete-row.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Transform Message** component

- A **Delete Rows** operation

- A second **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/deleteRows`.

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **HTTP Listener**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/java
    ---
    {
      "where": {
        id: payload.ids
      }
    }
    ```

#### Add the Delete Rows Operation

The **Delete Rows** operation deletes a record.

1.  Drag the **Delete Rows** operation onto the canvas, next to **Transform Message**.

2.  In the **Delete Rows** configuration, click the **Connector configuration** dropdown and select
    **CassandraDB\_Config**.

3.  Configure the following fields in the **Delete Rows** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>example_table</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>example_keyspace</code></p></td></tr><tr><td><p>Entity to insert</p></td><td><p><code>payload</code></p></td></tr></tbody></table>

#### Add the Second Transform Message Component

The second **Transform Message** component converts the data from the keyspace from Java to XML.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Delete Rows**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Delete Columns

This Mule flow deletes a column’s value from a table in a keyspace.

![Studio flow for the Delete Columns Value operation](/mulesoft/current/en-us/cassandra-connector/latest/_images/delete-column.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Transform Message** component

- An **Delete Columns Value** operation

- A second **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/deleteColumns`.

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace to Java.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **HTTP Listener**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/java
    ---
    {
      "columns": payload.columns,
      "where": {
        id:payload.where
      }
    }
    ```

#### Add the Delete Columns Value Operation

The **Delete Columns Value** operation deletes values from an object specified by the **Where
clause** field.

1.  Drag the **Delete Columns Value** operation onto the canvas, next to **Transform Message**.

2.  In the **Delete Columns Value** configuration, click the **Connector configuration** dropdown
    and select **CassandraDB\_Config**.

3.  Configure the following fields in the **Delete Columns Value** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>example_table</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>example_keyspace</code></p></td></tr><tr><td><p>Entities</p></td><td><p><code>Edit inline</code></p></td></tr><tr><td><p>Value</p></td><td><p><code>#[payload.entities]</code></p></td></tr><tr><td><p>Where clause</p></td><td><p><code>payload</code></p></td></tr></tbody></table>

#### Add the Second Transform Message Component

The second **Transform Message** component converts the data from the keyspace from Java to XML.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Delete Columns Value**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Rename Columns

This Mule flow renames a column in a table in the specified keyspace.

![Studio flow for the Rename Column operation](/mulesoft/current/en-us/cassandra-connector/latest/_images/rename-columns.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Rename Column** operation

- A **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/renameColumn`.

#### Add the Rename Column Operation

The **Rename Column** operation renames a column in a table in a keyspace.

1.  Drag the **Rename Column** operation onto the canvas, next to **HTTP Listener**.

2.  In the **Rename Column** configuration, click the **Connector configuration** dropdown and
    select **CassandraDB\_Config**.

3.  Configure the following fields in the **Rename Column** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>#[payload.tableName]</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>#[payload.keyspaceName]</code></p></td></tr><tr><td><p>Old column name</p></td><td><p><code>payload.oldName</code></p></td></tr><tr><td><p>New column name</p></td><td><p><code>#[payload.newName]</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Rename Column**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Add New Columns

This Mule flow adds a new column to a table in a keyspace.

![Studio flow for the Add New Table Column operation](/mulesoft/current/en-us/cassandra-connector/latest/_images/add-new-column.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Set Variable** component

- A second **Set Variable** component

- A **Transform Message** component

- An **Add New Table Column** operation

- A second **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/addNewColumn`.

#### Add the Set Variable Component

The first **Set Variable** component stores a value for the table name.

1.  In the **Mule Palette** view, search for `set variable`.

2.  Drag the **Set Variable** component onto the canvas, next to **HTTP Listener**.

3.  Configure the following fields in the **Set Variable** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Name</p></td><td><p><code>tableName</code></p></td></tr><tr><td><p>Value</p></td><td><p><code>#[payload.tableName]</code></p></td></tr></tbody></table>

#### Add the Second Set Variable Component

The second **Set Variable** component stores a value for the keyspace name.

1.  In the **Mule Palette** view, search for `set variable`.

2.  Drag the **Set Variable** component onto the canvas, next to **HTTP Listener**.

3.  Configure the following fields in the **Set Variable** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Name</p></td><td><p><code>keyspaceName</code></p></td></tr><tr><td><p>Value</p></td><td><p><code>#[payload.keyspaceName]</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Set Variable**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/java
    ---
    {
      "column": payload.column,
      "type": payload.'type'
    } as Object {
      class : "com.mulesoft.connector.cassandradb.api.AlterColumnInput"
    }
    ```

#### Add the Add New Table Column Operation

The **Add New Table Column** operation adds a new column.

1.  Drag the **Add New Table Column** operation onto the canvas, next to **Transform Message**.

2.  In the **Add New Table Column** configuration, click the **Connector configuration** dropdown
    and select **CassandraDB\_Config**.

3.  Configure the following fields in the **Add New Table Column** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>#[vars['tableName']]</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>#[vars['keyspaceName']]</code></p></td></tr><tr><td><p>Alter column input</p></td><td><p><code>payload</code></p></td></tr></tbody></table>

#### Add the Second Transform Message Component

The second **Transform Message** component converts the data from the keyspace from Java to XML.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Add New Table Column**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Drop Columns

This Mule flow removes a column from a table in a keyspace.

![Studio flow for the Drop Column operation](/mulesoft/current/en-us/cassandra-connector/latest/_images/drop-columns.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Drop Column** operation

- A **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/dropColumn`.

#### Add the Drop Column Operation

The **Drop Column** operation removes a column.

1.  Drag the **Drop Column** operation onto the canvas, next to **HTTP Listener**.

2.  In the **Drop Column** configuration, click the **Connector configuration** dropdown and select
    **CassandraDB\_Config**.

3.  Configure the following fields in the **Drop Column** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table</p></td><td><p><code>#[payload.tableName]</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>#[payload.keyspaceName]</code></p></td></tr><tr><td><p>Column name</p></td><td><p><code>payload.columnName</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Drop Column**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Execute a Cassandra Query Language (CQL) Query

This Mule flow executes the specified raw input query.

![Studio flow for the Execute CQL Query operation](/mulesoft/current/en-us/cassandra-connector/latest/_images/execute-cql.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Transform Message** component

- An **Execute CQL Query** operation

- A second **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/executeCqlQuery`.

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace to Java.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **HTTP Listener**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/java
    ---
    {
      "cqlQuery": payload.cqlQuery,
      "parameters": payload.parameters
    } as Object {
      class : "com.mulesoft.connector.cassandradb.api.CQLQueryInput"
    }
    ```

#### Add the Execute CQL Query Operation

The **Execute CQL Query** operation executes the raw input query.

1.  Drag the **Execute CQL Query** operation onto the canvas, next to **Transform Message**.

2.  In the **Execute CQL Query** configuration, click the **Connector configuration** dropdown and
    select **CassandraDB\_Config**.

#### Add the Second Transform Message Component

The second **Transform Message** component converts the data from the keyspace from Java to XML.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Execute CQL Query**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Drop Table

This Mule flow drops a table from the specified keyspace.

![Studio flow for the Drop Table operation](/mulesoft/current/en-us/cassandra-connector/latest/_images/drop-table.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Drop Table** operation

- A **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/dropTable`.

#### Add the Drop Table Operation

The **Drop Table** operation drops a table from the specified keyspace. If no keyspace is specified
for the **Drop Table** operation, the table is created in the keyspace in the connection parameters.

1.  Drag the **Drop Table** operation onto the canvas, next to **HTTP Listener**.

2.  In the **Drop Table** configuration, click the **Connector configuration** dropdown and select
    **CassandraDB\_Config**.

3.  Configure the following fields in the **Drop Table** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Table name</p></td><td><p><code>payload.tableName</code></p></td></tr><tr><td><p>Keyspace name</p></td><td><p><code>#[payload.keyspaceName]</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Drop Table**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### Drop Keyspace

This Mule flow drops the specified keyspace and its values.

![Studio flow for the Drop Keyspace operation](/mulesoft/current/en-us/cassandra-connector/latest/_images/drop-keyspace.png)

In this flow, you configure:

- An **HTTP Listener** component

- A **Drop Keyspace** operation

- A **Transform Message** component

#### Configure HTTP Listener

Configure **HTTP Listener** to initiate a Mule flow when a call is made to the `/` account path on
`localhost`, port `8081`.

This example uses variables for some field values. You can either:

- Replace the variables with their values in the code.

- Provide the values for each variable in a properties file and then refer to that file from the
  connector configuration.

If you don’t know how to use a properties file, see
[Configuring Property Placeholders](https://docs.mulesoft.com/mule-runtime/latest/mule-app-properties-to-configure).

To configure **HTTP Listener**:

1.  Create a new Mule project in Studio.

2.  In the **Mule Palette** view, search for `http` and select the **Listener** operation:

3.  Drag the **Listener** operation onto the canvas.

4.  In the **Listener** configuration, click the **Add** icon next to the **Connector
    configuration** field to add a global element.

5.  Click **OK** to accept the defaults.

6.  Set the **Path** field to `/dropKeyspace`.

#### Add the Drop Keyspace Operation

The **Drop Keyspace** operation drops the keyspace and its values.

1.  Drag the **Drop Keyspace** operation onto the canvas, next to **HTTP Listener**.

2.  In the **Drop Keyspace** configuration, click the **Connector configuration** dropdown and
    select **CassandraDB\_Config**.

3.  Configure the following fields in the **Drop Keyspace** properties window:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Value</th></tr></thead><tbody><tr><td><p>Keyspace name</p></td><td><p><code>payload.keyspaceName</code></p></td></tr></tbody></table>

#### Add the Transform Message Component

The **Transform Message** component converts the data from the keyspace.

1.  In the **Mule Palette** view, search for `transform message`.

2.  Drag the **Transform Message** component onto the canvas, next to **Drop Keyspace**.

3.  In the **Transform Message** configuration, overlay the brackets in the **Output** section with
    this XML:

    ```xml
    %dw 2.0
    output application/json
    ---
    payload
    ```

### XML for the Manipulate Data in an Apache Cassandra Database Example

Paste this code into the Studio XML editor to quickly load the flow for this example into your Mule
app:

```xml
<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:cassandra-db="http://www.mulesoft.org/schema/mule/cassandra-db" xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
      xmlns:http="http://www.mulesoft.org/schema/mule/http"
      xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/ee/core http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd
http://www.mulesoft.org/schema/mule/cassandra-db http://www.mulesoft.org/schema/mule/cassandra-db/current/mule-cassandra-db.xsd">

  <configuration-properties file="mule-app.properties" />
  <http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config" doc:id="7b4310b7-4a49-4b37-8649-9247ae910399" >
    <http:listener-connection host="0.0.0.0" port="8081" />
  </http:listener-config>
  <cassandra-db:config name="CassandraDB_Config" doc:name="CassandraDB Config" doc:id="1ab180db-597d-455a-99fb-e006842cd052" >
    <cassandra-db:connection host="${config.host}" port="${config.port}" keyspace="${config.keyspace}" username="${config.username}" password="${config.password}" clusterNodes="${config.clusterNodes}" localDatacenter="${config.localDatacenter}"/>
  </cassandra-db:config>
  <flow name="GetTablesFromKeyspace" doc:id="e7d35ea3-58ed-4713-bbce-4ff6cbb41189" >
    <http:listener doc:name="Listener" doc:id="24838bde-79ae-4601-ac2b-00945831d7df" config-ref="HTTP_Listener_config" path="/getTablesFromKeyspace" />
    <cassandra-db:get-table-names-from-keyspace doc:name="Get table names from keyspace" doc:id="96e12e7b-8e90-4117-8ba6-5225d4af530a" config-ref="CassandraDB_Config" keyspaceName="#[payload.keyspaceName]"/>
    <ee:transform doc:name="Transform Message" doc:id="f3be8d87-27bd-470f-beb5-dbd2b81c24be" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="Insert" doc:id="ea181924-0b06-48ea-b007-c1b297db2cbd" >
    <http:listener doc:name="Listener" doc:id="5eceb9c9-bbad-4022-92a3-932e399bb4d6" config-ref="HTTP_Listener_config" path="/insert" />
    <ee:transform doc:name="Transform Message" doc:id="76763f2a-3860-4d73-84ad-33c0a7c485ed" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "id": payload.id,
  "name": payload.name,
  "event": payload.event
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:insert table="example_table" doc:name="Insert" doc:id="13224cf4-25d8-4f35-84e7-d211d4a3bdc5" config-ref="CassandraDB_Config" keyspaceName="example_keyspace"/>
    <ee:transform doc:name="Transform Message" doc:id="8888f973-3c80-4f56-b83c-792b40ba8cc4" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="Select" doc:id="2b70dea4-aadf-44a2-8c08-fee5a06cf8f5" >
    <http:listener doc:name="Listener" doc:id="ce7fb340-0292-45b5-a62e-29069d4f03ee" config-ref="HTTP_Listener_config" path="/select" />
    <cassandra-db:select doc:name="Select" doc:id="6a698c61-30eb-49e4-839a-c6412644c41f" config-ref="CassandraDB_Config">
      <cassandra-db:query >SELECT id, name, event FROM example_keyspace.example_table</cassandra-db:query>
    </cassandra-db:select>
    <ee:transform doc:name="Transform Message" doc:id="2782805e-1cf0-4808-96f1-99bd145759d0" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="Update" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/update" />
    <ee:transform doc:name="Transform Message" doc:id="c38ebb52-d614-4780-bae9-95d710f539d3" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "where":{
    id: payload.where
  },
  "columns":payload.columns
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:update table="example_table" doc:name="Update" doc:id="5edef28b-c636-4ce5-b59e-5843511c89c7" config-ref="CassandraDB_Config" keyspaceName="example_keyspace"/>
    <ee:transform doc:name="Transform Message" doc:id="beb77d6c-571b-4187-922e-afc7e89c8415" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="DeleteRows" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Copy_of_Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/deleteRows" />
    <ee:transform doc:name="Transform Message" doc:id="fdf8f121-8be3-4c73-8c5b-23df7c679c89" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "where": {
    id: payload.ids
  }
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:delete-rows table="example_table" doc:name="Delete rows" doc:id="3f9532e2-2fc6-4381-a2f6-90172994b2a7" config-ref="CassandraDB_Config" keyspaceName="example_keyspace"/>
    <ee:transform doc:name="Transform Message" doc:id="99fc2458-7548-44e1-9e31-ae29e04cd3c0" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="DeleteColumns" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/deleteColumns" />
    <ee:transform doc:name="Transform Message" doc:id="0d8fb61b-4afc-490b-be8c-d7f008efa1cf" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "columns": payload.columns,
  "where": {
    id:payload.where
  }
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:delete-columns-value table="example_table" doc:name="Delete columns value" doc:id="8ed01b4f-2cd4-4fcf-9d70-f560a6501f8e" config-ref="CassandraDB_Config" keyspaceName="example_keyspace">
      <cassandra-db:entities >
        <cassandra-db:entity value="#[payload.entities]" />
      </cassandra-db:entities>
    </cassandra-db:delete-columns-value>
    <ee:transform doc:name="Transform Message" doc:id="1f4f7f5d-7cfc-48fc-983c-a74a69576f8c" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="RenameColumn" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/renameColumn" />
    <cassandra-db:rename-column doc:name="Rename column" doc:id="f61c5f48-1f4f-46e6-9ab7-3021bb3eb4f5" config-ref="CassandraDB_Config" table="#[payload.tableName]" keyspaceName="#[payload.keyspaceName]" newColumnName="#[payload.newName]">
      <cassandra-db:old-column-name ><![CDATA[#[payload.oldName]]]></cassandra-db:old-column-name>
    </cassandra-db:rename-column>
    <ee:transform doc:name="Transform Message" doc:id="92b94afa-c0eb-4eb8-a05c-8d9ffcce000e" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="AddNewColumn" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/addNewColumn" />
    <set-variable value="#[payload.tableName]" doc:name="Set Variable" doc:id="40a2950e-58d2-4488-8b8d-6132ebcacfe8" variableName="tableName"/>
    <set-variable value="#[payload.keyspaceName]" doc:name="Set Variable" doc:id="29fe33b5-da79-4c42-97f1-a0f699cc532a" variableName="keyspaceName"/>
    <ee:transform doc:name="Transform Message" doc:id="af633bfc-5dbf-4849-a58a-2cb446d32920" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "column": payload.column,
  "type": payload.'type'
} as Object {
  class : "com.mulesoft.connector.cassandradb.api.AlterColumnInput"
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:add-new-column doc:name="Add new column" doc:id="1ece4157-c45b-4298-9726-dec11c87fbf0" config-ref="CassandraDB_Config" table="#[vars['tableName']]" keyspaceName="#[vars['keyspaceName']]"/>
    <ee:transform doc:name="Transform Message" doc:id="335c584c-a1ae-4b69-bc24-1a0b7d1fe940" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="DropColumn" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="5b388d2a-886e-4d32-ba77-2ae3d388c766" config-ref="HTTP_Listener_config" path="/dropColumn"/>
    <cassandra-db:drop-column doc:name="Drop column" doc:id="cd602e74-3d04-4fa9-b96b-40351135268b" config-ref="CassandraDB_Config" table="#[payload.tableName]" keyspaceName="#[payload.keyspaceName]">
      <cassandra-db:column-name ><![CDATA[#[payload.columnName]]]></cassandra-db:column-name>
    </cassandra-db:drop-column>
    <ee:transform doc:name="Transform Message" doc:id="399e221f-9f0c-4767-828f-aa35575dce04" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="ExecuteCQLQuery" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/executeCqlQuery" />
    <ee:transform doc:name="Transform Message" doc:id="0eda8e3a-3f61-4461-b963-c0930eec9c1a" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
  "cqlQuery": payload.cqlQuery,
  "parameters": payload.parameters
} as Object {
  class : "com.mulesoft.connector.cassandradb.api.CQLQueryInput"
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
    <cassandra-db:execute-cql-query doc:name="Execute cql query" doc:id="23531836-b75d-47a3-b88e-bfcca6e3c43d" config-ref="CassandraDB_Config"/>
    <ee:transform doc:name="Transform Message" doc:id="f6017333-6a54-4e7d-9a0a-37e75bb99e95" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="DropTable" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/dropTable" />
    <cassandra-db:drop-table doc:name="Drop table" doc:id="2b814d18-ea46-49ee-a7d5-f5663bdb64e7" config-ref="CassandraDB_Config" keyspaceName="#[payload.keyspaceName]">
      <cassandra-db:table-name ><![CDATA[#[payload.tableName]]]></cassandra-db:table-name>
    </cassandra-db:drop-table>
    <ee:transform doc:name="Transform Message" doc:id="ef72ee47-8ff0-40cc-8e94-2a33d867cde7" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
  <flow name="DropKeyspace" doc:id="81fa1da3-8a3d-460d-80d7-2499faacf3c3" >
    <http:listener doc:name="Listener" doc:id="51053b82-fa99-456b-bde4-36c87af4b633" config-ref="HTTP_Listener_config" path="/dropKeyspace" />
    <cassandra-db:drop-keyspace doc:name="Drop keyspace" doc:id="4dd3b152-bef6-474e-ac47-dfa476e8eafc" config-ref="CassandraDB_Config">
      <cassandra-db:keyspace-name ><![CDATA[#[payload.keyspaceName]]]></cassandra-db:keyspace-name>
    </cassandra-db:drop-keyspace>
    <ee:transform doc:name="Transform Message" doc:id="6b5c7894-5f53-41e5-9ae7-364fdbfc427b" >
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </flow>
</mule>
```

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=694b0d210a7b23c028e86dee6cb8b2309d76dd74f48536fdc749f8b69e1ed214 url=/mulesoft/current/en-us/cassandra-connector/latest/cassandra-connector-reference.md -->

---
product: Apache Cassandra Connector
version: 5.0
is-latest-version: true
---

# Apache Cassandra Connector 5.0 Reference

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

Anypoint Connector for Cassandra (Cassandra Connector) implements the DataStax Java Driver for
Apache Cassandra 4.17.0.

## Configurations

---

### Config

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name for this configuration. Connectors reference the configuration with this name.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Connection</strong></p></td><td><div><div><p><a href="#config_connection">Connection</a></p></div></div></td><td><div><div><p>Connection authentication types to provide to this configuration.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>ID used to reference this configuration.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Expiration Policy</strong></p></td><td><div><div><p><a href="#ExpirationPolicy">Expiration Policy</a></p></div></div></td><td><div><div><p>Configures the minimum amount of time that a dynamic configuration instance can remain idle before Mule considers it eligible for expiration. This does not mean that the platform expires the instance at the exact moment that it becomes eligible. Mule purges the instances as appropriate.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

#### Connection Types

##### Connection

###### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Host</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Host name or IP address</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Endpoint identification algorithm</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>HTTPS</p></li><li><p>LDAPS</p></li><li><p>DISABLED</p></li></ul></div></div></td><td><div><div><p>Algorithm that clients use to validate the server host name against the server certificate. The default is <code>DISABLED</code>, which turns hostname validation off and matches version 4.1 behavior, where the setting wasn’t enforced. Set <code>HTTPS</code> or <code>LDAPS</code> to require the certificate Subject Alternative Name or CN to match the host. Enabling validation can reject servers whose certificates don’t include a matching host name.</p></div></div></td><td><div><div><p>DISABLED</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Port</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Port</p></div></div></td><td><div><div><p>9042</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Cassandra Keyspace</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Cassandra keyspace</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Cassandra Cluster Nodes</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Cassandra cluster nodes (IP or host address and port separated by commas, for example, <code>host1:port1</code>, <code>host2:port2</code>). If the port is not specified, the connector uses the default port, <code>9042</code>. When you specify this parameter, the host and port from the general settings are ignored.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Username</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Username for authentication.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Password</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Password for authentication. If the password is null or all white spaces, the connector won’t use authentication. In this case, the username must also be empty.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Protocol Version</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>V1</p></li><li><p>V2</p></li><li><p>V3</p></li><li><p>V4</p></li></ul></div></div></td><td><div><div><p>Native protocol version that the driver uses. Don’t select <code>V1</code> or <code>V2</code>. Those values fail at application initialization. Leave this field unset to let the driver negotiate, including native protocol V5 on Apache Cassandra 5.x. You can also select <code>V3</code> or <code>V4</code>.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Max Schema Agreement Wait Seconds</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>The maximum time to wait for a schema agreement before returning from a DDL query.</p></div></div></td><td><div><div><p>0</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Request Timeout (ms)</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>Per-request timeout for CQL operations, in milliseconds. The default of <code>12000</code> preserves the 12-second deadline from version 4.1. Raise this value for high-latency clusters or heavy DDL. Lower it to fail faster. This timeout is distinct from <strong>Max Schema Agreement Wait Seconds</strong>, which only bounds the post-DDL schema-agreement poll.</p></div></div></td><td><div><div><p>12000</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Compression</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>LZ4</p></li><li><p>NONE</p></li><li><p>SNAPPY</p></li></ul></div></div></td><td><div><div><p>The compression to use for the transport.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Prepared Statements Cache Size</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>Cache size for prepared statements. Set a value with at least the number of different statements that you handle in your Mule application.</p></div></div></td><td><div><div><p>10</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Local Datacenter</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Local datacenter for the driver’s default load-balancing policy. Required when contact points don’t share one datacenter, such as in a multi-DC cluster. You can omit this field for single-DC clusters. If your cluster doesn’t use a single inferred datacenter, set this field or the connection fails.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>TLS Configuration</strong></p></td><td><div><div><p><a href="#Tls">TLS</a></p></div></div></td><td><div><div><p>Configures TLS for the Cassandra connection.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection</strong></p></td><td><div><div><p><a href="#Reconnection">Reconnection</a></p></div></div></td><td><div><div><p>When the application is deployed, a connectivity test is performed on all connectors. If set to true, deployment fails if the test doesn’t pass after exhausting the associated reconnection strategy.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

## Supported Operations

- [Add New Table Column](#addNewColumn)

- [Change Column Type](#changeColumnType)

- [Create Keyspace](#createKeyspace)

- [Create Table](#createTable)

- [Delete Columns Value](#deleteColumnsValue)

- [Delete Rows](#deleteRows)

- [Drop Column](#dropColumn)

- [Drop Keyspace](#dropKeyspace)

- [Drop Table](#dropTable)

- [Execute CQL Query](#executeCQLQuery)

- [Get All Table Names From Keyspace](#getTableNamesFromKeyspace)

- [Insert Entity](#insert)

- [Rename Column](#renameColumn)

- [Select](#select)

- [Update Entity](#update)

### Limitation

Cassandra operations do not support frozen column types or other custom column types. When using
these column types, use the **Execute CQL Query** operation with a raw CQL query.

### Add New Table Column

`<cassandra-db:add-new-column>`

Adds a new column

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table to use for the operation</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Alter Column Input</strong></p></td><td><div><div><p><a href="#AlterColumnInput">Alter Column Input</a></p></div></div></td><td><div><div><p>POJO defining the name of the new column and its data type</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Change Column Type

`<cassandra-db:change-column-type>`

Changes the type of a column. To check compatibility, see
[CQL type compatibility](https://docs.datastax.com/en/archived/cql/3.1/cql/cql_reference/cql_data_types_c.html).

On Apache Cassandra 5.x, **Change Column Type** fails because Cassandra no longer supports altering
column types. Add a new column, backfill the data, then drop the old column.

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table to use for the operation</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>(optional) The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Alter Column Input</strong></p></td><td><div><div><p><a href="#AlterColumnInput">Alter Column Input</a></p></div></div></td><td><div><div><p>POJO defining the name of the column to change and the new data type</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Create Keyspace

`<cassandra-db:create-keyspace>`

Creates a new keyspace

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Input</strong></p></td><td><div><div><p><a href="#CreateKeyspaceInput">Create Keyspace Input</a></p></div></div></td><td><div><div><p>Operation input containing the keyspace name and the replication details</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Create Table

`<cassandra-db:create-table>`

Creates a table (column family) in a specific keyspace. If you don’t specify a keyspace, the
connector uses the keyspace used for login.

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Create Table Input</strong></p></td><td><div><div><p><a href="#CreateTableInput">Create Table Input</a></p></div></div></td><td><div><div><p>The <strong>Create Table Input</strong> operation, which specifies the table name, keyspace name, and list of columns.</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Delete Columns Value

`<cassandra-db:delete-columns-value>`

Deletes values from an object specified by the Where clause

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Entities</strong></p></td><td><div><div><p>Array of String</p></div></div></td><td><div><div><p>The columns to delete</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Where Clause</strong></p></td><td><div><div><p>Object</p></div></div></td><td><div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Delete Rows

`<cassandra-db:delete-rows>`

Deletes an entire record

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Where Clause</strong></p></td><td><div><div><p>Object</p></div></div></td><td><div><div><p>The Where clause for the <strong>Delete</strong> operation</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Drop Column

`<cassandra-db:drop-column>`

Removes a column

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table to use for the operation</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Column Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the column to remove</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Drop Keyspace

`<cassandra-db:drop-keyspace>`

Drops the entire keyspace

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the keyspace to drop</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Drop Table

`<cassandra-db:drop-table>`

Drops an entire table form the specified keyspace or from the keyspace used for login if no keyspace
is specified as an operation parameter.

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table to drop</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to drop</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Execute CQL Query

`<cassandra-db:execute-cql-query>`

Executes the specified raw input query

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Cql Input</strong></p></td><td><div><div><p><a href="#CQLQueryInput">CQL Query Input</a></p></div></div></td><td><div><div><p>CQL query input that describes the parametrized query to execute along with the query parameters</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Target Variable</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Name of the variable in which to store the operation’s output</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Target Value</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Expression that evaluates the operation’s output. The expression outcome is stored in the target variable.</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

#### Output

<table><colgroup><col> <col></colgroup><tbody><tr><td><p>Type</p></td><td><p>Array of Object</p></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Get All Table Names From Keyspace

`<cassandra-db:get-table-names-from-keyspace>`

Returns all table names from the specified keyspace

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the keyspace to use on the operation</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Output Mime Type</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The MIME type of the payload that this operation outputs.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Target Variable</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Name of the variable in which to store the operation’s output</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Target Value</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Expression that evaluates the operation’s output. The expression outcome is stored in the target variable.</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

#### Output

<table><colgroup><col> <col></colgroup><tbody><tr><td><p>Type</p></td><td><p>Array of String</p></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Insert Entity

`<cassandra-db:insert>`

Executes the Insert Entity operation

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table in which to insert the entity</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Entity To Insert</strong></p></td><td><div><div><p>Object</p></div></div></td><td><div><div><p>The entity to insert</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Rename Column

`<cassandra-db:rename-column>`

Renames a column

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table to use for the operation</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to use</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Old Column Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the column to change</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>New Column Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The new name of the column</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Select

`<cassandra-db:select>`

Executes a select query

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Query</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The query to execute</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Parameters</strong></p></td><td><div><div><p>Array of Any</p></div></div></td><td><div><div><p>The query parameters</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Target Variable</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Name of the variable in which to store the operation’s output</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Target Value</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Expression that evaluates the operation’s output. The expression outcome is stored in the target variable.</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

#### Output

<table><colgroup><col> <col></colgroup><tbody><tr><td><p>Type</p></td><td><p>Array of Object</p></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

### Update Entity

`<cassandra-db:update>`

Executes the update entity operation

#### Parameters

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Name</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Configuration</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the configuration to use.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Table</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The name of the table in which to update the entity</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The keyspace that contains the table to drop</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Entity To Update</strong></p></td><td><div><div><p>Object</p></div></div></td><td><div><div><p>The entity to update</p></div></div></td><td><div><div><p>#[payload]</p></div></div></td><td><div></div></td></tr><tr><td><p><strong>Config Ref</strong></p></td><td><div><div><p>ConfigurationProvider</p></div></div></td><td><div><div><p>The name of the configuration to use to execute this component</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Error Mappings</strong></p></td><td><div><div><p>Array of <a href="#ErrorMapping">Error Mapping</a></p></div></div></td><td><div><div><p>Set of error mappings.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>A retry strategy in case of connectivity errors</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### For Configurations

- [Config](#config)

#### Throws

- CASSANDRA-DB:ALREADY\_EXISTS

- CASSANDRA-DB:AUTHENTICATION

- CASSANDRA-DB:BOOTSTRAPPING

- CASSANDRA-DB:BUSY\_CONNECTION

- CASSANDRA-DB:BUSY\_POOL

- CASSANDRA-DB:CASSANDRA\_EXECUTION

- CASSANDRA-DB:CODEC\_NOT\_FOUND

- CASSANDRA-DB:CONNECTION

- CASSANDRA-DB:CONNECTIVITY

- CASSANDRA-DB:DRIVER\_INTERNAL\_ERROR

- CASSANDRA-DB:FRAME\_TOO\_LONG

- CASSANDRA-DB:FUNCTION\_EXECUTION

- CASSANDRA-DB:INVALID\_CONFIGURATION\_IN\_QUERY

- CASSANDRA-DB:INVALID\_QUERY

- CASSANDRA-DB:INVALID\_TLS\_CONFIGURATION

- CASSANDRA-DB:INVALID\_TYPE

- CASSANDRA-DB:NO\_HOST\_AVAILABLE

- CASSANDRA-DB:OPERATION\_TIMED\_OUT

- CASSANDRA-DB:OVERLOADED

- CASSANDRA-DB:PAGING\_STATE

- CASSANDRA-DB:PROTOCOL\_ERROR

- CASSANDRA-DB:QUERY\_CONSISTENCY

- CASSANDRA-DB:QUERY\_ERROR

- CASSANDRA-DB:READ\_FAILURE

- CASSANDRA-DB:READ\_TIMEOUT

- CASSANDRA-DB:RETRY\_EXHAUSTED

- CASSANDRA-DB:SERVER\_ERROR

- CASSANDRA-DB:SYNTAX\_ERROR

- CASSANDRA-DB:TRACE\_RETRIEVAL

- CASSANDRA-DB:TRANSPORT

- CASSANDRA-DB:TRUNCATE

- CASSANDRA-DB:UNAUTHORIZED

- CASSANDRA-DB:UNAVAILABLE

- CASSANDRA-DB:UNPREPARED

- CASSANDRA-DB:UNRESOLVED\_USER\_TYPE

- CASSANDRA-DB:UNSUPPORTED\_FEATURE

- CASSANDRA-DB:UNSUPPORTED\_PROTOCOL\_VERSION

- CASSANDRA-DB:WRITE\_FAILURE

- CASSANDRA-DB:WRITE\_TIMEOUT

## Types

### TLS

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Enabled Protocols</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>A comma-separated list of protocols enabled for this context.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Enabled Cipher Suites</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>A comma-separated list of cipher suites enabled for this context.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Trust Store</strong></p></td><td><div><div><p><a href="#TrustStore">Trust Store</a></p></div></div></td><td><div><div><p>Configures the TLS truststore.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Key Store</strong></p></td><td><div><div><p><a href="#KeyStore">Key Store</a></p></div></div></td><td><div><div><p>Configures the TLS keystore.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Revocation Check</strong></p></td><td><div><div><ul><li><p><a href="#standard-revocation-check">Standard Revocation Check</a></p></li><li><p><a href="#custom-ocsp-responder">Custom Ocsp Responder</a></p></li><li><p><a href="#crl-file">Crl File</a></p></li></ul></div></div></td><td><div><div><p>Configures a revocation checking mechanism.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Trust Store

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Path</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The location (which is resolved relative to the current classpath and file system, if possible) of the trust store.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Password</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The password used to protect the trust store.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Type</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The type of store used.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Algorithm</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The algorithm used by the trust store.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Insecure</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>If true, no certificate validations are performed, rendering connections vulnerable to attacks. Use at your own risk.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Key Store

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Path</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The location (which is resolved relative to the current classpath and file system, if possible) of the keystore.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Type</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The type of store used.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Alias</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>When the keystore contains many private keys, this attribute indicates the alias of the key to use. If not defined, the first key in the file is used by default.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Key Password</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The password used to protect the private key.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Password</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The password used to protect the keystore.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Algorithm</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The algorithm used by the keystore.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Standard Revocation Check

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Only End Entities</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>Only verify the last element of the certificate chain.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Prefer Crls</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>Try CRL instead of OCSP first.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>No Fallback</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>Do not use the secondary checking method (the one not selected before).</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Soft Fail</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>Avoid verification failure when the revocation server cannot be reached or is busy.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Custom Ocsp Responder

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Url</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The URL of the OCSP responder.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Cert Alias</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Alias of the signing certificate for the OCSP response (must be in the trust store), if present.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Crl File

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Path</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>The path to the CRL file.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Reconnection

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Fails Deployment</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>When the application is deployed, a connectivity test is performed on all connectors. If set to true, deployment fails if the test doesn’t pass after exhausting the associated reconnection strategy.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Reconnection Strategy</strong></p></td><td><div><div><ul><li><p><a href="#reconnect">Reconnect</a></p></li><li><p><a href="#reconnect-forever">Reconnect Forever</a></p></li></ul></div></div></td><td><div><div><p>The reconnection strategy to use.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Reconnect

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Frequency</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>How often in milliseconds to reconnect</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Blocking</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>If <code>false</code>, the reconnection strategy runs in a separate, non-blocking thread.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Count</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>How many reconnection attempts to make.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Reconnect Forever

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Frequency</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>How often, in milliseconds, to reconnect</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Blocking</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div><div><p>If <code>false</code>, the reconnection strategy runs in a separate, non-blocking thread.</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Expiration Policy

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Max Idle Time</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div><div><p>A scalar time value for the maximum amount of time a dynamic configuration instance should be allowed to be idle before it’s considered eligible for expiration</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Time Unit</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>NANOSECONDS</p></li><li><p>MICROSECONDS</p></li><li><p>MILLISECONDS</p></li><li><p>SECONDS</p></li><li><p>MINUTES</p></li><li><p>HOURS</p></li><li><p>DAYS</p></li></ul></div></div></td><td><div><div><p>A time unit that qualifies the Max Idle Time attribute</p></div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Alter Column Input

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Column</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Type</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>ASCII</p></li><li><p>BIGINT</p></li><li><p>BLOB</p></li><li><p>BOOLEAN</p></li><li><p>COUNTER</p></li><li><p>DATE</p></li><li><p>DECIMAL</p></li><li><p>DOUBLE</p></li><li><p>FLOAT</p></li><li><p>INET</p></li><li><p>INT</p></li><li><p>SMALLINT</p></li><li><p>TEXT</p></li><li><p>TIME</p></li><li><p>TIMESTAMP</p></li><li><p>TIMEUUID</p></li><li><p>TINYINT</p></li><li><p>UUID</p></li><li><p>VARCHAR</p></li><li><p>VARINT</p></li></ul></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Error Mapping

Maps source error types to custom error types for an operation.

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Source</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>ANY</p></li><li><p>REDELIVERY_EXHAUSTED</p></li><li><p>TRANSFORMATION</p></li><li><p>EXPRESSION</p></li><li><p>SECURITY</p></li><li><p>CLIENT_SECURITY</p></li><li><p>SERVER_SECURITY</p></li><li><p>ROUTING</p></li><li><p>CONNECTIVITY</p></li><li><p>RETRY_EXHAUSTED</p></li><li><p>TIMEOUT</p></li></ul></div></div></td><td><div><div><p>Source error type to map.</p></div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Target</strong></p></td><td><div><div><p>String</p></div></div></td><td><div><div><p>Custom error type to map the source error to.</p></div></div></td><td><div></div></td><td><div><div><p>x</p></div></div></td></tr></tbody></table>

### Create Keyspace Input

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>First Data Center</strong></p></td><td><div><div><p><a href="#DataCenter">Data Center</a></p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Next Data Center</strong></p></td><td><div><div><p><a href="#DataCenter">Data Center</a></p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Replication Factor</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Replication Strategy Class</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>SIMPLE_STRATEGY</p></li><li><p>NETWORK_TOPOLOGY_STRATEGY</p></li></ul></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Data Center

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Value</strong></p></td><td><div><div><p>Number</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Create Table Input

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Columns</strong></p></td><td><div><div><p>Array of <a href="#ColumnInput">Column Input</a></p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Keyspace Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Table Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### Column Input

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Name</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Primary Key</strong></p></td><td><div><div><p>Boolean</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Type</strong></p></td><td><div><div><p>Enumeration, one of:</p></div><div><ul><li><p>ASCII</p></li><li><p>BIGINT</p></li><li><p>BLOB</p></li><li><p>BOOLEAN</p></li><li><p>COUNTER</p></li><li><p>DATE</p></li><li><p>DECIMAL</p></li><li><p>DOUBLE</p></li><li><p>FLOAT</p></li><li><p>INET</p></li><li><p>INT</p></li><li><p>SMALLINT</p></li><li><p>TEXT</p></li><li><p>TIME</p></li><li><p>TIMESTAMP</p></li><li><p>TIMEUUID</p></li><li><p>TINYINT</p></li><li><p>UUID</p></li><li><p>VARCHAR</p></li><li><p>VARINT</p></li></ul></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

### CQL Query Input

<table><colgroup><col> <col> <col> <col> <col></colgroup><thead><tr><th>Field</th><th>Type</th><th>Description</th><th>Default Value</th><th>Required</th></tr></thead><tbody><tr><td><p><strong>Cql Query</strong></p></td><td><div><div><p>String</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr><tr><td><p><strong>Parameters</strong></p></td><td><div><div><p>Array of Any</p></div></div></td><td><div></div></td><td><div></div></td><td><div></div></td></tr></tbody></table>

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=c59a4c0b23914f1af655d10b1ead53b381ae48226dfe25ec416888a23f3bc13c url=/mulesoft/current/en-us/cassandra-connector/latest/cassandra-connector-xml-maven.md -->

---
product: Apache Cassandra Connector
version: 5.0
is-latest-version: true
---

# Apache Cassandra Connector 5.0 XML and Maven Support

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

Although you can manually code a Mule app in XML, it is more efficient to use Anypoint Studio:

If you manually code a Mule runtime engine (Mule) app in XML, either from the Anypoint Studio XML
editor or from a text editor, you can access the connector from your app by adding reference
statements to both your XML Mule flow and the Apache Maven `pom.xml` file.

If you add the connector in Studio, Studio automatically populates the XML code with the connector’s
namespace and schema location and it also adds a dependency to the `pom.xml` file.

## Add a Namespace for the Connector

Paste the following code inside the `<mule>` tag of the header of your configuration XML:

```xml
http://www.mulesoft.org/schema/mule/cassandra-db
http://www.mulesoft.org/schema/mule/cassandra-db/current/mule-cassandra-db.xsd
```

This example shows how the namespace statements are placed in the `<mule>` XML block:

```xml
---
<mule xmlns:cassandra-db="http://www.mulesoft.org/schema/mule/cassandra-db"
	xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
	xmlns:http="http://www.mulesoft.org/schema/mule/http"
	xmlns:file="http://www.mulesoft.org/schema/mule/file"
	xmlns="http://www.mulesoft.org/schema/mule/core"
	xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core
	http://www.mulesoft.org/schema/mule/core/current/mule.xsd
	http://www.mulesoft.org/schema/mule/file
	http://www.mulesoft.org/schema/mule/file/current/mule-file.xsd
	http://www.mulesoft.org/schema/mule/http
	http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
	http://www.mulesoft.org/schema/mule/ee/core
	http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd
  http://www.mulesoft.org/schema/mule/cassandra-db
  http://www.mulesoft.org/schema/mule/cassandra-db/current/mule-cassandra-db.xsd>
---
```

## Add a POM File Dependency

The Apache Maven `pom.xml` file generated by Anypoint Studio contains dependencies for a Mule app.
If you code a Mule app manually, include this XML snippet in your `pom.xml` file to enable access to
this connector:

```xml
<dependency>
  <groupId>com.mulesoft.connectors</groupId>
  <artifactId>mule-cassandradb-connector</artifactId>
  <version>x.x.x</version>
  <classifier>mule-plugin</classifier>
</dependency>
```

Replace `x.x.x` with the version that corresponds to the connector you are using.

To obtain the most up-to-date `pom.xml` file information:

1.  Go to [Anypoint Exchange](https://www.mulesoft.com/exchange/).

2.  In Exchange, click **Login** and supply your Anypoint Platform username and password.

3.  In Exchange, search for `cassandra`.

4.  Select the connector.

5.  Click **Dependency Snippets** near the upper right of the screen.

## Next Step

After completing your namespace and `pom.xml` file, you can try the
[Examples](https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-examples).

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=054fbea15248eacdacefb309de274a8d9328f5a67336a3224aa3a55796fc038e url=/mulesoft/current/en-us/cassandra-connector/4.1/cassandra-connector-troubleshooting.md -->

---
product: Apache Cassandra Connector
version: 4.1
---

# Troubleshooting Cassandra Connector

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

To troubleshoot Apache Cassandra (Apache Cassandra Connector), become familiar with the information
about enabling verbose logging and interpreting commonly thrown messages.

## Enable Verbose Logging

To get a better understanding of why an application’s interaction with Cassandra Connector is
failing, temporarily enable verbose logging for the module.

Remember to always disable the enhanced verbosity after troubleshooting, because it affects your
Mule application performance.

To enable verbose logging in the configuration file:

1.  Access Anypoint Studio and navigate to the **Package Explorer** view.

2.  Open your application’s project name.

3.  Open the `src/main/resources` path folder.

4.  Open the `log4j2.xml` file inside the folder.

5.  Add an `<AsyncLogger>` tag inside the `<Loggers>` tag:

    ```xml
    			<Loggers>
    				...
    				<AsyncLogger name="org.mule.extension.cassandradb" level="DEBUG"/>
    				<AsyncLogger name="org.apache.commons.cassandradb" level="DEBUG"/>
    				...
    			</Loggers>
    ```

6.  Save your application changes.

7.  Click the project name in **Package Explorer** and then click **Run** > **Run As** > **Mule
    Application**.

## Troubleshoot Prepared Statement Cache Size

If you receive the following warning message when running your Mule application:

---

WARN com.datastax.driver.core.Cluster \[Test-Cluster-worker-23\] Re-preparing already prepared query
is generally an anti-pattern and will likely affect performance. Consider preparing the statement
only once. ---

To avoid the previous message, increase the value of the **Prepared Statement Cache Size**
parameter, which enables you to set the cache size for prepared statements. Set a value with at
least the number of different statements that you handle in your Mule application.

## See Also

- [Salesforce Help](https://help.salesforce.com)

- [Known Issues](https://help.salesforce.com/s/issues)

<!-- document id=d32040f718bd2bac5f36dece1ff0466a73e8d9b3e5d3fc440822cc7f06d52ba7 url=/mulesoft/current/en-us/cassandra-connector/latest/cassandra-connector-troubleshooting.md -->

---
product: Apache Cassandra Connector
version: 5.0
is-latest-version: true
---

# Troubleshooting Cassandra Connector

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

To troubleshoot Apache Cassandra (Apache Cassandra Connector), become familiar with the information
about enabling verbose logging and interpreting commonly thrown messages.

## Enable Verbose Logging

To get a better understanding of why an application’s interaction with Cassandra Connector is
failing, temporarily enable verbose logging for the module.

Remember to always disable the enhanced verbosity after troubleshooting, because it affects your
Mule application performance.

To enable verbose logging in the configuration file:

1.  Access Anypoint Studio and navigate to the **Package Explorer** view.

2.  Open your application’s project name.

3.  Open the `src/main/resources` path folder.

4.  Open the `log4j2.xml` file inside the folder.

5.  Add an `<AsyncLogger>` tag inside the `<Loggers>` tag:

    ```xml
    			<Loggers>
    				...
    				<AsyncLogger name="com.mulesoft.connector.cassandradb" level="DEBUG"/>
    				<AsyncLogger name="com.datastax.oss.driver" level="DEBUG"/>
    				...
    			</Loggers>
    ```

6.  Save your application changes.

7.  Click the project name in **Package Explorer** and then click **Run** > **Run As** > **Mule
    Application**.

## Troubleshoot Prepared Statements Cache Size

If you receive the following warning message when running your Mule application:

---

WARN com.datastax.oss.driver Re-preparing already prepared query is generally an anti-pattern and
will likely affect performance. Consider preparing the statement only once. ---

To avoid the previous message, increase the value of the
[**Prepared Statements Cache Size**](https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-reference#config_connection) field. Set a
value with at least the number of different statements that you handle in your Mule application.

## See Also

- [Salesforce Help](https://help.salesforce.com)

- [Known Issues](https://help.salesforce.com/s/issues)

<!-- document id=8d79a69c645d0637b2c1356406f00668600c5900425a98697f91800e19495521 url=/mulesoft/current/en-us/cassandra-connector/latest/cassandra-connector-upgrade-migrate.md -->

---
product: Apache Cassandra Connector
version: 5.0
is-latest-version: true
---

# Upgrading and Migrating Cassandra Connector to 5.x

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

Upgrade Anypoint Connector for Apache Cassandra (Apache Cassandra Connector) from version 4.x to
version 5.x.

## Supported Upgrade Paths

<table><colgroup><col> <col></colgroup><thead><tr><th>From Version</th><th>To Version</th></tr></thead><tbody><tr><td><div><div><p>4.x</p></div></div></td><td><div><div><p>5.x</p></div></div></td></tr></tbody></table>

## Changes

### 5.0

- This connector now supports Apache Cassandra 5.x. The connector now uses DataStax Java Driver
  4.17.0.

- The [**Cassandra Cluster Name**](https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-reference#config_connection) field is removed
  from Studio. It no longer appears on the **General** or **Advanced Settings** tab. Applications
  that still set `clusterName` on `cassandra-db:connection` fail to deploy. Delete the attribute.
  Contact points and [**Cassandra Cluster Nodes**](https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-reference#config_connection)
  still select the cluster.

- The new [**Local Datacenter**](https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-reference#config_connection) field is on the
  **Advanced Settings** tab. It sets the local datacenter for the driver’s load-balancing policy.
  Set this field when contact points don’t share one datacenter, such as in a multi-DC cluster. You
  can omit it for single-DC clusters.

- The new [**Request Timeout (ms)**](https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-reference#config_connection) field is on
  the **Advanced Settings** tab. It sets the per-request timeout for CQL operations. The default is
  `12000` milliseconds, which preserves the 12-second deadline from version 4.1.

- On Apache Cassandra 5.x, the
  [**Change Column Type**](https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-reference#changeColumnType) operation fails because
  Cassandra no longer supports altering column types. Add a new column, backfill the data, then drop
  the old column.

- TLS configuration now applies to the driver. The default
  [**Endpoint identification algorithm**](https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-reference#config_connection) is
  `DISABLED`. If your XML still sets `HTTPS` or `LDAPS`, version 5.0 validates the server
  certificate against the host.

- Don’t select native protocol `V1` or `V2`. Those values fail at application initialization. Leave
  [**Protocol Version**](https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-reference#config_connection) unset to let the driver
  negotiate, including native protocol V5 on Apache Cassandra 5.x.

- These libraries are upgraded to address reported security vulnerabilities:

  - The `jackson-core` and `jackson-databind` libraries are upgraded to version 2.22.2.

  - The `netty-codec` library is upgraded to version 4.2.0.Final.

  - The `netty-handler` library is upgraded to version 4.1.137.Final.

  - The `guava` library is upgraded to version 32.1.3-jre.

  - The `jnr-posix` library is upgraded to version 3.2.2.

  - The `commons-lang3` library is upgraded to version 3.20.0.

  - The `commons-collections4` library is upgraded to version 4.6.0.

## Requirements

Ensure your system meets the following compatibility requirements before you perform the upgrade:

<table><colgroup><col> <col></colgroup><thead><tr><th>Application/Service</th><th>Version</th></tr></thead><tbody><tr><td><p>Mule runtime</p></td><td><p>4.6.0 and later</p></td></tr><tr><td><p>Java</p></td><td><p>8, 11, and 17</p></td></tr><tr><td><p>Apache Cassandra</p></td><td><p>5.x</p></td></tr><tr><td><p>DataStax Java Driver</p></td><td><p>4.17.0</p></td></tr></tbody></table>

Mule versions 4.1 through 4.5 aren’t supported. Applications on these versions must remain on Apache
Cassandra Connector 4.1.x.

## Upgrade Prerequisites

Before you perform the upgrade, you must:

1.  Create a backup of your files, data, and configuration in case you need to restore to the
    previous version.

2.  Ensure that your environment meets the version 5.x requirements, including Mule 4.6.0 or later.

3.  Delete `clusterName` from every `cassandra-db:connection` element. If the attribute remains, the
    app fails to deploy.

4.  Set **Local Datacenter** on the **Advanced Settings** tab when the cluster is multi-DC or
    contact points don’t share one datacenter.

5.  Review `tls:context`. The default hostname validation is `DISABLED`. If XML still has `HTTPS` or
    `LDAPS`, version 5.0 validates the certificate against the host.

6.  Leave **Protocol Version** unset, or select `V3` or `V4`. Don’t select `V1` or `V2`.

## Upgrade Steps

Follow these steps to perform the upgrade from Apache Cassandra Connector 4.x to Apache Cassandra
Connector 5.x:

1.  In Anypoint Studio, create a Mule project.

2.  In the Mule Palette view, click **Search in Exchange**.

3.  In the **Add Dependencies to Project** window, enter `cassandra` in the search field.

4.  In the **Available modules** section, select **Cassandra** and click **Add**.

5.  Click **Finish**.

6.  Verify that the Cassandra Connector dependency version is `5.x.x` in the `pom.xml` file, where
    `x.x` is the minor release and patch version number. For example, if you are upgrading to v5.0,
    the dependency version in the `pom.xml` file should be `5.0.0`.

Studio upgrades the connector automatically.

## Verify the Upgrade

After you install the latest version of the connector, follow these steps to verify the upgrade:

1.  In Studio, verify that there are no errors in the **Problems** or **Console** views.

2.  Check the project `pom.xml` file and verify that there are no problems.

3.  Test the connection and verify that the operations work.

## Troubleshooting

If the app fails to deploy, check `cassandra-db:connection` for a `clusterName` attribute and delete
it.

If the app fails to deploy with an `InitialisationException` that native protocol `V1` or `V2` is no
longer supported, leave **Protocol Version** unset, or select `V3` or `V4`.

If the connection fails against a multi-DC cluster, set **Local Datacenter** on the **Advanced
Settings** tab to the datacenter that contains your contact points.

If **Change Column Type** fails with `Altering column types is no longer supported`, you are
connected to Apache Cassandra 5.x. Add a new column, backfill the data, then drop the old column.

If the TLS handshake fails, the certificate might not match the host. Set **Endpoint identification
algorithm** to `DISABLED`, or update the server certificate.

## Revert the Upgrade

If it is necessary to revert to the previous version of Apache Cassandra Connector, change the
Cassandra Connector dependency version in the project’s `pom.xml` file to the previous version.

You must update the project’s `pom.xml` file in Anypoint Studio.

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=037b8e0ccd59cb7dbd0d4cdf97a20a136c7cd808f4aeb6cbc126d5be9508a8dd url=/mulesoft/current/en-us/cassandra-connector/4.1/cassandra-connector-upgrade-migrate.md -->

---
product: Apache Cassandra Connector
version: 4.1
---

# Upgrading and Migrating Cassandra Connector to Version 4.x

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

Upgrade Cassandra Connector to version 4.x to use mutual TLS authentication.

## Supported Upgrade Paths

<table><colgroup><col> <col></colgroup><thead><tr><th>From Version</th><th>To Version</th></tr></thead><tbody><tr><td><div><div><p>3.x</p></div></div></td><td><div><div><p>4.x</p></div></div></td></tr></tbody></table>

## New Features in This Release

This release supports Mutual TLS authentication.

## Changes in This Release

This release contains the following changes:

- Removed the **SSL** field from the configuration and replaced it with **TLS**

- Refactored error handling and error types

## Upgrade Prerequisites

Before you perform the upgrade, create a backup of your files, data, and configurations in case you
need to restore to them.

## Upgrade Steps

Follow these steps to perform the upgrade:

1.  In Anypoint Studio, create a Mule project.

2.  In the **Mule Palette** view, click **Search in Exchange**.

3.  In **Add Dependencies to Project**, enter `cassandra` in the search field.

4.  In **Available modules**, select **Cassandra** and click **Add**.

5.  Click **Finish**.

6.  Verify that the Cassandra Connector dependency version is `<4.0.0>` in the `pom.xml` file in the
    Mule project.

Studio upgrades the connector automatically.

### Verify the Upgrade

After you install the latest version of the connector, follow these steps to verify the upgrade:

1.  In Studio, verify that there are no errors in the **Problems** or **Console** views.

2.  Verify that there are no problems in the project `pom.xml` file.

3.  Test the connection to verify that the operations work.

## Revert the upgrade

If it is necessary to revert to the previous version of Cassandra Connector, change the
`cassandra-connector` dependency version in the project’s `pom.xml` file to the previous version.

You must update the project’s `pom.xml` file in Anypoint Studio.

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=609c64ad1831290a8e6148ca015e45b0f6963b4cfed3ae1b1875b3b11b5f2e69 url=/mulesoft/current/en-us/cassandra-connector/4.1/cassandra-connector-studio.md -->

---
product: Apache Cassandra Connector
version: 4.1
---

# Using Anypoint Studio to Configure Apache Cassandra Connector 4.1

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

Anypoint Studio (Studio) editors help you design and update your Mule applications, properties, and
configuration files.

To add and configure a connector in Studio:

- [Create a Mule project](#create-mule-project).

- [Add the connector to your Mule project](#add-connector-to-project).

- [Configure a source for the connector’s flow](#configure-input-source).

- [Add a connector operation to the flow](#add-connector-operation).

- [Configure a global element for the connector](#configure-global-element).

- [Configure the other connector fields](#configure-other-fields).

When you run the connector, you can view the app log to check for problems, as described in
[View the App Log](#view-app-log).

If you are new to configuring connectors in Studio, see
[Using Anypoint Studio to Configure a Connector](https://docs.mulesoft.com/connectors/introduction/intro-config-use-studio).
If, after reading this topic, you need additional information about the connector fields, see the
[Reference](https://docs.mulesoft.com/cassandra-connector/4.1/cassandra-connector-reference).

## Create a Mule Project

In Studio, create a new Mule project in which to add and configure the connector:

1.  In Studio, select **File > New > Mule Project**.

2.  Enter a name for your Mule project and click **Finish**.

## Add the Connector to Your Mule Project

Add Apache Cassandra Connector to your Mule project to automatically populate the XML code with the
connector’s namespace and schema location and to add the required dependencies to the project’s
`pom.xml` file:

1.  In the **Mule Palette** view, click **(X) Search in Exchange**.

2.  In the **Add Dependencies to Project** window, type `cassandra` in the search field.

3.  Click **CassandraDB** in **Available modules**.

4.  Click **Add**.

5.  Click **Finish**.

Adding a connector to a Mule project in Studio does not make that connector available to other
projects in your Studio workspace.

## Configure a Source

A source initiates a flow when a specified condition is met. You can configure one of these sources
to use with Apache Cassandra Connector:

- **HTTP Listener**

  Initiates a flow each time it receives a request on the configured host and port

- **Scheduler**

  Initiates a flow when a time-based condition is met

For example, to configure an HTTP listener, follow these steps:

1.  In the **Mule Palette** view, select **HTTP > Listener**.

2.  Drag **Listener** to the Studio canvas.

3.  On the **Listener** configuration screen, optionally change the value of the **Display Name**
    field.

4.  Specify a value for the **Path** field.

5.  Click the plus sign (**+**) next to the **Connector configuration** field to configure a global
    element that can be used by all instances of the HTTP listener in the app.

6.  On the **General** tab, specify the connection information for the listener.

7.  On the **TLS** tab, optionally specify the TLS information for the listener.

8.  On the **Advanced** tab, optionally specify reconnection information, including a reconnection
    strategy.

9.  Click **Test Connection** to confirm that Mule can connect with the specified server.

10. Click **OK**.

## Add a Connector Operation to the Flow

When you add a connector operation to your flow, you immediately define a specific operation for
that connector to perform.

To add an operation for Apache Cassandra Connector, follow these steps:

1.  In the **Mule Palette** view, select **CassandraDB** and then select the desired operation.

2.  Drag the operation onto the Studio canvas and to the right of the source.

## Configure a Global Element for the Connector

When you configure a connector, it’s best to configure a global element that all instances of that
connector in the app can use. If an Apache Cassandra database has authentication enabled, you must
provide credentials when accessing it from the connector. Apache Cassandra supports basic
authentication only. To provide credentials to an Apache Cassandra database, enter the corresponding
values in the Apache Cassandra Connector global element.

To configure the global element for Apache Cassandra Connector, follow these steps:

1.  Select the operation in the Studio canvas.

2.  In the configuration screen for the operation, click the plus sign (**+**) next to the
    **Connector configuration** field to access the global element configuration fields.

3.  On the **General** tab, complete the following fields:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Description</th></tr></thead><tbody><tr><td><p><strong>Host</strong></p></td><td><div><div><p>Host name, or IP address of an Apache Cassandra node</p></div></div></td></tr><tr><td><p><strong>Port</strong></p></td><td><div><div><p>Port number. The default port is <code>9042</code>.</p></div></div></td></tr></tbody></table>

    If the target database has authentication enabled, you must also complete these fields:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Description</th></tr></thead><tbody><tr><td><p><strong>Keyspace</strong></p></td><td><div><div><p>Apache Cassandra keyspace</p></div></div></td></tr><tr><td><p><strong>Username</strong></p></td><td><div><div><p>Apache Cassandra user name</p></div></div></td></tr><tr><td><p><strong>Password</strong></p></td><td><div><div><p>Apache Cassandra password</p></div></div></td></tr></tbody></table>

    You can reference a configuration file that contains ANT-style property placeholders
    (recommended), or you can enter your authorization credentials in the global configuration
    properties. For information about the benefits of using property placeholders and how to
    configure them, see
    [Anypoint Connector Configuration](https://docs.mulesoft.com/connectors/introduction/intro-connector-configuration-overview).

4.  On the **Advanced** tab, optionally specify reconnection information, including a reconnection
    strategy.

5.  Optionally, configure a connection that uses Mutual TLS by completing these fields on the
    Security tab:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Description</th></tr></thead><tbody><tr><td><p><strong>Endpoint Identification Algorithm</strong></p></td><td><div><div><p>The endpoint identification algorithm used by clients to validate server host name. The default value is an empty string, which means it is disabled. Clients, including client connections created by the broker for inter-broker communication, verify that the broker host name matches the host name in the brokers certificate.</p></div></div></td></tr><tr><td><p><strong>TLS Configuration</strong></p></td><td><div><div><p>Defines a configuration for TLS, which can be used from both the client and server sides to secure communication for the Mule app. When using the HTTPS protocol, the HTTP communication is secured using TLS or SSL. If HTTPS is configured as the protocol then, at a minimum, the user must configure the keystore in the <code>tls:context</code> child element of the <code>listener-config</code>.</p></div></div></td></tr></tbody></table>

6.  Click **Test Connection** to confirm that Mule can connect with the specified server.

7.  Click **OK**.

## Configure Additional Connector Fields

After you configure a global element for Apache Cassandra Connector, configure the other required
fields for the connector. The required fields vary depending on which connector operation you use.

## View the App Log

To check for problems, you can view the app log as follows:

- If you’re running the app from Anypoint Platform, the output is visible in the Anypoint Studio
  console window.

- If you’re running the app using Mule from the command line, the app log is visible in your OS
  console.

Unless the log file path is customized in the app’s log file (`log4j2.xml`), you can also view the
app log in the default location `MULE_HOME/logs/<app-name>.log`.

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Salesforce Help](https://help.salesforce.com)

<!-- document id=f19a6fa27cc55a8086be87a1999b048a3a8c33287ba6cac469e7308af771b680 url=/mulesoft/current/en-us/cassandra-connector/latest/cassandra-connector-studio.md -->

---
product: Apache Cassandra Connector
version: 5.0
is-latest-version: true
---

# Using Anypoint Studio to Configure Apache Cassandra Connector 5.0

> For the full documentation index, see: https://docs.mulesoft.com/llms.txt

Anypoint Studio (Studio) editors help you design and update your Mule applications, properties, and
configuration files.

To add and configure a connector in Studio:

- [Create a Mule project](#create-mule-project).

- [Add the connector to your Mule project](#add-connector-to-project).

- [Configure a source for the connector’s flow](#configure-input-source).

- [Add a connector operation to the flow](#add-connector-operation).

- [Configure a global element for the connector](#configure-global-element).

- [Configure the other connector fields](#configure-other-fields).

When you run the connector, you can view the app log to check for problems, as described in
[View the App Log](#view-app-log).

If you are new to configuring connectors in Studio, see
[Using Anypoint Studio to Configure a Connector](https://docs.mulesoft.com/connectors/introduction/intro-config-use-studio).
If, after reading this topic, you need additional information about the connector fields, see the
[Reference](https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-reference).

## Create a Mule Project

In Studio, create a new Mule project in which to add and configure the connector:

1.  In Studio, select **File > New > Mule Project**.

2.  Enter a name for your Mule project and click **Finish**.

## Add the Connector to Your Mule Project

Add Apache Cassandra Connector to your Mule project to automatically populate the XML code with the
connector’s namespace and schema location and to add the required dependencies to the project’s
`pom.xml` file:

1.  In the **Mule Palette** view, click **(X) Search in Exchange**.

2.  In the **Add Dependencies to Project** window, type `cassandra` in the search field.

3.  Click **CassandraDB** in **Available modules**.

4.  Click **Add**.

5.  Click **Finish**.

Adding a connector to a Mule project in Studio does not make that connector available to other
projects in your Studio workspace.

## Configure a Source

A source initiates a flow when a specified condition is met. You can configure one of these sources
to use with Apache Cassandra Connector:

- **HTTP Listener**

  Initiates a flow each time it receives a request on the configured host and port

- **Scheduler**

  Initiates a flow when a time-based condition is met

For example, to configure an HTTP listener, follow these steps:

1.  In the **Mule Palette** view, select **HTTP > Listener**.

2.  Drag **Listener** to the Studio canvas.

3.  On the **Listener** configuration screen, optionally change the value of the **Display Name**
    field.

4.  Specify a value for the **Path** field.

5.  Click the plus sign (**+**) next to the **Connector configuration** field to configure a global
    element that can be used by all instances of the HTTP listener in the app.

6.  On the **General** tab, specify the connection information for the listener.

7.  On the **TLS** tab, optionally specify the TLS information for the listener.

8.  On the **Advanced** tab, optionally specify reconnection information, including a reconnection
    strategy.

9.  Click **Test Connection** to confirm that Mule can connect with the specified server.

10. Click **OK**.

## Add a Connector Operation to the Flow

When you add a connector operation to your flow, you immediately define a specific operation for
that connector to perform.

To add an operation for Apache Cassandra Connector, follow these steps:

1.  In the **Mule Palette** view, select **CassandraDB** and then select the desired operation.

2.  Drag the operation onto the Studio canvas and to the right of the source.

## Configure a Global Element for the Connector

When you configure a connector, it’s best to configure a global element that all instances of that
connector in the app can use. If an Apache Cassandra database has authentication enabled, you must
provide credentials when accessing it from the connector. Apache Cassandra supports basic
authentication only. To provide credentials to an Apache Cassandra database, enter the corresponding
values in the Apache Cassandra Connector global element.

To configure the global element for Apache Cassandra Connector, follow these steps:

1.  Select the operation in the Studio canvas.

2.  In the configuration screen for the operation, click the plus sign (**+**) next to the
    **Connector configuration** field to access the global element configuration fields.

3.  On the **General** tab, complete the following fields:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Description</th></tr></thead><tbody><tr><td><p><strong><strong>Host</strong></strong></p></td><td><div><div><p>Host name or IP address of an Apache Cassandra node</p></div></div></td></tr><tr><td><p><strong><strong>Port</strong></strong></p></td><td><div><div><p>Port number. The default port is <code>9042</code>.</p></div></div></td></tr></tbody></table>

    If the target database has authentication enabled, you must also complete these fields:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Description</th></tr></thead><tbody><tr><td><p><strong><strong>Cassandra Keyspace</strong></strong></p></td><td><div><div><p>Apache Cassandra keyspace</p></div></div></td></tr><tr><td><p><strong><strong>Username</strong></strong></p></td><td><div><div><p>Username for authentication</p></div></div></td></tr><tr><td><p><strong><strong>Password</strong></strong></p></td><td><div><div><p>Password for authentication</p></div></div></td></tr></tbody></table>

    You can reference a configuration file that contains ANT-style property placeholders
    (recommended), or you can enter your authorization credentials in the global configuration
    properties. For information about the benefits of using property placeholders and how to
    configure them, see
    [Anypoint Connector Configuration](https://docs.mulesoft.com/connectors/introduction/intro-connector-configuration-overview).

4.  On the **Advanced Settings** tab, complete these fields when required:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Description</th></tr></thead><tbody><tr><td><p><strong><strong>Cassandra Cluster Nodes</strong></strong></p></td><td><div><div><p>Contact points that select the cluster.</p></div></div></td></tr><tr><td><p><strong><strong>Protocol Version</strong></strong></p></td><td><div><div><p>Native protocol version that the driver uses. Don’t select <code>V1</code> or <code>V2</code>. Leave this field unset to let the driver negotiate, including native protocol V5 on Apache Cassandra 5.x. See <a href="https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-config-topics#configure-protocol-version">Configure the Protocol Version</a>.</p></div></div></td></tr><tr><td><p><strong><strong>Request Timeout (ms)</strong></strong></p></td><td><div><div><p>Per-request timeout for CQL operations, in milliseconds. The default is <code>12000</code>. See <a href="https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-config-topics#configure-request-timeout">Configure the Request Timeout</a>.</p></div></div></td></tr><tr><td><p><strong><strong>Local Datacenter</strong></strong></p></td><td><div><div><p>Local datacenter for the driver’s load-balancing policy. Set this field when contact points don’t share one datacenter, such as in a multi-DC cluster. You can omit it for single-DC clusters. See <a href="https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-config-topics#configure-local-datacenter">Configure the Local Datacenter</a>.</p></div></div></td></tr></tbody></table>

    The **Advanced Settings** tab also includes **Max Schema Agreement Wait Seconds**,
    **Compression**, and **Prepared Statements Cache Size**. For field details, see
    [Connection](https://docs.mulesoft.com/cassandra-connector/latest/cassandra-connector-reference#config_connection).

5.  Optionally, configure a connection that uses TLS by completing these fields on the **Security**
    tab:

    <table><colgroup><col> <col></colgroup><thead><tr><th>Field</th><th>Description</th></tr></thead><tbody><tr><td><p><strong><strong>Endpoint identification algorithm</strong></strong></p></td><td><div><div><p>Algorithm that clients use to validate the server host name against the server certificate. The default is <code>DISABLED</code>. Set <code>HTTPS</code> or <code>LDAPS</code> to require the certificate to match the host.</p></div></div></td></tr><tr><td><p><strong><strong>TLS Configuration</strong></strong></p></td><td><div><div><p>TLS context for the Cassandra connection. Version 5.0 applies the keystore, truststore, and hostname validation settings to the driver.</p></div></div></td></tr></tbody></table>

6.  On the **Advanced** tab, optionally specify reconnection information, including a reconnection
    strategy.

7.  Click **Test Connection** to confirm that Mule can connect with the specified server.

8.  Click **OK**.

## Configure Additional Connector Fields

After you configure a global element for Apache Cassandra Connector, configure the other required
fields for the connector. The required fields vary depending on which connector operation you use.

## View the App Log

To check for problems, you can view the app log as follows:

- If you’re running the app from Anypoint Platform, the output is visible in the Anypoint Studio
  console window.

- If you’re running the app using Mule from the command line, the app log is visible in your OS
  console.

Unless the log file path is customized in the app’s log file (`log4j2.xml`), you can also view the
app log in the default location `MULE_HOME/logs/<app-name>.log`.

## See Also

- [Introduction to Anypoint Connectors](https://docs.mulesoft.com/connectors/introduction/introduction-to-anypoint-connectors)

- [Salesforce Help](https://help.salesforce.com)
