Create a Try-Catch Block Example

An Integration Procedure creates and deletes a Contact with the specified LastName and returns an error message if the LastName is blank.

The Integration Procedure has these components:

• A Try-Catch Block, named TryCatchBlock1

• An Omnistudio Data Mapper Post Action, named DRPostAction1

• A Delete Action, named DeleteAction1

• A Response Action, named ResponseAction1

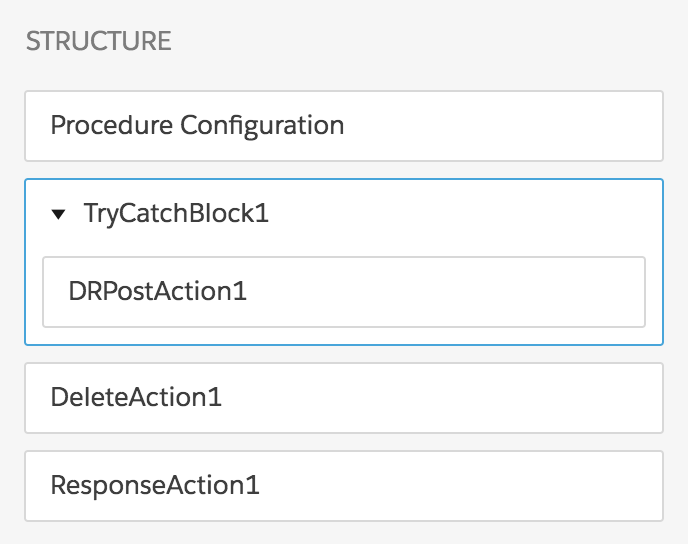

The Structure panel looks like this:

To build this Integration Procedure:

1. From the Omnistudio Integration Procedures tab, click New.
2. Provide an Integration Procedure Name, a Type, and a SubType, and click Save.
3. Drag a Try-Catch Block into the Structure panel and give it the following settings:

   1. Under Failure Response, click Add Key/Value Pair. Set the Key to failureResponse and the Value to You must provide a last name.

   2. Make sure the Fail on Block Error checkbox is checked.

4. Create the Data Mapper Load that the Data Mapper Post Action component calls:

   1. Give it a Data Mapper Interface Name of CreateContact and an Interface Type of Load.

   2. On the Objects tab, click Add Object and select Contact.

   3. On the Fields tab, click the + icon and enter LastName as both the Input JSON Path and the Domain Object Field.

   If you aren't sure how to create a Data Mapper Load, see the examples in Omnistudio Data Mapper Load Examples.

5. Drag a Data Mapper Post Action component into the Try-Catch Block and give it the following settings:
   1. Set the Element Name to DRPostAction1.

   2. Set the Data Mapper Interface to CreateContact.

   3. Make sure the Fail on Step Error checkbox is checked.

6. Drag a Delete Action component after the Try-Catch Block. Under Delete SObject, set the Type to Contact and the Path To Id to %DRPostAction1:Contact_1:Id%.
7. Drag a Response Action into the Structure panel as the last component and check the Return Full Data JSON checkbox.
8. Go to the Preview tab and test the Integration Procedure:

   1. Under Input Parameters, click Add New Key/Value Pair.

   2. Set the Key to LastName and the Value to any name you like.

   3. Click Execute.

   The output should look something like this:

   {
     "response": {},
     "ResponseAction1Status": true,
     "DeleteAction1": [
       {
         "errors": [],
         "success": true,
         "id": "0034N00001rNgqqQAC"
       }
     ],
     "DeleteAction1Status": true,
     "TryCatchBlock1": null,
     "TryCatchBlock1Status": true,
     "DRPostAction1": {
       "ActualTime": 626,
       "CpuTime": 345,
       "Contact_1": [
         {
           "UpsertSuccess": true,
           "Id": "0034N00001rNgqqQAC",
           "LastName": "Aristotle"
         }
       ],
       "error": "OK",
       "responseType": "SObject"
     },
     "DRPostAction1Status": true,
     "options": {
       "queueableChainable": false,
       "ignoreCache": true,
       "resetCache": false,
       "chainable": false
     },
     "LastName": "Aristotle"
   }


9. Make the Value blank and click Execute again. The output should look something like this:

   {
     "result": {
       "failureResponse": "You must provide a last name."
     },
     "success": false
   }
