Configure node properties to show accounts that are contained within a parent account. For example, a parent company account can have a group relationship with one or more subsidiary accounts. The relationship (association type) is account-account relationship (group).
Required Editions
| Available in: Lightning Experience |
| Available in: Professional, Enterprise, and Unlimited Editions |
| User Permissions Needed | |
|---|---|
| To create an ARC Relationship Graph: |
Financial Services Cloud Extension OR FSC Sales AND Customize Application |
- From Setup, in the Quick Find box, enter Actionable Relationship Center, and then select Actionable Relationship Center.
-
Click New Relationship Graph or edit an existing graph.
Important The Root Node object must be Account to configure the Group Relationship Node. - Click the plus icon to add a child node.
-

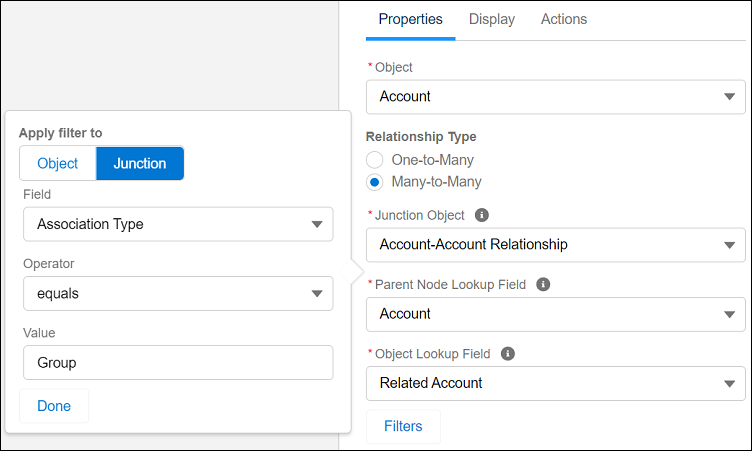

On the Properties tab, configure the node properties as follows:
Field Name Field Value Object Account Relationship Type Many-to-Many Junction Object Account-Account Relationship Parent Node Lookup Field Account Object Lookup Field Related-Account -
Click Filter and define the following filter criteria:
Field Name Field Value Apply filter to Junction Field Association Type Operator equals Value Group
- Click Done. Configure the node Display and Actions tabs.
- Save your graph.
