Program Management Console FlexCards

Learn what OmniStudio FlexCards are used in Program Management Console.

To see the list of OmniStudio FlexCards used in Program Management Console, from the App Launcher, go to OmniStudio FlexCards. Then, in the Find in page box, enter EnergyUtilitiesPMC.

When you need to customize the FlexCards, you can refer to these detailed descriptions of each FlexCard and the elements used.

Program Name

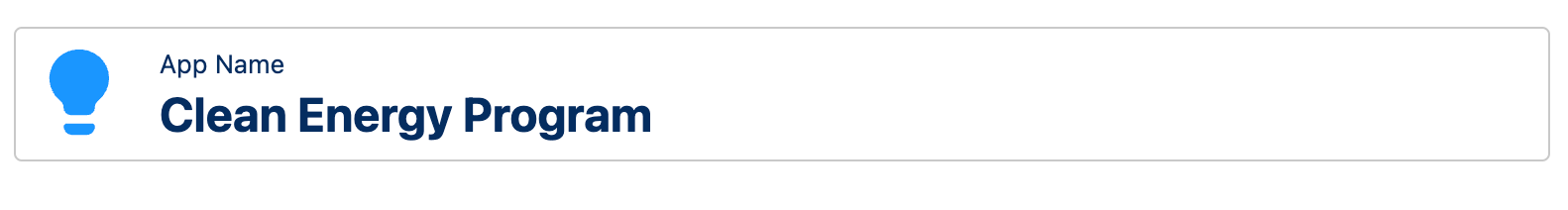

Program Name FlexCard

FlexCard Data Source
EnergyUtilitiesPMCApplicationNameHeader None

Program Summary

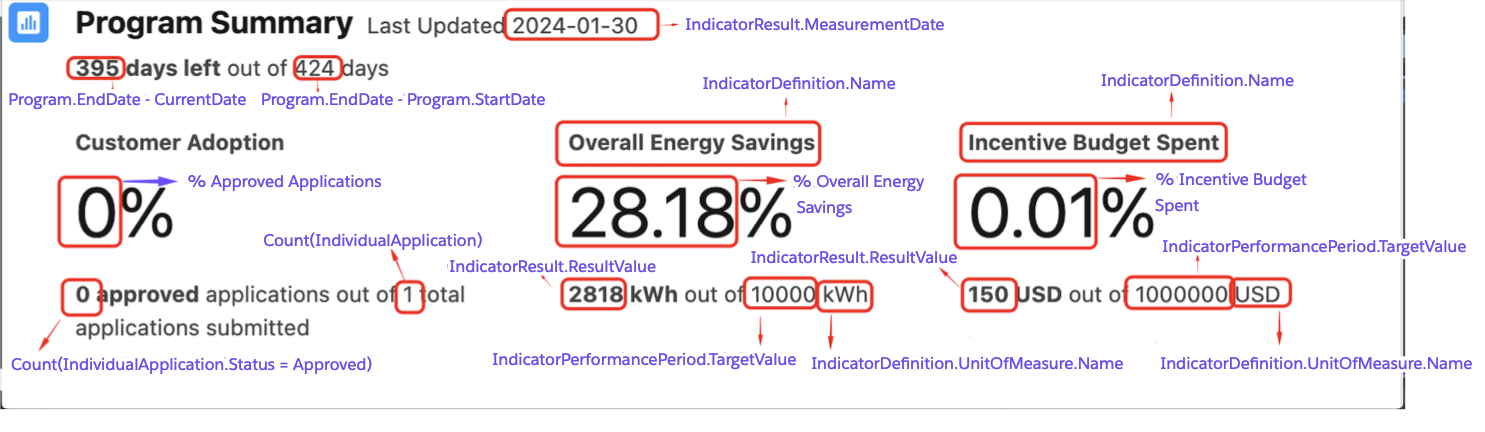

Program Summary FlexCard

Note
Note Program Summary, Application Status, and Overall Energy Savings are within the container FlexCard: EnergyUtilitiesPMCMainContainer.
Parent FlexCard Child FlexCards Data Source

EnergyUtilitiesPMCProgramSummary

EnergyUtilitiesPMCDaysLeft

EnergyUtilitiesPMCApplicationMetrics

EnergyUtilitiesPMCIndicator

Integration Procedure: EnergyUtilitiesPMC_RetrieveDashboardData

Application Status Chart

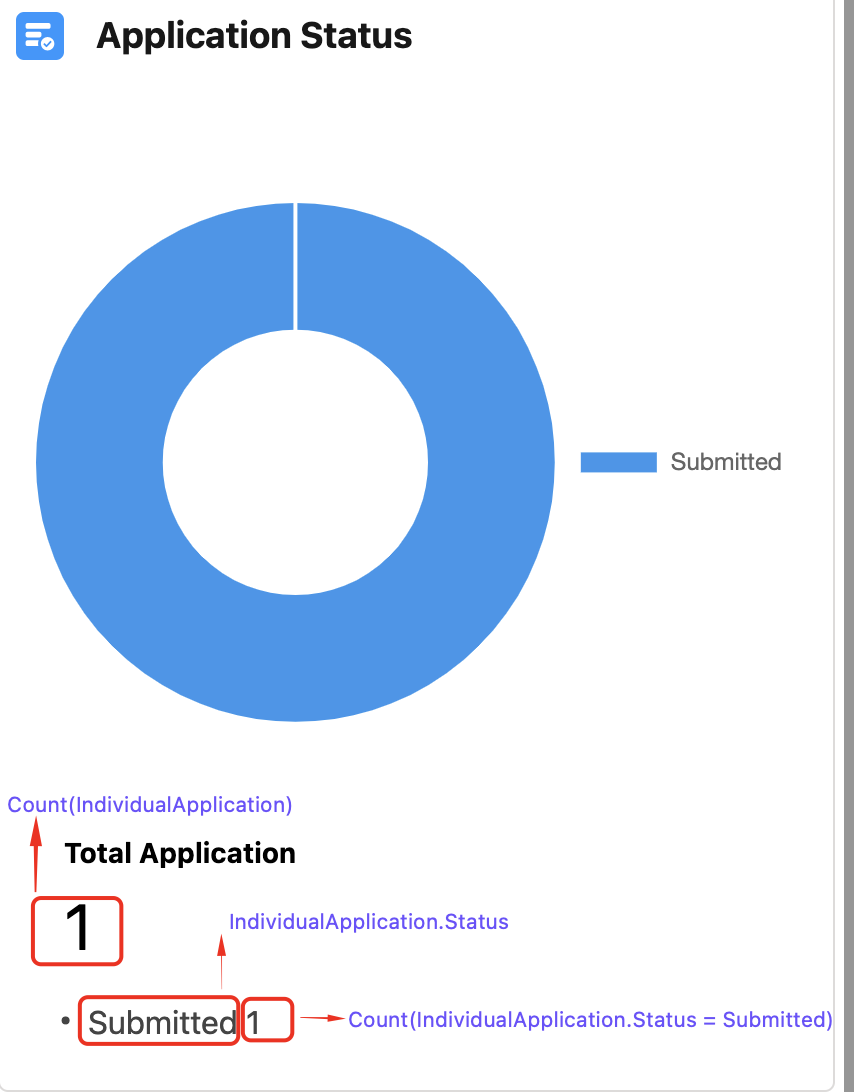

Application Status Chart FlexCard

Note
Note Program Summary, Application Status, and Overall Energy Savings are within the the container FlexCard: EnergyUtilitiesPMCMainContainer.
Parent FlexCard Child FlexCards Data Source

EnergyUtilitiesPMCApplicationsStatusChart

EnergyUtilitiesPMCEnergySavingsChartData

EnergyUtilitiesPMCEnergySavingsChartSummary

Integration Procedure: EnergyUtilitiesPMC_RetrieveDashboardData

Overall Energy Savings

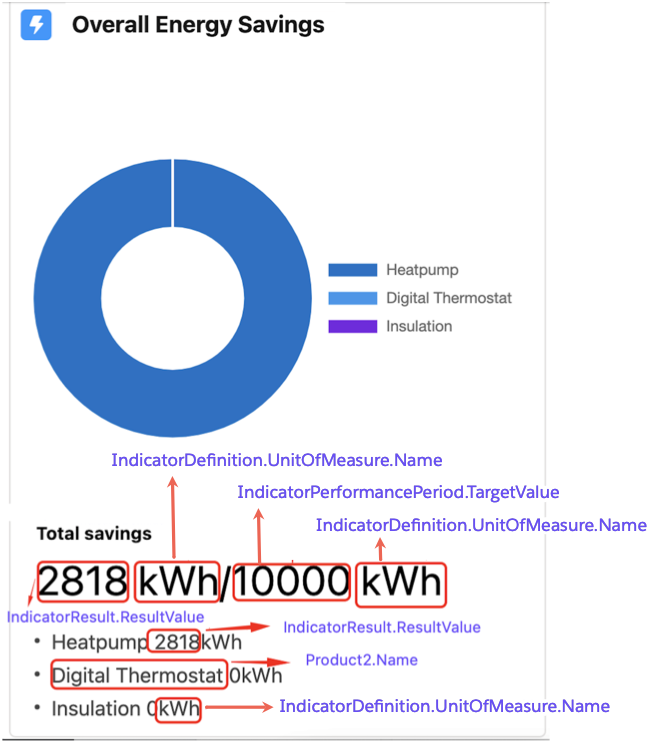

Overall Energy Savings FlexCard

Note
Note Program Summary, Application Status, and Overall Energy Savings are within the container FlexCard: EnergyUtilitiesPMCMainContainer.
Parent FlexCard Child FlexCards Data Source

EnergyUtilitiesPMCOverallEnergySavingChart

EnergyUtilitiesPMCEnergySavingsChartData

EnergyUtilitiesPMCEnergySavingsChartSummary

Integration Procedure: EnergyUtilitiesPMC_RetrieveDashboardData

Program Details

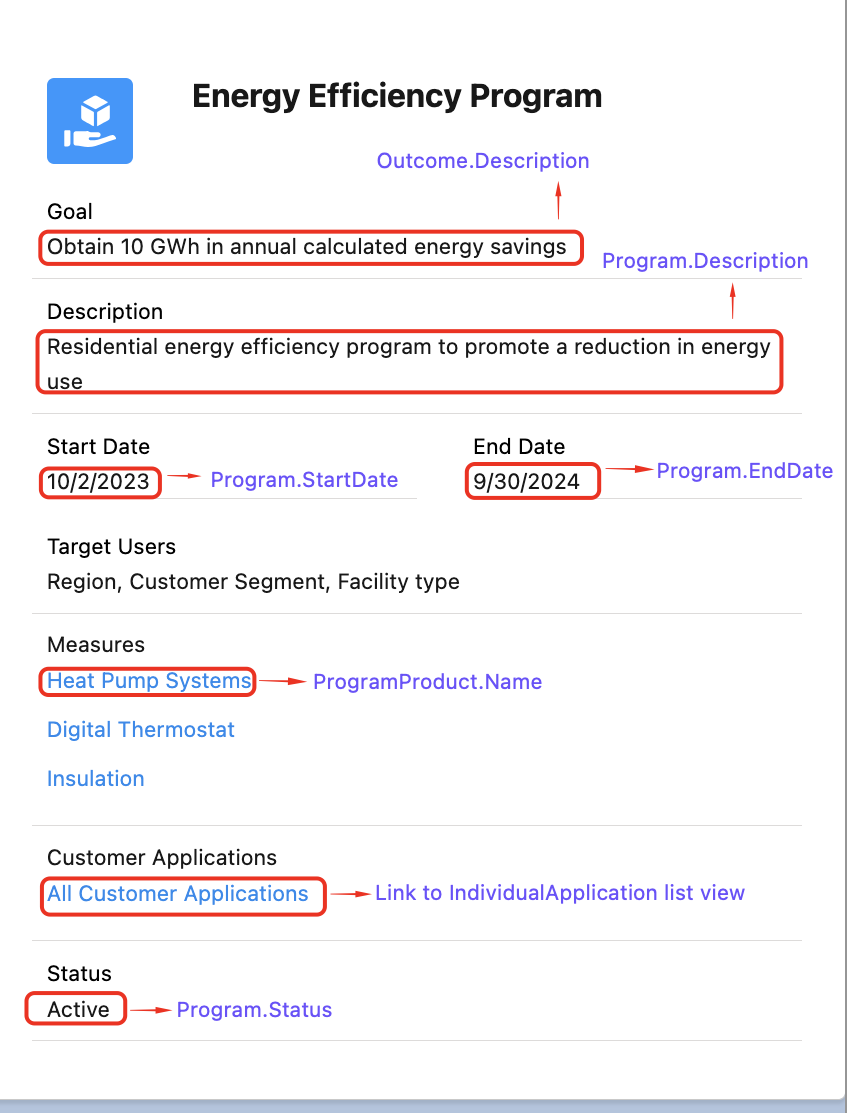

Program Details FlexCard

Parent FlexCard Child FlexCards Data Source

EnergyUtilitiesPMCLeftPanelContainer

EnergyUtilitiesPMCProgramDetail

EnergyUtilitiesPMCProgramMeasure

Integration Procedure: EnergyUtilitiesPMC_GetProgramDetails

Individual Application Header

Individual Application Header FlexCard

FlexCard Data Source
EnergyUtilitiesPMCIndividualApplicationHeader EnergyUtilitiesPMC_GetHeaderDetailsForApplication

Individual Application Details

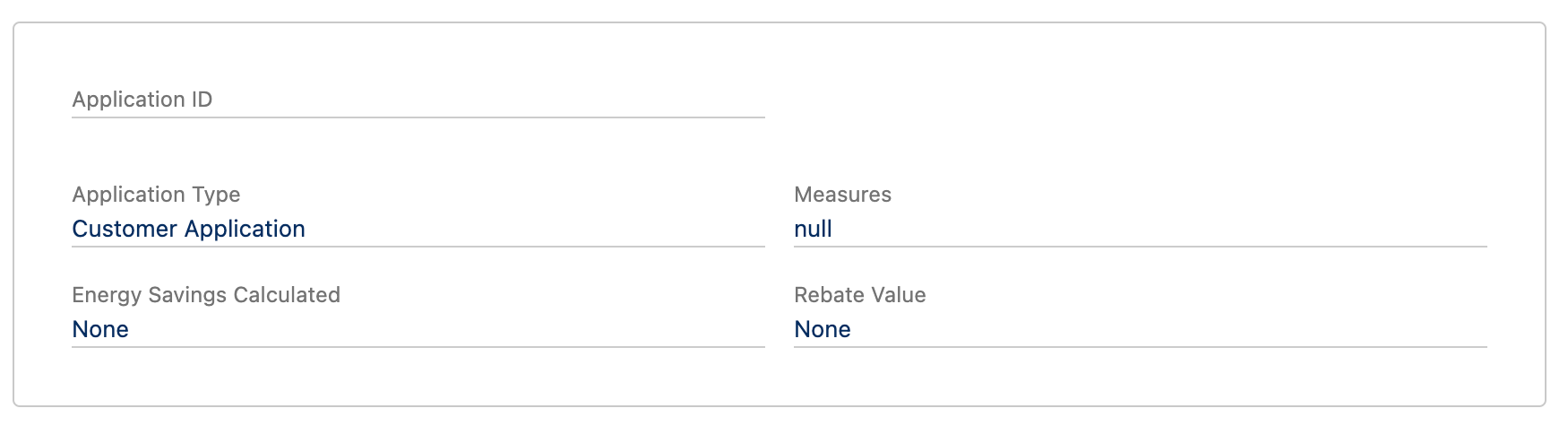

Individual Application Details FlexCard

FlexCard Data Source
EnergyUtilitiesPMCIndividualApplicationDetails EnergyUtilitiesPMC_GetApplicationDetails
