Creating Context Mappings

Context mappings allow the rules engine to compare context dimensions to data stored in an sObject, calculated using a function, or entered during design time within a specified context scope. Create context mappings in Vlocity Product Console.

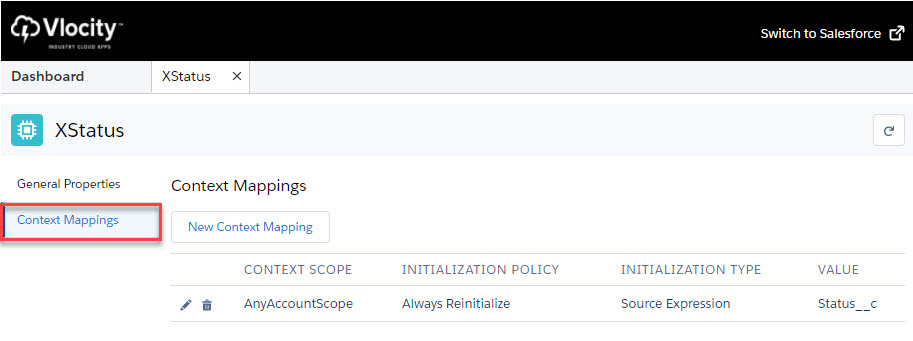

Context scopes and context dimensions link to context mappings. You can access the context mappings facet when editing a context scope or a context dimension.

Accessing Context Mappings From a Context Scope

1. In Vlocity Product Console, in the Rules list, next to Context Dimension or Context Scope, click Search.
2. Find the context dimension or the context scope for which to make a context mapping.
3. Click Edit to open the context mapping for editing.
4. In the sidebar, click Context Mappings.
5. In the Context Mappings facet, click New Context Mapping.
6. In the New Context Mapping dialog box, enter the following information:

   Property	Value	Description
   Context Dimension	Select a context dimension using the Context Dimension Lookup dialog box.	Specifies the context dimension linked to this context mapping. This property only appears when creating a context mapping from a context scope.
   Context Scope	Select a context scope using the Context Scope Lookup dialog box.	Specifies the context scope linked to this context mapping. This property only appears when creating a context mapping from a context dimension.
   Initialization Policy	Do Not Reinitialize Always Reinitialize	Specifies how frequently context mapping values are refreshed in the session cache. Salesforce recommends Always Reinitialize. For entity scopes, the rules engine always reinitializes by default, essentially ignoring this selection. However, for session context scopes, the initialization policy is honored.
   Initialization Type	Scope SObject Source Expression Function Type In	Specifies where to retrieve the data to use to compare to the rule condition. Supported initialization types are: Scope SObject is reserved for future functionality. Function enables you to select a function to perform complex logic. For more information about functions, see Functions for Rules. Type In enables you to enter free-form string values.
   Source Expression	String value	Specifies the sObject API name from the context scope. When referring to a field on a custom object using a custom lookup, use __r instead of __c as the suffix syntax, for example, ContractId__r.ContractTerm using the Asset context scope. Appears when the Initialization Type is set to Source Expression.
   Vlocity Function	Select a function using the Function Lookup dialog box.	Appears when the Initialization Type is set to Function.
   Type In Value	String value	Appears when the Initialization Type is set to Type In.
   Sequence	Numeric value	Specifies the context mapping sequence. Use a sequence of 10, 20, 30, and so on. to allow for easier sequence changes in the future.
   Active	Click to select	The rules engine evaluates only active context mappings.
   Effective From Date	Select a date	The start date of the period during which rules can use the context mapping.
   Effective Until Date	Select a date	The end date of the period during which rules can use the context mapping.

7. Click Save.

   After creating a context mapping, the next step is to create a context rule. For more information about creating context rules, Creating Context Rules.

Using Source Expressions

You can create context mappings to specific data stored in sObjects using the source expression property. Using source expressions, you can trace the object hierarchy to access data in objects related by Salesforce lookups.

• Use API names of related sObjects and fields when writing source expressions.

• When referring to a field on a custom object using a custom lookup, use __r instead of __c as the suffix syntax, e.g., ContractId__r.ContractTerm using the Asset context scope.

Tracing the Object Hierarchy using Source Expressions

If the Context Scope is OrderScope and the Source Expression is RecordType.Name, the object hierarchy follows:

• OrderScope (Root Scope)
• Account (Second-Level Scope)
• RecordType (Related Object)
• Name (Field)

Note

For Initialization Type set as Source Expression, the source expression fields refer to the Context Scope, meaning:

• If the root scope is OrderScope, the API invocation only supports: Order.Account.RecordType.Name. It does not support Quote or Opportunity contexts.
• If the root scope is AnyScope, the evaluated expression depends on the invoking API’s runtime context:

  Order Context: Order.Account.RecordType.Name

  Quote Context: Quote.Account.RecordType.Name

  Opportunity Context: Opportunity.Account.RecordType.Name

The final expression depends on the runtime context and the field relationship to the scope object in the source expression

Using Source Expressions to Map to Virtual Objects

You can also create context mappings to data in virtual objects. Similar to context mappings for regular sObjects, you write source expressions to describe where the rules engine looks for the data. However, when creating mappings to virtual objects, note the following differences.

• Create context mappings to attributes on the virtual object.

• Use the attribute names when writing source expressions.

• Account, Order, Quote and Opportunity are the only sObjects currently supported.

• The ANY attribute is similar to the ANY context scope. For more information, see Any Context Scope.

• For the ANY, Account, Order, Quote and Opportunity attributes, you can refer to fields on those sObjects using the format of [attribute name].[API field name].

• You can't trace the object hierarchy to access data in related objects.

Using Source Expressions for Virtual Objects

A Virtual Context Scope includes attributes that either map directly to context mappings or map to fields that then link to context mappings. Use the format:

[attribute name].[API field name]

For example:

• Account.RecordType.Name

• Order.Account.Name

• Quote.Account.RecordType.Name

Using Source Expressions for Virtual Objects
